Placard Installation, Interior
100937-00

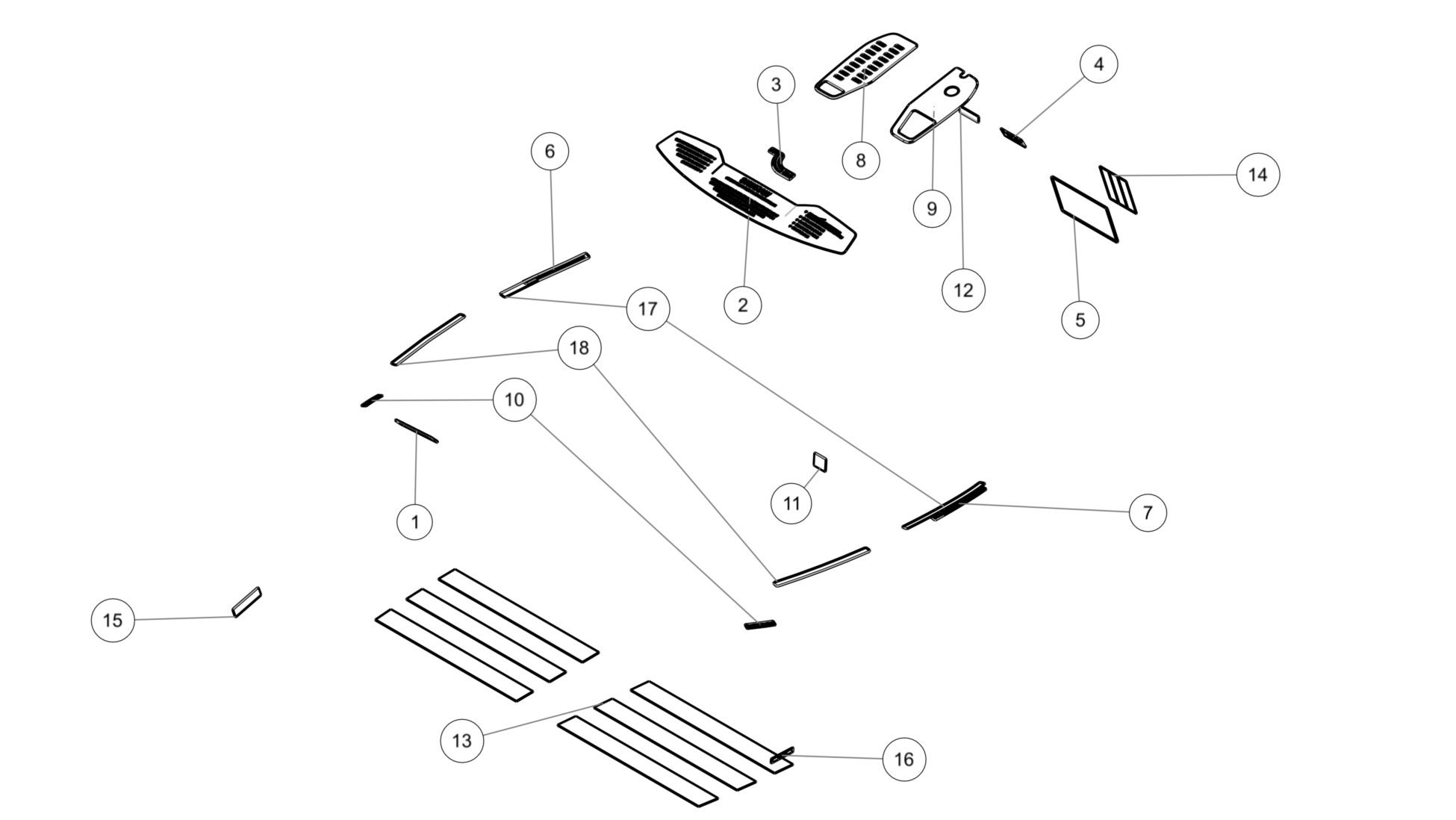

Interior placard installations.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA010229 | PLACARD, LOGO, RIGHT IP TOP | 1 | Each | |
2 | ICA008288 | PLACARD, OVERHEAD, CANOPY | 1 | Each | |
3 | ICA008289 | PLACARD, OPEN, CANOPY HANDLE, INTERIOR | 1 | Each | |
4 | ICA008337 | PLACARD, BAGGAGE AREA WARNING | 1 | Each | |
5 | ICA014785 | DOCUMENT HOLDER, AERO PHOENIX | 1 | Each | Included in ME000768 (see PANEL INSTL, BAGGAGE COMPARTMENT) |
6 | ICA008870 | PLACARD, SECURE LOOSE OBJECTS, CANOPY FRAME, RH | 1 | Each | |
7 | ICA008878 | PLACARD, SECURE LOOSE OBJECTS, CANOPY FRAME, LH | 1 | Each | |
8 | ICA009944 | PLACARD, FUSES, OVERHEAD CONSOLE | 1 | Each | |
9 | ICA008873 | PLACARD, FUEL SHUTOFF, OVERHEAD CONSOLE | 1 | Each | |
10 | ICA008874 | PLACARD, KEEP HANDS CLEAR, CANOPY JAMB | 2 | Each | |
11 | ICA009287 | PLACARD, MAX AMPERAGE | 1 | Each | |
12 | ICA009314 | PLACARD, FUSELAGE STATION | 1 | Each | |
13 | 70070548808 | TAPE, SLIP-RESISTANT, MEDIUM RESILIENT, 2 INCH, BLACK, 3M | 108 | Inches | |
14 | F-9473PC | TAPE, ADHESIVE TRANSFER, 3M, 1X4 | 3 | Inches | |
15 | ICA009288 | PLACARD, DO NOT JUMP START | 1 | Each | |
16 | ICA008871 | PLACARD, PARKING BRAKE | 1 | Each | |
17 | ICA009727 | PLACARD, WARNING, WINDOW REMOVAL PROCEDURE | 2 | Each | |
18 | ICA009728 | PLACARD, WARNING, WINDOW INSTALLATION PROCEDURE | 2 | Each |
