Equipment and Furnishings, Panel, Baggage Compartment
100922-00

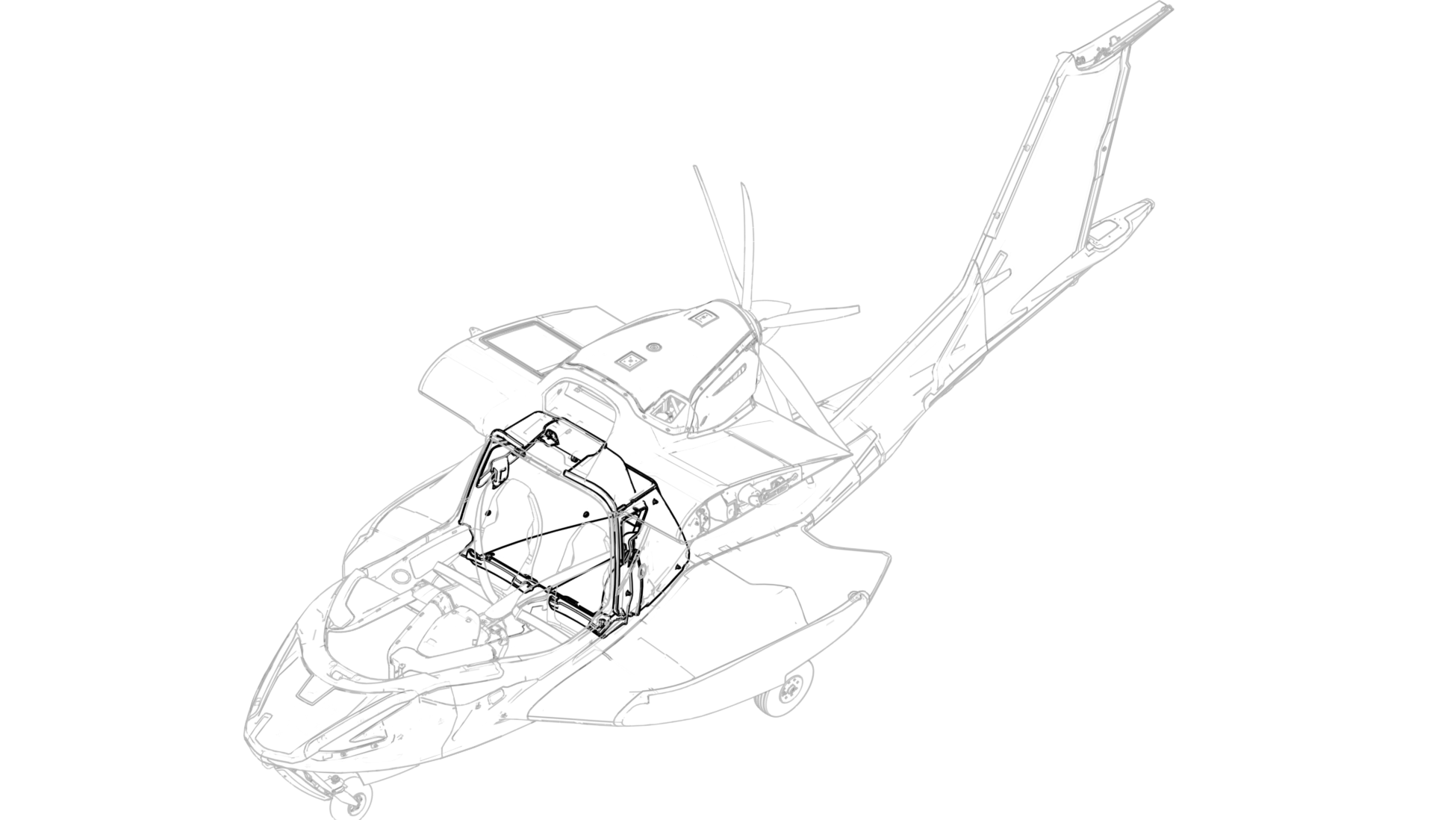

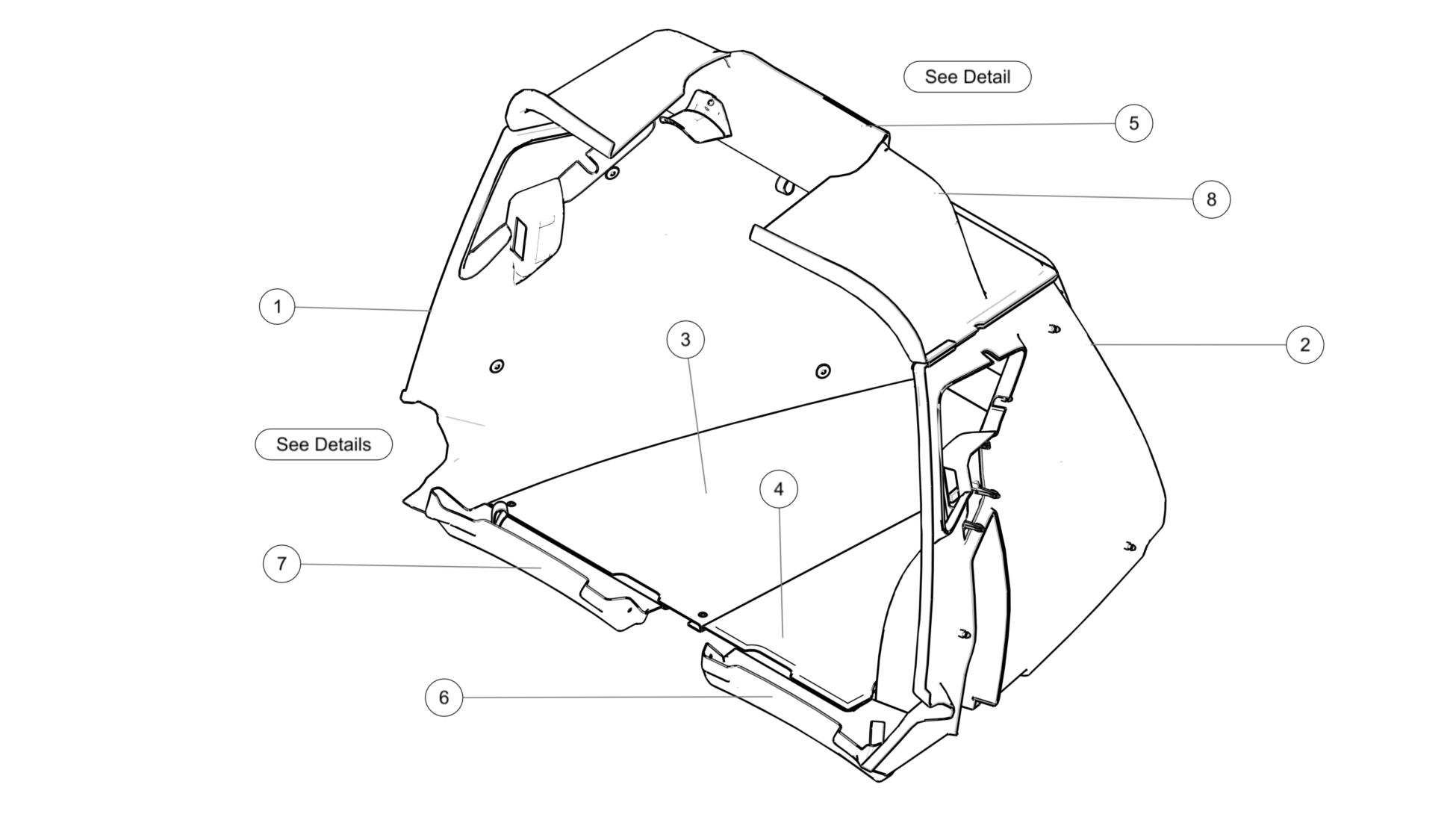

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011465 | PANEL ASSY, BAGGAGE SIDEWALL, RH SIDE | 1 | Each | |
2 | ICA011415 | PANEL ASSY, BAGGAGE SIDEWALL, LH SIDE | 1 | Each | |
3 | ME000739 | FLOOR,BAGGAGE, RH, SUBASSY | 1 | Each | |
4 | ME000738 | FLOOR, BAGGAGE, LH, SUBASSY | 1 | Each | |
5 | ME000201 | HEADLINER, SUBASSY | 1 | Each | |
6 | ME000820 | SEATBACK CLOSEOUT, AFT-LH, SUBASSY | 1 | Each | |
7 | ICA007967 | PANEL, SEATBACK CLOSEOUT, AFT-RH SIDE | 1 | Each | |
8 | ICA011467 | PANEL, HEADLINER, BAGGAGE | 1 | Each | Included in ME000201 |

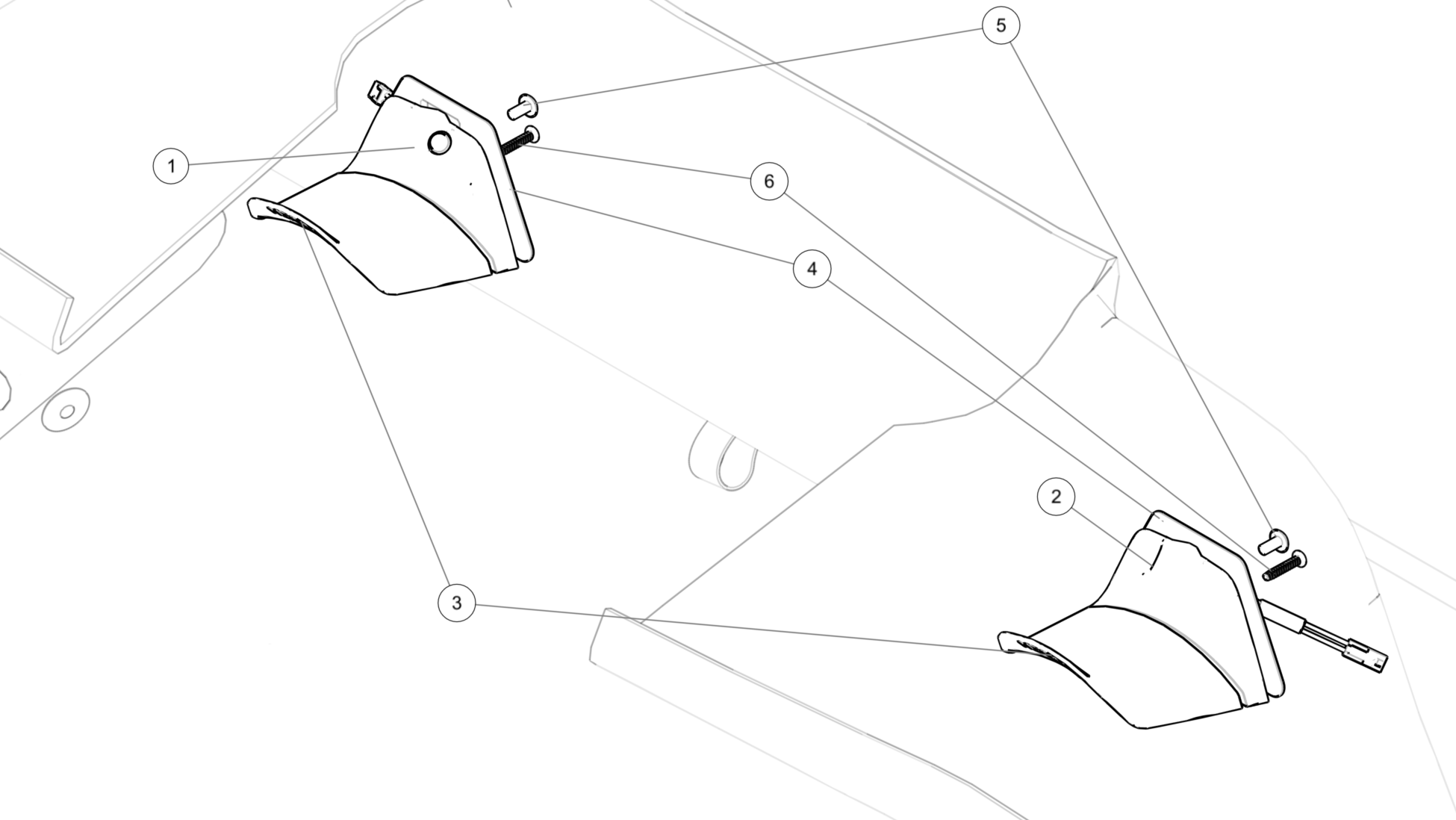

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA010378 | HEADPHONE HANGER, AFT-RH | 1 | Each | Included in ME000201; Part requires modification prior to installation - contact ICON for additional details |
2 | ICA010377 | HEADPHONE HANGER, AFT-LH | 1 | Each | Included in ME000201; Part requires modification prior to installation - contact ICON for additional details |
3 | ICA008490 | HEADPHONE HANGER, FWD | 2 | Each | Included in ME000201 |
4 | ICA009543 | STIFFENER, HEADLINER | 2 | Each | Included in ME000201 |
5 | 8C25MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.25 | 2 | Each | Included in ME000201 |
6 | 99461A315 | SCREW, THREAD-FORMING, PLASTIC, 6-19X.750 | 2 | Each | Included in ME000201 |

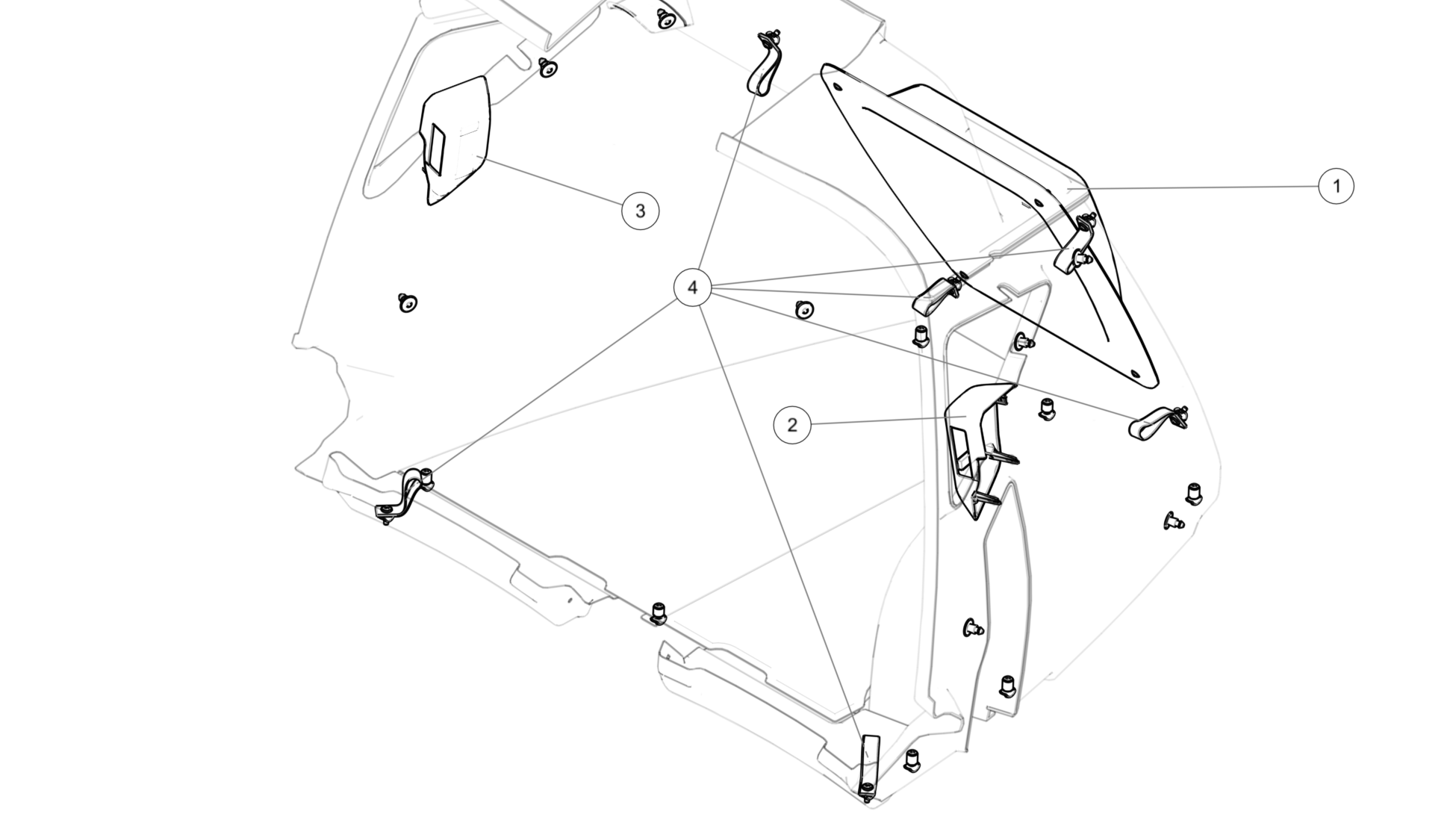

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000768 | PANEL, BAGGAGE, AFT BULKHEAD, SUBASSY | 1 | Each | Includes document holder See Placard Installation, Interior |
2 | ME000731 | COVER, SEAT BELT REEL, LH, SUBASSY | 1 | Each | |
3 | ME000730 | COVER, SEAT BELT REEL, RH, SUBASSY | 1 | Each | |
4 | USA129REVA | CARGO NET ANCHOR LOOP | 6 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 10F75MTT3-50TL | SCREW, MACH TH, 6LOBE, CRES, 10-32X.750X.500 | 4 | Each | |
2 | 08800416-C14 | CLIP, RIBLOK, 1.5-6.5MM PANEL | 6 | Each | |
3 | ICA009180 | BUMPER, COVER TO REEL | 4 | Each | Included in ME000730/ME000731 |
4 | NAS47G3C-040 | SPACER, UNTHREADED, EPOXY,.197X.500X.400 | 2 | Each | Included in ME000739 |

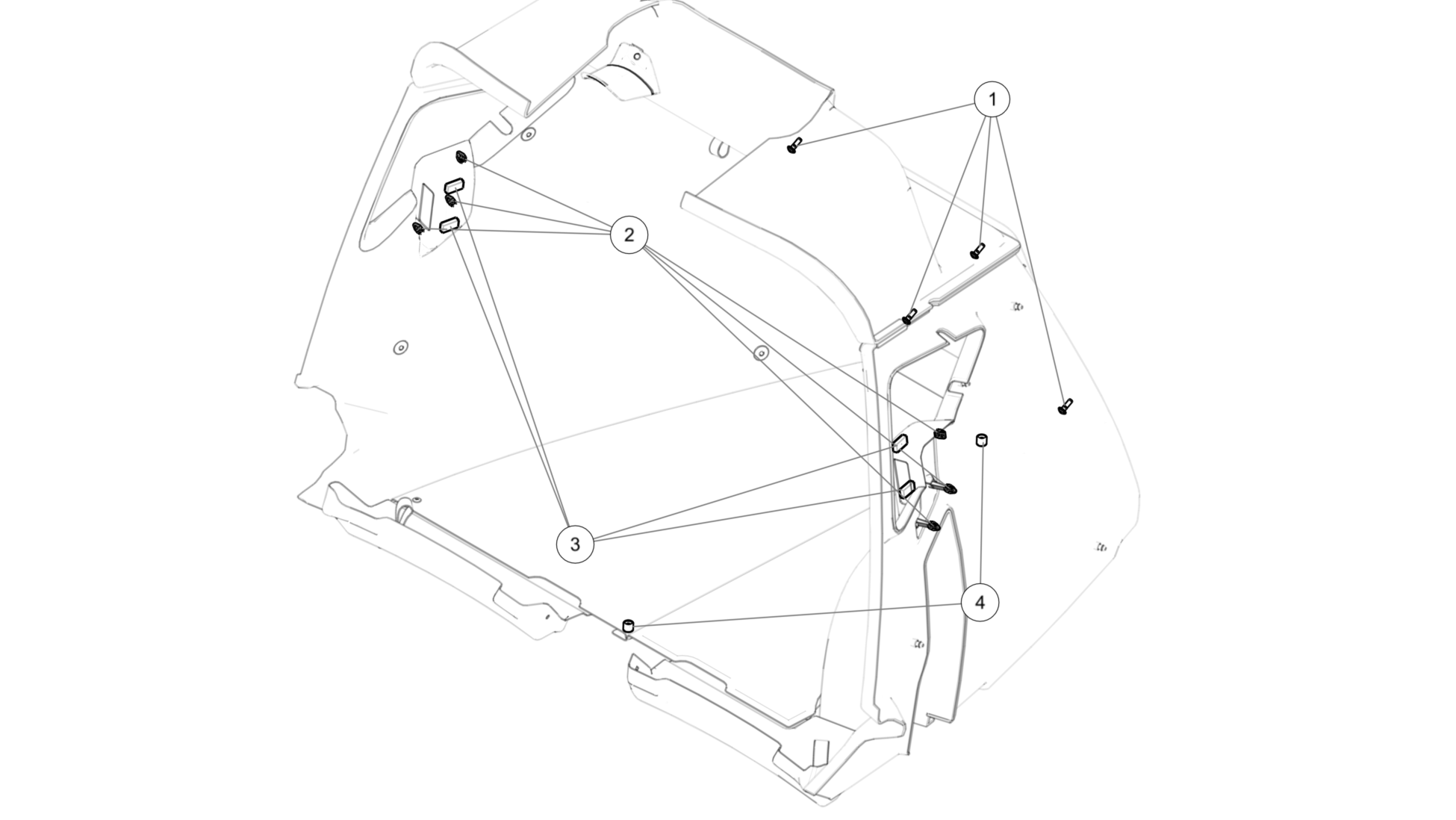

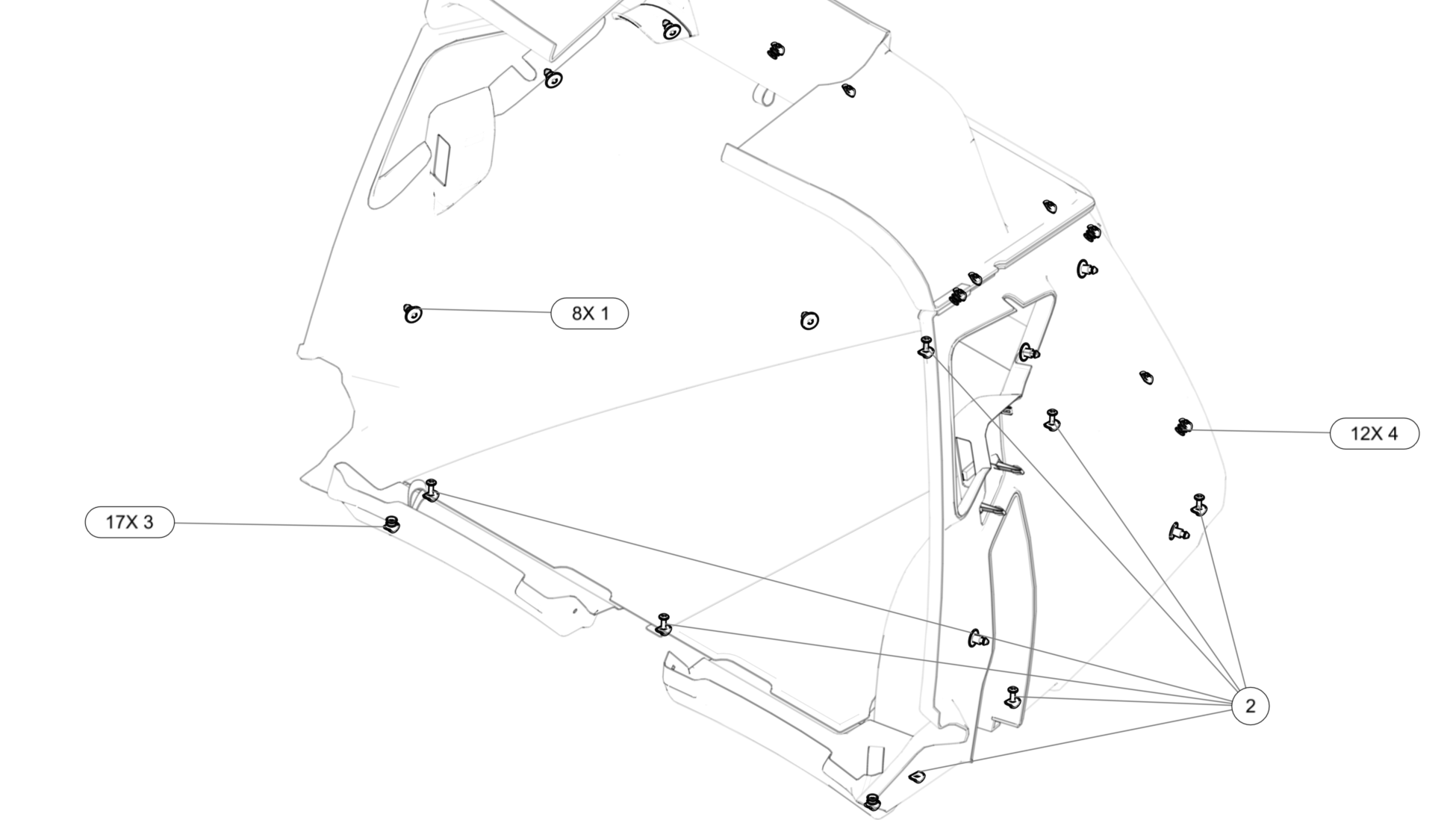

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | A20739 | CLIP, PUSH-TYPE, 10MM STEM, 9MM HOLE | 8 | Each | |
2 | 10F100MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 10-32X1.00 | 7 | Each | |
3 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 17 | Each | |
4 | ICA009586 | BUSHING, FLANGE, CRES, .190X.247X.090 | 12 | Each |

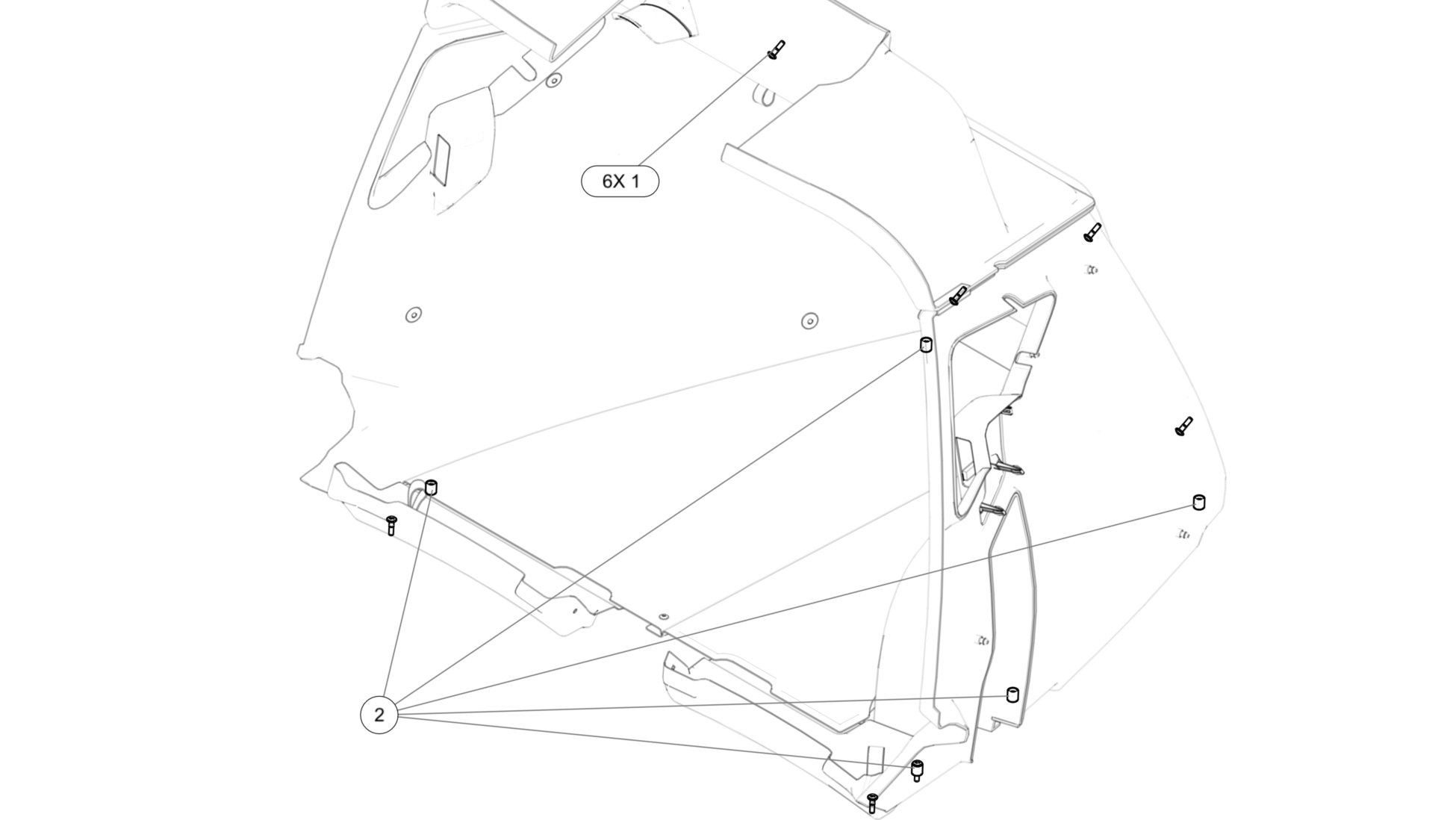

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 10F87MTT3/50TL | SCREW, MACH TH, 6LOBE, CRES, 10-32X.875 | 6 | Each | |
2 | NAS47G3C-050 | SPACER, UNTHREADED, EPOXY,.197X.500X.500 | 5 | Each | (2x) Included in ME000739 (2x) Included in ME000739 (1x) Included in ME000820 |
