Doors and Windows, Canopy
100880-00

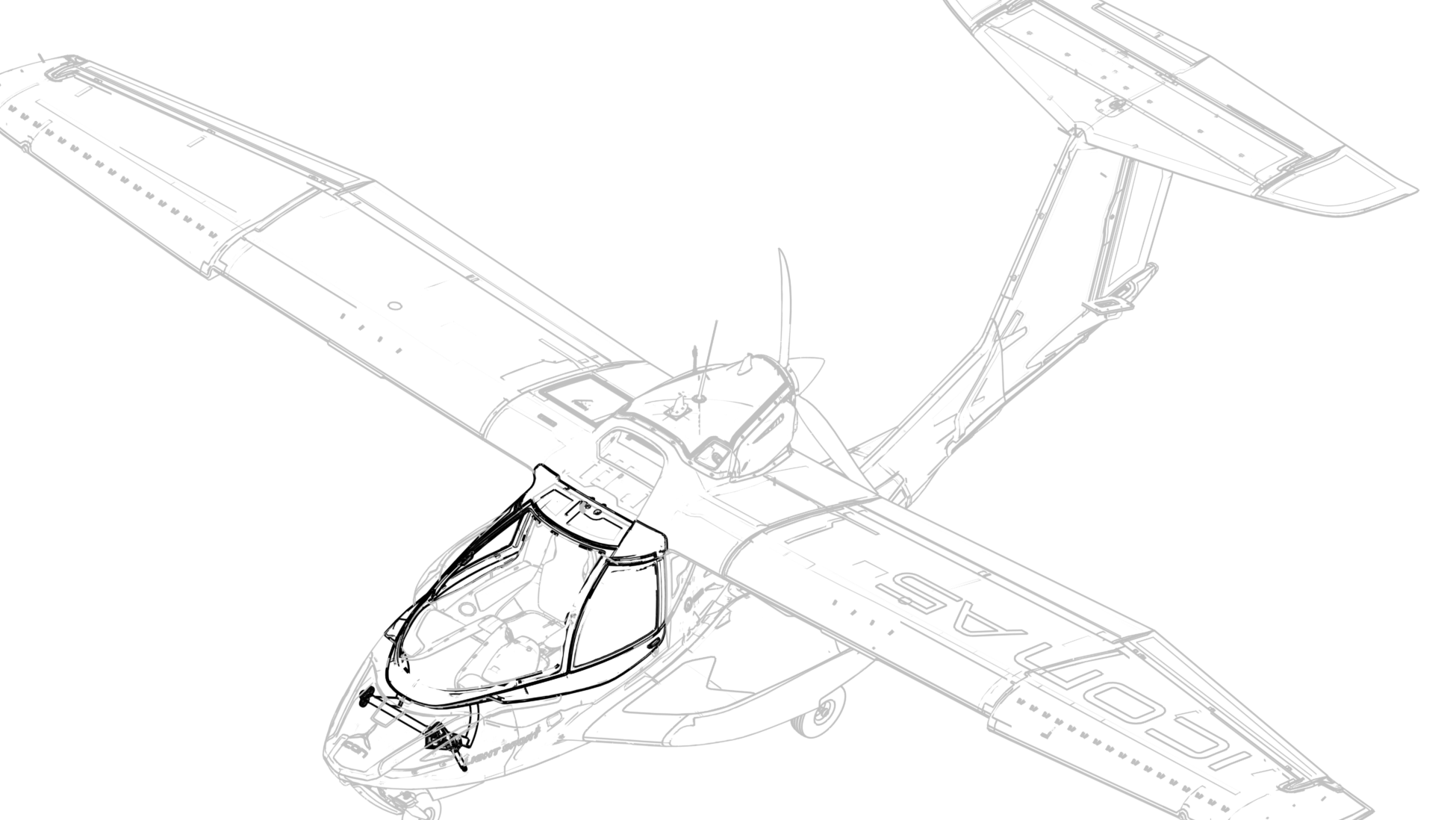

Canopy installation onto fuselage.

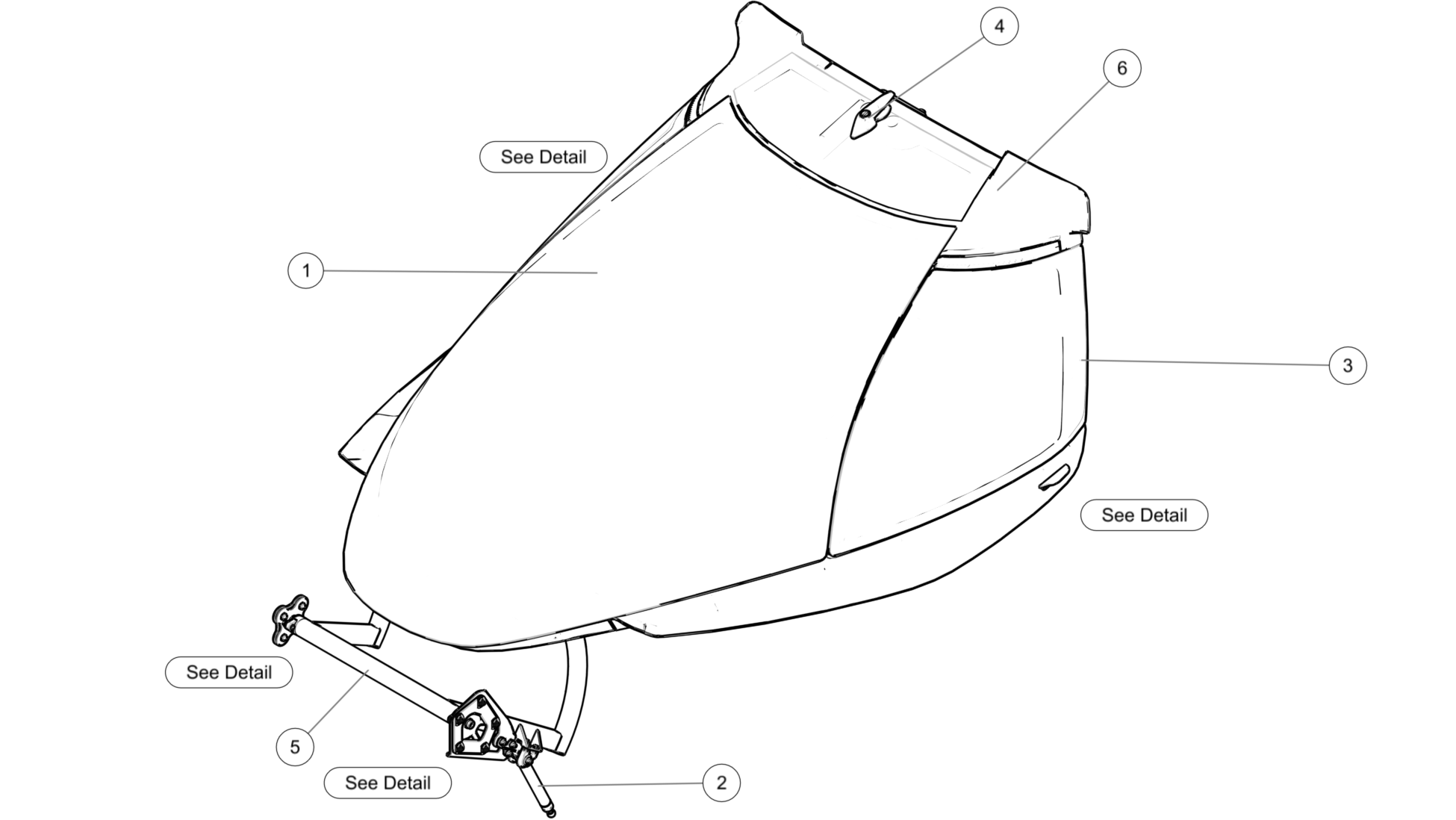

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA000328 | CANOPY TRANSPARENCY INSTL | 1 | Each | See Related Information |
2 | ICA011685 | GAS STRUT, CANOPY, 16-4-174-140-A0M8-B307-667N | 1 | Each | |
3 | ICA000329 | SIDE WINDOW INSTL, REMOVABLE, RH & LH | 1 | Each | See Related Information |
4 | ICA000283 | LATCH INSTL, CANOPY | 1 | Each | See Related Information |
5 | ICA005811 | HINGE WELDMENT, CANOPY | 1 | Each | |
6 | Contact ICON | CANOPY FRAME ASSY | 1 | Each |

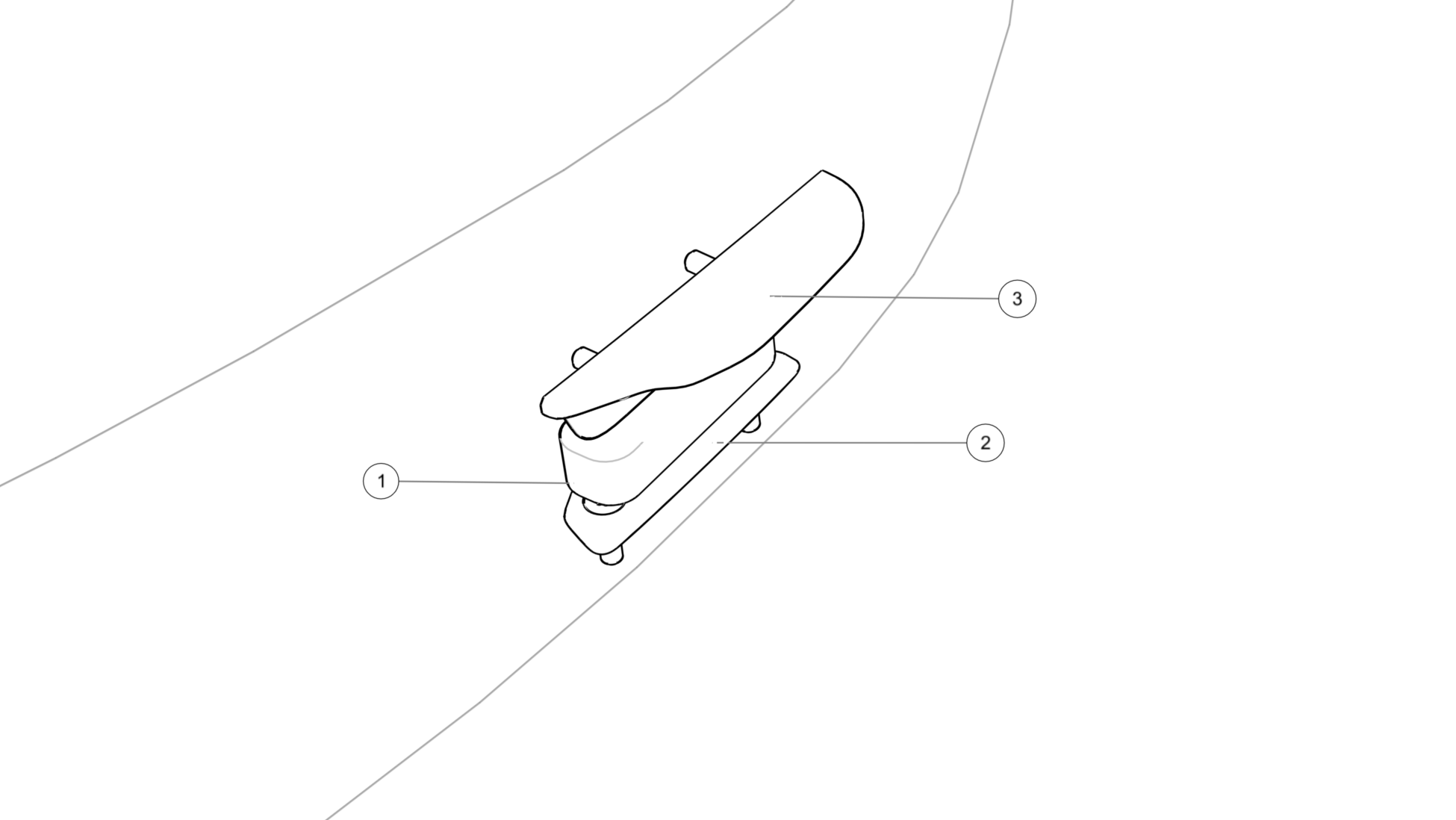

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA009761 | RECEPTACLE, CANOPY ALIGN PIN | 1 | each | |
2 | ICA001112 | PIN, ALIGNMENT, CANOPY FRAME | 1 | each | |
3 | ICA004111 | SIDE HANDLE, CANOPY, LH | 1 | Each |

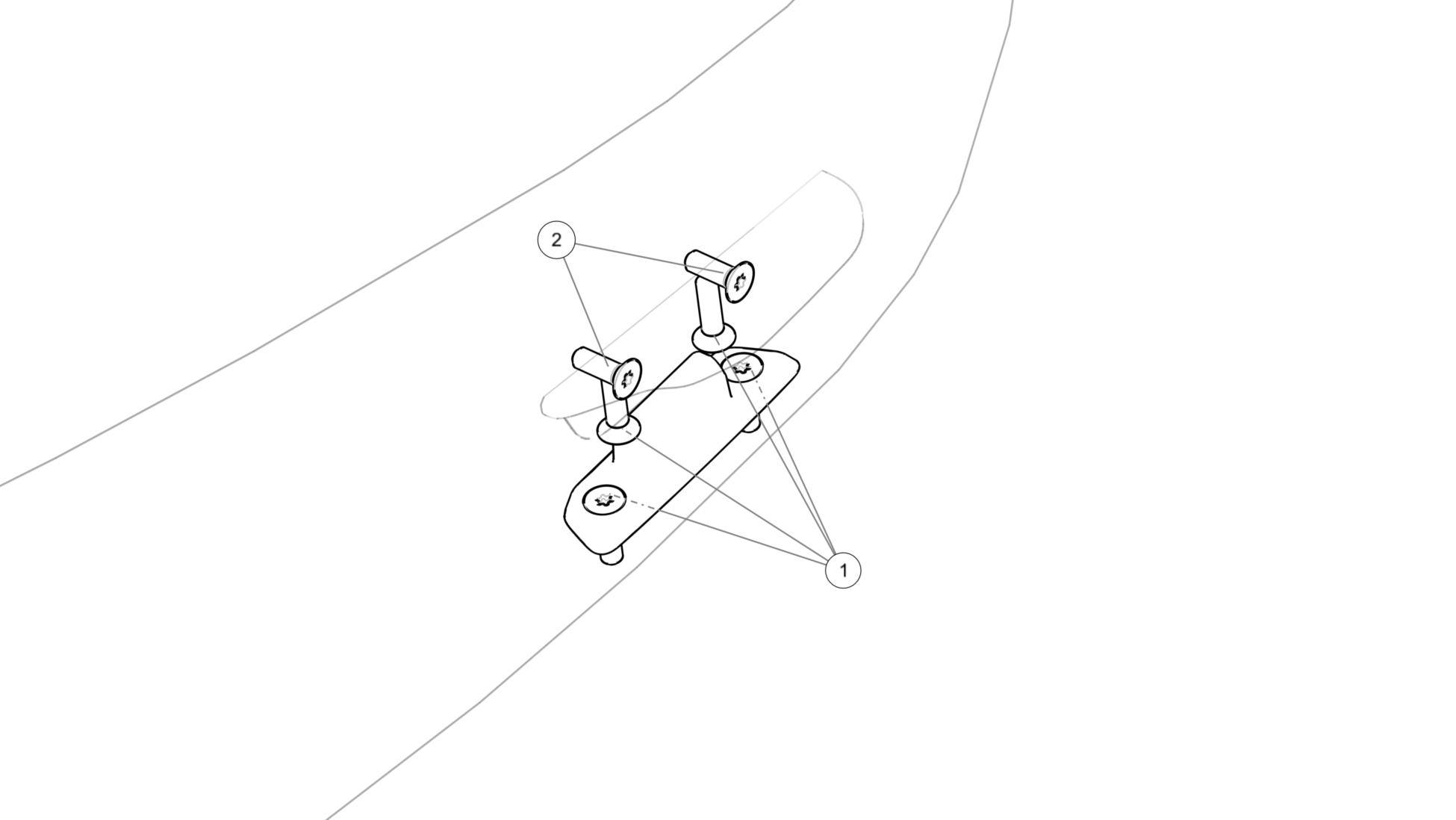

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C62MTF3/100 | SCREW, MACH FLH, 6LOBE, CRES, 8-32X.625 | 4 | each | |
2 | 8C50MTF3/100 | SCREW, MACH FLH, 6LOBE, CRES, 8-32X.500 | 2 | each |

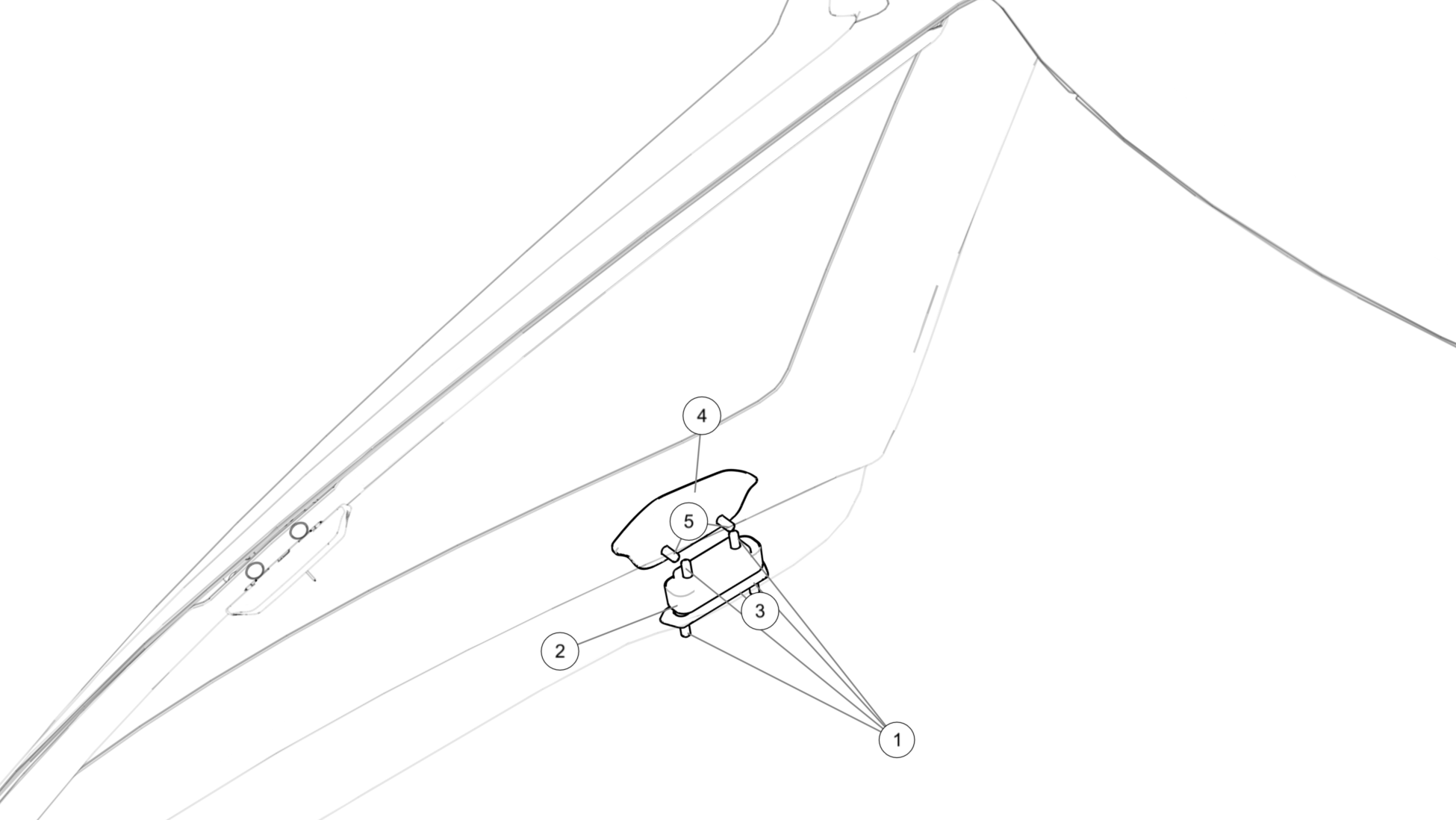

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C62MTF3/100 | SCREW, MACH FLH, 6LOBE, CRES, 8-32X.625 | 4 | each | |
2 | ICA009761 | RECEPTACLE, CANOPY ALIGN PIN | 1 | each | |
3 | ICA001112 | PIN, ALIGNMENT, CANOPY FRAME | 1 | each | |
4 | ICA004110 | SIDE HANDLE, CANOPY, RH | 1 | Each | |
5 | 8C50MTF3/100 | SCREW, MACH FLH, 6LOBE, CRES, 8-32X.500 | 2 | each |

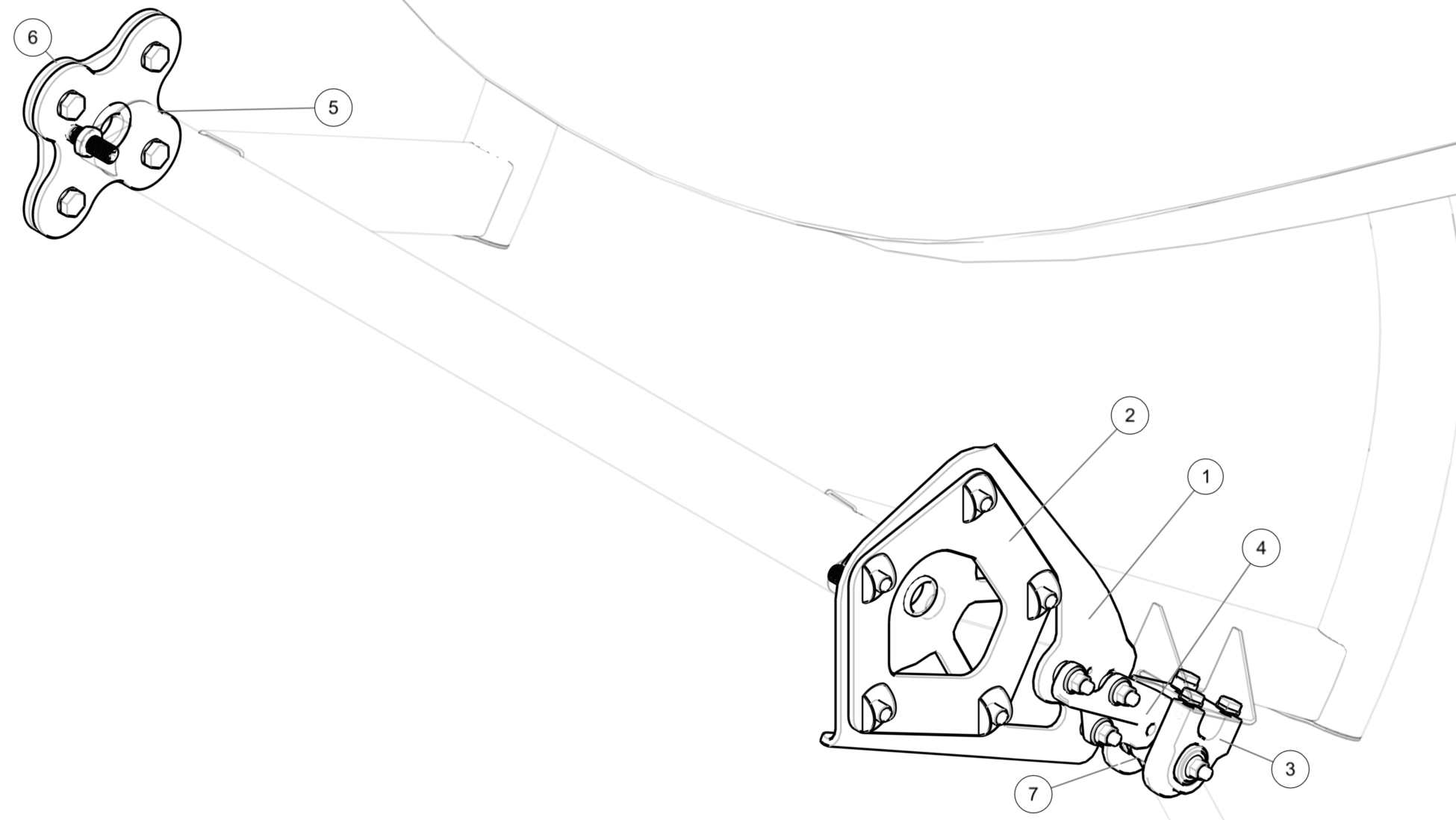

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA004108 | PLATE, BEARING, CANOPY HINGE, LH SIDE | 1 | Each | |
2 | ICA004109 | BACKING PLATE, FUSLG BRKT, CANOPY HINGE, LH SIDE | 1 | Each | |
3 | ICA004106 | YOKE, CANOPY STRUT | 1 | Each | |
4 | ICA004103 | CAM, CANOPY STRUT | 1 | Each | |
5 | ICA007453 | PLATE, BEARING, CANOPY HINGE, RH SIDE | 1 | Each | |
6 | ICA008176 | BACKING PLATE, FUSLG BRKT, CANOPY HNG, RH SIDE | 1 | Each | |
7 | ICA004105 | CLEVIS, CANOPY STRUT | 1 | each |

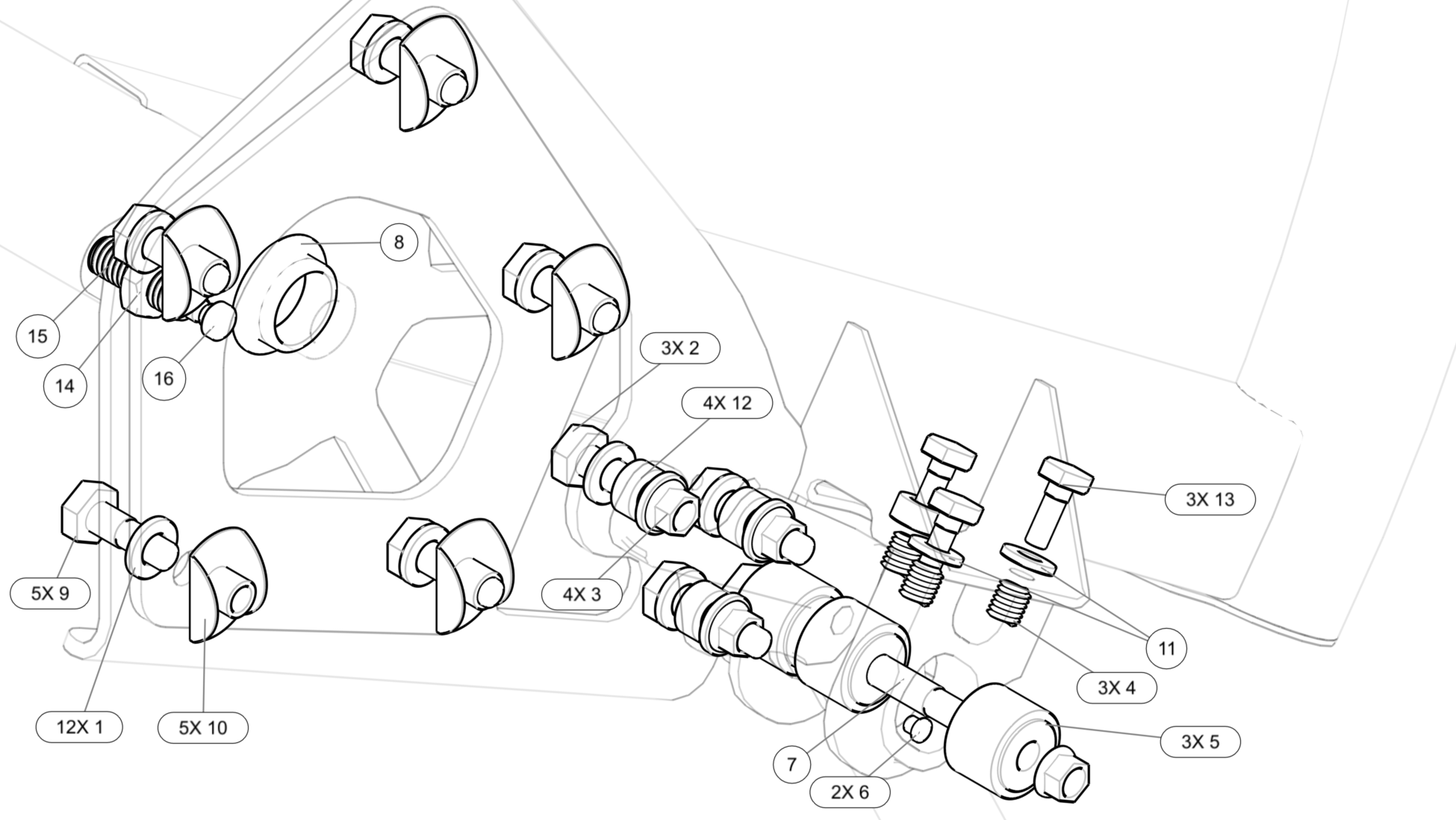

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | NAS1149C0463R | WASHER, FLAT, CRES, .250X.063, PSVT | 12 | Each | |
2 | AN4C7A | BOLT, MACH, CRES, .250-28X.438 | 3 | Each | |
3 | MS21043-4 | NUT, SLFLKG, RDC HEX, CRES, .250-28 | 4 | Each | |
4 | 1191-3CN285 | INSERT, HELICAL COIL, CRES, 10-32X.285 | 3 | each | |
5 | CYR34SCR | CAM FOLLOWER, CRES, .250X.750X.562 | 3 | each | |
6 | ICA004104 | CLEVIS BUTTON, CANOPY STRUT | 2 | each | |
7 | AN4C23A | BOLT, MACH, CRES, .250-28X1.94 | 1 | Each | |
8 | ICA007456 | BEARING, TORQUE-TUBE, CANOPY-HINGE | 1 | each | |
9 | AN4C6A | BOLT, MACH, CRES, .250-28X.313 | 5 | Each | |
10 | CN609CR4P | NUT PLATE, TWO LUG, ADH BND, .250-28 | 5 | Each | |
11 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 2 | Each | |
12 | NAS42DD8-12N | SPACER, PLAIN, AL, .260X.438X.188 | 4 | Each | |
13 | AN3C4A | BOLT, MACH, CRES, 10-32X.125 | 3 | Each | |
14 | 92101A430 | NUT, HEX HD, THIN, CRES, .312-18 | 1 | each | |
15 | 90291A583 | SET SCREW, NYLON TIP, CRES, .312-18X1.00 | 1 | each | |
16 | ICA004114 | ENDPLUG, Y-SETSCREW | 1 | each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA007456 | BEARING, TORQUE-TUBE, CANOPY-HINGE | 1 | each | |
2 | NAS1149C0463R | WASHER, FLAT, CRES, .250X.063, PSVT | 4 | Each | |
3 | AN4C6A | BOLT, MACH, CRES, .250-28X.313 | 4 | Each | |
4 | CN609CR4P | NUT PLATE, TWO LUG, ADH BND, .250-28 | 4 | Each | |
5 | 90291A583 | SET SCREW, NYLON TIP, CRES, .312-18X1.00 | 1 | each | |
6 | 92101A430 | NUT, HEX HD, THIN, CRES, .312-18 | 1 | each | |
7 | ICA004114 | ENDPLUG, Y-SETSCREW | 1 | each |

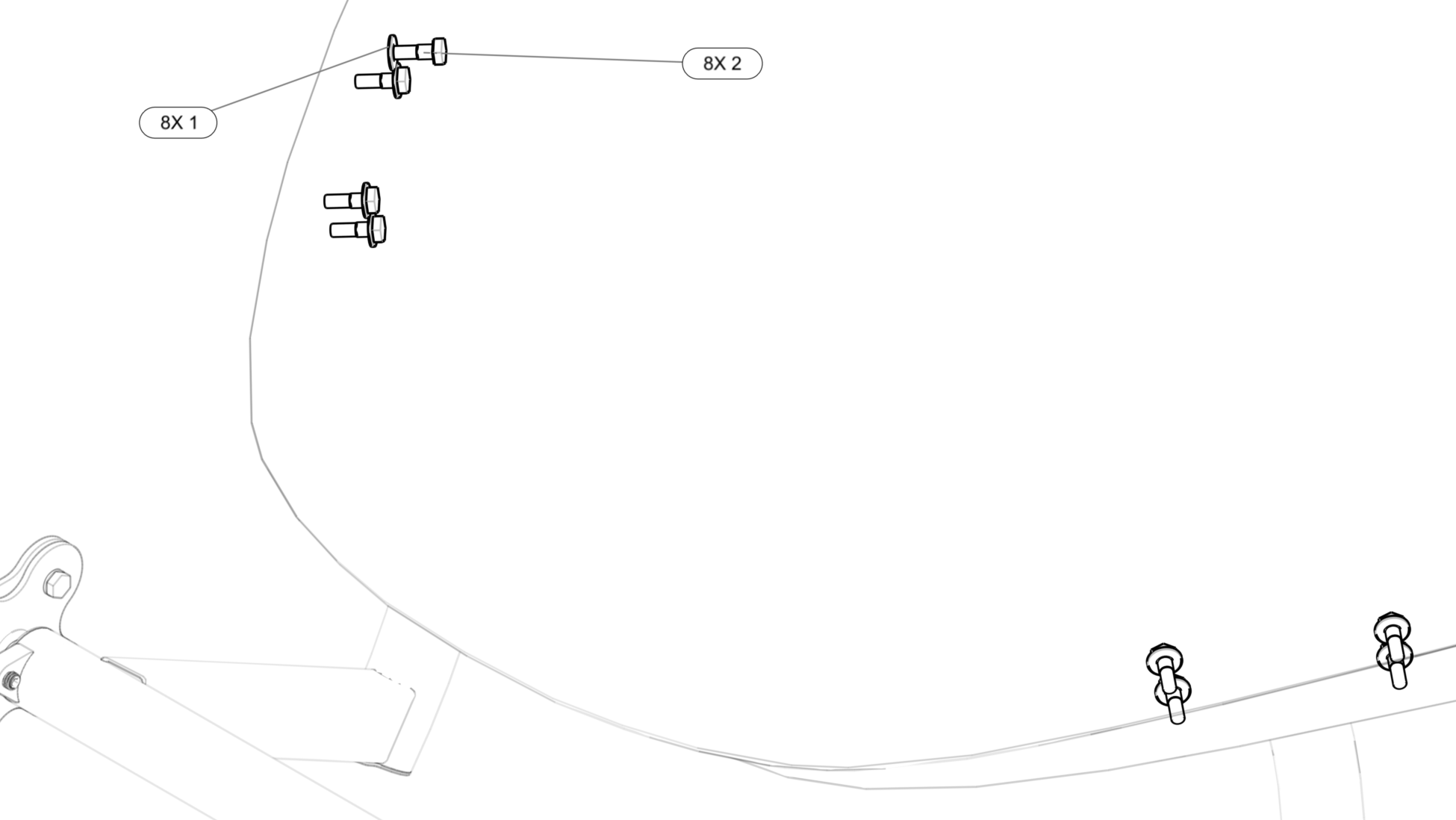

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 91950A029 | WASHER, FLAT, SAE TYPE A, CRES, .281X.625X.050 | 8 | each | |
2 | AN4C6A | BOLT, MACH, CRES, .250-28X.313 | 8 | Each |
