Doors and Windows, Side Window, Removable, RH and LH
100883-00

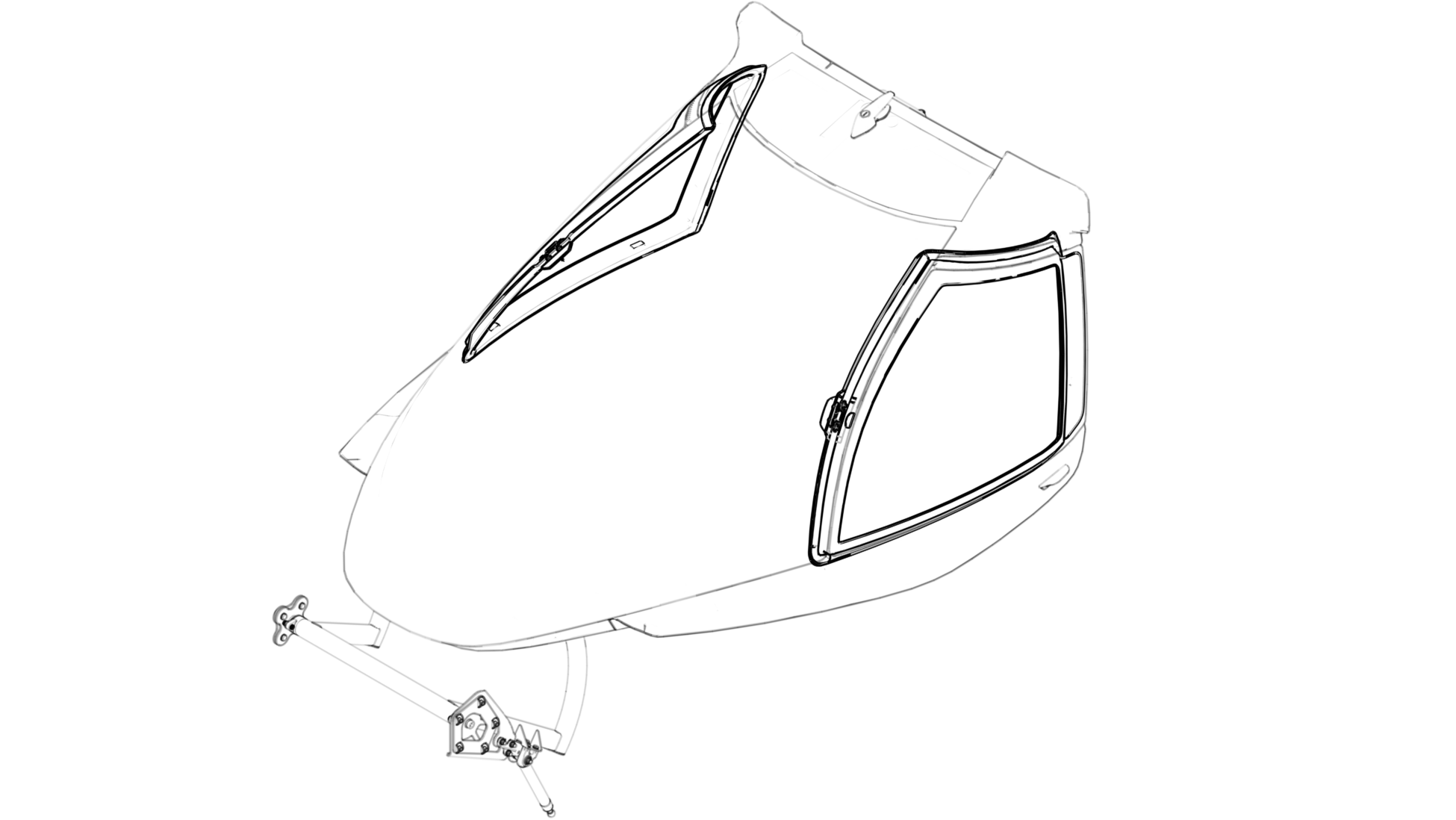

Removable side window installations.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000913 | PAINTED, SIDE WINDOW FRAME, LH | 1 | Each | Does not include transparency. See Doors
and Windows, Canopy, Transparency |
2 | ME000911 | PAINTED, SIDE WINDOW FRAME, RH | 1 | Each | Does not include transparency. See Doors
and Windows, Canopy, Transparency |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA008461 | STANDOFF, TAPERED PLATE, 15DEGX.095 | 2 | Each | |
2 | ICA014166 | PIVOT PLATE, LATCH, SIDE WINDOW | 1 | Each | |
3 | ICA008460 | STANDOFF, TAPERED PLATE, 33DEGX.275 | 1 | Each | |
4 | ICA014165 | PLATE, LATCH, SIDE WINDOW | 1 | Each |

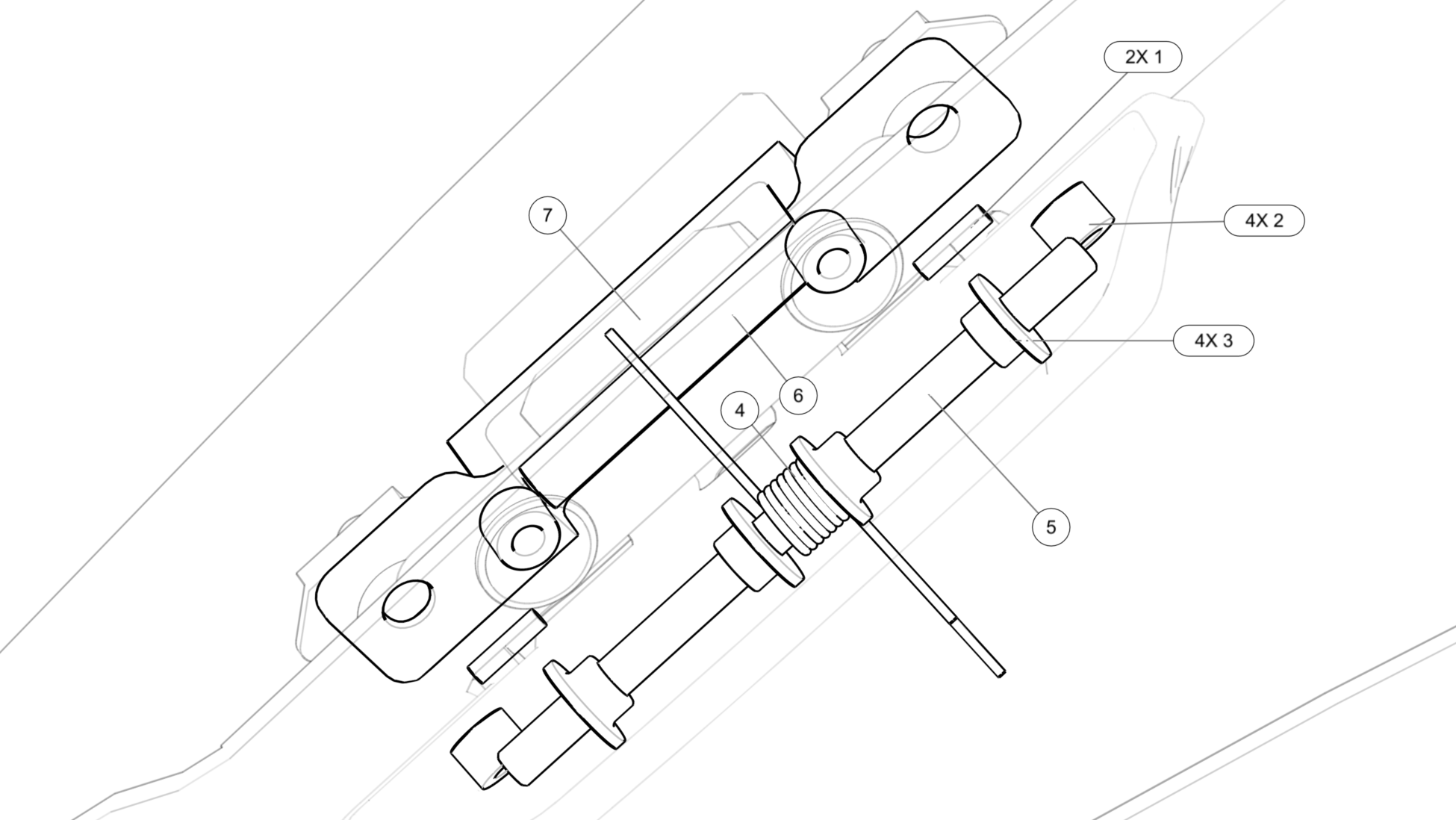

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | MS16562-190 | PIN, SLOTTED, .063 X .250 | 2 | Each | |
2 | MS21209-C0610 | INSERT, SCREW THREAD, LOCKING, CRES, #6-32 X .138 | 4 | Each | |
3 | ICA014552 | BEARING, SLEEVED, FLANGED, .125 X .188 X .125 | 4 | Each | |
4 | ICA014171 | SPRING, TORSION, SIDE WINDOW | 1 | Each | |
5 | ICA014553 | PIN, DOWEL, CRES, .125 X 2.25 | 1 | Each | |
6 | ICA014167 | STRIKE PLATE, LATCH, SIDE WINDOW | 1 | Each | |
7 | ICA014168 | ROLLER, STRIKE PLATE, SIDE WINDOW LATCH | 1 | Each |

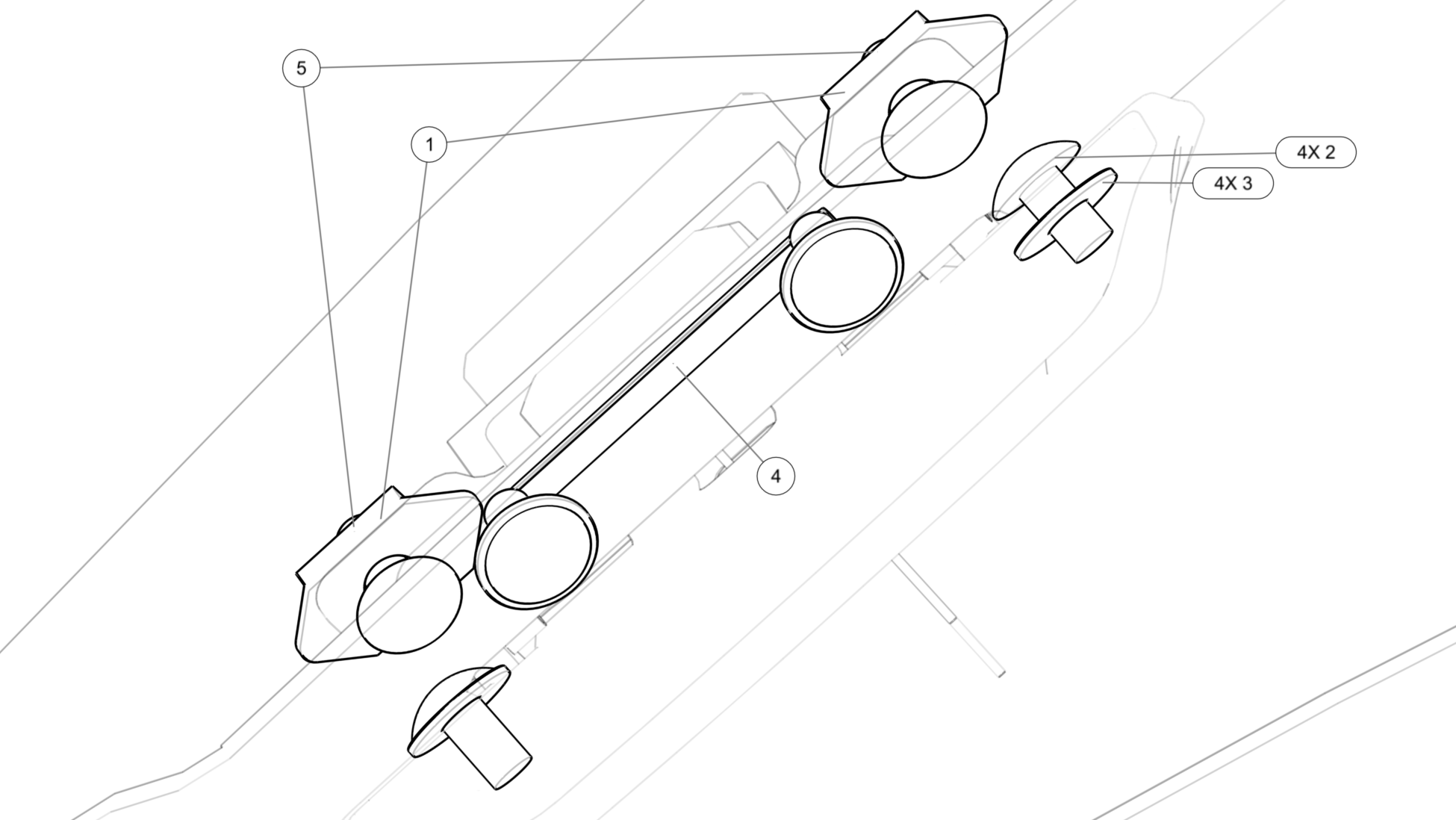

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CN614CR06P | NUT PLATE, MINIATURE, FLOATING, 6-32 | 2 | Each | |
2 | 6C25MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 6-32X.250 | 4 | Each | |
3 | NAS1149CN616R | WASHER, FLAT, CRES, #6X.016, PSVT | 4 | Each | |
4 | MS171506 | SPRING PIN, SLOTTED, CRES, .094 X 1.25 | 1 | Each | |
5 | 6C37MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 6-32X.375 | 2 | Each |

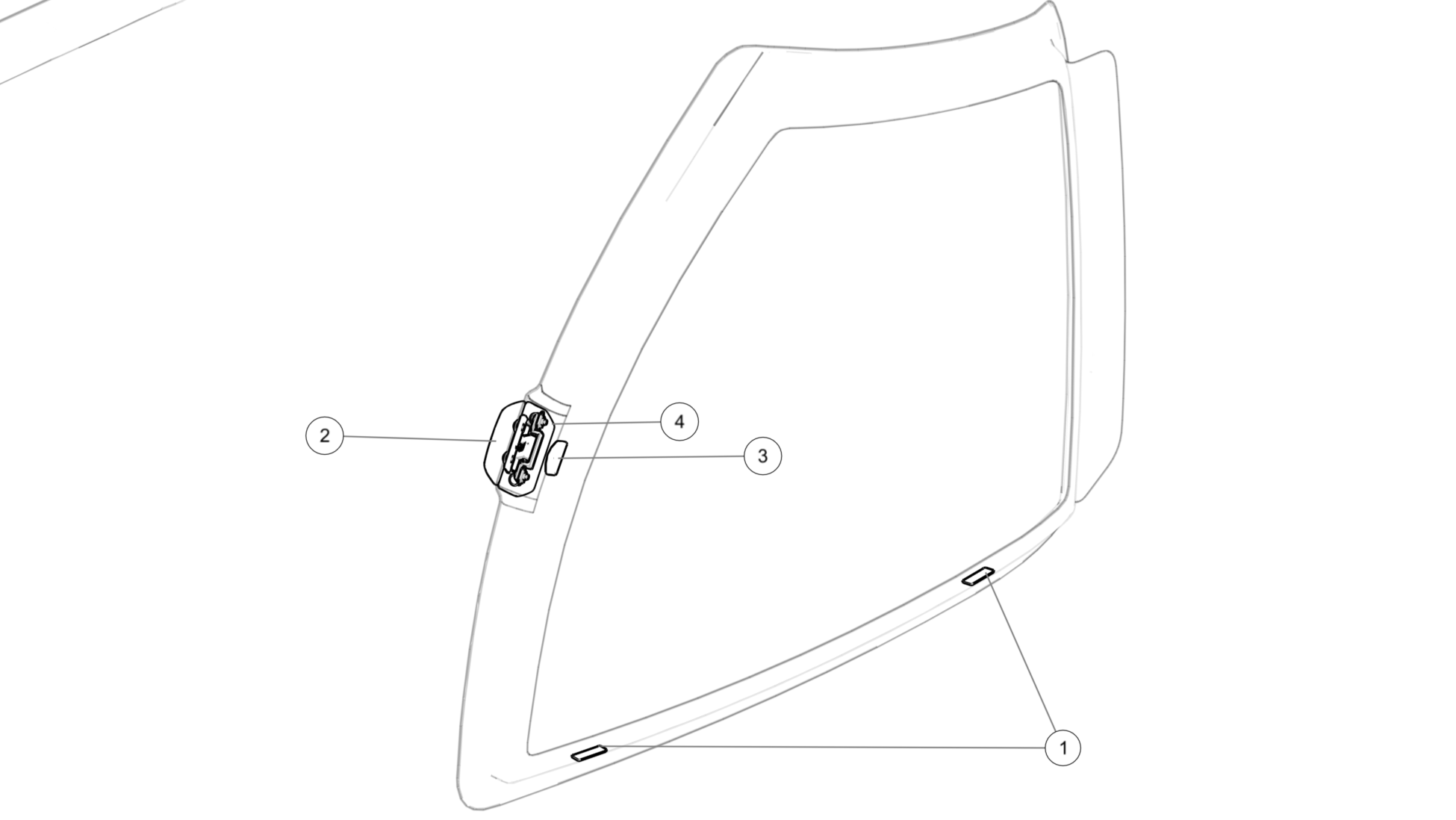

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA008461 | STANDOFF, TAPERED PLATE, 15DEGX.095 | 2 | Each | |
2 | ICA014166 | PIVOT PLATE, LATCH, SIDE WINDOW | 1 | Each | |
3 | ICA014165 | PLATE, LATCH, SIDE WINDOW | 1 | Each | |
4 | ICA008460 | STANDOFF, TAPERED PLATE, 33DEGX.275 | 1 | Each |

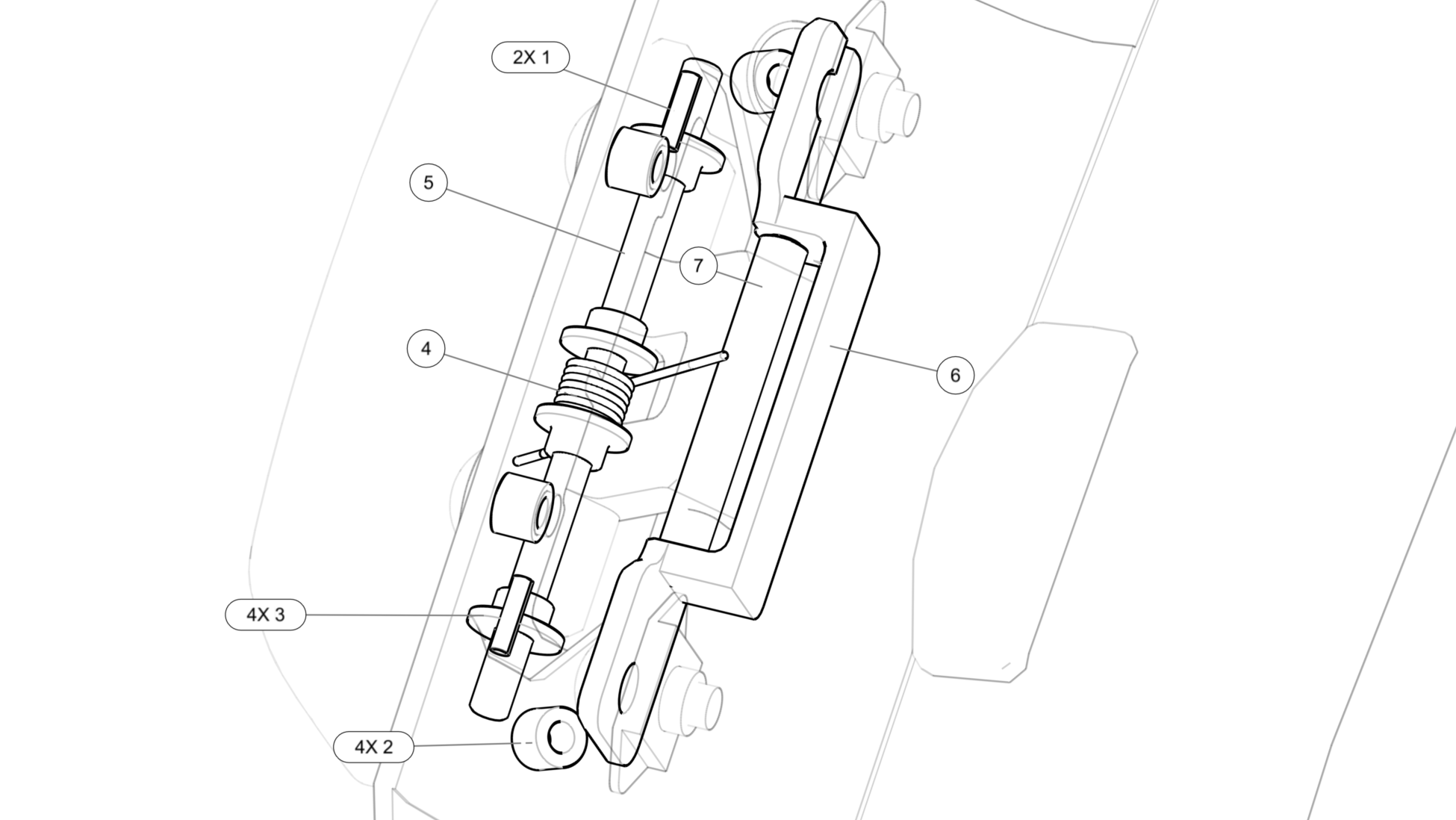

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | MS16562-190 | PIN, SLOTTED, .063 X .250 | 2 | Each | |
2 | MS21209-C0610 | INSERT, SCREW THREAD, LOCKING, CRES, #6-32 X .138 | 4 | Each | |
3 | ICA014552 | BEARING, SLEEVED, FLANGED, .125 X .188 X .125 | 4 | Each | |
4 | ICA014171 | SPRING, TORSION, SIDE WINDOW | 1 | Each | |
5 | ICA014553 | PIN, DOWEL, CRES, .125 X 2.25 | 1 | Each | |
6 | ICA014168 | ROLLER, STRIKE PLATE, SIDE WINDOW LATCH | 1 | Each | |
7 | ICA014167 | STRIKE PLATE, LATCH, SIDE WINDOW | 1 | Each |

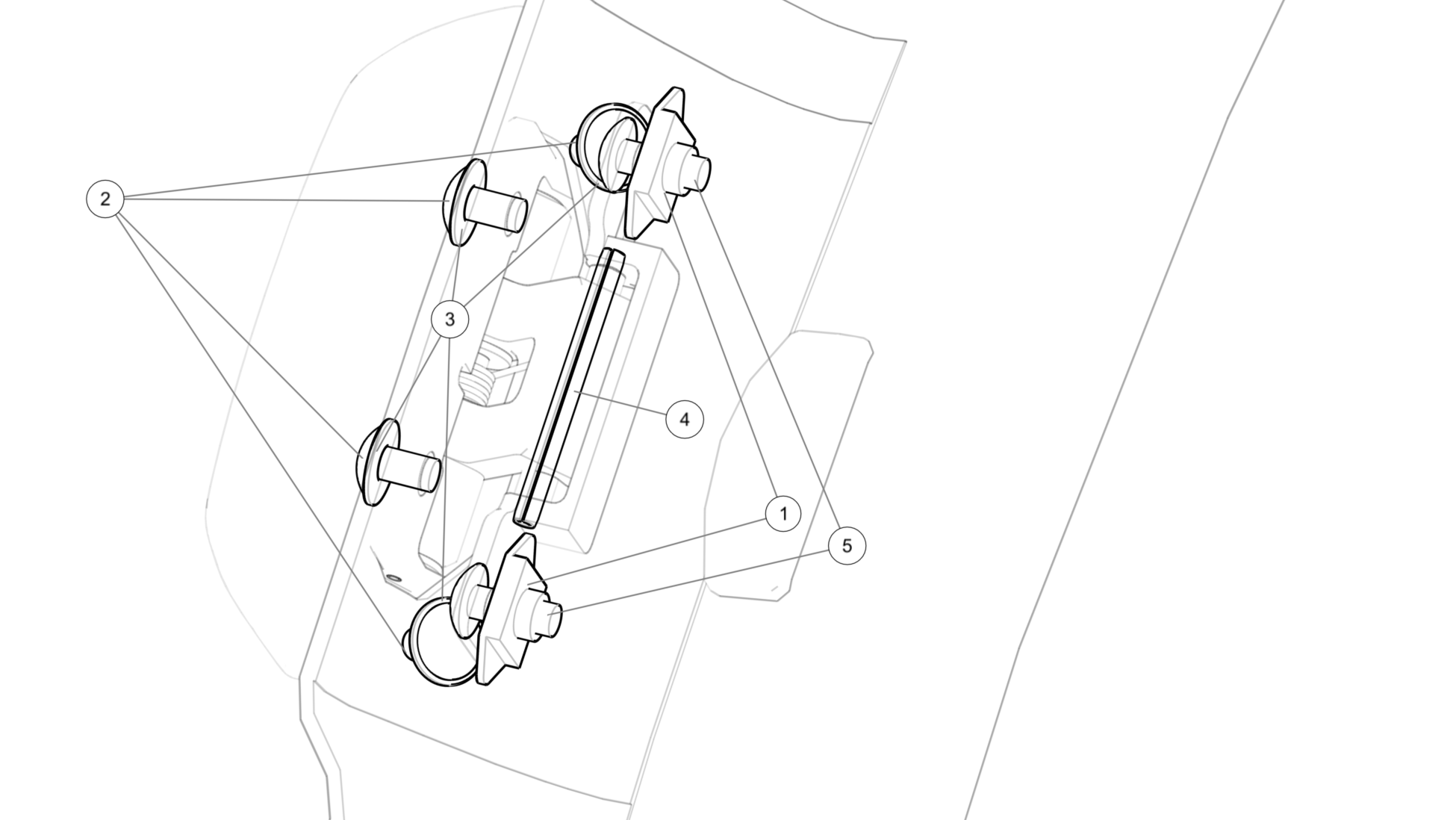

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CN614CR06P | NUT PLATE, MINIATURE, FLOATING, 6-32 | 2 | Each | |
2 | 6C25MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 6-32X.250 | 4 | Each | |
3 | NAS1149CN616R | WASHER, FLAT, CRES, #6X.016, PSVT | 4 | Each | |
4 | MS171506 | SPRING PIN, SLOTTED, CRES, .094 X 1.25 | 1 | Each | |
5 | 6C37MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 6-32X.375 | 2 | Each |
