Equipment and Furnishings, Boot, Flight Control Stick
100924-00

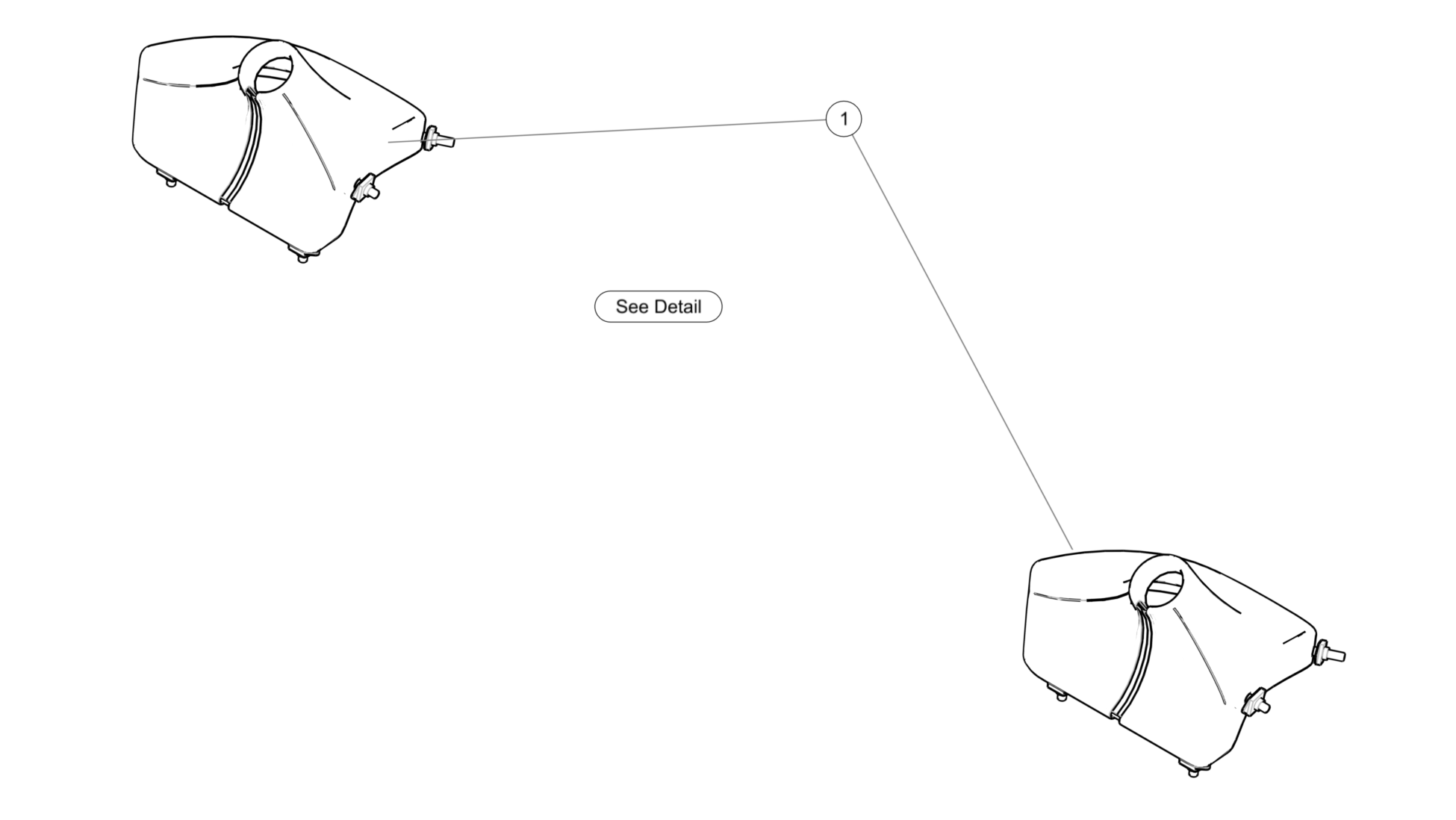

Boot installation for the Flight Control Stick.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011358 | BOOT ASSY, FLIGHT CONTROL STICK | 2 | Each |

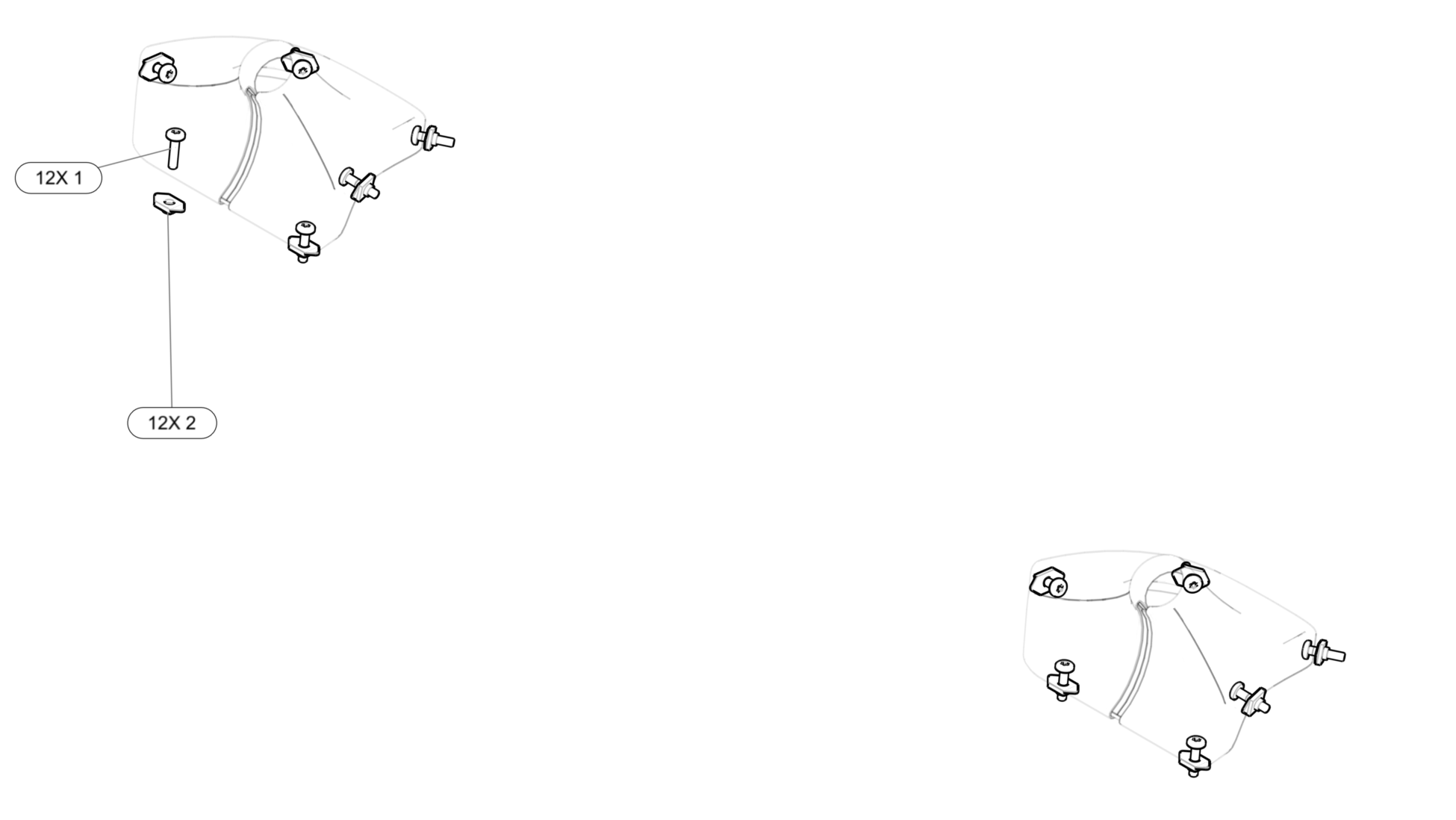

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 6C62MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 6-32X.625 | 12 | Each | |
2 | CN614CR06P | NUT PLATE, MINIATURE, FLOATING, 6-32 | 12 | Each | (6x) Included in ME000332 (6x) Included in ME000333 See Equipment and Furnishings, Seat for ME000332 and ME000333 |
