Equipment and Furnishings, Seat
100925-00

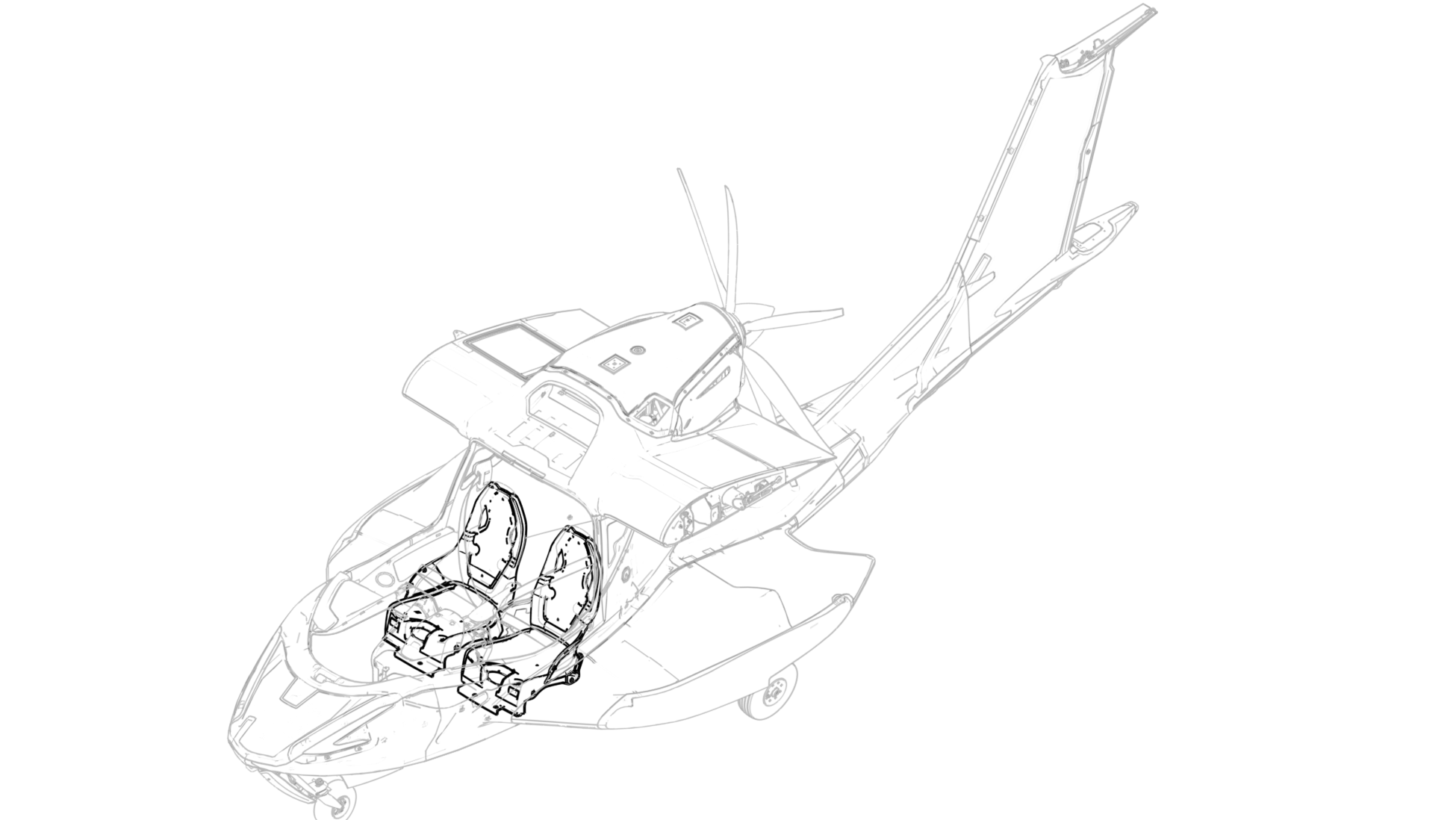

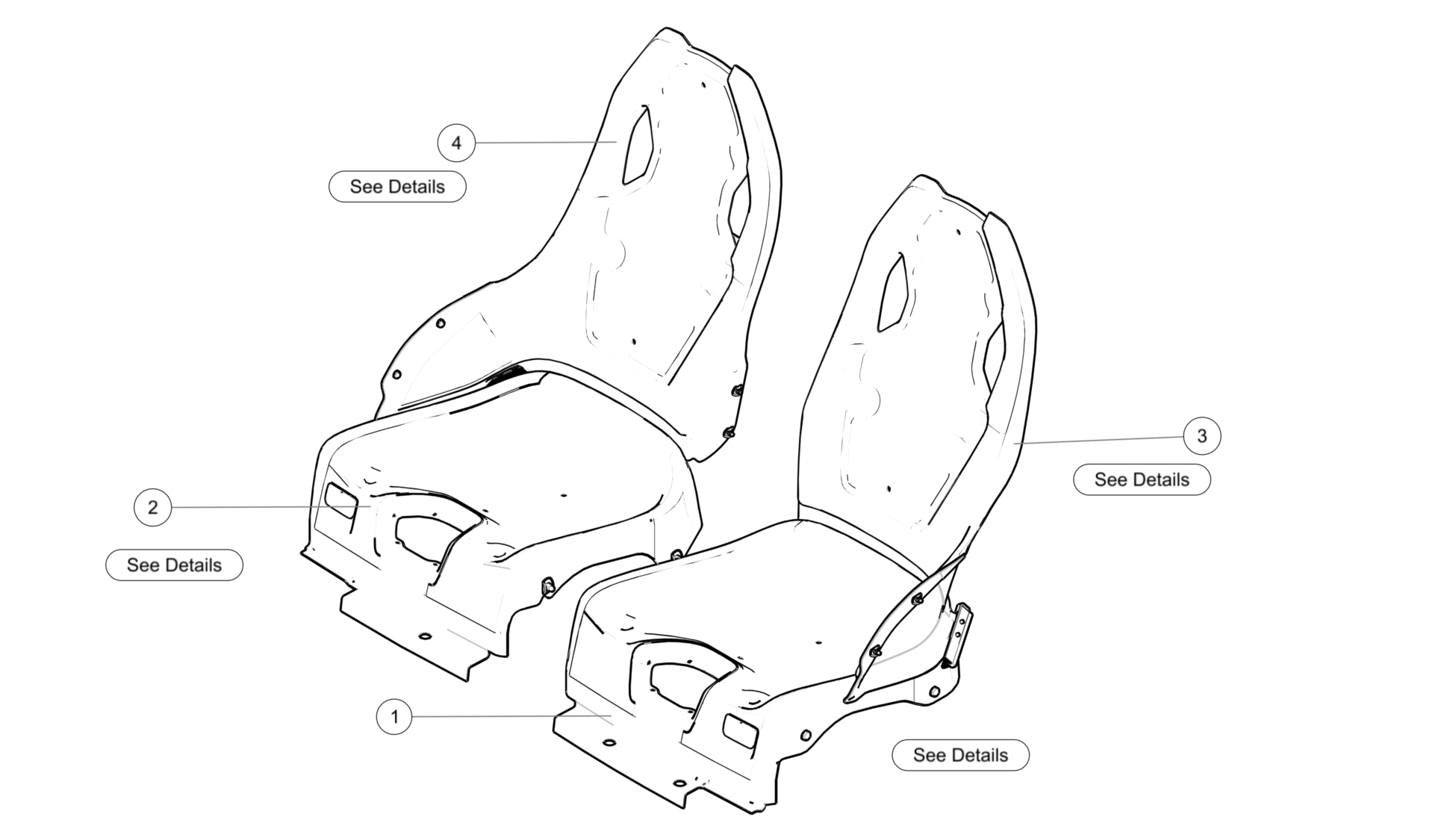

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000333 | SEAT PAN, LH, SUBASSY | 1 | Each | |
2 | ME000332 | SEAT PAN, RH, SUBASSY | 1 | Each | |
3 | ME000335 | SEAT BACK, LH, SUBASSY | 1 | Each | |
4 | ME000334 | SEAT BACK, RH, SUBASSY | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

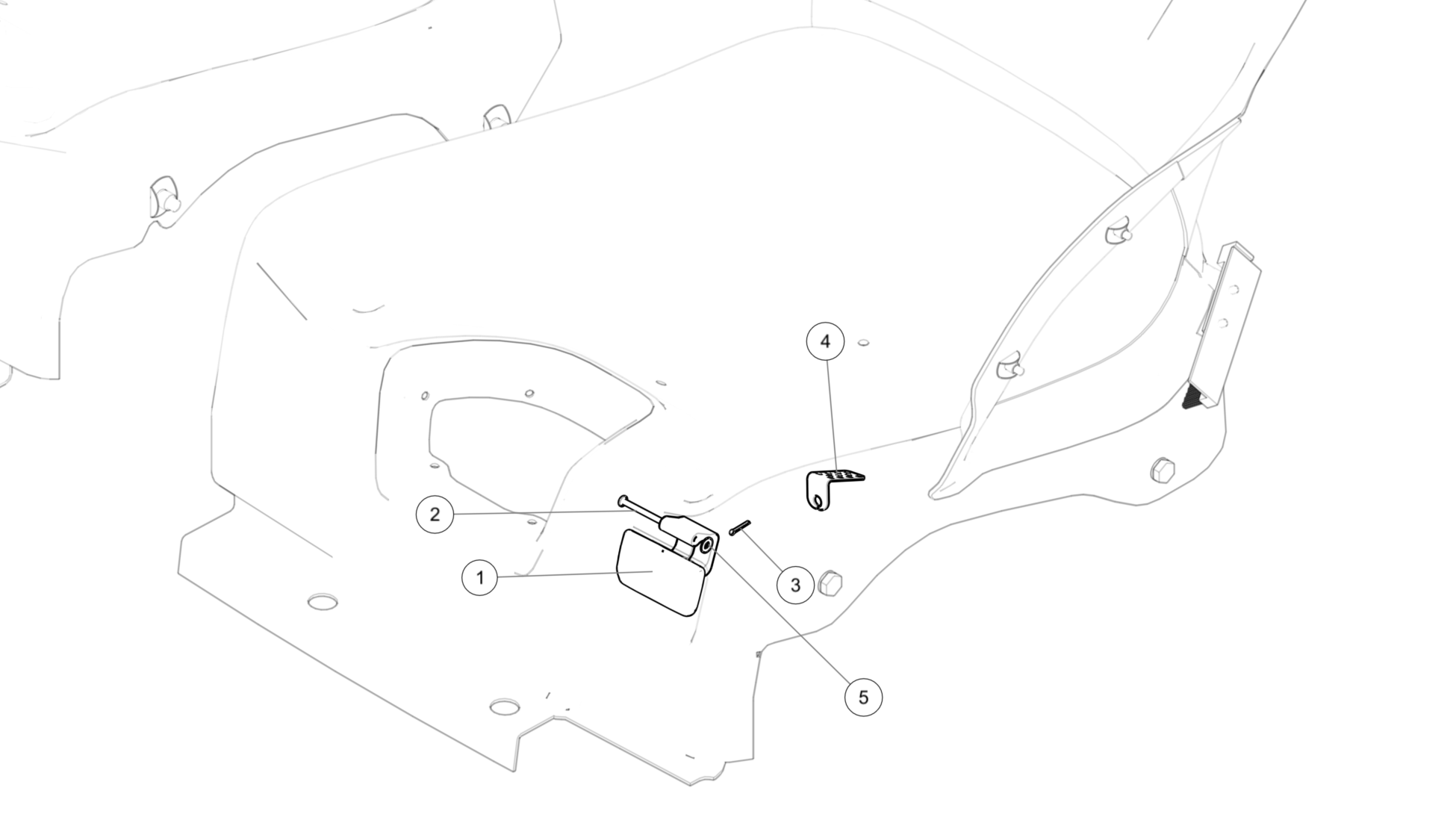

1 | ICA007541 | HANDLE, RELEASE, RUDDER ADJUST | 1 | Each | Included in ME000333 |
2 | MS20392-1R55 | PIN, STR, HEADED, DRILLED SHK, CRES, .125X1.72 | 1 | Each | Included in ME000333 |
3 | MS24665-151 | PIN, COTTER, CRES, .063X.500 | 1 | Each | Included in ME000333 |
4 | ICA008135 | CLIP, CABLE, RUDDER RELEASE | 1 | Each | Included in ME000333 |
5 | NAS1149CN616R | WASHER, FLAT, CRES, #6X.016, PSVT | 1 | Each | Included in ME000333 |

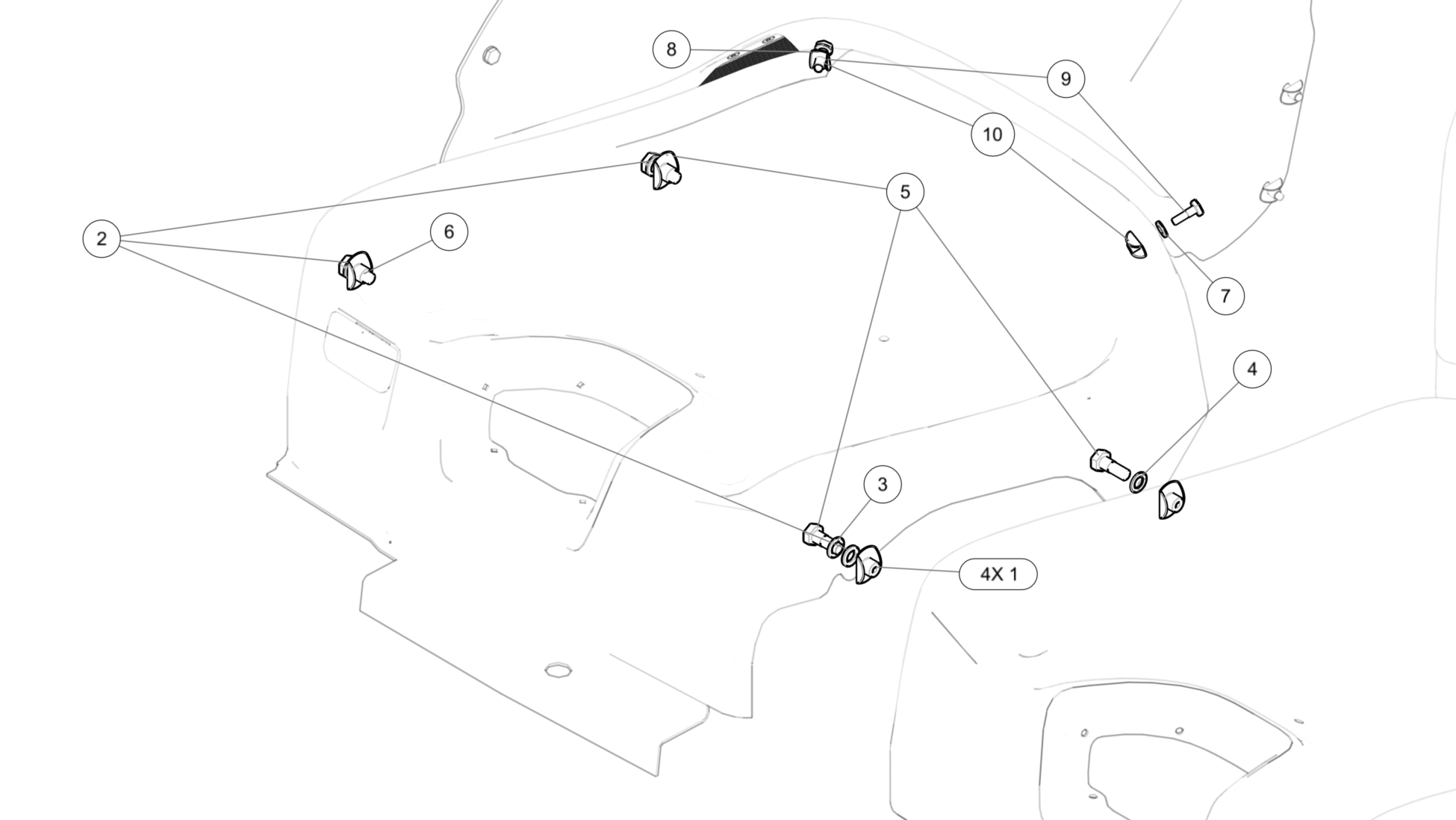

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

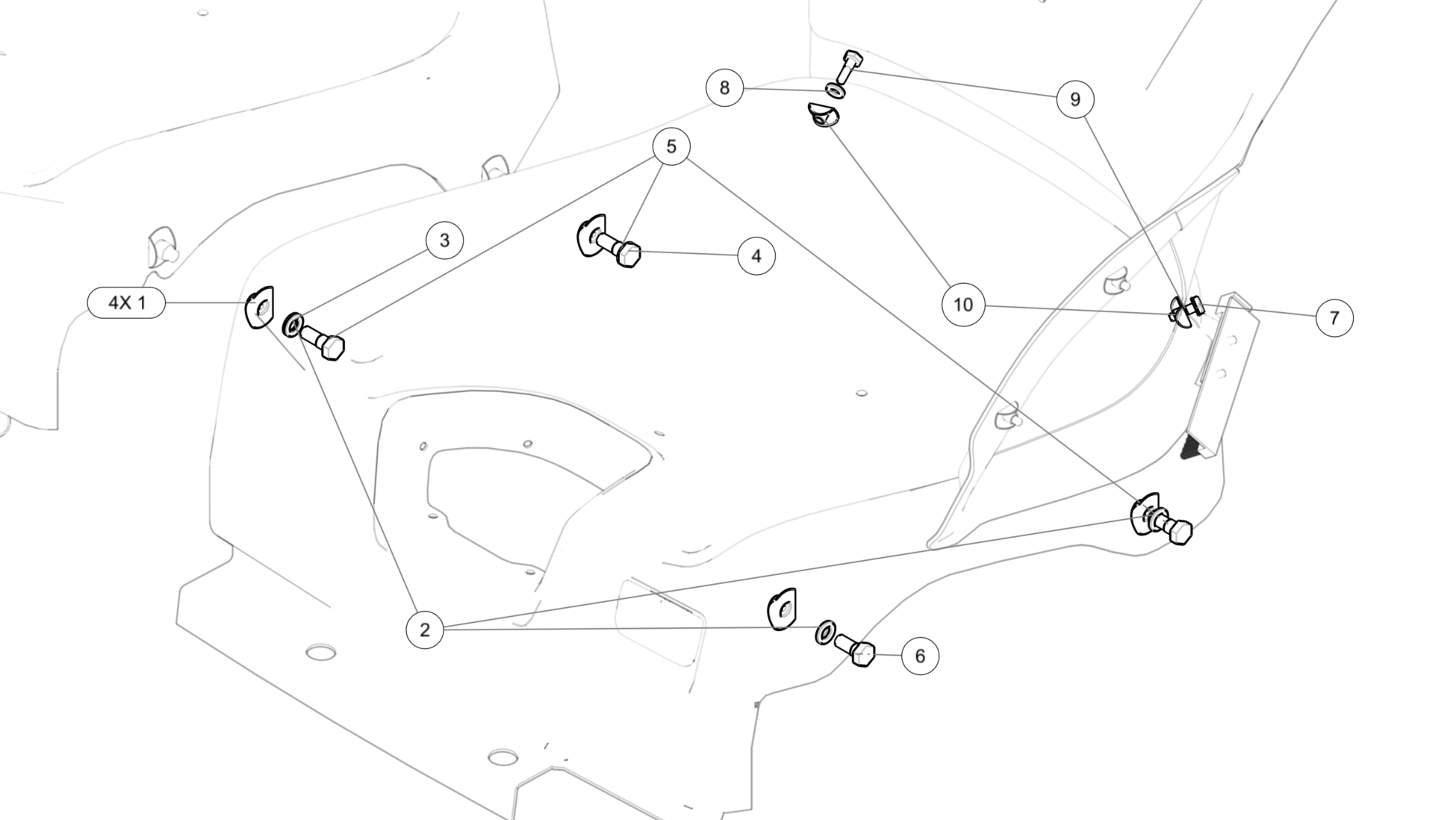

1 | CN609CR5P | NUT PLATE, TWO LUG, ADH BND, .312-24 | 4 | Each | |
2 | NAS1149C0563R | WASHER, FLAT, CRES, .312X.063, PSVT | 3 | Each | |
3 | NAS1149C0532R | WASHER, FLAT, CRES, .312X.032, PSVT | 1 | Each | |
4 | NAS1149C0516R | WASHER, FLAT, CRES, .328X.016, PSVT | 1 | Each | |
5 | AN5C6A | BOLT, MACH, CRES, .3125-24X.313 | 3 | Each | |
6 | AN5C5A | BOLT, MACH, CRES, .3125-24X.188 | 1 | Each | |
7 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 1 | Each | |
8 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 1 | Each | |
9 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 2 | Each | |
10 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 2 | Each | Included in ME000333 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

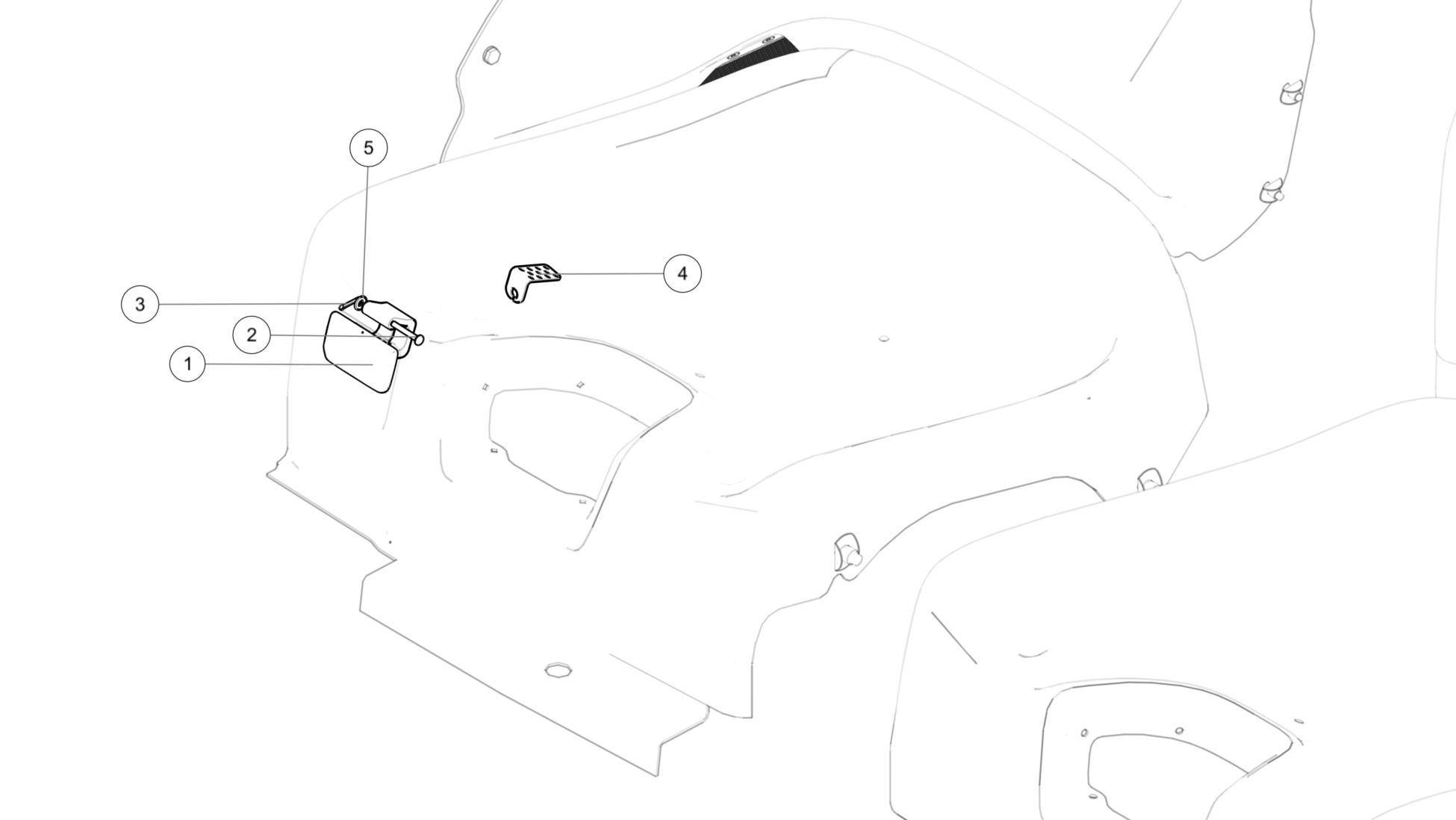

1 | ICA007541 | HANDLE, RELEASE, RUDDER ADJUST | 1 | Each | Included in ME000332 |
2 | MS20392-1R55 | PIN, STR, HEADED, DRILLED SHK, CRES, .125X1.72 | 1 | Each | Included in ME000332 |
3 | MS24665-151 | PIN, COTTER, CRES, .063X.500 | 1 | Each | Included in ME000332 |
4 | ICA008135 | CLIP, CABLE, RUDDER RELEASE | 1 | Each | Included in ME000332 |
5 | NAS1149CN616R | WASHER, FLAT, CRES, #6X.016, PSVT | 1 | Each | Included in ME000332 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CN609CR5P | NUT PLATE, TWO LUG, ADH BND, .312-24 | 4 | Each | |
2 | NAS1149C0563R | WASHER, FLAT, CRES, .312X.063, PSVT | 3 | Each | |
3 | NAS1149C0532R | WASHER, FLAT, CRES, .312X.032, PSVT | 1 | Each | |
4 | NAS1149C0516R | WASHER, FLAT, CRES, .328X.016, PSVT | 1 | Each | |
5 | AN5C6A | BOLT, MACH, CRES, .3125-24X.313 | 3 | Each | |
6 | AN5C5A | BOLT, MACH, CRES, .3125-24X.188 | 1 | Each | |
7 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 1 | Each | |
8 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 1 | Each | |
9 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 2 | Each | |
10 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 2 | Each | Included in ME000332 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

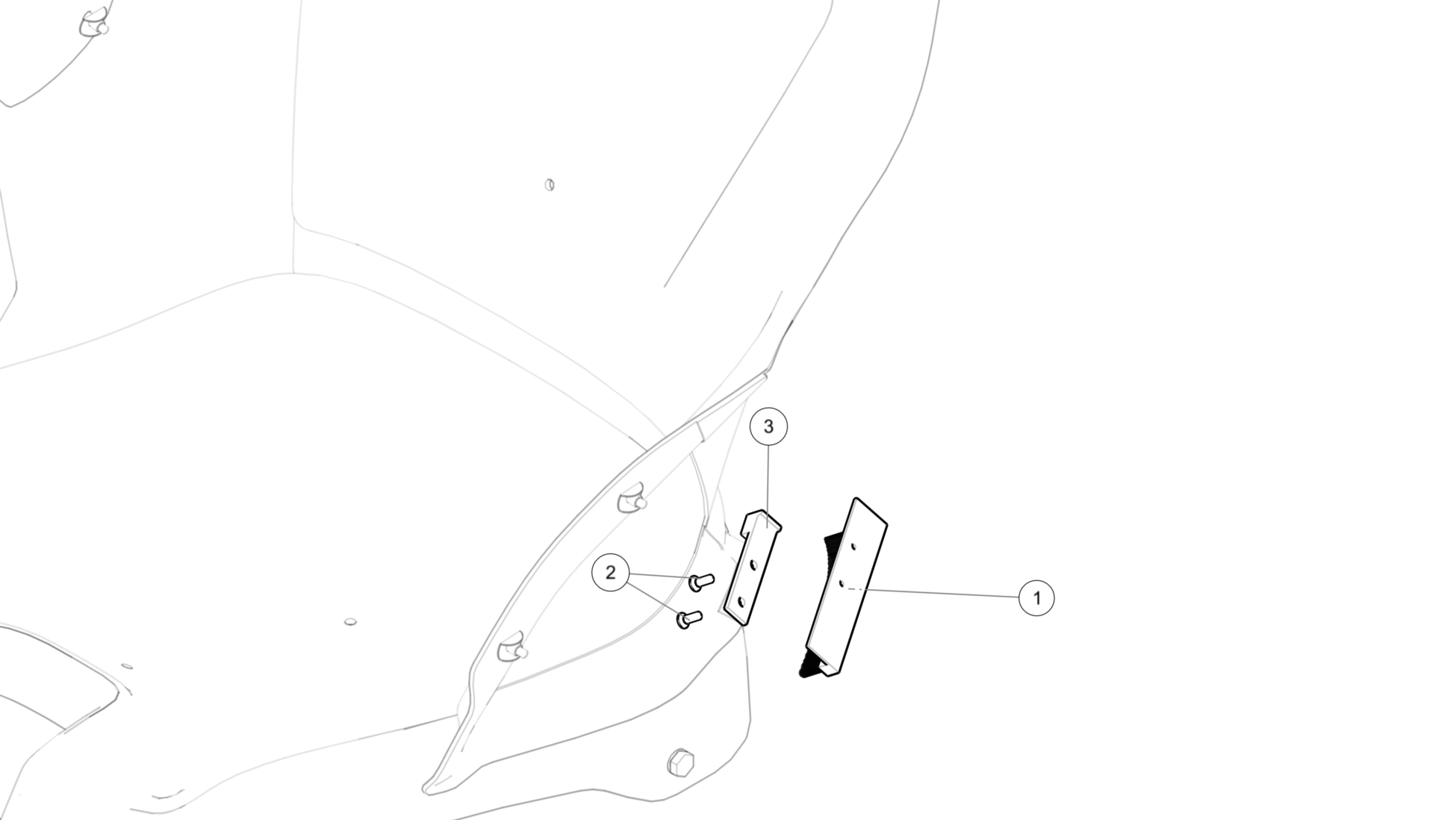

1 | RPVC312036 | BRUSH, RIGID, PVC 90° PROFILE, BLACK NYLON | 4 | Each | Included in ME000335; modified prior to installation - contact ICON for details |
2 | 8C62MTF3/100 | SCREW, MACH FLH, 6LOBE, CRES, 8-32X.625 | 2 | Each | Included in ME000335 |
3 | ICA009234 | SPACER, BRUSH | 1 | Each | Included in ME000335 |
NAS1149CN816R | WASHER, FLAT, CRES, #8X.016, PSVT | 2 | Each | Included in ME000335, not pictured | |
MS21043-08 | NUT, SLFLKG, RDC HEX, CRES, 8-32 | 2 | Each | Included in ME000335, not pictured |

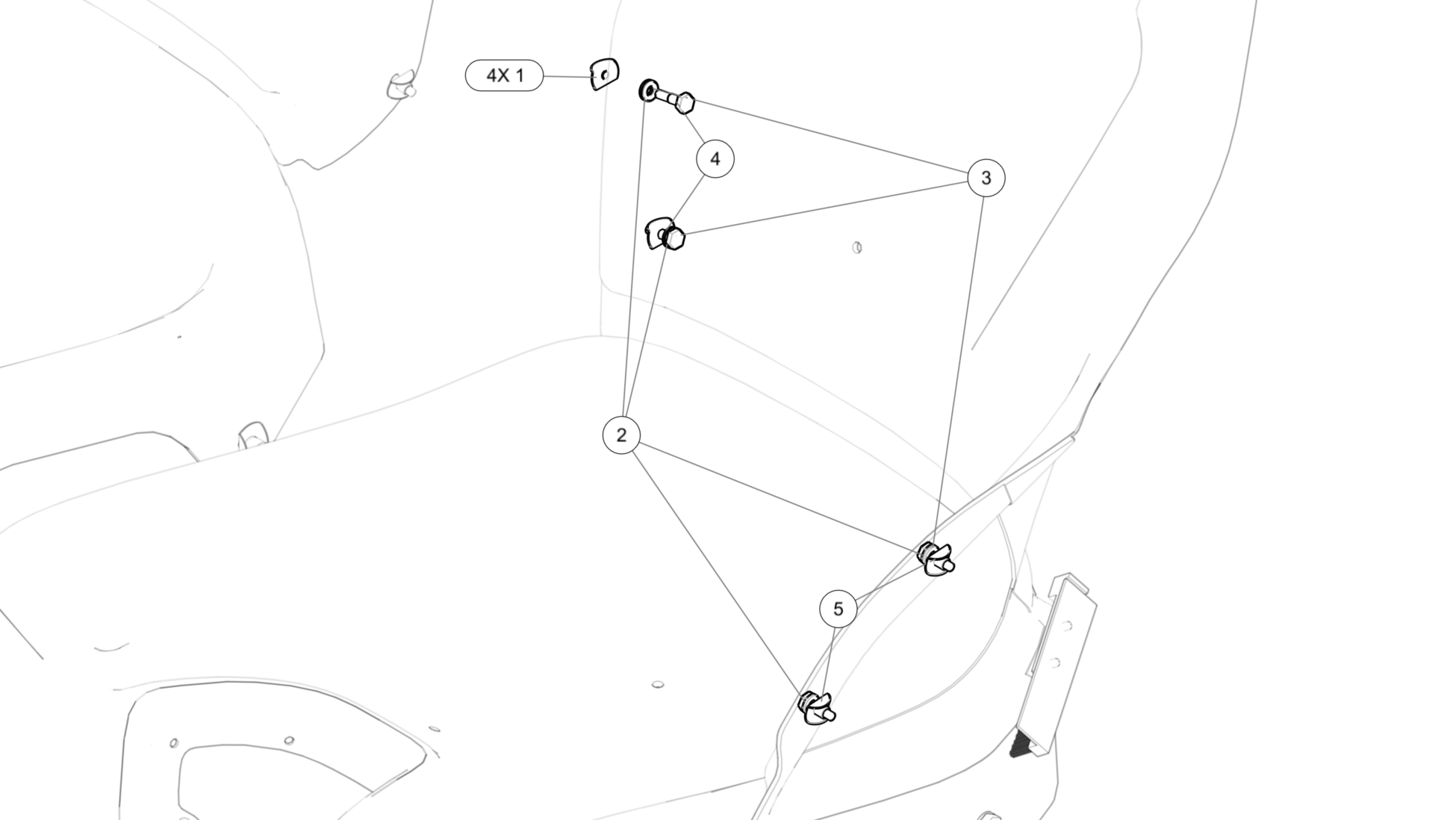

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 4 | Each | |
2 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 4 | Each | |
3 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 3 | Each | |
4 | AN3C6A | BOLT, MACH, CRES, 10-32X.375 | 2 | Each | |
5 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 2 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

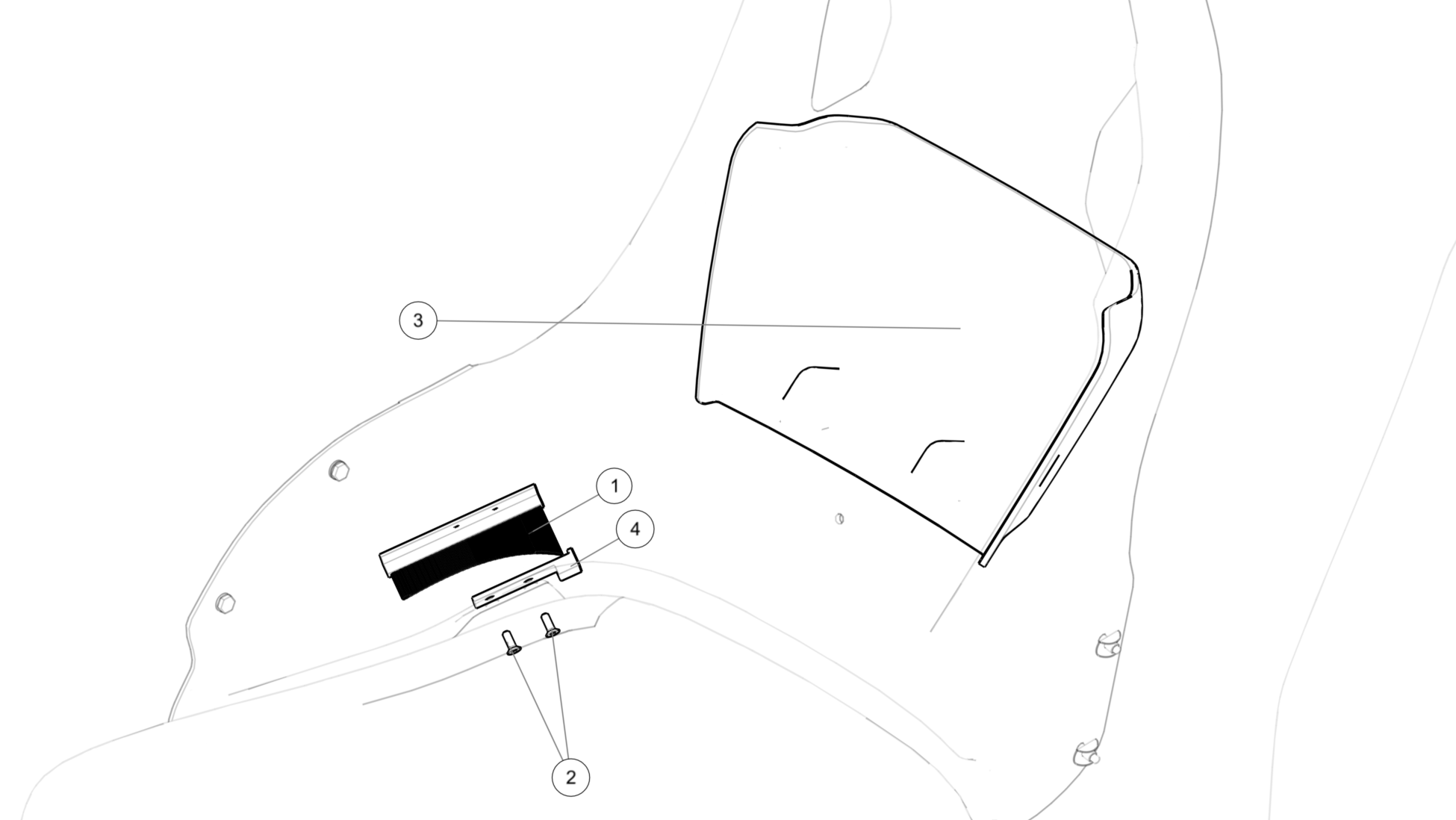

1 | RPVC312036 | BRUSH, RIGID, PVC 90° PROFILE, BLACK NYLON | 1 | Each | Included in ME000334; modified prior to installation - contact ICON for details |
2 | 8C62MTF3/100 | SCREW, MACH FLH, 6LOBE, CRES, 8-32X.625 | 2 | Each | Included in ME000334 |
3 | ICA008685 | HOLDER, PILOT OPERATING HANDBOOK | 1 | Each | Included in ME000334 |
4 | ICA009234 | SPACER, BRUSH | 1 | Each | Included in ME000334 |
NAS1149CN816R | WASHER, FLAT, CRES, #8X.016, PSVT | 2 | Each | Included in ME000334, not pictured | |
MS21043-08 | NUT, SLFLKG, RDC HEX, CRES, 8-32 | 2 | Each | Included in ME000334, not pictured |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

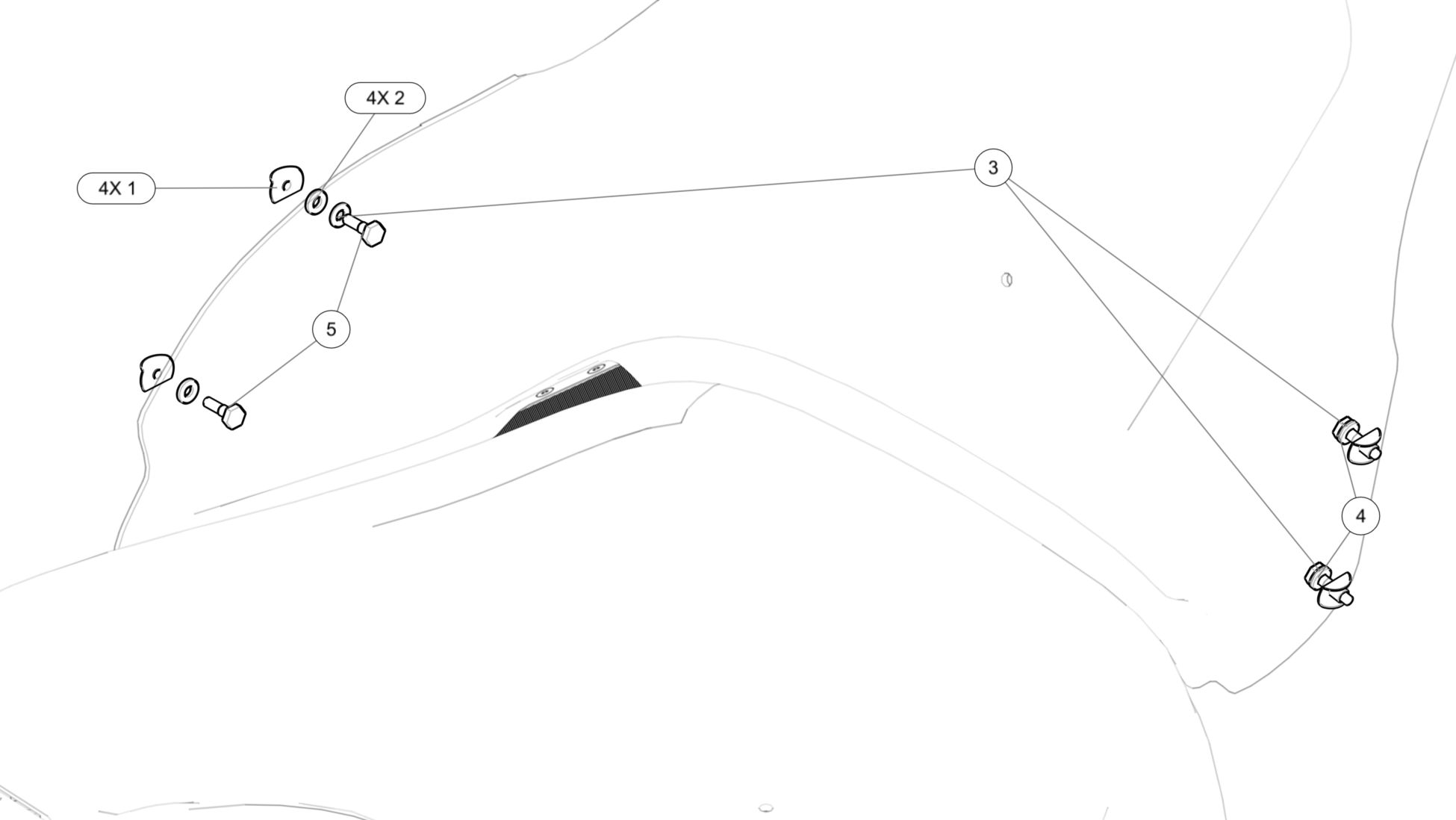

1 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 4 | Each | |
2 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 4 | Each | |
3 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 3 | Each | |
4 | AN3C6A | BOLT, MACH, CRES, 10-32X.375 | 2 | Each | |
5 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 2 | Each |
