IPS, Handle Installation
100904-00

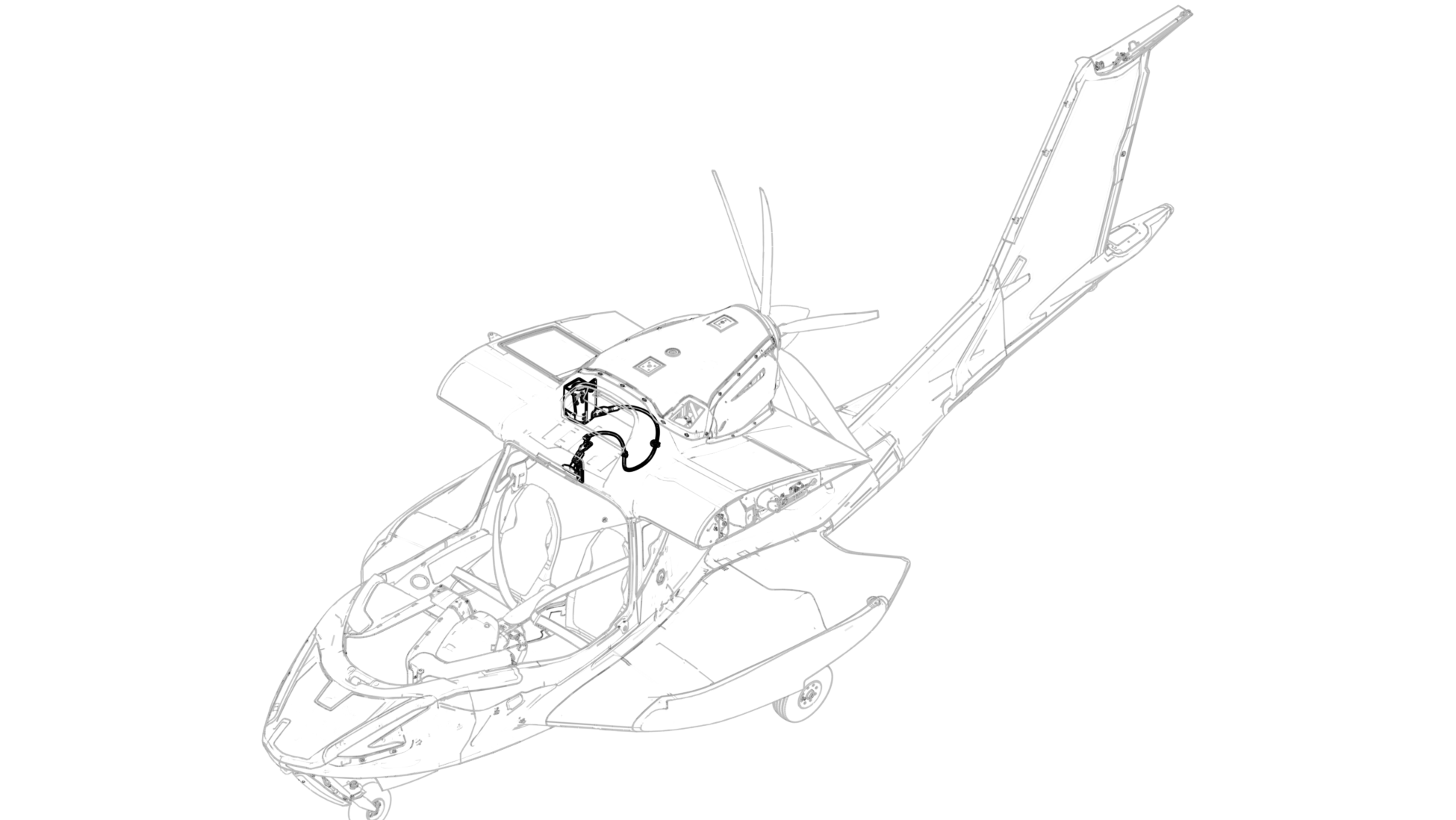

Handle installation for the ICON Parachute System (IPS).

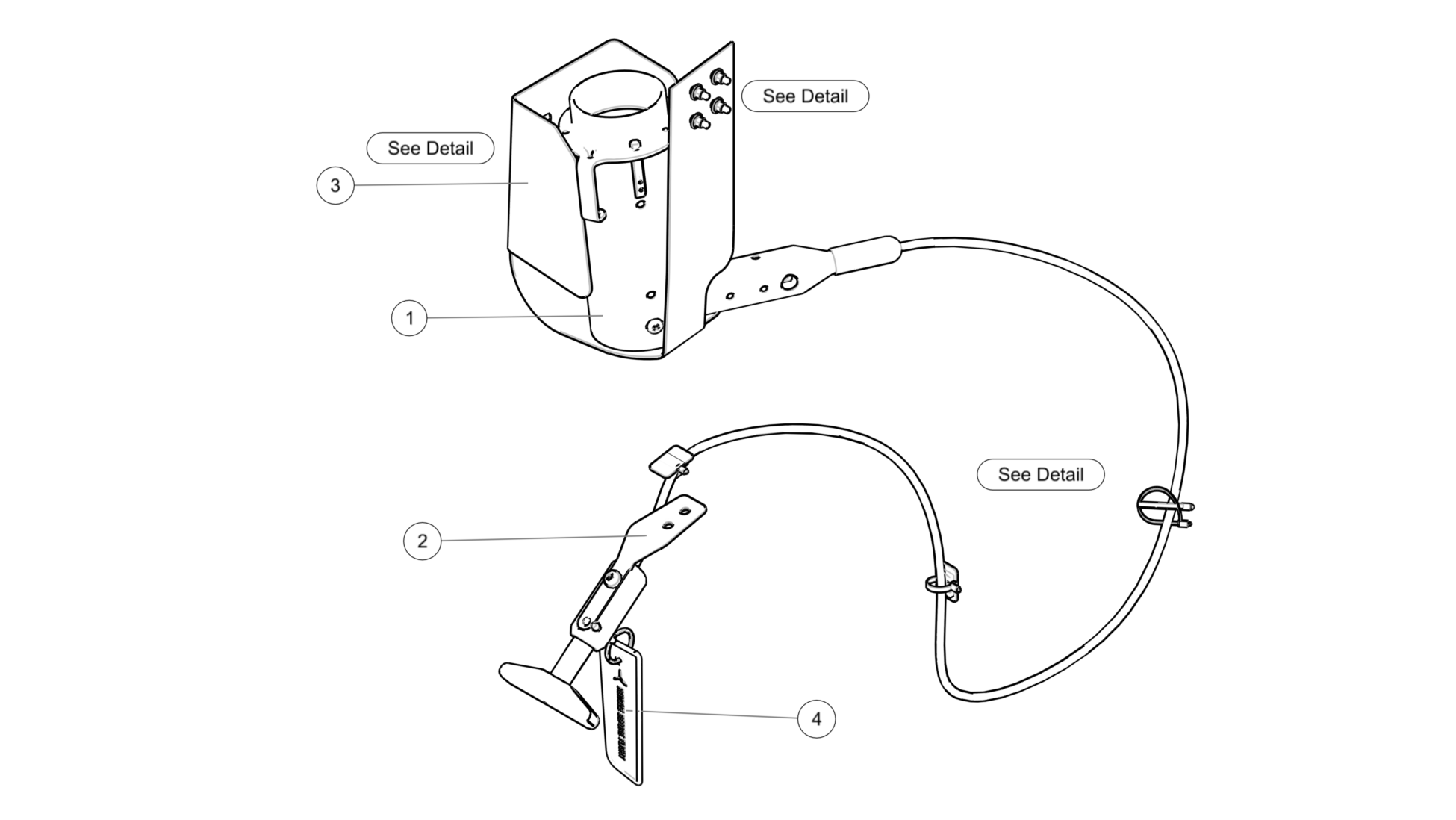

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ASSY, RKT B&IGTR, RT A, BRS601 | 1 | Each | Included in 008416-01, KIT, ASSY, RKT, RT ANG, BRS601 | |
2 | Contact ICON | ASSY., RKT ACTIVATION W/CAPS | 1 | Each | |
3 | ME000698 | ROCKET MOUNT, SUBASSY | 1 | Each | |
4 | ICA009677 | FLAG, REMOVE BEFORE FLIGHT, RED CLOTH, 1.5X4.5 | 1 | Each |

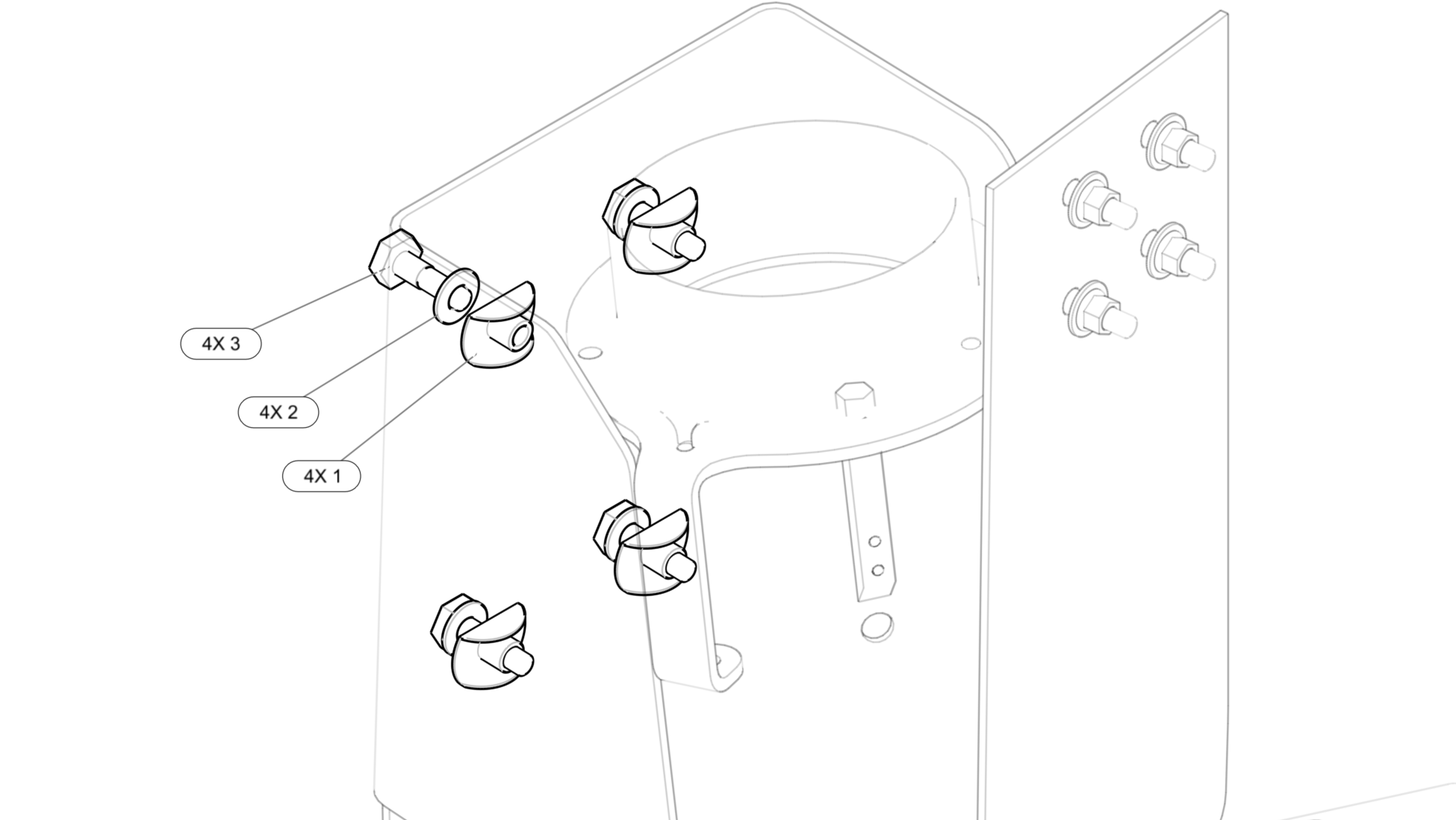

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 4 | Each | Included in ME000698 ROCKET MOUNT, SUBASSY |
2 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 4 | Each | |
3 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 4 | Each |

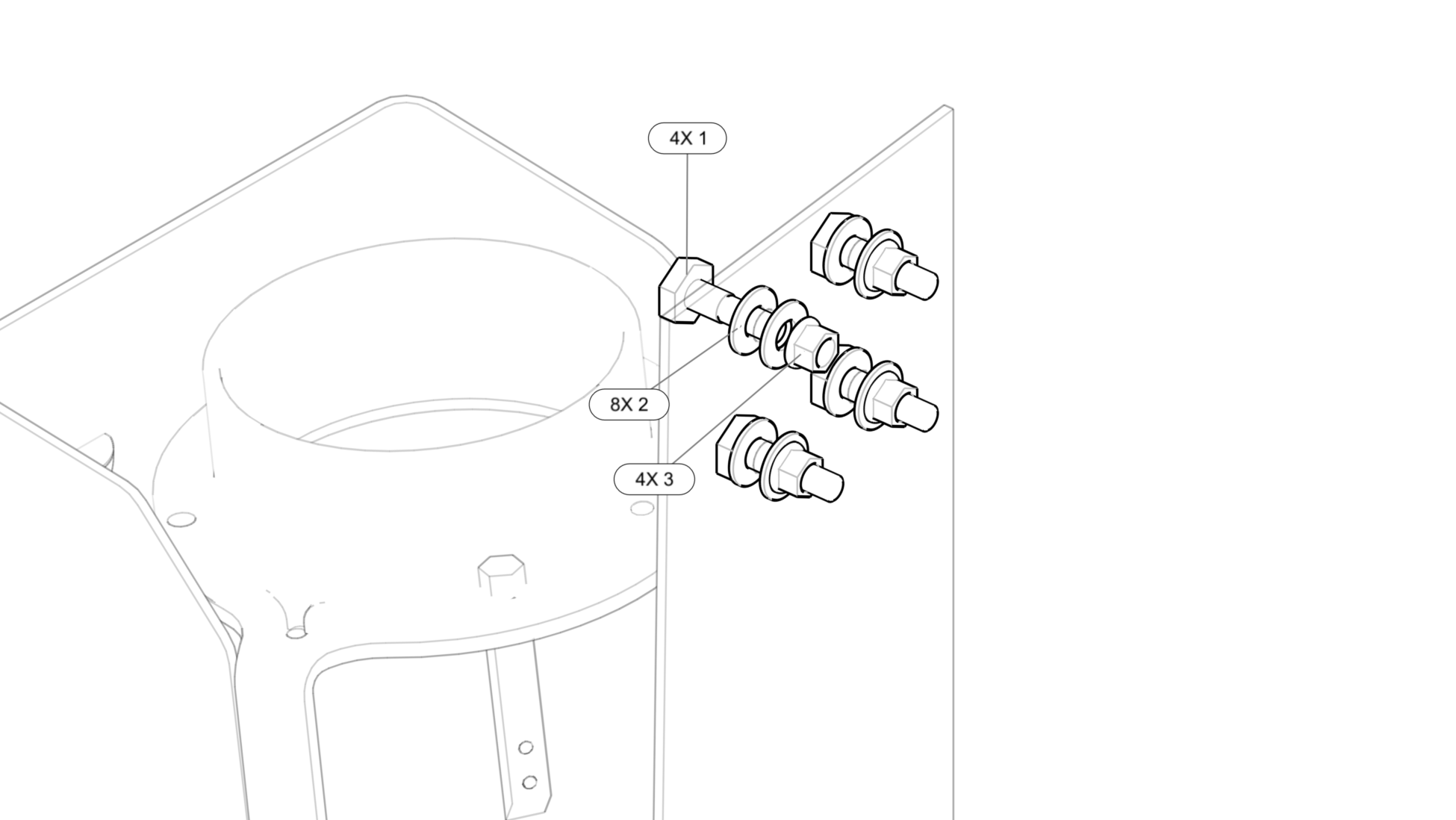

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 4 | Each | |
2 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 8 | Each | |
3 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 4 | Each |

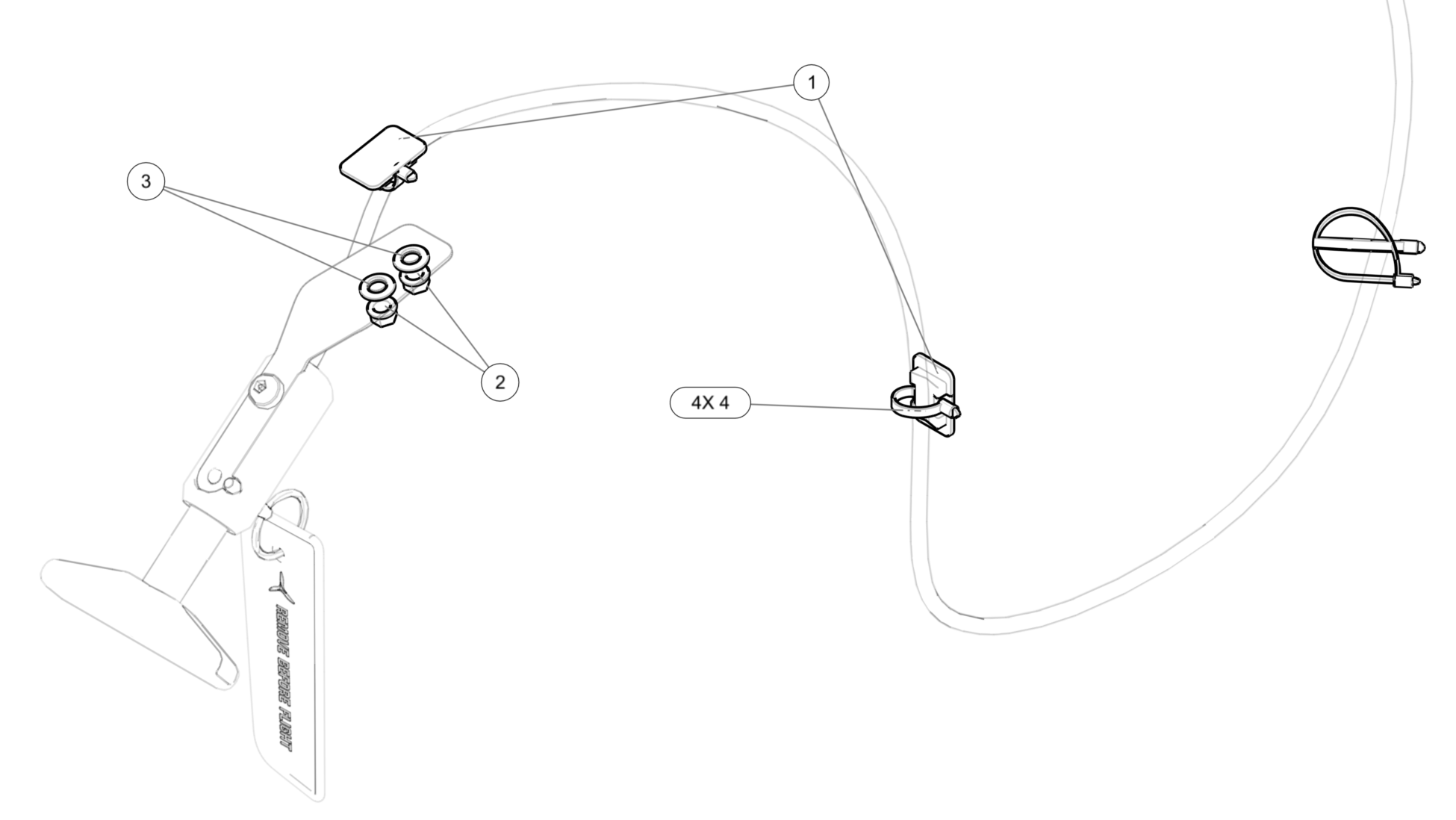

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 2 | Each | |
2 | MS21043-4 | NUT, SLFLKG, RDC HEX, CRES, .250-28 | 2 | Each | |
3 | NAS1149C0432R | WASHER, FLAT, CRES, .250X.032, PSVT | 2 | Each | |
4 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP 1.0 DIA | 4 | Each |
