IPS, Rocket Installation
100903-00

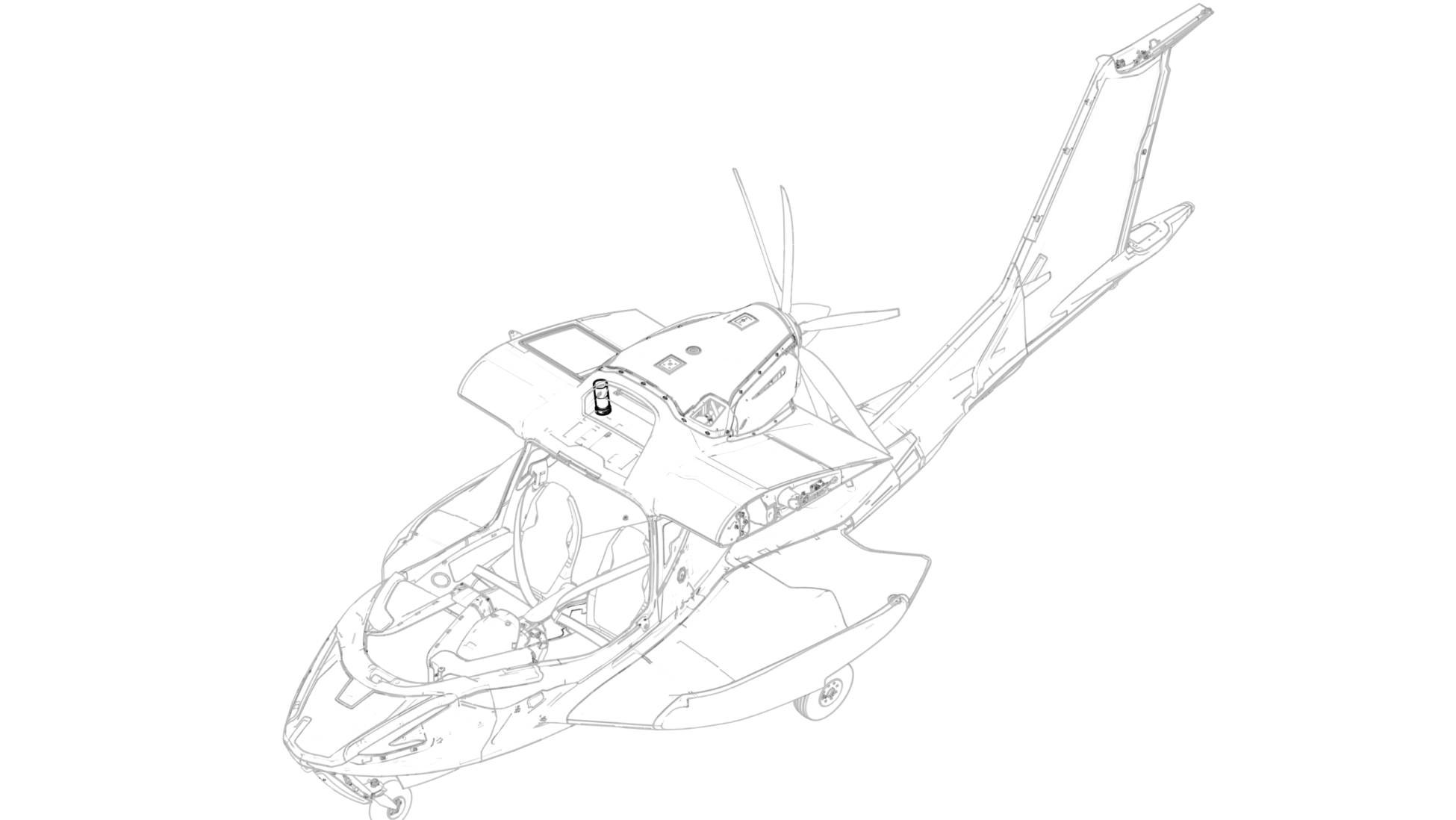

Rocket installation of the ICON Parachute System (IPS).
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 008416-01 | KIT, ASSY, RKT, RT ANG, BRS601 | 1 | each | Includes the Rocket Motor Kit; Launch Tube, Base, and Igniter; Cone; 2x 017004-02 Screw, #10-24 X 8-MAR PH; 2x 004042-01 SCREW, 1/4/2020 X 4-MAR; ICA007564 PLACARD, PASSENGER WARNING, PARACHUTE; ICA005643 PLACARD, DANGER EXPLOSIVE EGRESS, PARACHUTE; and tools. See ICON Maintenance Manual for additional photos or contact ICON for further assistance. |
