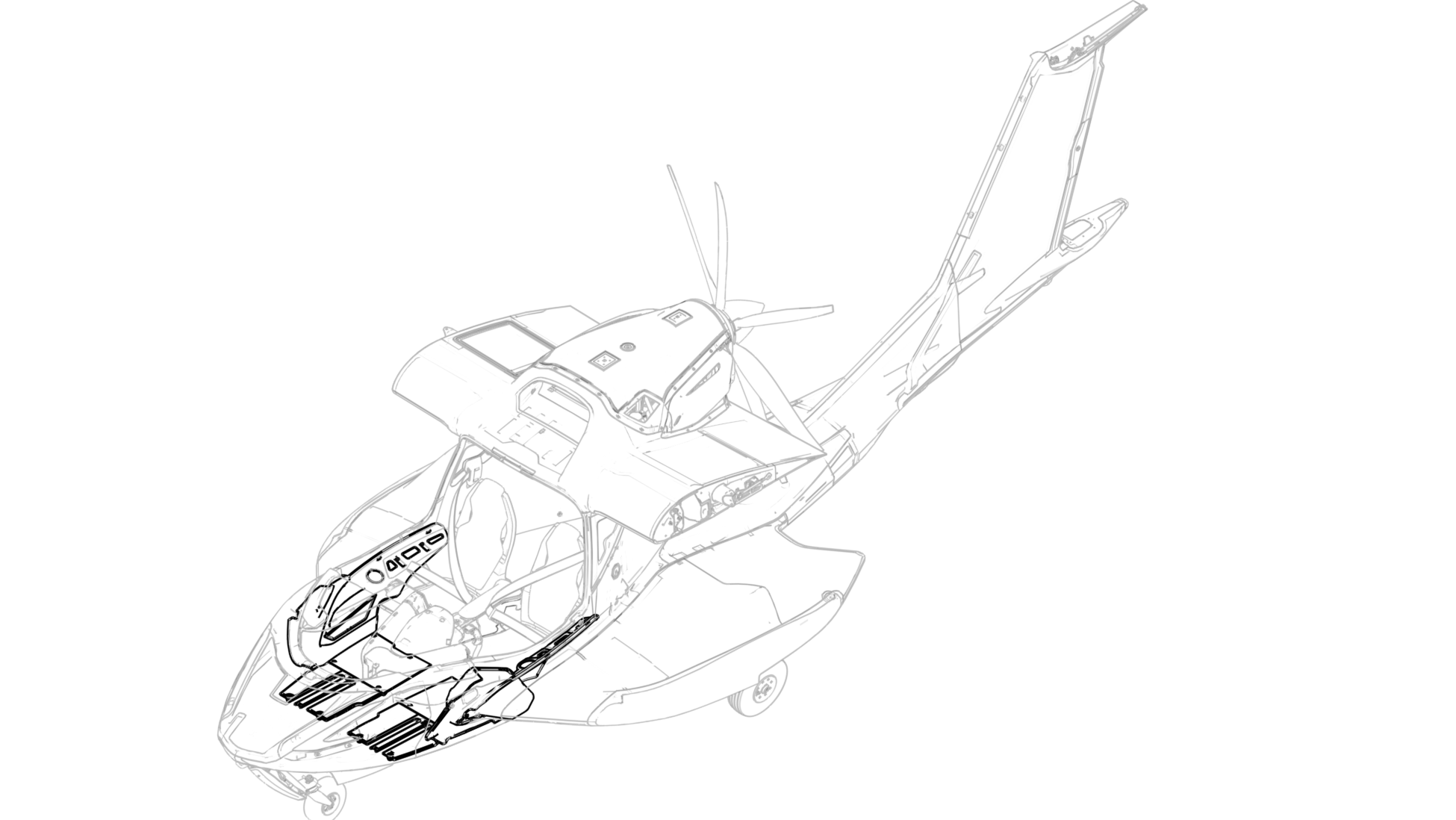

Equipment and Furnishings, Panel Instl, Cockpit Sides and Floor
100919-00

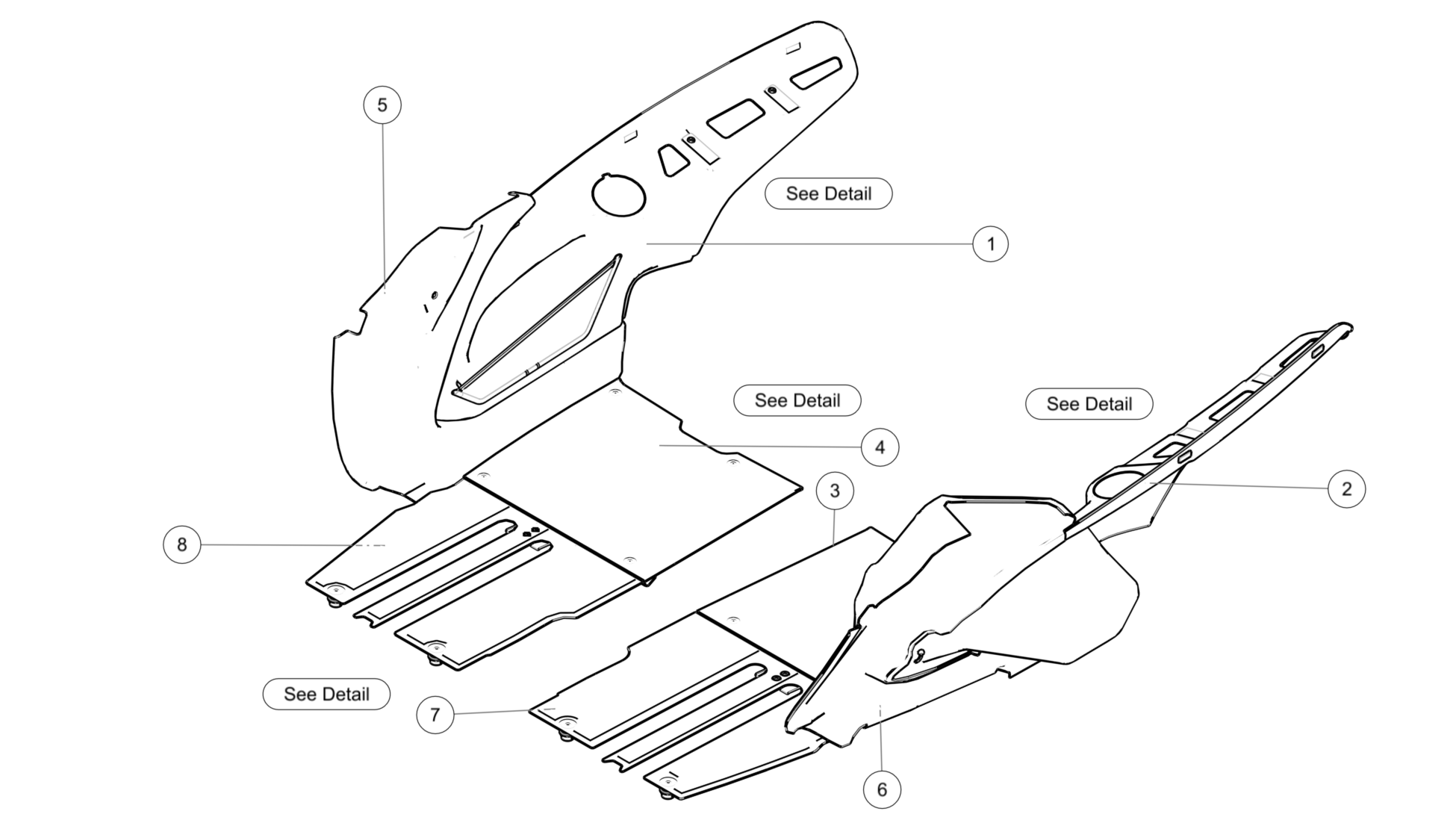

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000351 | PANEL, MAIN COCKPIT SIDEWALL, RH SUBASSY | 1 | Each | |
2 | ME000349 | PANEL, MAIN COCKPIT SIDEWALL, LH SUBASSY | 1 | Each | |
3 | ME000370 | FLOOR ASSY, MAIN COCKPIT, LH SIDE | 1 | Each | Includes 4x SL602M6-7_92CMN INSERT, THROUGH THREADED, M6X.312 |
4 | ME000372 | FLOOR ASSY, MAIN COCKPIT, RH SIDE | 1 | Each | Includes 4x SL602M6-7_92CMN INSERT, THROUGH THREADED, M6X.312 |
5 | ME000320 | PANEL ASSY, FWD COCKPIT SIDEWALL, RH, SUBASSY | 1 | Each | |
6 | ME000319 | PANEL ASSY, FWD COCKPIT SIDEWALL, LH, SUBASSY | 1 | Each | Includes Parking Brake Placard |
7 | ME000746 | FLOOR, FWD COCKPIT, LH, SUBASSY | 1 | Each | |
8 | ME000747 | FLOOR, FWD COCKPIT, RH, SUBASSY | 1 | Each |

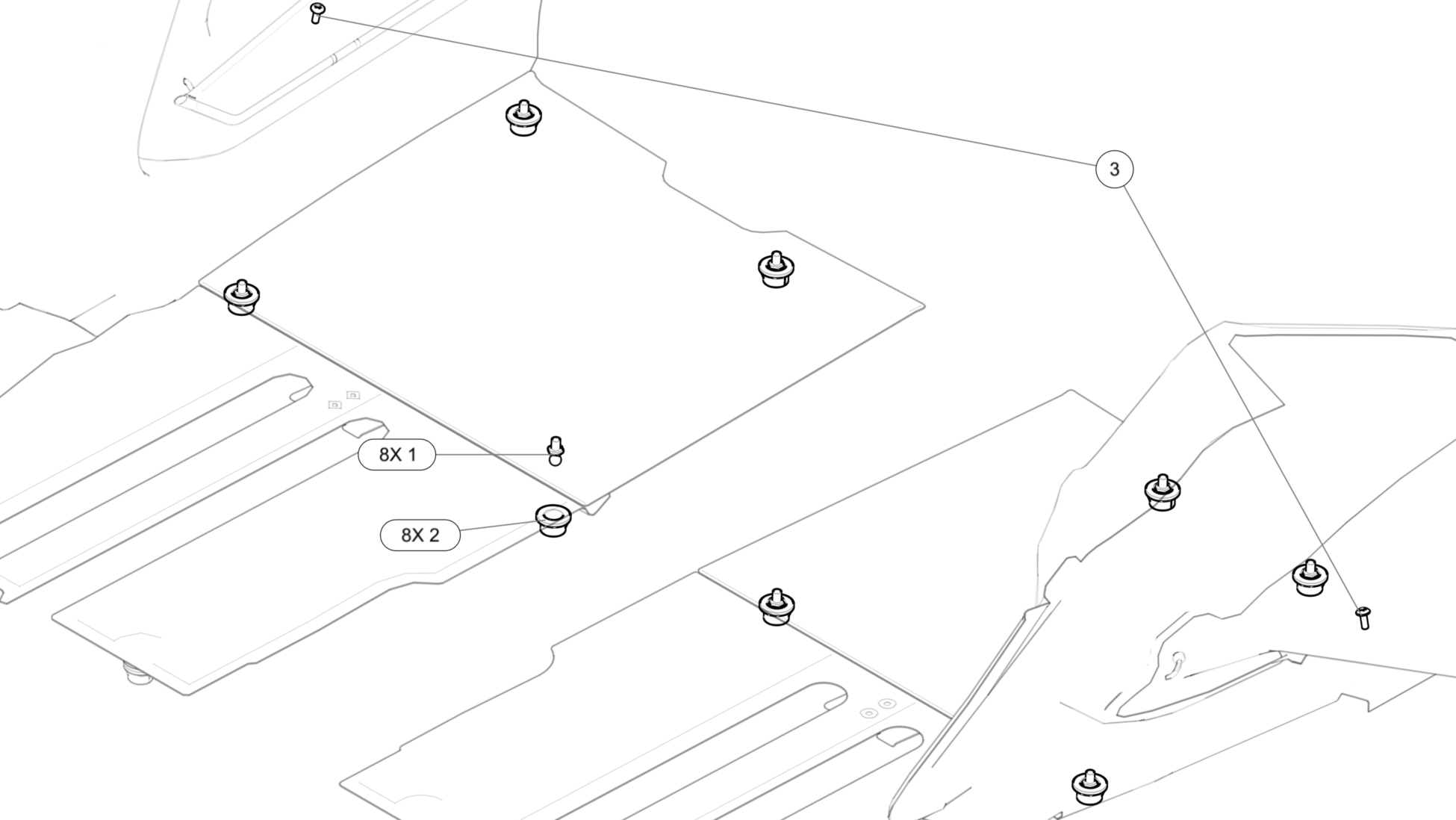

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 4030-080-3901-135 | SNAPLOC-STUD, 8MM | 8 | Each | (4x) Included in ME000370 (4x) Included in ME000372 |
NAS1149C04324 | WASHER, FLAT, CRES, .250X.032, PSVT | 8 | Each | Not pictured. Installed under 4030-080-3901-135 SNAPLOC-STUD, 8MM | |
2 | 4050-084-3018-134 | SNAPLOC-COUPLING, 8MM | 8 | Each | |
3 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 2 | Each |

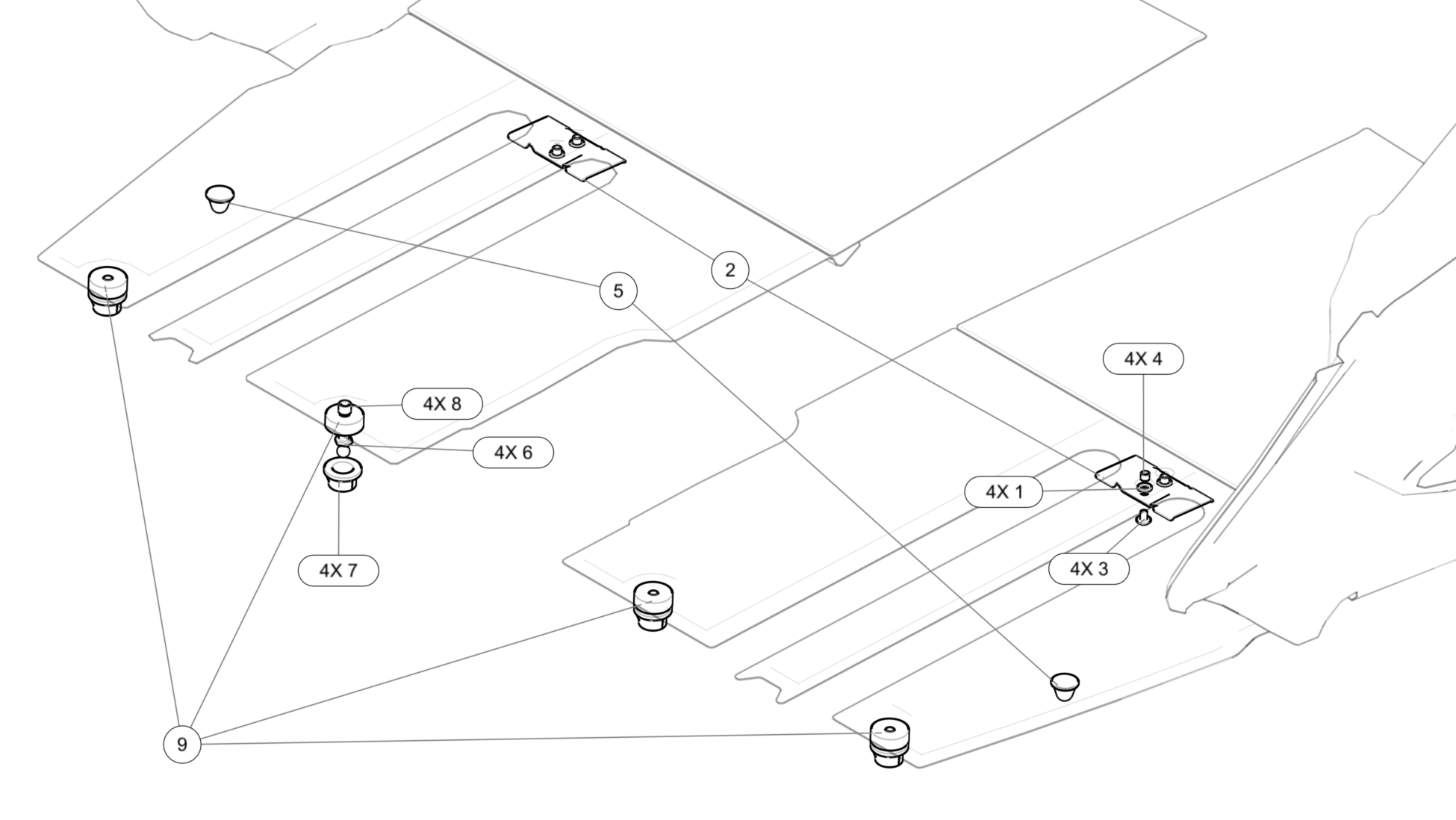

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | NAS1149CN832R | WASHER, FLAT, CRES, #8X.032, PSVT | 4 | Each | (2x) Included in ME000747 (2x) Included in ME000746 |
2 | ICA010092 | BRACKET, RETAINER, FLOOR CLOSEOUT | 2 | Each | Included in ME000746/ME000747 Contact ICON for assistance if Retainer Bracket interferes with Floor Closeout Panel and/or Rudder Pedal Cables. |
3 | 8C25MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.25 | 4 | Each | (2x) Included in ME000747 (2x) Included in ME000746 |
4 | 3585-2CN164 | INSERT, HELICOIL, SST, 8-32X.164 | 4 | Each | (2x) Included in ME000747 (2x) Included in ME000746 |
5 | ICA011698 | BUMPER, CONICAL, .720 DIA, .560 HGT | 2 | Each | (1x) Included in ME000747 (1x) Included in ME000746) |
6 | 4030-080-3901-135 | SNAPLOC-STUD, 8MM | 4 | Each | (2x) Included in ME000747 (2x) Included in ME000746 |
NAS1149C04324 | WASHER, FLAT, CRES, .250X.032, PSVT | 4 | Each | Not pictured. Installed under 4030-080-3901-135 SNAPLOC-STUD, 8MM | |
7 | 4050-084-3018-134 | SNAPLOC-COUPLING, 8MM | 4 | Each | See Equipment and Furnishings, Seat for more of ME0000333 and ME000332. |
8 | ICA011688 | INSERT, HELICOIL, SST, M6X1X6MM | 4 | Each | (2x) Included in ME000747 (2x) Included in ME000746 |
9 | ICA011787 | HARDPOINT, THREADED, ULTEM, .335 THK, 1.000 DIA | 4 | Each | (2x) Included in ME000747 (2x) Included in ME000746 |

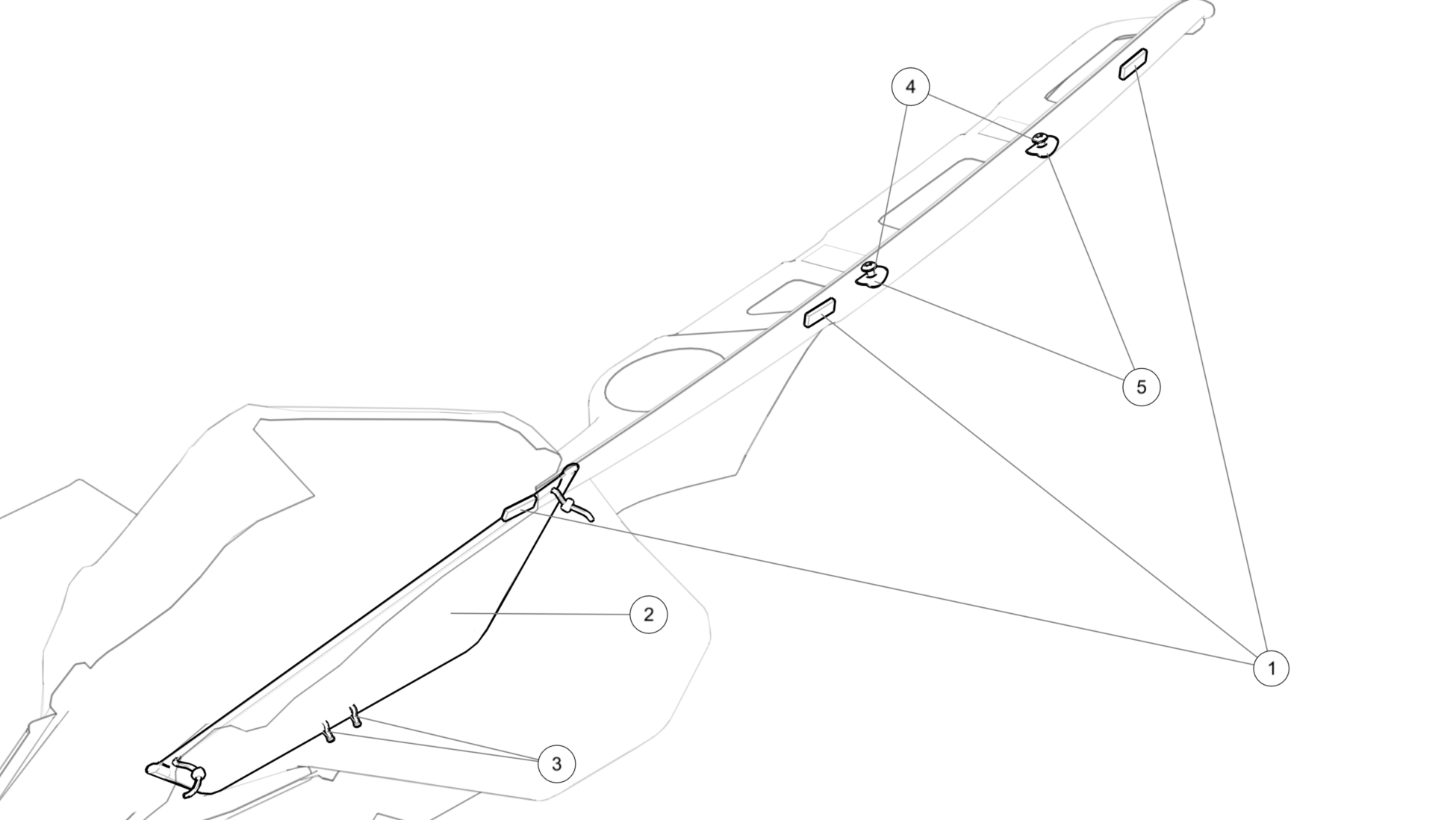

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA007892 | SPACER, RECT, 10-5, .125 THK, 1.00X.375 | 3 | Each | Included in ME000349 |
2 | ICA003278 | POCKET, COCKPIT SIDEWALL, RH | 1 | Each | Included in ME000349 |
3 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP, SIDEPOCKET | 2 | Each | Included in ME000349 |
4 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 2 | Each | |
5 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 2 | Each | (1x) Included in ME000320 |

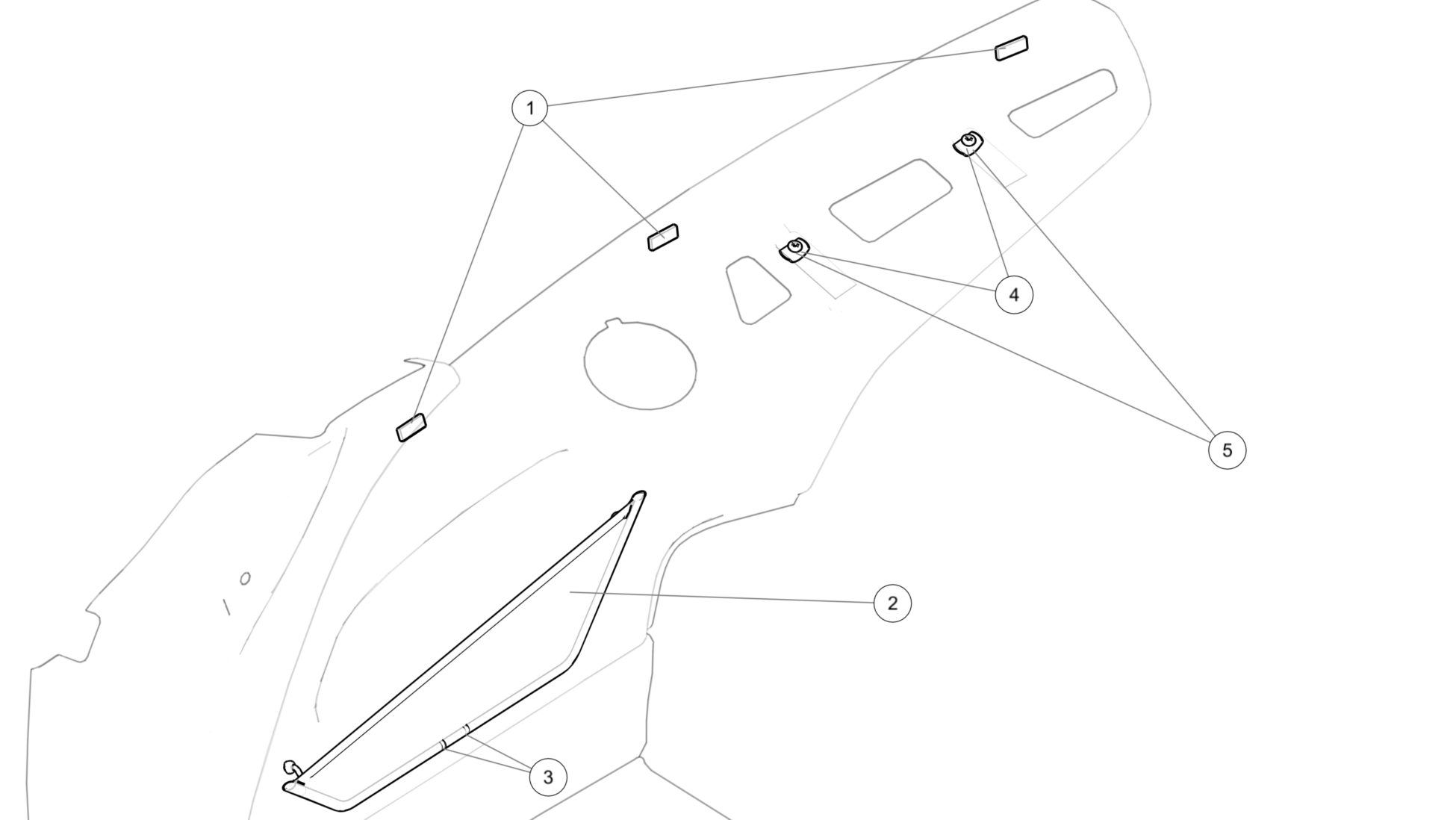

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA007892 | SPACER, RECT, 10-5, .125 THK, 1.00X.375 | 3 | Each | Included in ME000351 |
2 | ICA003277 | POCKET, COCKPIT SIDEWALL, LH | 1 | Each | Included in ME000351 |
3 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP, SIDEPOCKET | 2 | Each | Included in ME000351 |
4 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 2 | Each | |
5 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 2 | Each | (1x) Included in ME000319 |
