Equipment and Furnishings, Overhead, Console
100917-00

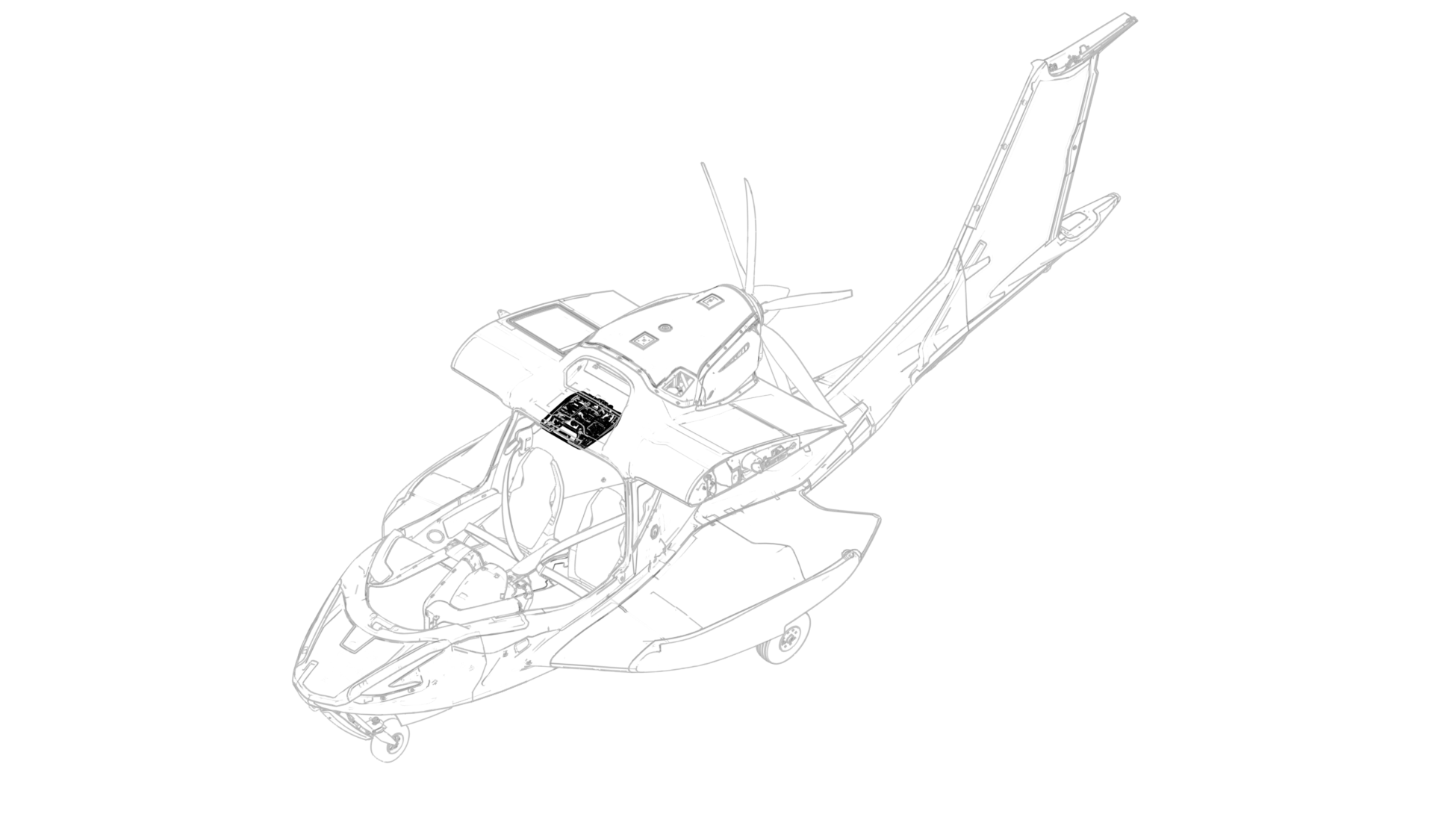

Overhead Console installation of Equipment and Furnishings.

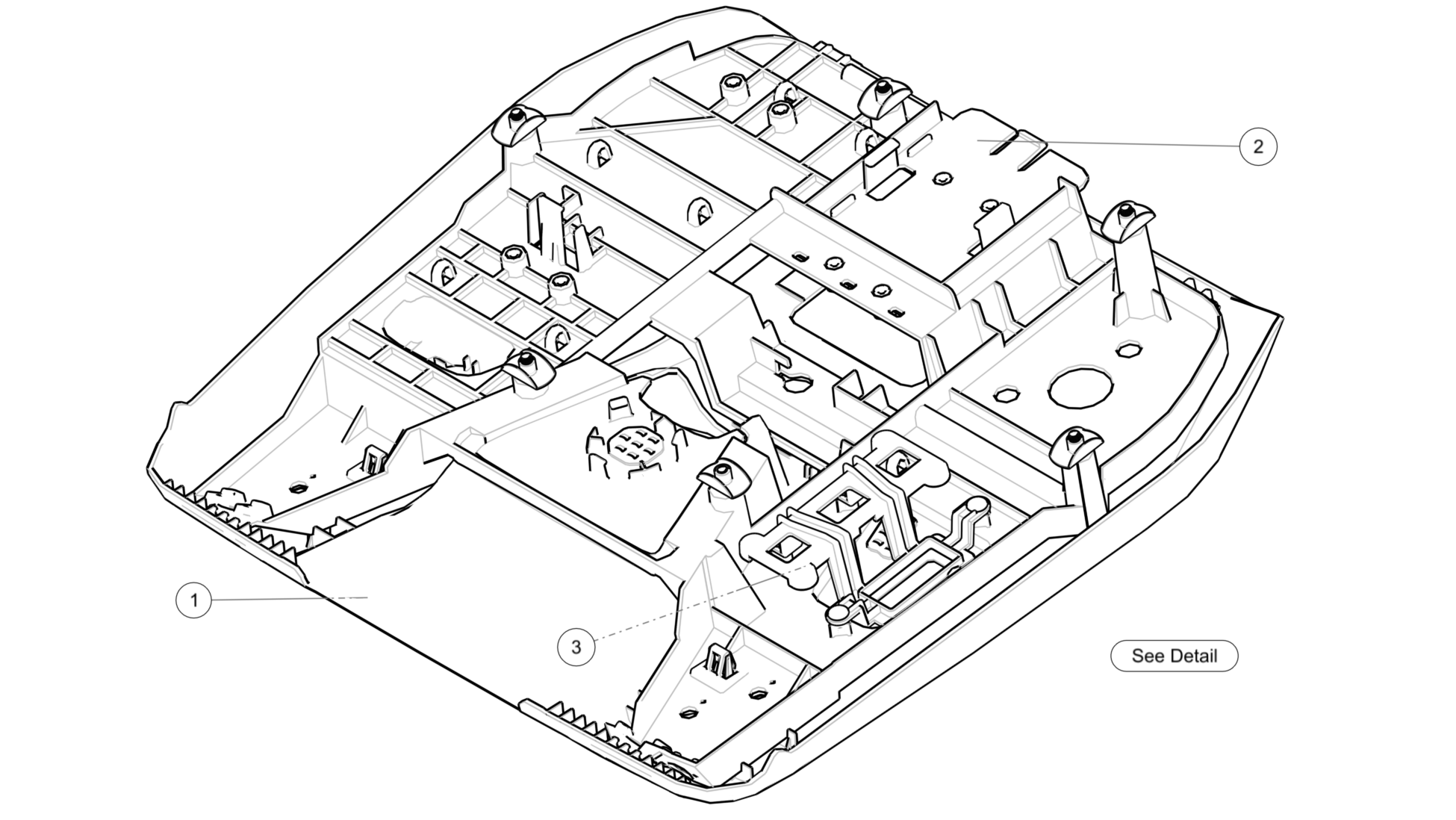

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000727 | BEZEL, PAD PRINTED ASSY, OVERHEAD CONSOLE | 1 | Each | |
2 | ICA010838 | MOUNTING FRAME PAD PRINTED ASSY, OVERHEAD CONSOLE | 1 | Each | Included in ME000202See Electrical Instl, Overhead Console for more of ME000202. |
3 | ICA009273 | BRACKET, HORN AND SWITCH, ELT | 1 | Each | Included in ME000202See Electrical Instl, Overhead Console for more of ME000202. |

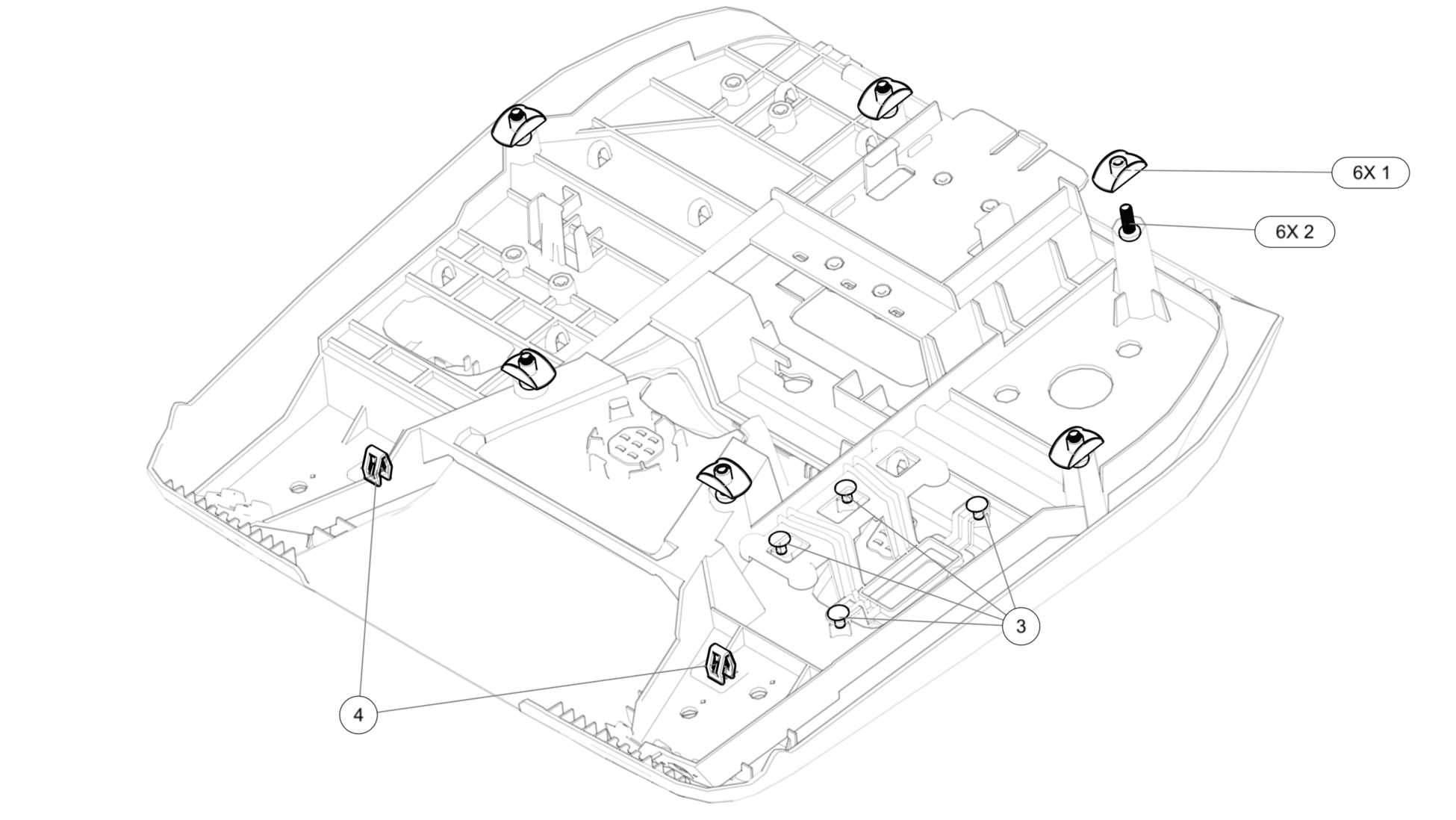

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 6 | Each | |
2 | 96710A318 | SCREW, TORX, PAN HEAD, 18-8, 8-32X.500 | 6 | Each | |
3 | 6C25MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 6-32X.250 | 4 | Each | Included in ME000202See Electrical Instl, Overhead Console for more of ME000202. |
4 | 08800416-C14 | CLIP, RIBLOK, 1.5-6.5MM PANEL | 2 | Each |
