Electrical, Overhead Console
100909-00

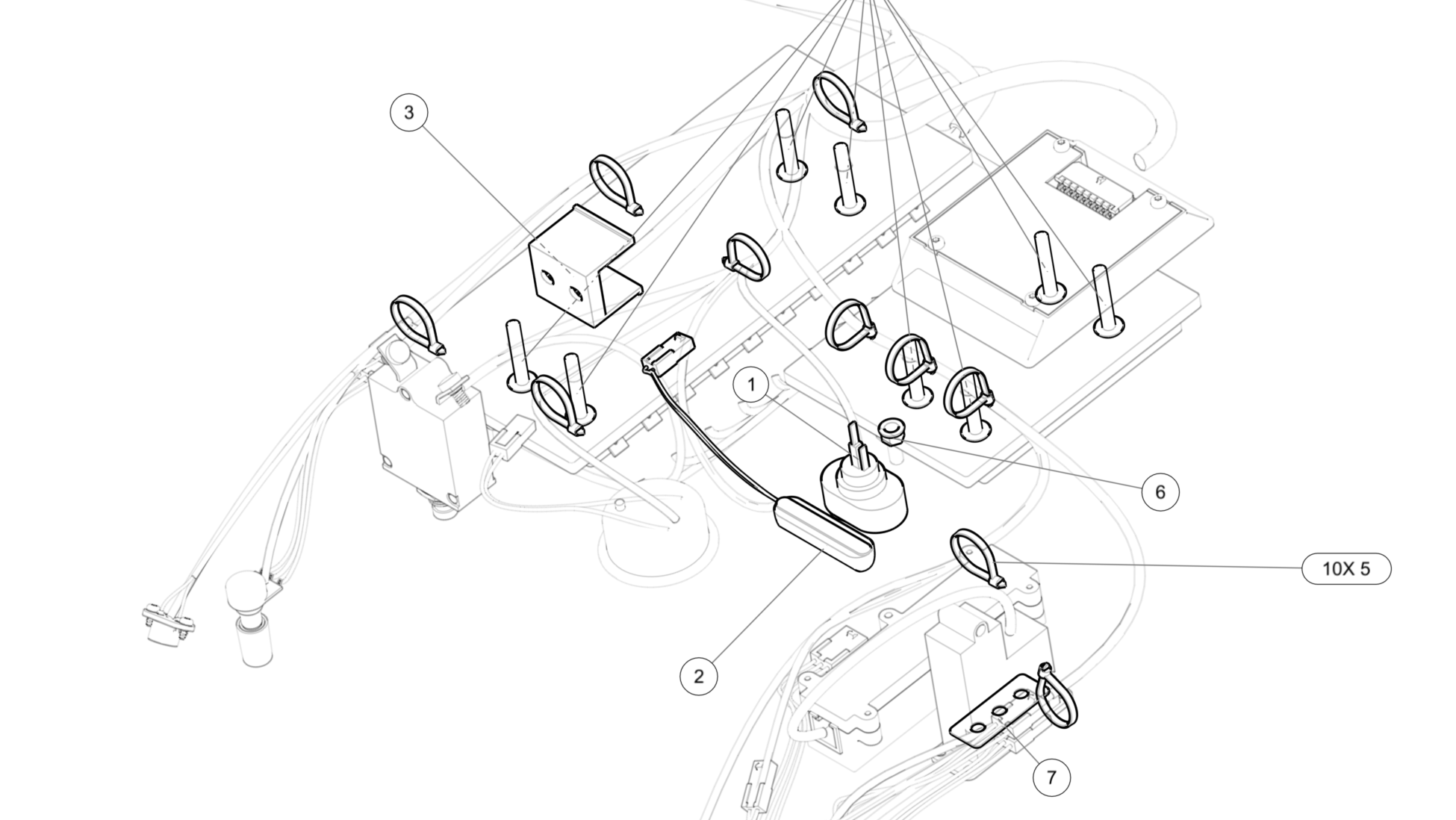

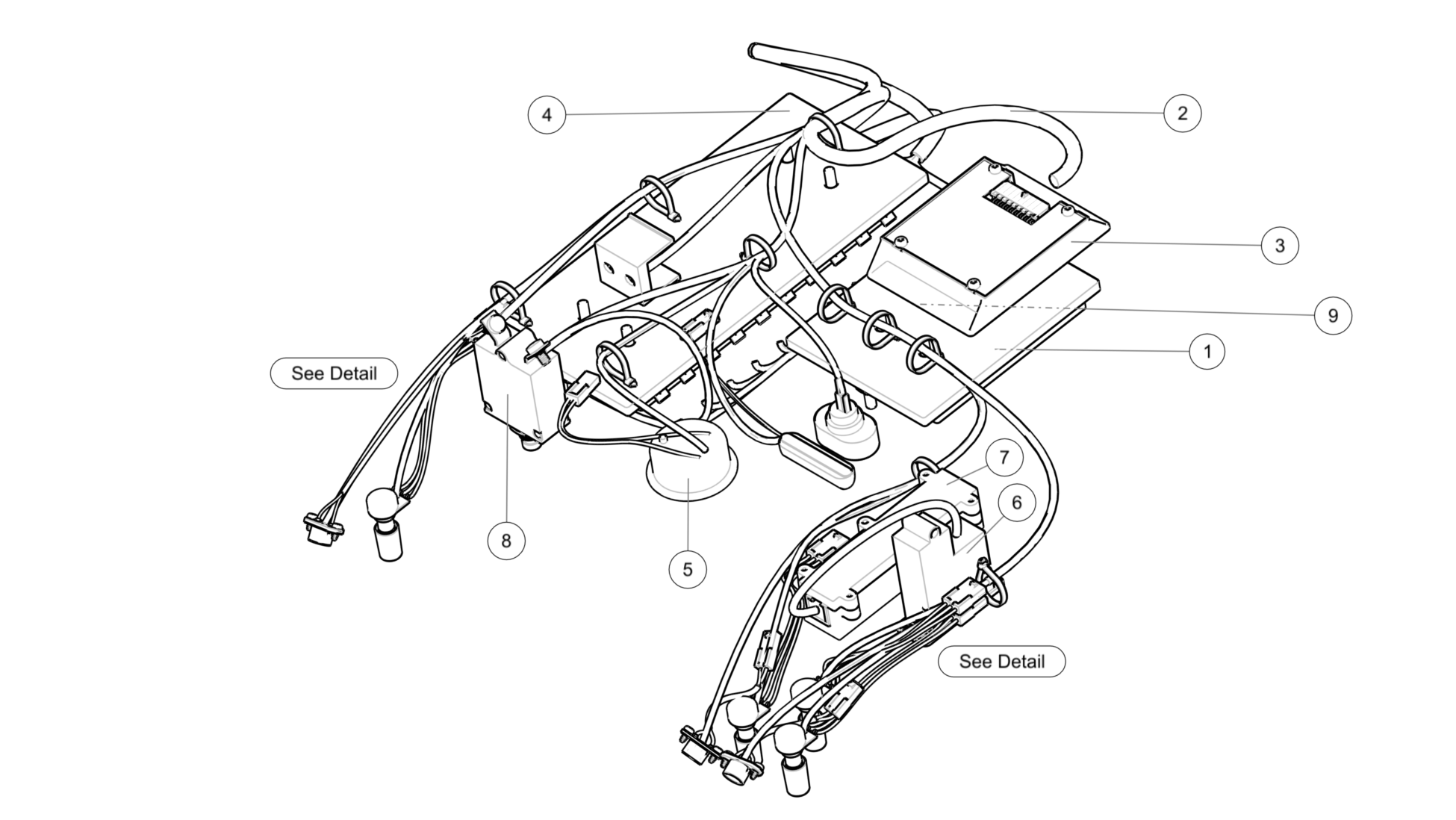

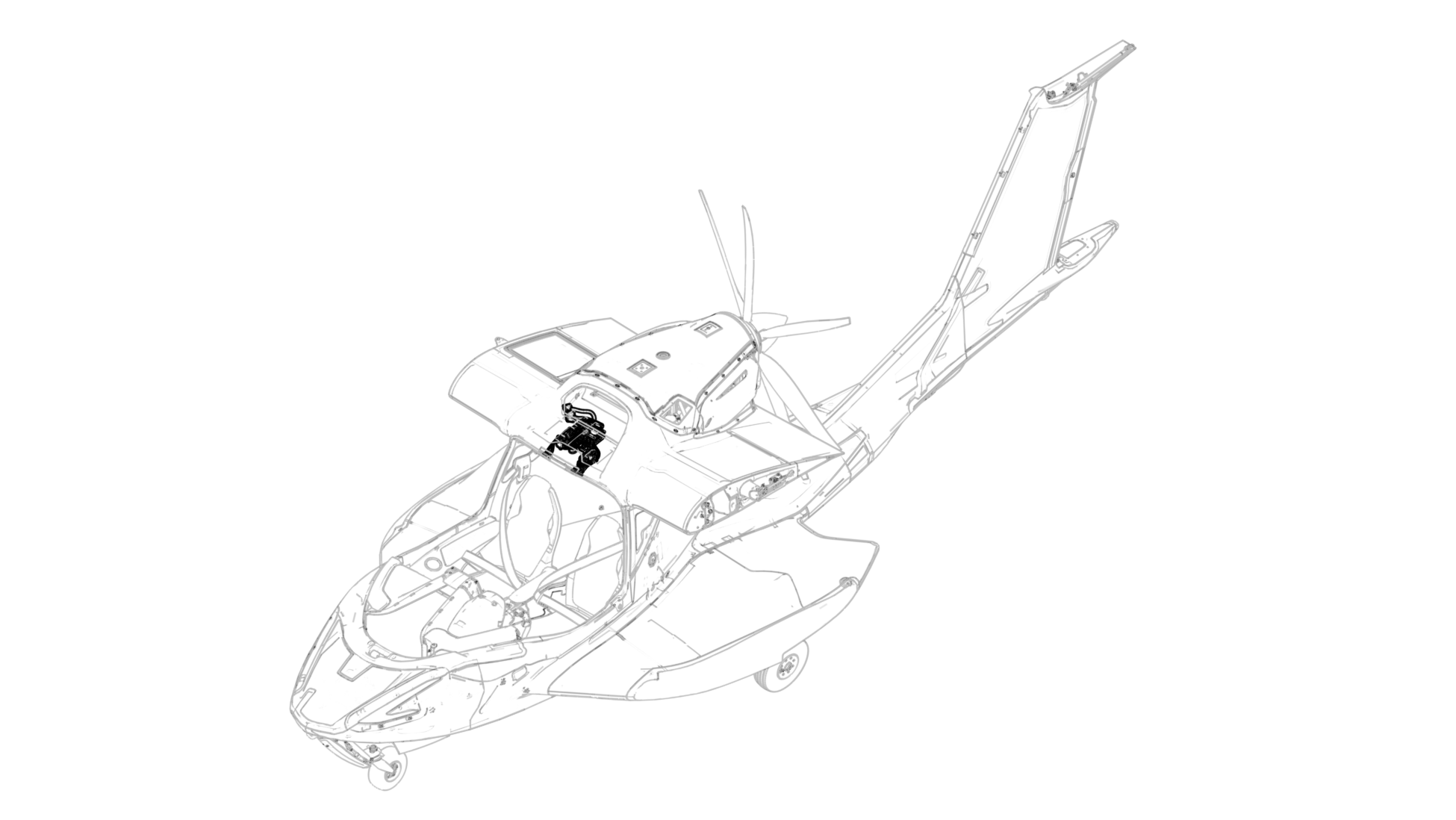

Overhead console electrical installation. 796 configuration shown.

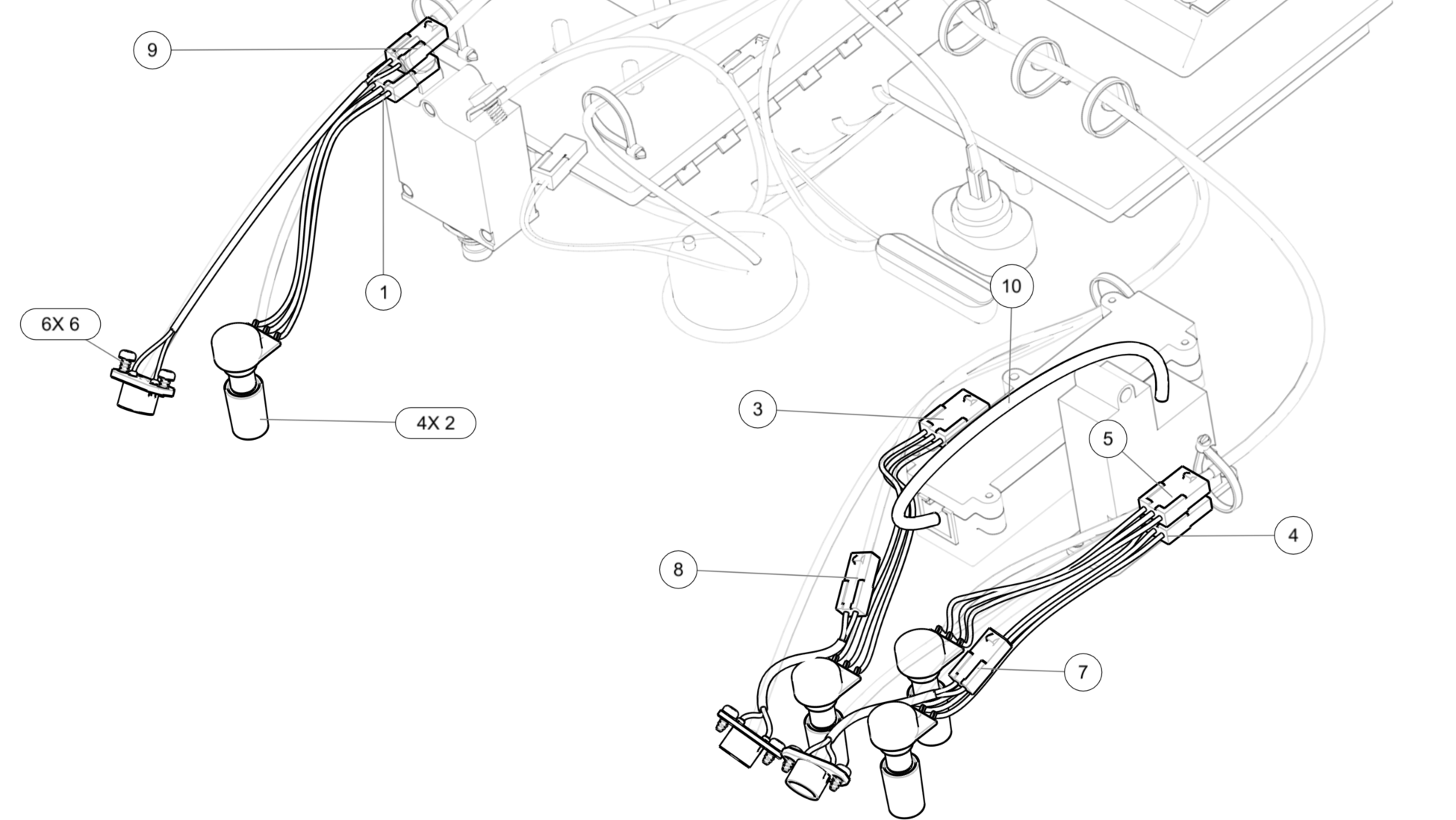

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA013818 | FUSE PANEL, SPARE | 1 | Each | Included in ME000202 |
2 | ICA008489 | WIRE HARNESS, CONSOLE, OVERHEAD | 1 | Each | Included in ME000202 |
3 | ICA010373 | DRIVER MODULE, OHC | 1 | E ach | Included in ME000202 |
4 | 15602-0416-20 | FUSE PANEL | 1 | Each | Included in ME000202 |
5 | ICA006179 | HORN, STALL WARNING | 1 | Each | Included in ME000202 |
6 | ICA012253 | SWITCH, REMOTE, ELT TEST/RESET | 1 | Each | Included in ME000202 |
7 | ICA012255 | HORN, ELT AUDIO ALERT | 1 | Each | Included in ME000202 |
8 | W23-X1A1G-30 | CIRCUIT BREAKER, 30A | 1 | Each | Included in ME000202 |
9 | ME000202 | OVERHEAD CONSOLE, SUBASSY | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | R13-133A-01 | SWITCH, SPST, 30A | 1 | Each | Included in ME000202 |
2 | ICA006174 | LIGHT, LED, DOME | 1 | Each | Included in ME000202 |
3 | SJTC02000 | TERMINAL BLOCK, MOUNTING TRACK, 2 UNIT, COMPOSITE | 1 | Each | Included in ME000202 |
4 | 8C100MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X1.00 | 8 | Each | Included in ME000202 |
5 | TY23MX | CABLE-TIE, NYLON 6-6, 18LB, TY-RAP .63 DIA | 10 | each | Included in ME000202 |
6 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 1 | Each | |
7 | ICA012254 | PLACARD, REMOTE, ELT TEST/RESET, VERTICAL | 1 | Each | Included in ME000202 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA010402 | POTENTIOMETER, 10K, MAP LIGHT | 1 | Each | Included in ME000202 |
2 | FC7251 | KNOB, D-SHAFT, BLACK ANODIZED, 10MMX15MM | 4 | Each | |
3 | ICA010404 | POTENTIOMETER, 10K, CENTER STACK LIGHTING | 1 | Each | Included in ME000202 |
4 | ICA010401 | POTENTIOMETER, 10K, INSTRUMENT PANEL LIGHTING | 1 | Each | Included in ME000202 |
5 | ICA010403 | POTENTIOMETER, 10K, OHC LIGHTING | 1 | Each | Included in ME000202 |
6 | 96817A890 | SCREW, TORX PAN HEAD, 18-8, M2.5X0.95 | 6 | Each | Included in ME000202 |
7 | ICA010374 | ILLUMINATOR LIGHT, OHC, INSTR PNL, RED | 1 | Each | Included in ME000202 |
8 | ICA010375 | ILLUMINATOR LIGHT, OHC, CTR STK, RED | 1 | Each | Included in ME000202 |
9 | ICA010376 | ILLUMINATOR, LIGHT, OHC, WHITE | 1 | Each | Included in ME000202 |
10 | ICA012247 | CABLE, AUDIO ALERT, ELT | 1 | Each | Included in ME000202 |
