1

ME000280

BELLCRANK, NLG SUBASSY

1

Each

2

ME001202

LONG ARM FWD, NLG LIMIT SWITCH, SUBASSY

1

Each

3

ME001203

NLG ACTUATOR, SUBASSEMBLY

1

Each

Includes ME001202

4

ME000815

PAINTED, NLG STRUT

1

Each

5

750-2-120

SPRING, GAS, 120LB

1

Each

6

ICA010386

BRACKET, CENTERING, NOSE WHEEL

1

Each

7

ICA007790

BRACKET, AIR SPRING-LEG, NLG

1

Each

8

ICA006093

BRACKET, LEG-PUSHROD, NLG

1

Each

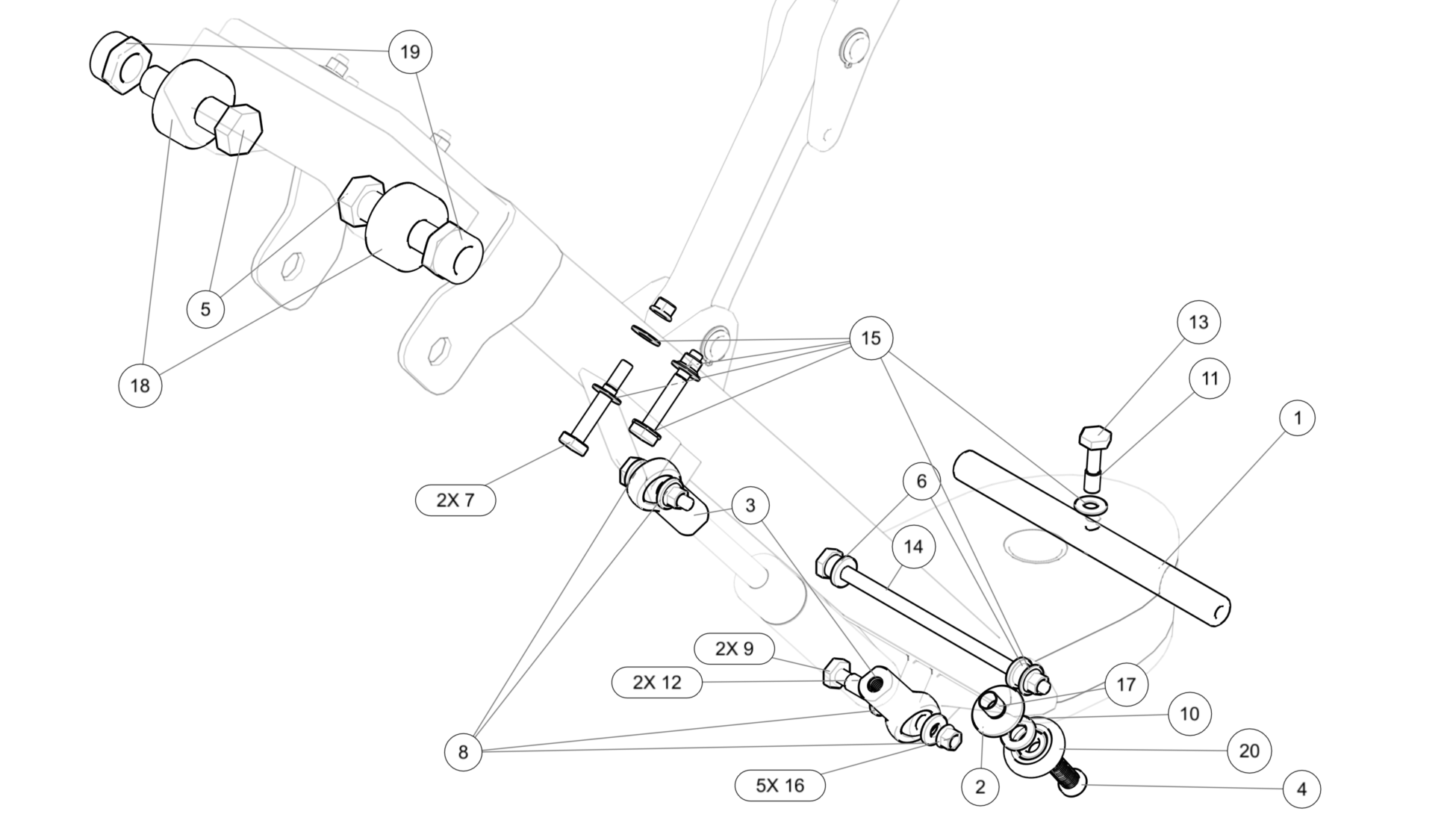

1

ICA010053

ROD, FORK, NLG DOOR

1

Each

2

ICA011794

WASHER, FLAT, SS, .250X.750X.06-.09, PSVT

1

Each

3

2988K321

ROD END, 6 MM ID, 9 MM WIDTH, M6X1 THREAD

2

Each

4

93615A432

BOLT, SOCKET HEAD, LOW, .250X.625

1

Each

5

AN7C14A

BOLT, MACH, .439-20, CRES, 1.59375, 0.9375

2

Each

6

6627K403

BEARING, FLANGED, PEEK, .188ID, .313OD, .438 FLG DIA

2

Each

7

AN3C12A

BOLT, MACH, CRES, 10-32X.875

2

Each

8

NAS1149C0363R

WASHER, FLAT, CRES, .188X.063, PSVT

4

Each

9

AN3C10A

BOLT, MACH, CRES, 10-32X.625

2

Each

10

NAS1149C0463R

WASHER, FLAT, CRES, .250X.063, PSVT

1

Each

11

3591-3CN285

INSERT, HELICOIL,SST, 10-32X.285

1

Each

12

ICA009193

BUSHING, ADAPTER, 6MM TO .190

2

Each

13

AN3C3A

BOLT, MACH, CRES, 10-32X.063

1

Each

14

AN3C41A

BOLT, MACH, CRES, 10-32X3.75

1

Each

15

NAS1149C0332R

WASHER, FLAT, CRES, .203X.032, PSVT

6

Each

16

MS21043-3

NUT, SLFLKG, RDC HEX, CRES, 10-32

5

Each

17

3591-4CN250

INSERT, HELICOIL, SCREW-LOCK, CRES, .250-28X.250

1

Each

18

ICA007417

BUSHING, TRUNNION, NLG

2

Each

19

MS21044C7

NUT, SLFLKG, HEX, CRES, .437-20

2

Each

20

ICA010833

FOLLOWER ASSY, CAM, NOSE WHEEL CENTERING

1

Each

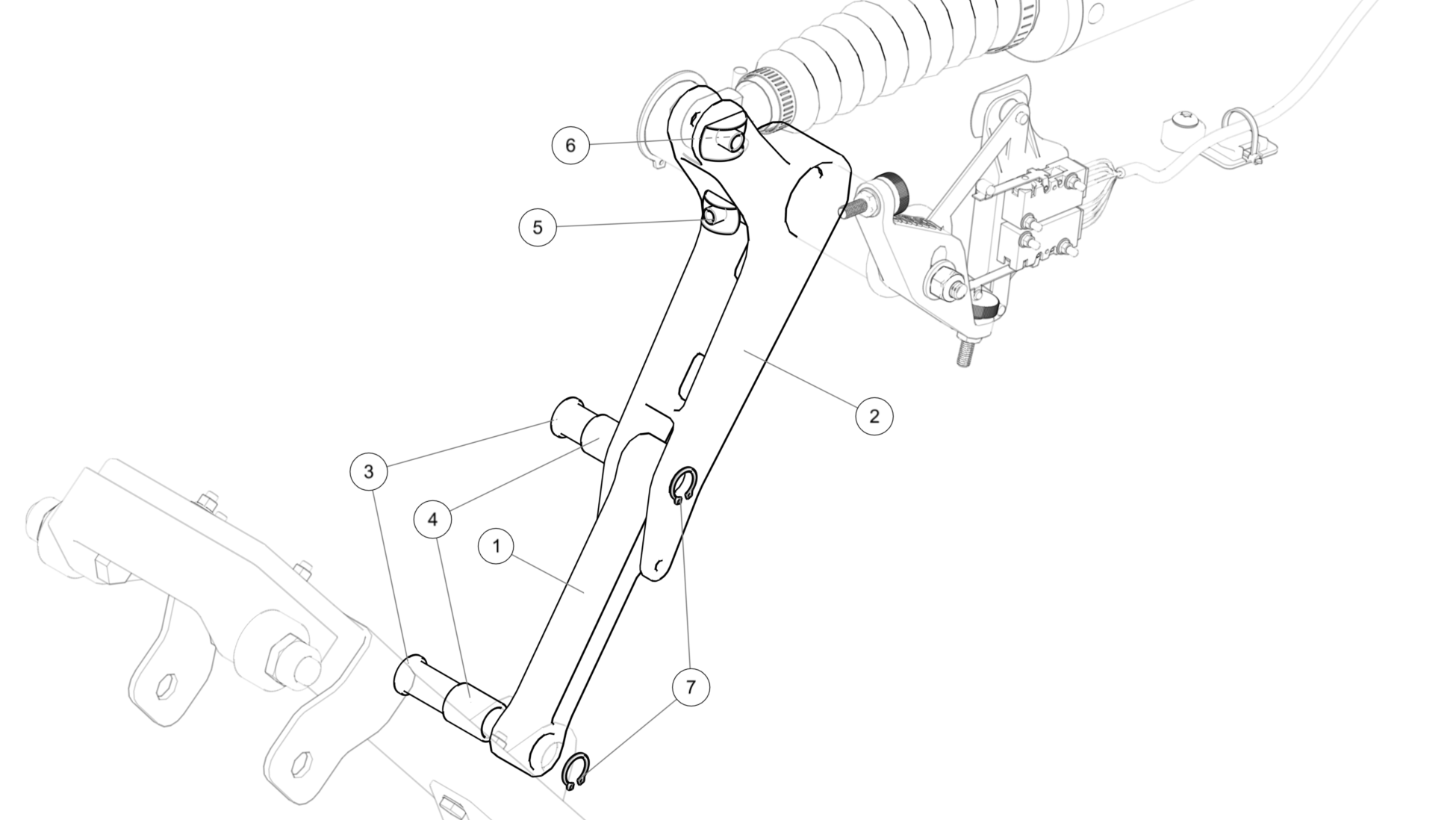

1

ICA011212

DRAG LINK, NLG

1

Each

Included in ME000280

2

ICA011211

BELLCRANK, NLG

1

Each

Included in ME000280

3

ICA015079

PIN, WRIST, NLG

2

Each

Included in ME000280

4

ICA000003

BEARING, DRAG LINK, NLG

2

Each

Included in ME000280

5

CN609CR3P

NUT PLATE, TWO LUG, ADH BND, .190-32

1

Each

Included in ME000280

6

CN609CR4P

NUT PLATE, TWO LUG, ADH BND, .250-28

1

Each

Included in ME000280

7

S73HW2-100-043

RETAINING RING, CRES, .438X.025

2

Each

Included in ME000280

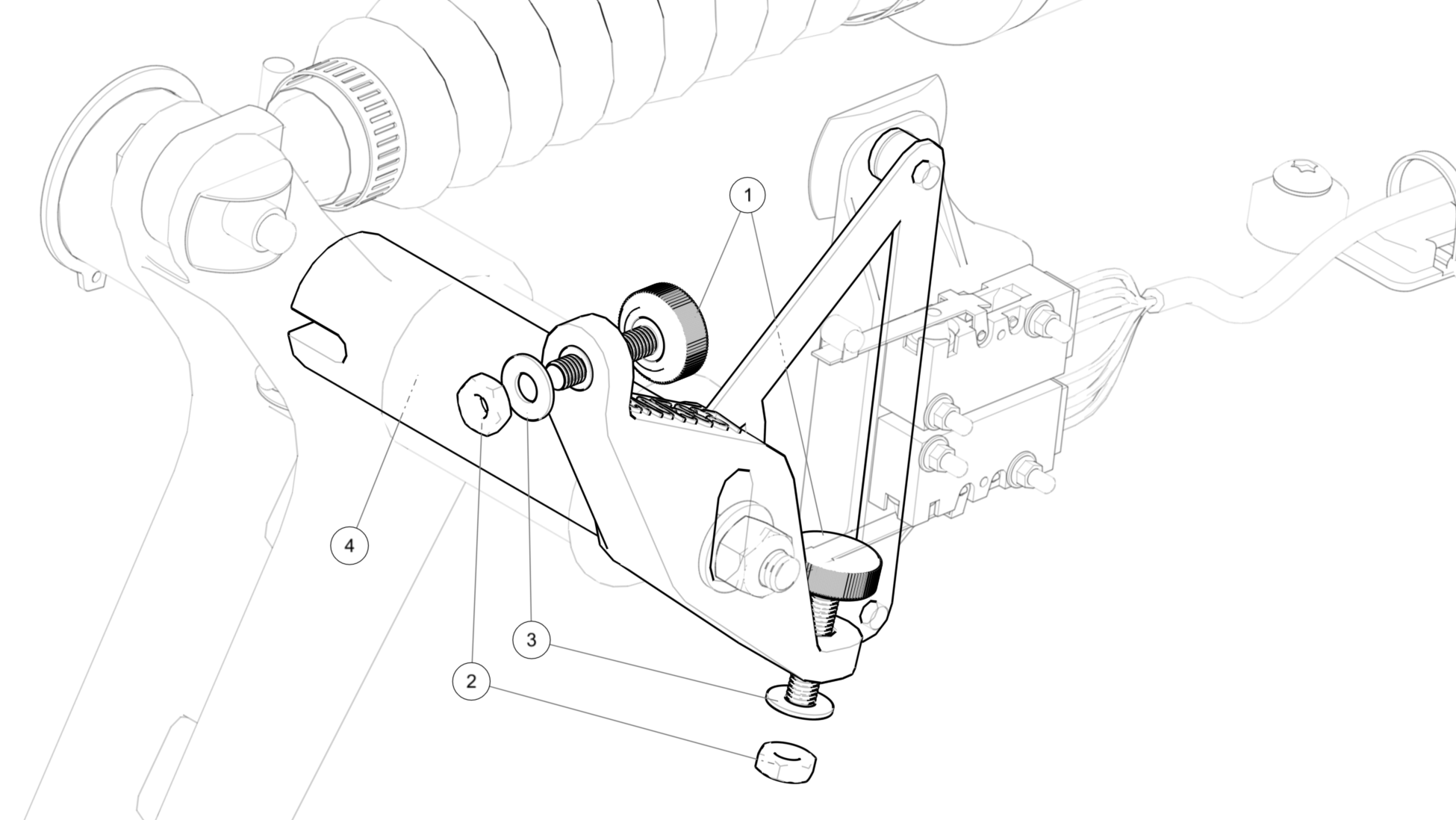

1

ICA016069

THUMB SCREW, PLASTIC HEAD, 10-32x.875

2

Each

Included in ME001201

2

AN315C3R

NUT, HEX, CRES, 10-32RH

2

Each

Included in ME001201

3

NAS1149C0332R

WASHER, FLAT, CRES, .203X.032, PSVT

2

Each

Included in ME001201

4

ME001201

BRACKET, LIMIT SWITCH RETROFIT, NLG, SUBASSY

1

Each

Image includes tooling fixture that is trimmed off during installation.

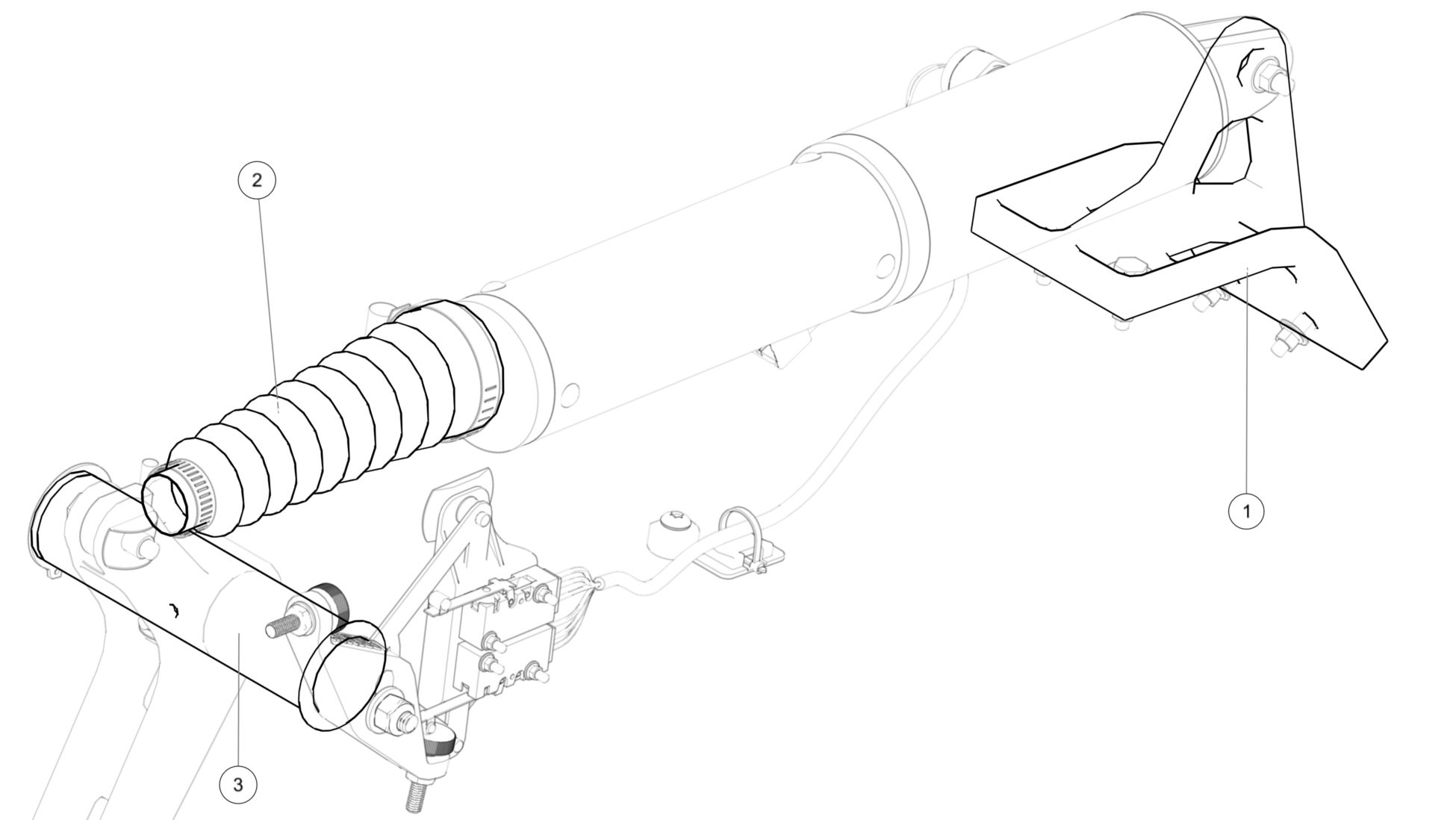

1

ICA007816

BRACKET, ACTUATOR, AFT, NLG

1

Each

2

119255

BOOT, ACTUATOR, NLG

1

Each

3

ICA000002

SHAFT, BELLCRANK, NLG

1

Each

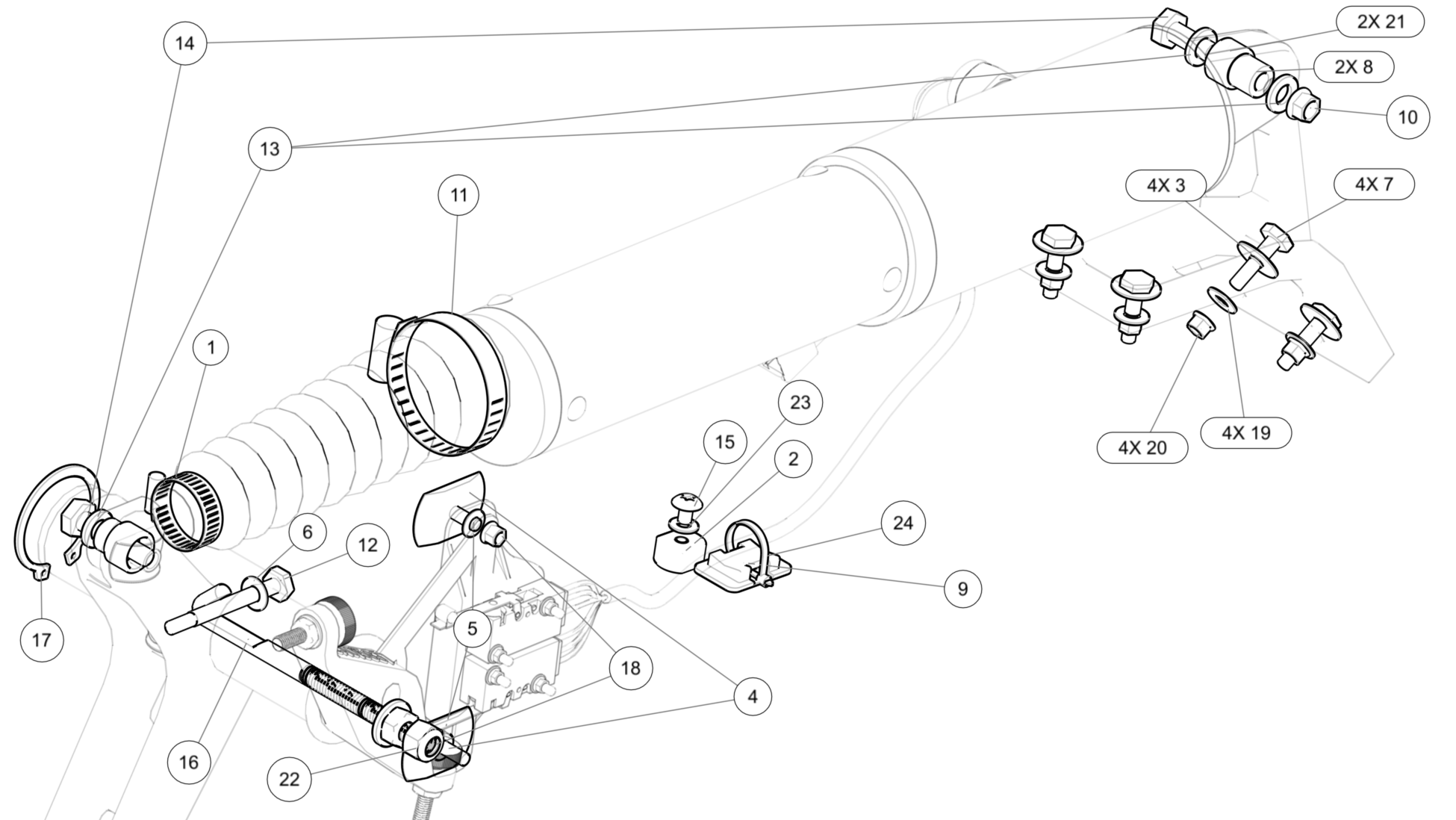

1

3808

CLAMP, WORM DRIVE, MINI, .312X0.906

1

Each

2

ICA007718

SPACER, LEG RETRACTION STOP

1

Each

3

92217A439

WASHER, CRES, .1875X.625X.03

4

Each

4

CB4000G08CRA8P750

STUD, ADH BND, FBRG, A286, 8-32X.500 TRIM

2

Each

Alternate Part Number: CB4000G3CRA8P750 or CB4000G3CRA8750

5

NAS1149CN816R

WASHER, FLAT, CRES, #8X.016, PSVT

2

Each

Alternate Part Number (for 10-32 studs):

NAS1149C0332R

6

NAS1149C0316R

WASHER, FLAT, CRES, .188x.016, PSVT

1

Each

7

AN3C6A

BOLT, MACH, CRES, 10-32X.375

4

Each

8

ICA008136

BUSHING, PLAIN, CRES, .250X.436X.375

2

Each

9

CB9120V5

MOUNT, CABLE TIE ANCHOR

1

Each

10

MS21043-4

NUT, SLFLKG, RDC HEX, CRES, .250-28

1

Each

11

30-45/9-W5

CLAMP, WORM DRIVE, NORMA TORRO, .35X1.19-1.75

1

Each

12

AN3C17A

BOLT, MACH, CRES, 10-32X1.500

1

Each

13

NAS1149C0463R

WASHER, FLAT, CRES, .250X.063, PSVT

3

Each

14

AN4C11A

BOLT, MACH, CRES, .250-28X.688

2

Each

15

8C25MTT3

SCREW, MACH TRH, 6LOBE, CRES, 8-32X.25

1

Each

16

ME001177

HOLD DOWN BOLT, NLG BRACKET, SUBASSY

1

Each

17

S73HW2-100-125

RETAINING RING, CRES, 1.250X.050

1

Each

18

MS21043-08

NUT, SLFLKG, RDC HEX, CRES, 8-32

2

Each

Alternate Part Number (for 10-32 studs): MS21043-3

19

NAS1149C0332R

WASHER, FLAT, CRES, .203X.032, PSVT

4

Each

20

MS21043-3

NUT, SLFLKG, RDC HEX, CRES, 10-32

4

Each

21

ICA007932

BEARING, ACTUATOR, NLG

2

Each

22

95615A120

NUT, LOCKING, 1/4-20, MCMASTER OR EQUIV

1

Each

Included in ME001177

23

NAS1149CN832R

WASHER, FLAT, CRES, #8X.032, PSVT

1

Each

24

TY23MX

CABLE-TIE, NYLON 6-6, 18LB, TY-RAP

1

Each
