Engine, Fuse Box
100866-00

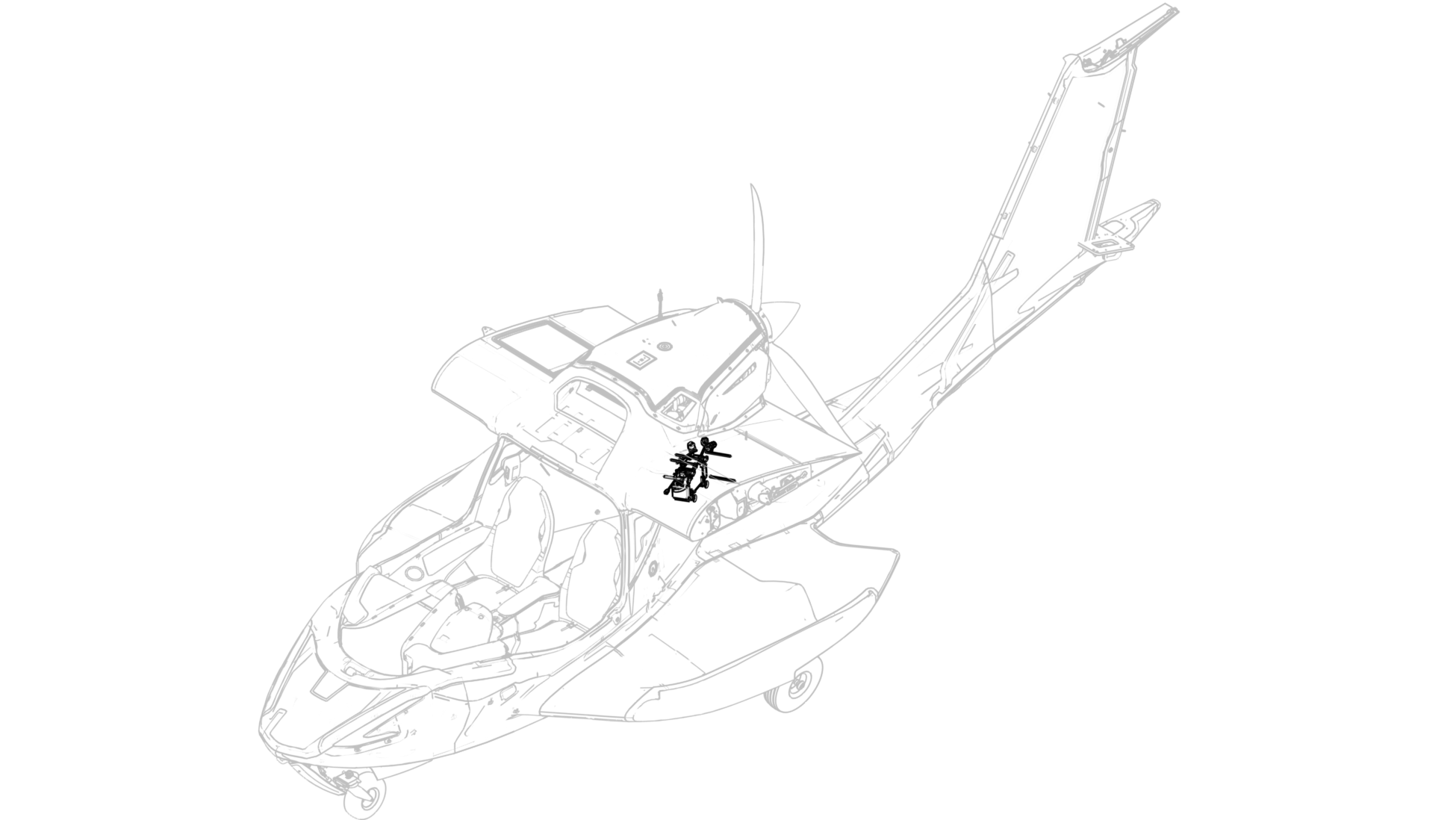

Fuse box installation.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA015727 | FUSE BOX, ROTAX 912iS | 1 | Each | Includes Regulator A and Regulator B – see Illustrated Parts Catalog for Rotax Engine Type 912 i Series for more detail. Retrofit may be required for aircraft with "Gray Regulator B connector". |
2 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 5 | Each |

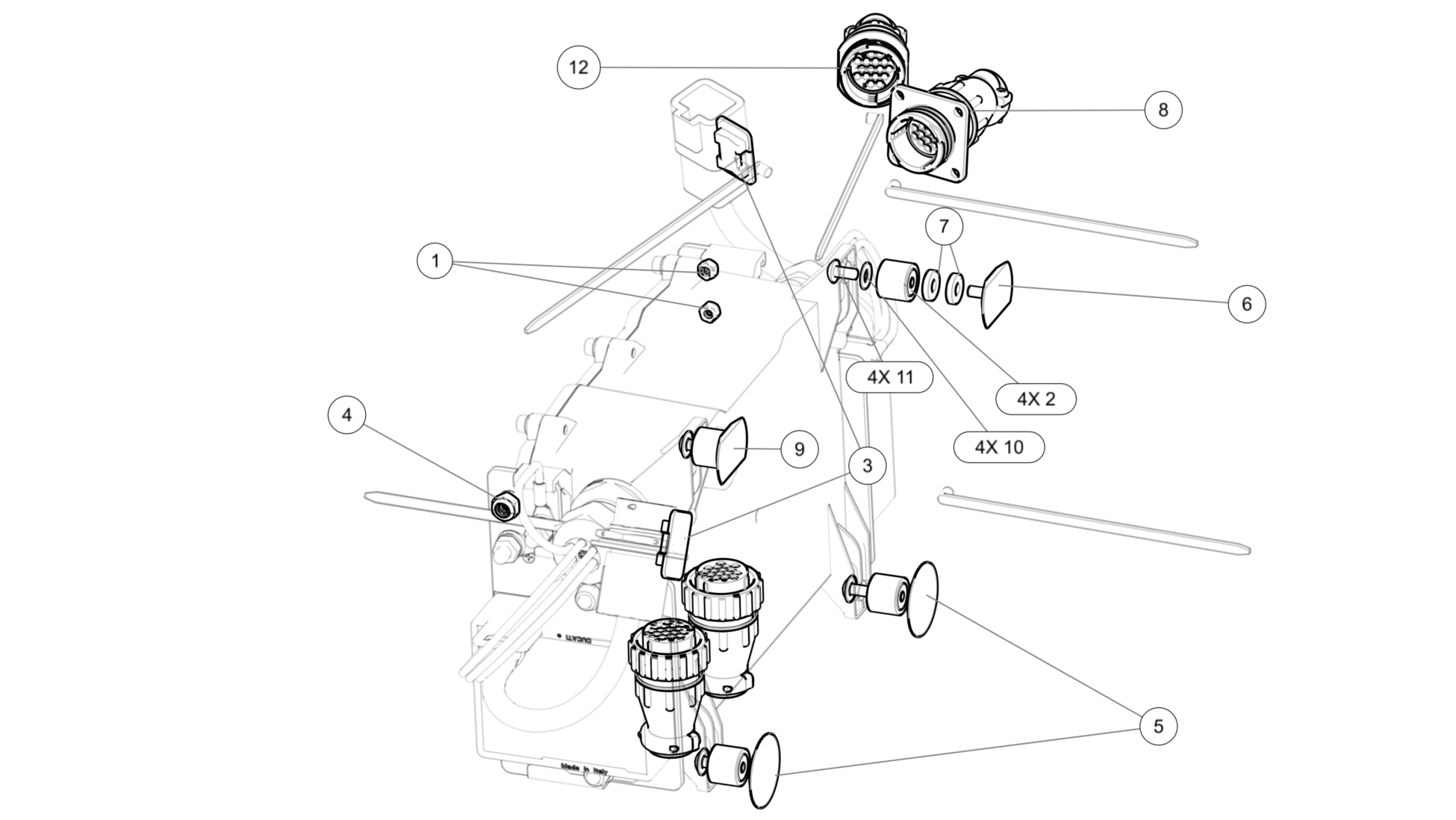

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA013914 | NUT, SLFLKG NYLON INSERT, M4X.7, ROTAX | 2 | Each | |
2 | ICA011419 | ISOLATOR, ELECTRONIC EQUIPMENT | 4 | Each | |
3 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 2 | Each | |
4 | ICA013913 | NUT, SLFLKG NYLON INSERT, M6X1, ROTAX | 1 | Each | |
5 | CB4000G08CRA4P | STUD, ADH BND, FBRG, A286, 8-32X.250 | 2 | Each | |
6 | CB4000G08CRA8P750 | STUD, ADH BND, FBRG, A286, 8-32X.500 TRIM | 1 | Each | |
7 | 98370A027 | WASHER, FLAT, 18-8SS, .203X.500X.080-.099 | 2 | Each | |
8 | ICA013538 | WIRE HARNESS, ENGINE EXTENSION LANE B | 1 | Each | |
9 | CB4000G08CRA4P750 | STUD, ADH BND, FBRG, A286, 8-32X.250 TRIM | 1 | Each | |
10 | NAS1149C0316R | WASHER, FLAT, CRES, .188x.016, PSVT | 4 | Each | |
11 | 8C37MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32 X 0.375 | 4 | Each | |
12 | ICA013516 | WIRE HARNESS, ENGINE EXTENSION LANE A | 1 | Each |
