Fuselage, Engine, Cowl
100833-00

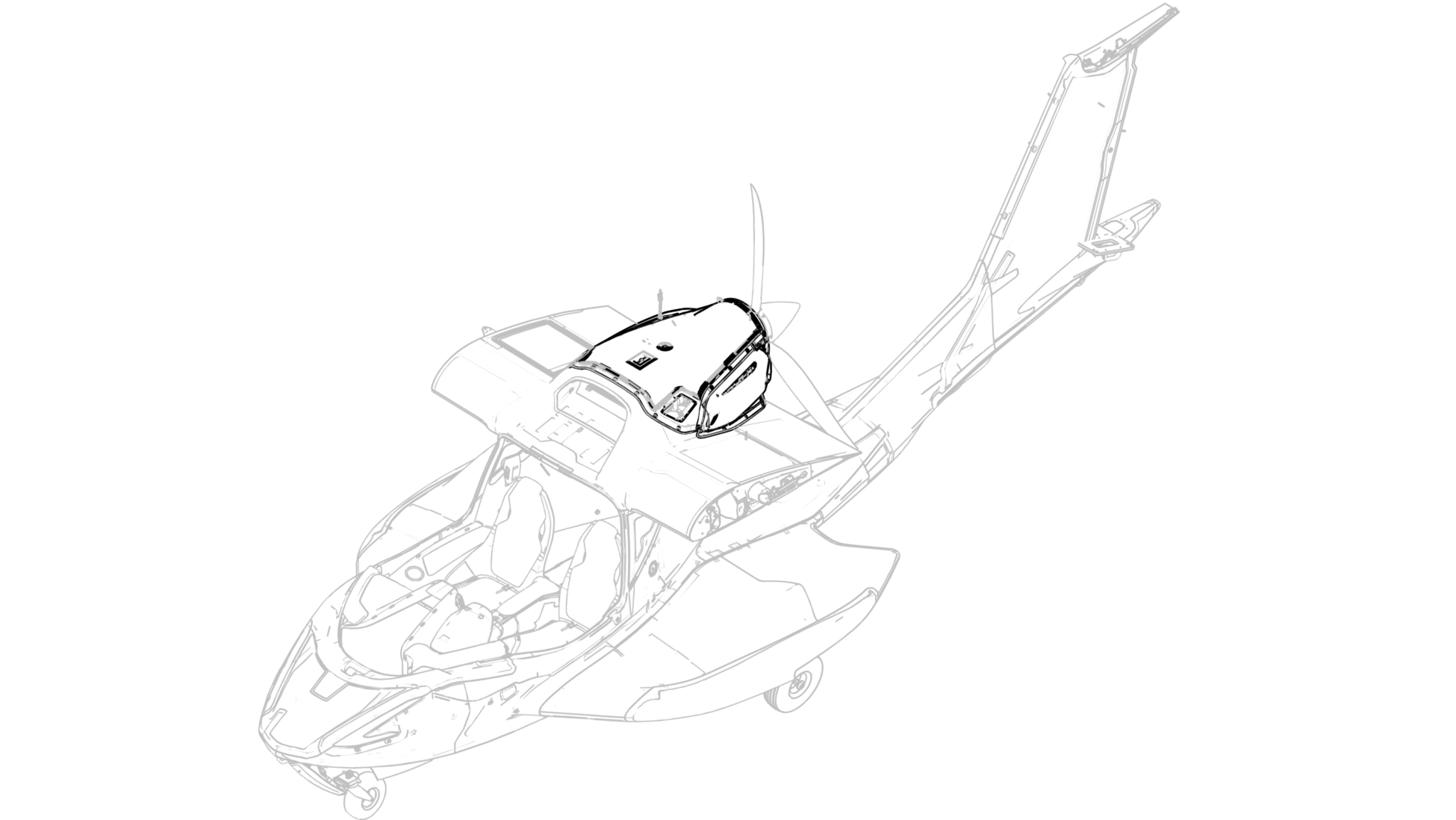

Engine cowl installation into the fuselage.

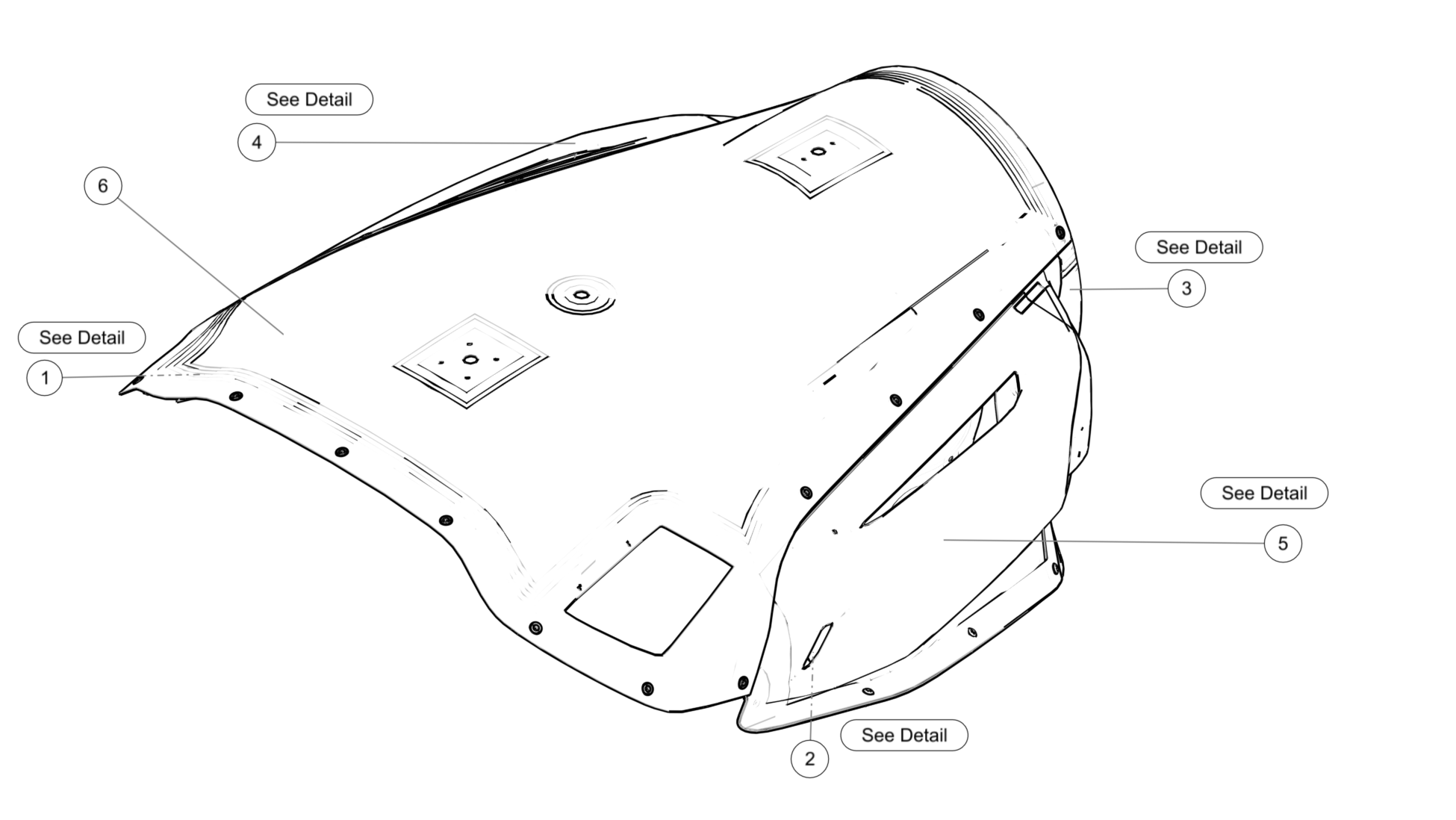

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000971 | EXHAUST-MUFFLER SHIELD, RH, SUBASSY | 1 | Each | |
2 | ME000970 | EXHAUST-MUFFLER SHIELD, LH, SUBASSY | 1 | Each | |
3 | ME000680-PSAPR ME000680-PSEBL ME000680-PSEGR ME000680-PSPUR ME000680-PSSGY ME000680-PSVEL ME000680-PSARD | LOWER COWL, SUBASSY | 1 | Each | PSAPR, PSVEL, and PSPUR are interchangeable (white) PSEBL, PSARD, and PSSGY are interchangeable (gray) |
4 | ME000679-PSAPR ME000679-PSEBL ME000679-PSEGR ME000679-PSPUR ME000679-PSSGY ME000679-PSVEL ME000679-PSARD | FAIRING, MUFFLER, RH, SUBASSY | 1 | Each | PSAPR, PSVEL, and PSPUR are interchangeable (white) PSEBLE, PSARD, and PSSGY are interchangeable (gray) Includes Rotax 912iS graphic |
5 | ME000405-PSAPR ME000405-PSEBL ME000405-PSEGR ME000405-PSPUR ME000405-PSSGY ME000405-PSVEL ME000405-PSARD | FAIRING, MUFFLER, LH, SUBASSY | 1 | Each | PSAPR, PSVEL, and PSPUR are interchangeable (white) PSEBL, PSARD, and PSSGY are interchangeable (gray) Includes Rotax 912iS graphic |
6 | ME000879-PSAPR ME000879-PSEBL ME000879-PSEGR ME000879-PSPUR ME000879-PSSGY ME000879-PSVEL ME000879-PSARD | PRIMED & PAINTED ENGINE COWL | 1 | Each | PSAPR, PSVEL, and PSPUR are interchangeable (white) |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | SK213-1 | RECEPTACLES, 1/4 TURN, ADJUSTABLE, SKYBOLT AEROMOTIVE CORP | 3 | Each | Included in ME000971 |
2 | ICA013035 | SHIELD, MUFFLER, RH | 1 | Each | Included in ME000971 |
3 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 3 | Each | Included in ME000971 |
4 | CCR264CS-3-03PR | RIVET, BLIND, FLUSH, CRES .098 X .126-.187 | 6 | Each | Included in ME000971 |
5 | ICA013496 | GROMMET, FABRIC, NICKEL | 3 | Each | Included in ME000971 |
6 | ICA013608 | INSULATION, SHIELD, MUFFLER, RH | 1 | Each | Included in ME000971 or ICA011194, 30 Inches |
7 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 2 | Each | Included in ME000971 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

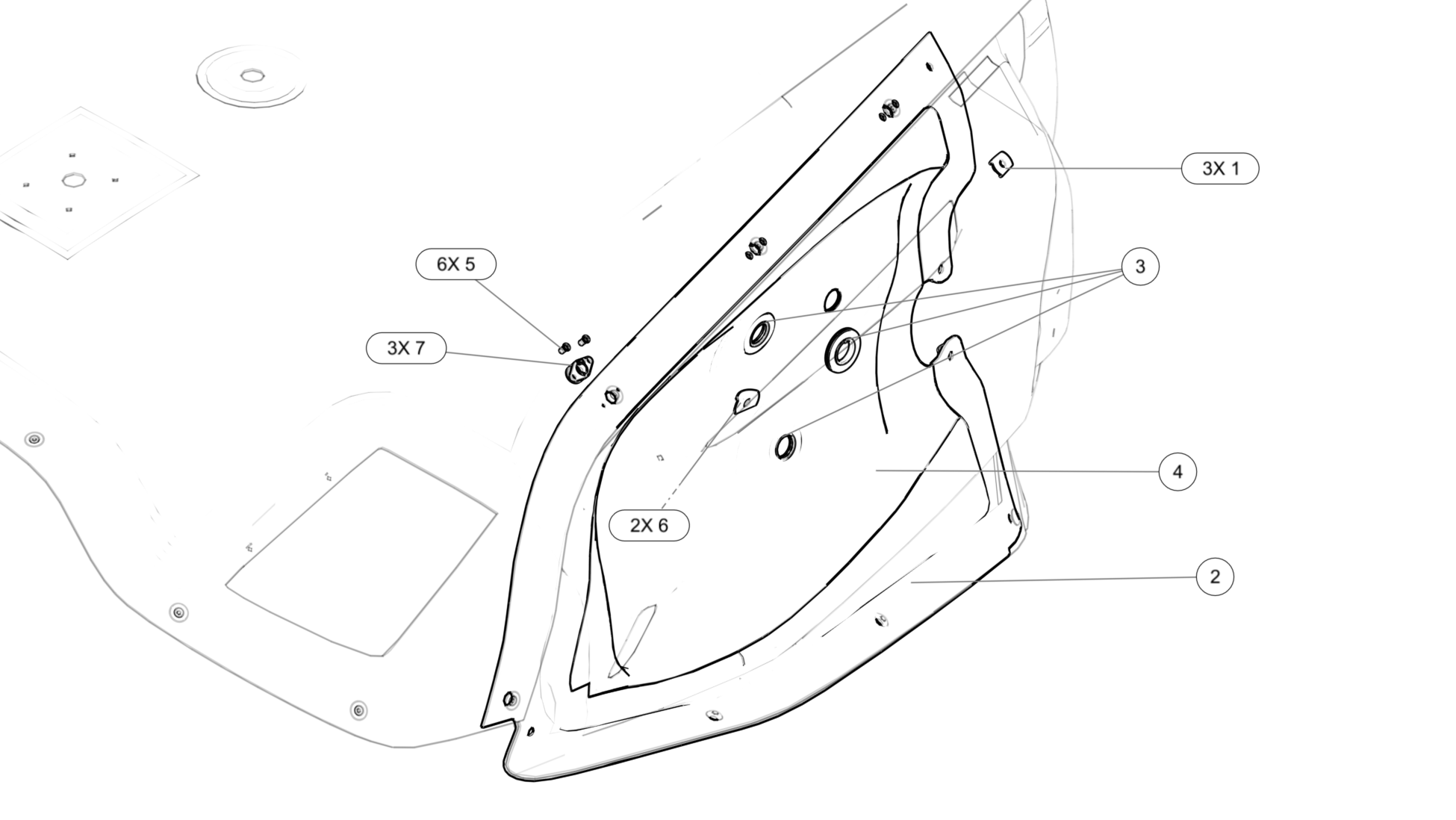

1 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 3 | Each | Included in ME000970 |
2 | ICA013036 | SHIELD, MUFFLER, LH | 1 | Each | Included in ME000970 |
3 | ICA013496 | GROMMET, FABRIC, NICKEL | 3 | Each | Included in ME000970 |
4 | ICA013609 | INSULATION, SHIELD, MUFFLER, LH | 1 | Each | Included in ME000970 or ICA011194, 30 Inches |
5 | CCR264CS-3-03PR | RIVET, BLIND, FLUSH, CRES .098 X .126-.187 | 6 | Each | Included in ME000970 |
6 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 2 | Each | Included in ME000970 |
7 | SK213-1 | RECEPTACLES, 1/4 TURN, ADJUSTABLE, SKYBOLT AEROMOTIVE CORP | 3 | Each | Included in ME000970 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

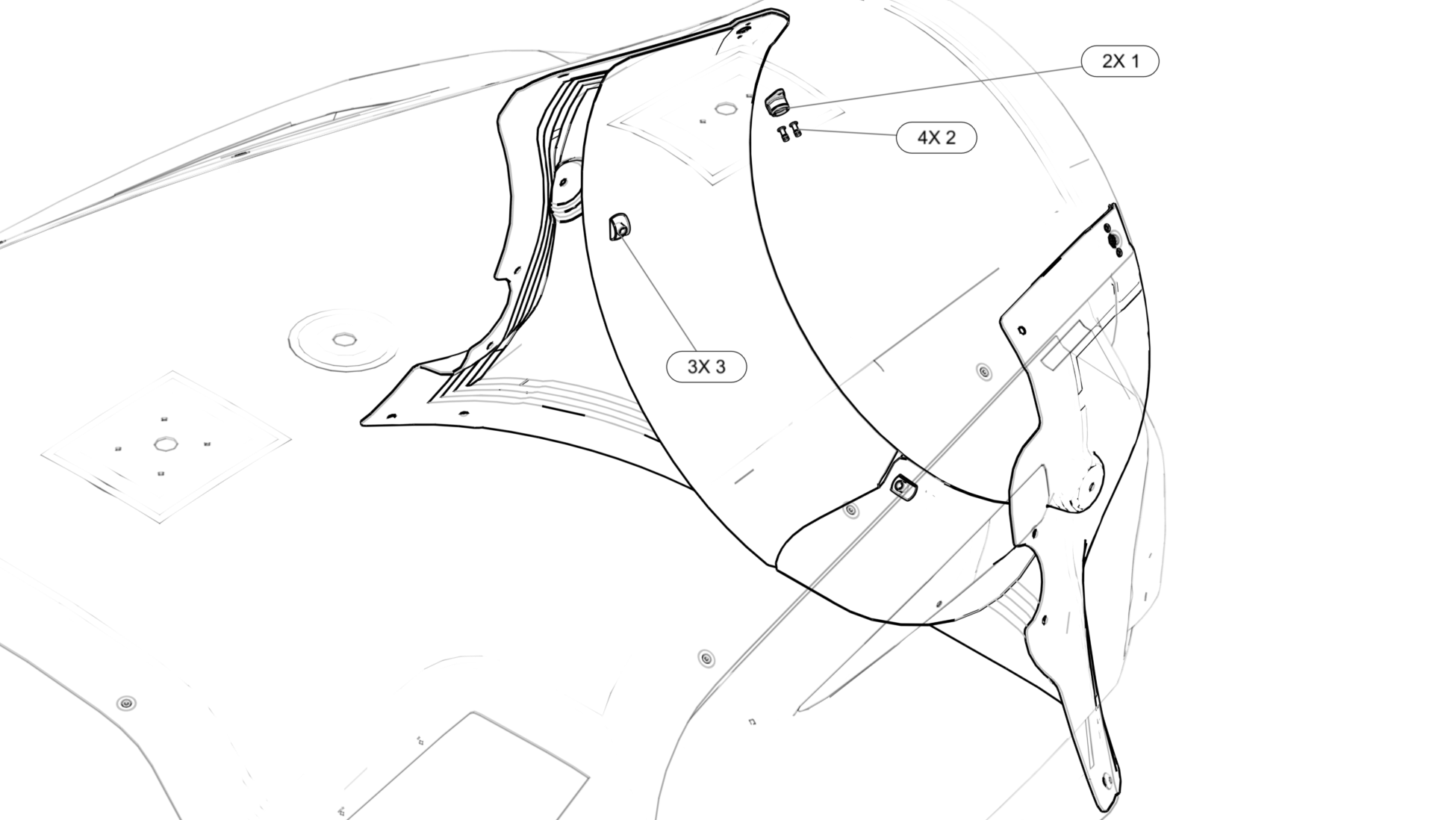

1 | SK213-1 | RECEPTACLES, 1/4 TURN, ADJUSTABLE, SKYBOLT AEROMOTIVE CORP | 2 | Each | Included in ME000680 |
2 | CCR264CS-3-04PR | RIVET, BLIND, FLUSH, CRES .098 X .188-.250 | 4 | Each | Included in ME000680 |
3 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 3 | Each | Included in ME000680 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

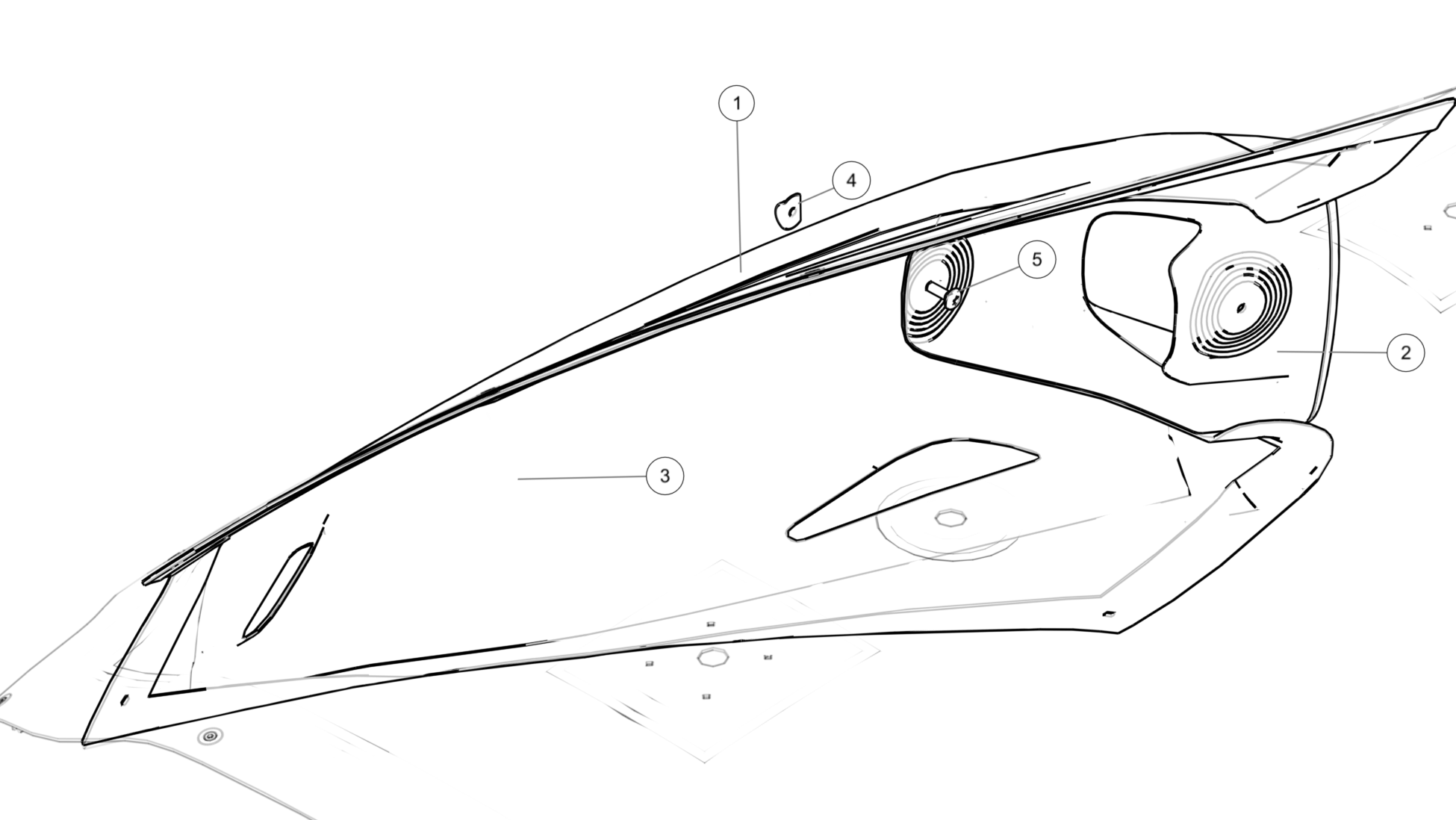

1 | ME000865-PSAPR ME000865-PSEBL ME000865-PSEGR ME000865-PSPUR ME000865-PSSGY ME000865-PSVEL ME000865-PSARD | PRIMED & PAINTED, MUFFLER FAIRING, RH | 1 | Each | Included in ME000679 |
2 | ME000570 | PAINTED, BEZEL, TAILPIPE, RH | 1 | Each | Included in ME000679 |
3 | ICA010966 | INSULATION, FAIRING, MUFFLER, RH | 1 | Each | Included in ME000679 |
4 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 1 | Each | Included in ME000679 |
5 | 10F62MTT3/50TL | SCREW, MACH TRH, 6LOBE, CRES, 10-32X.625X.50 | 1 | Each | Included in ME000679 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000863-PSAPR ME000863-PSEBL ME000863-PSEGR ME000863-PSPUR ME000863-PSSGY ME000863-PSVEL ME000863-PSARD | PRIMED & PAINTED, MUFFLER FAIRING, LH | 1 | Each | Included in ME000405 |
2 | ME000569 | PAINTED, BEZEL, TAILPIPE, LH | 1 | Each | Included in ME000405 |
3 | ICA010967 | INSULATION, FAIRING, MUFFLER, LH | 1 | Each | Included in ME000405 |
4 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 1 | Each | Included in ME000405 |
5 | 10F62MTT3/50TL | SCREW, MACH TRH, 6LOBE, CRES, 10-32X.625X.50 | 1 | Each | Included in ME000405 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

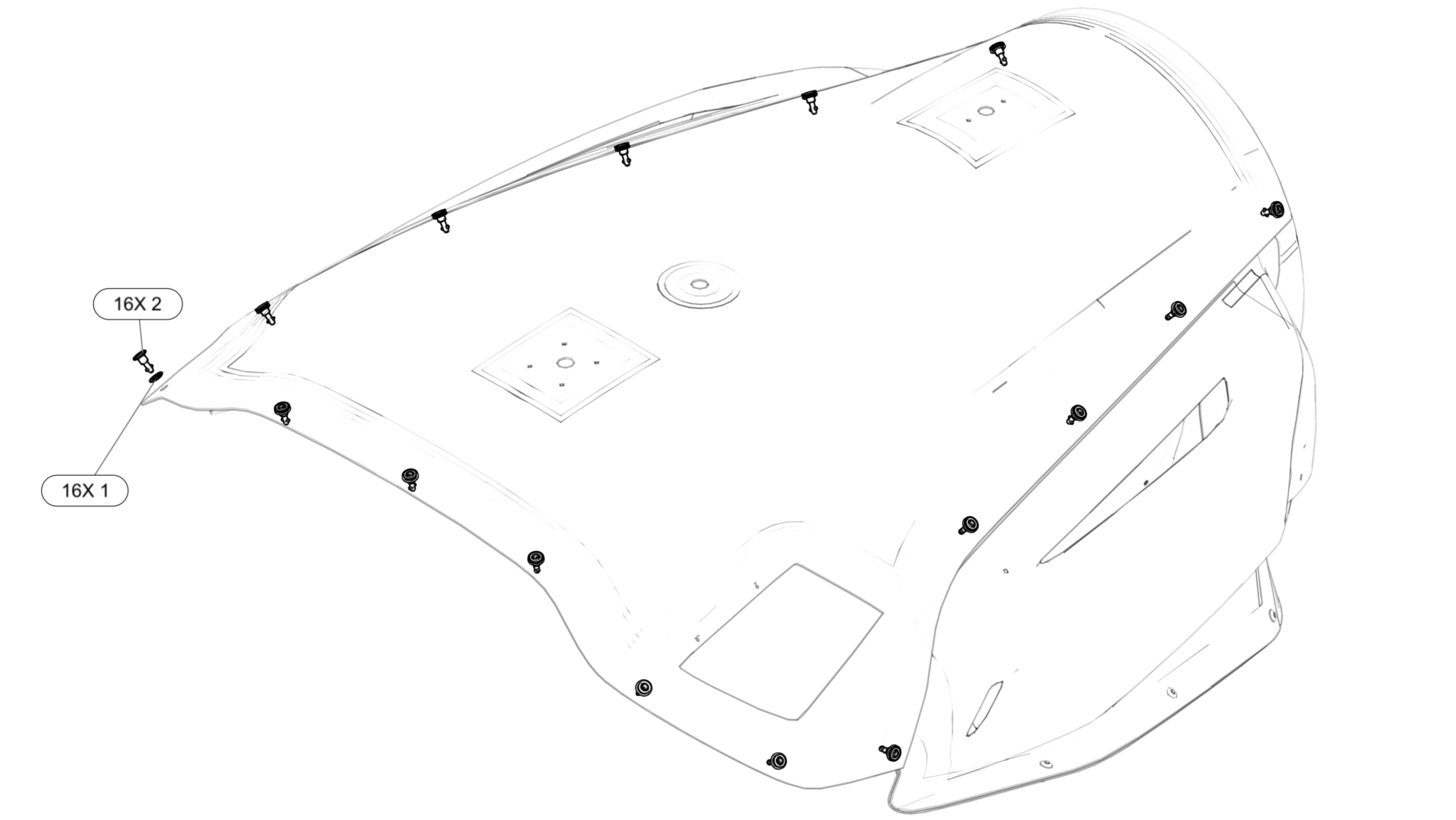

1 | 10F62MTT3/50TL | SCREW, MACH TRH, 6LOBE, CRES, 10-32X.625X.50 | 12 | Each | |
2 | 10F75MTT3-50TL | SCREW, MACH TH, 6LOBE, CRES, 10-32X.750X.500 | 4 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 10F62MTF3/100 | SCREW, MACH FLH, 6LOBE, CRES, 10-32X.625 | 4 | Each | |
2 | 10F75MTF3/100/37TL | SCREW, MACH FLH, 6LOBE, CRES, 10-32X.750X.37 | 1 | Each |
