1

ICA007946

WIRE HARNESS, INSTRUMENT PANEL

1

Each

2

ICA014454-XXX

IGNITION SWITCH ASSEMBLY

1

Each

-XXX to match Key and Canopy Latch

3

SJTC04000

TERMINAL BLOCK, MOUNTING TRACK, 4 UNIT, COMPOSITE

1

Each

4

ICA015294

INDICATOR, AIRSPEED, 3.12DIA

1

Each

Alternate Part Number: ICA009950 INDICATOR, AIRSPEED, 3.12DIA

5

ICA010990

INDICATOR, FUEL QTY, 2.25 DIA

1

Each

6

ICA014415-XXX and ME001076-XXX

ICON KEY ASSEMBLY

1

Each

-XXX to match Ignition Switch and Canopy Latch

7

ICA014478

INDICATOR, ALTIMETER, SINGLE PTR, 3.12DIA

1

Each

Alternate Part Number: ICA009951 INDICATOR, ALTIMETER, SINGLE PTR, 3.12DIA

8

ICA010987

INDICATOR, ANGLE OF ATTACK, 2.25DIA

1

Each

9

ICA014400

INDICATOR, ATTITUDE

1

Each

ME001123 COVER PAD PRINTED ASSY, BLANK ATTITUDE INDICATOR for aircraft without an Attitude Indicator installed

10

ICA010991

INDICATOR, TACHOMETER, 2.25DIA

1

Each

1

LS5000-904

PANEL, ANNUNCIATOR

1

Each

2

ICA010994

INDICATOR, COOLANT TEMP, 1.25DIA

1

Each

3

ICA010993

INDICATOR, OIL PRESSURE, 1.25DIA

1

Each

4

ICA010992

INDICATOR, OIL TEMP, 1.25DIA

1

Each

5

ICA009836

PLATE, SWITCH, CROSSBEAM, LH SIDE, CLOCKED

1

Each

6

R13-133A-01

SWITCH, SPST, 30A

1

Each

1

ICA009656

POTENTIOMETER, 10K, INSTRUMENT PANEL

1

Each

2

ICA001798

KNOB PAD PRINTED ASSY, LIGHT DIMMER

1

Each

3

ICA013489

PLATE, DIMMER SWITCH

1

Each

4

ICA008907

GRAPHIC OVERLAY, ANNUNCIATOR PANEL

1

Each

1

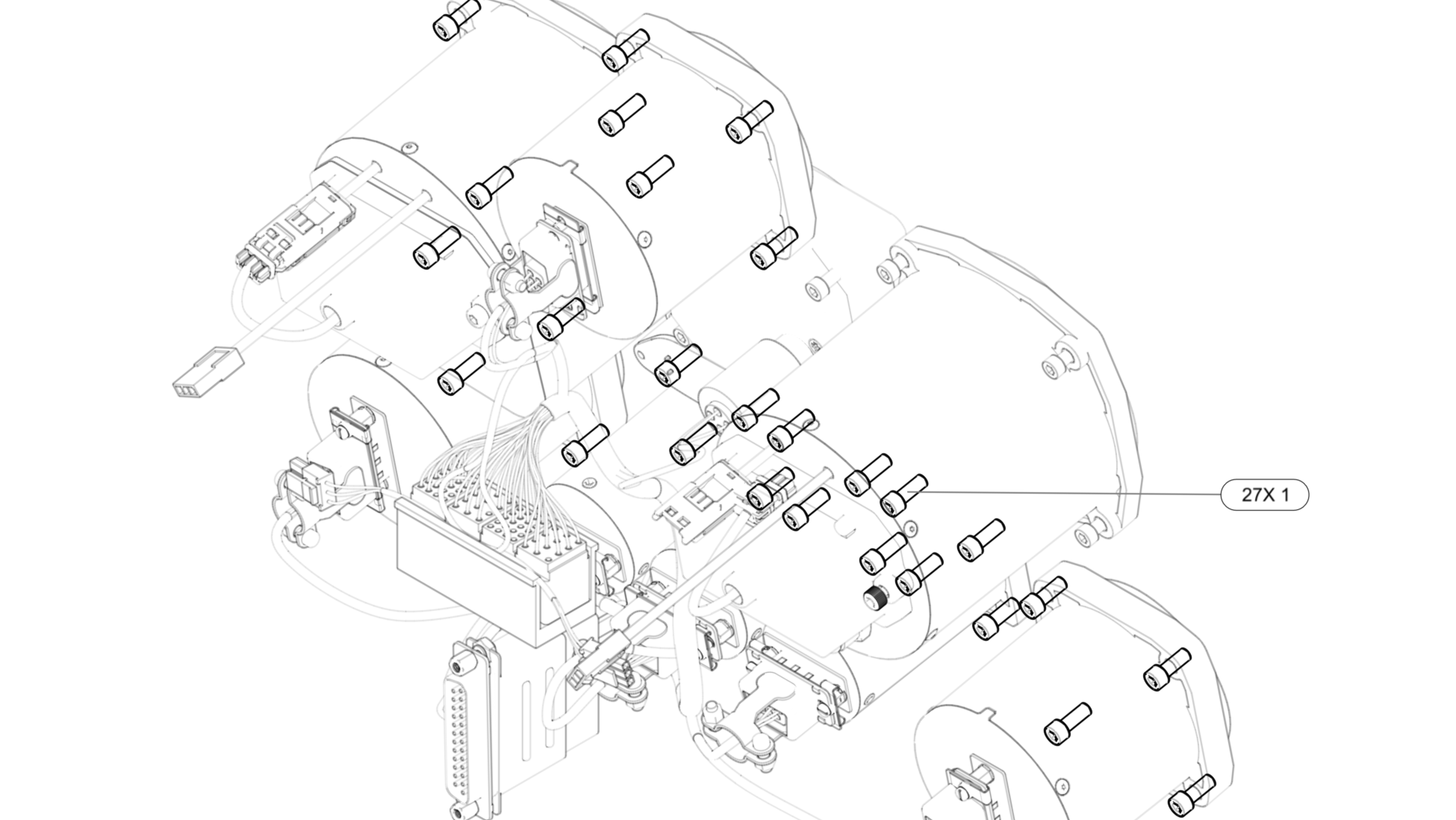

MS16995-17

SCREW, CAP HD, SCH-HEX, CRES, 6-32X.375

27

Each

1

MS16995-18

SCREW, CAP HD, SCH-HEX, CRES, 6-32X.500

8

Each

1

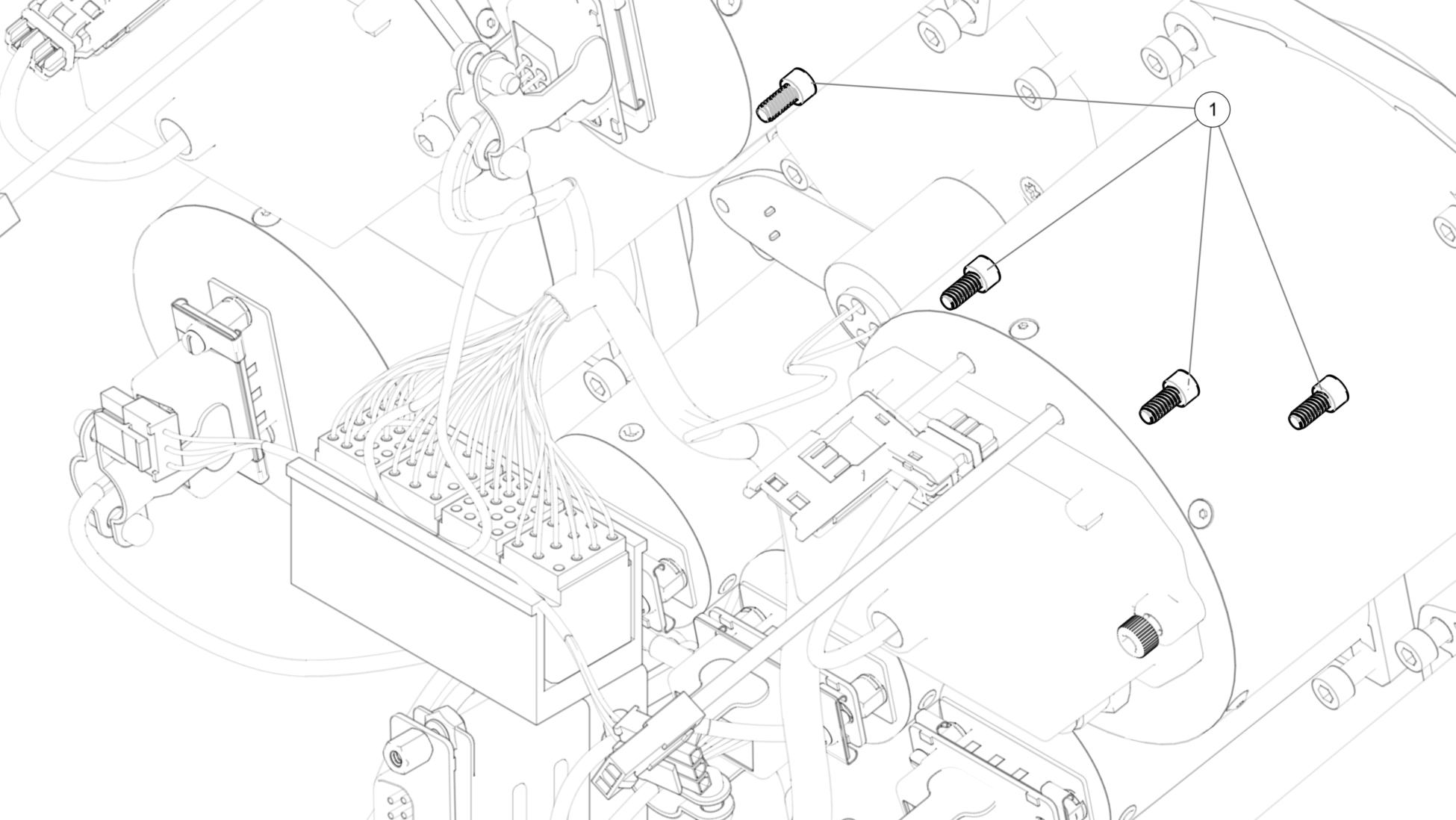

MS16995-9

SCREW, CAP HD, SCH-HEX, CRES, 4-40X.250

4

Each
