Electrical, Battery
100916-00

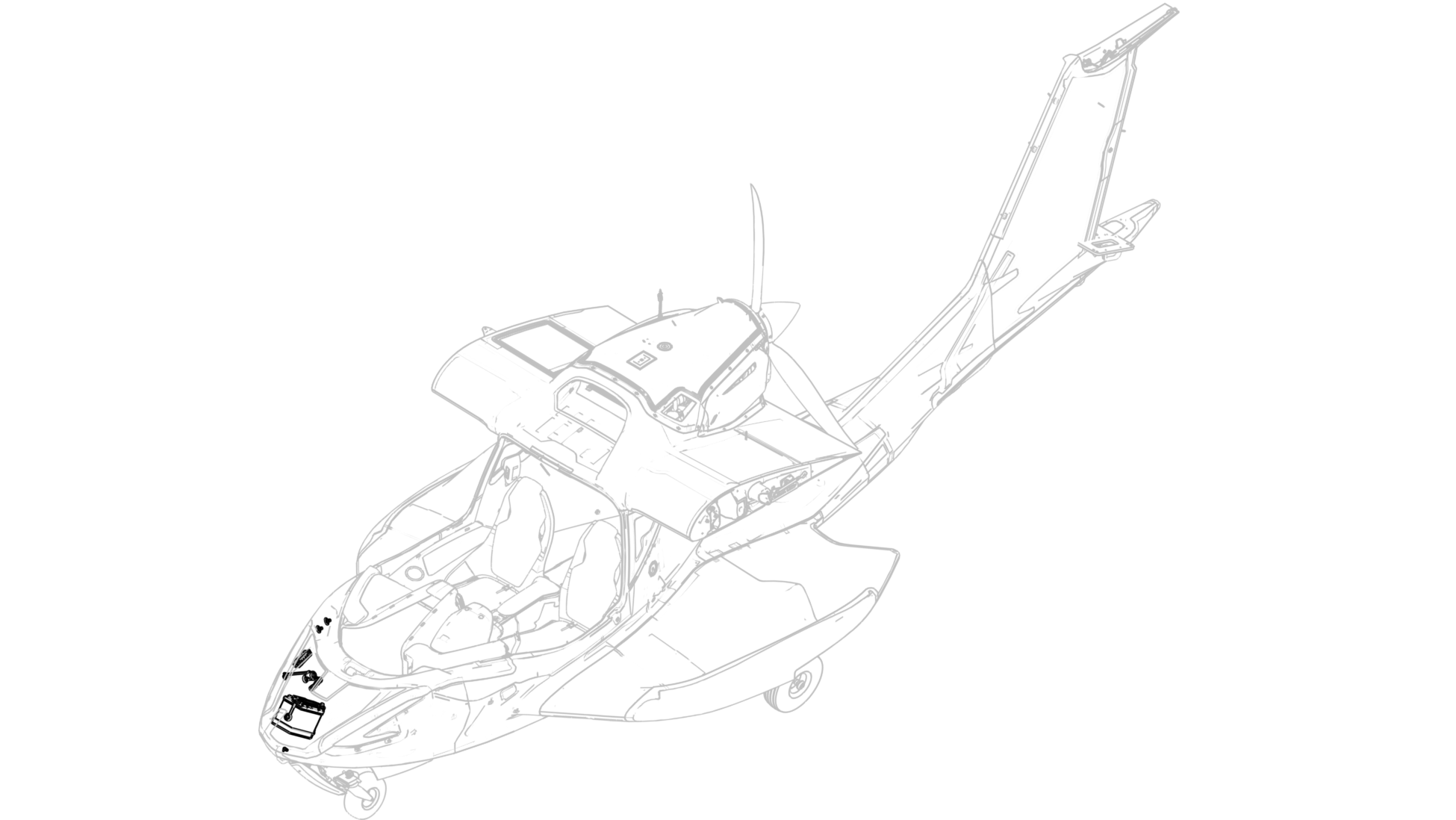

24 Ah, Configuration A battery installation. Additional configurations coming soon.

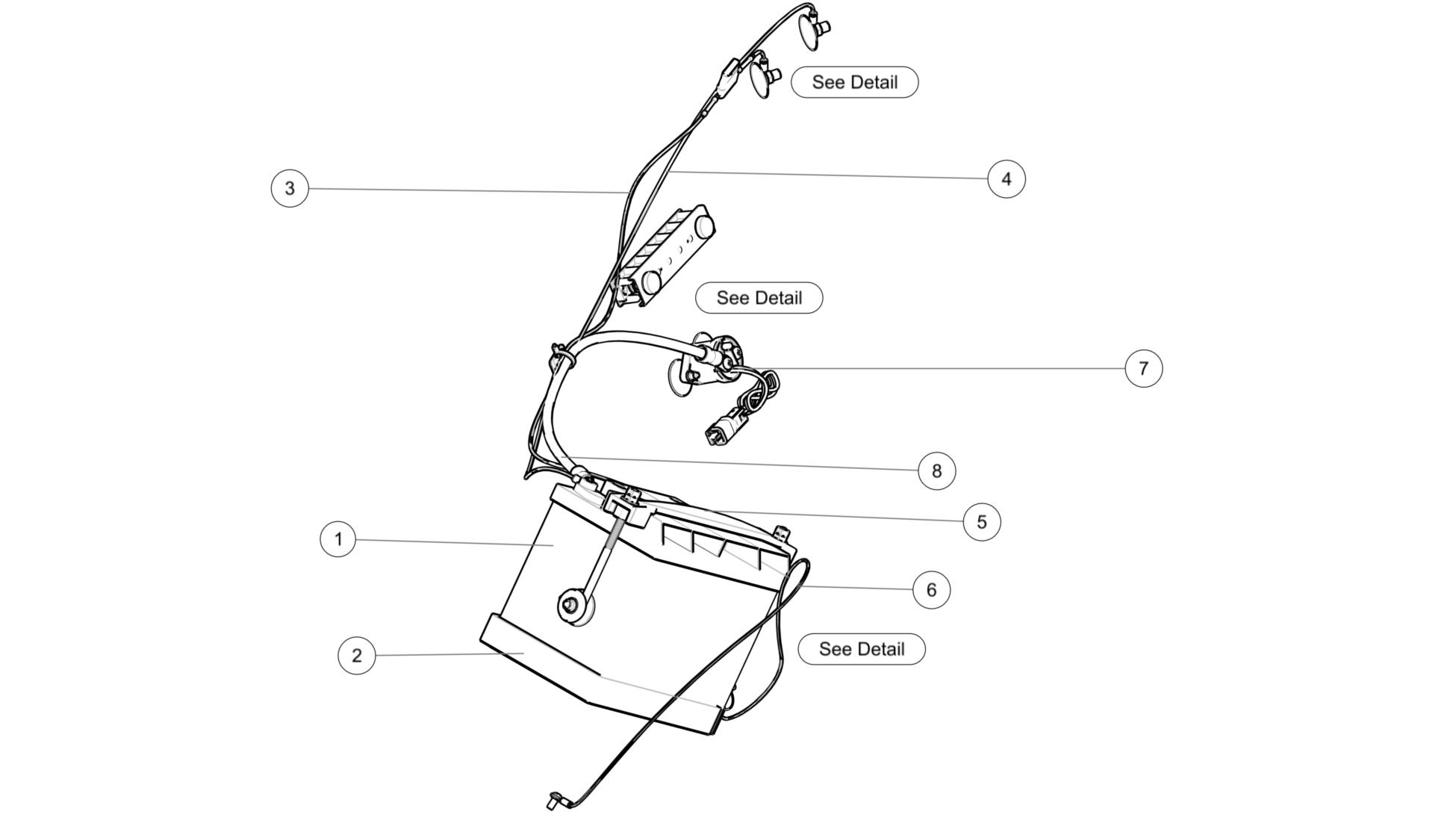

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA016120 | BATTERY, VRLA, 12V 24AHR | 1 | Each | |
2 | 8997K53 | POLYURETHANE STRIP, ADH-BACKED , SHORE 40A, .250X1.0X48.0 | 1 | Each | |
3 | ICA013179 | JUMPER, BATTERY, POSITIVE | 1 | Each | |
4 | ICA013180 | JUMPER, BATTERY, NEGATIVE | 1 | Each | |
5 | ICA009958 | HOLD-DOWN, BATTERY, 7.8 LONG | 1 | Each | |
6 | ICA013181 | JUMPER, BATTERY, BOW HOOK | 1 | Each | |
7 | ICA015933 | SOLENOID ASSY, 12-16VDC,100A | 1 | Each | |
8 | ICA013178 | JUMPER, BATTERY, MASTER RELAY | 1 | Each |

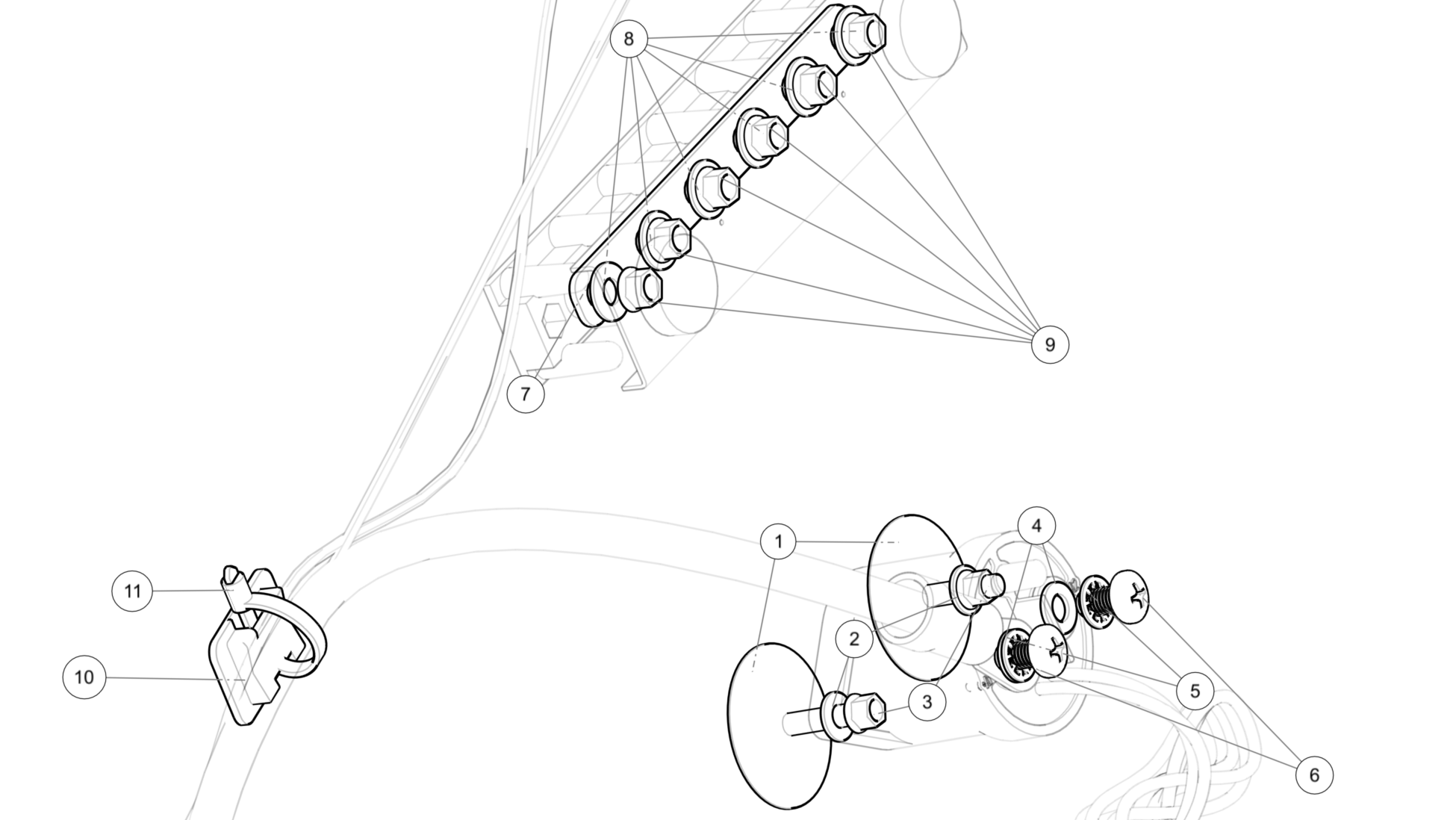

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB4000G5CRA12P | STUD, ADH BND, FBRG, A286, .312-24X.750 | 2 | Each | |
2 | NAS1149C0532R | WASHER, FLAT, CRES, .312X.032, PSVT | 2 | Each | |
3 | MS21043-5 | NUT, SLFLKG, RDC HEX, CRES, .312-24 | 2 | Each | |
4 | MS18029-2S-6 | COVER ASSY, ELECTRICAL, .190-32, 6 STUD | 1 | Each | |
5 | MS27212-2-6 | STUD, GROUND, 6 POLE | 1 | Each |

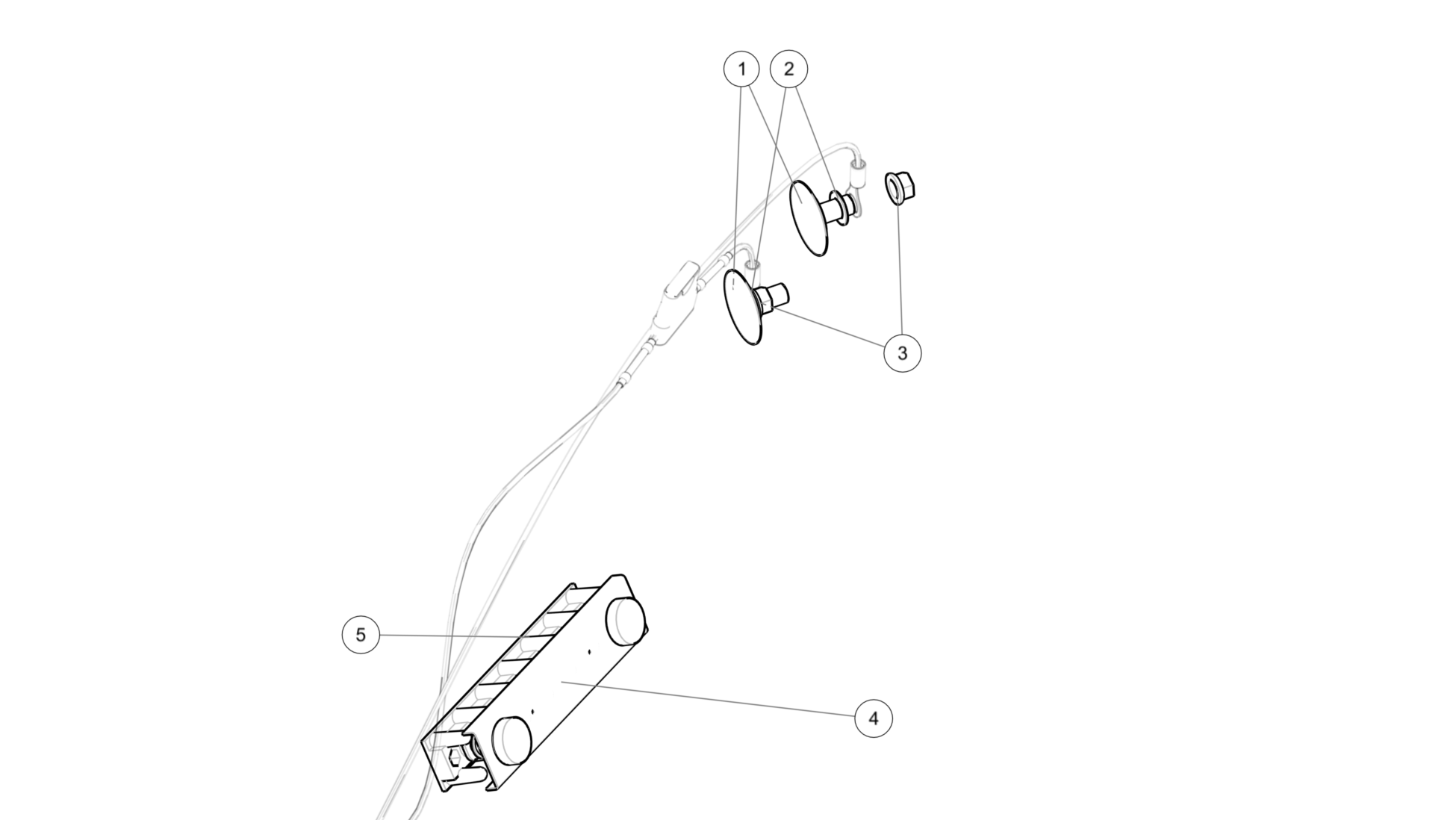

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB4000G08CRA12P | STUD, ADH BND, FBRG, A286, 8-32X.750 | 2 | Each | |
2 | NAS1149CN832R | WASHER, FLAT, CRES, #8X.032, PSVT | 2 | Each | |
3 | MS21043-08 | NUT, SLFLKG, RDC HEX, CRES, 8-32 | 2 | Each | |
4 | 90965A160 | WASHER, FLAT, CRES, METRIC, M5 | 2 | Each | |
5 | 93925A260 | WASHER, LOCK, INTERNAL STAR, CRES, M5 | 2 | Each | |
6 | 90116A250 | SCREW, MACH, 316SST, M5-.8X10MM | 2 | Each | |
7 | MS25226-4-6 | BUS BAR, 6 POLE | 1 | Each | |
8 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 6 | Each | |
9 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 6 | Each | |
10 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 1 | Each | |
11 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP .5 DIA | 1 | Each |

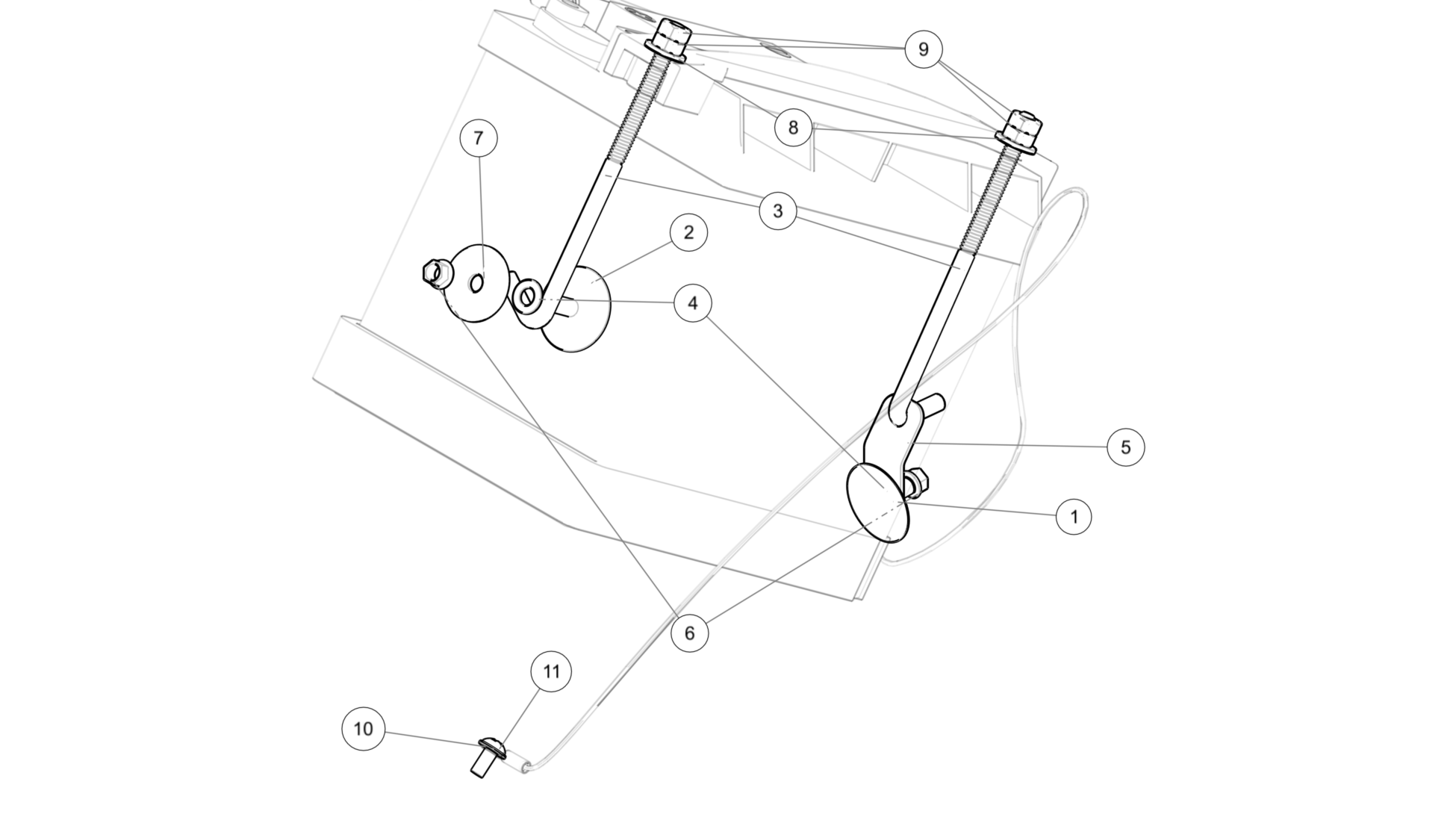

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB4000G4CRA10P | STUD, ADH BND, FBRG, A286, .250-28X.625 | 1 | Each | |
2 | CB4000G4CRA12P | STUD, ADH BND, FBRG, A286, .250-28X.750 | 1 | Each | |
3 | ICA009444 | BATTERY HOLD DOWN ROD, CRES, .250-20X5.0 | 2 | Each | |
4 | NAS1149C0432R | WASHER, FLAT, CRES, .250X.032, PSVT | 2 | Each | |
5 | ICA010371 | TAB, BATTERY HOLD DOWN | 1 | Each | |
6 | MS21043-4 | NUT, SLFLKG, RDC HEX, CRES, .250-28 | 2 | Each | |
7 | NASM970C4 | WASHER, FENDER, CRES, .265X1.125X.063 | 1 | Each | |
8 | MS15795-810 | WASHER, FLAT, CRES, .281X.625 | 2 | Each | |
9 | MS35649-2254 | NUT, HEX, .25-20, SS | 4 | Each | |
10 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 1 | Each | |
11 | MS51958-62 | SCREW, MACH PNH, CRES, 10-32X.4375 (7/16") | 1 | Each |
