Electrical, Relay Panel
100915-00

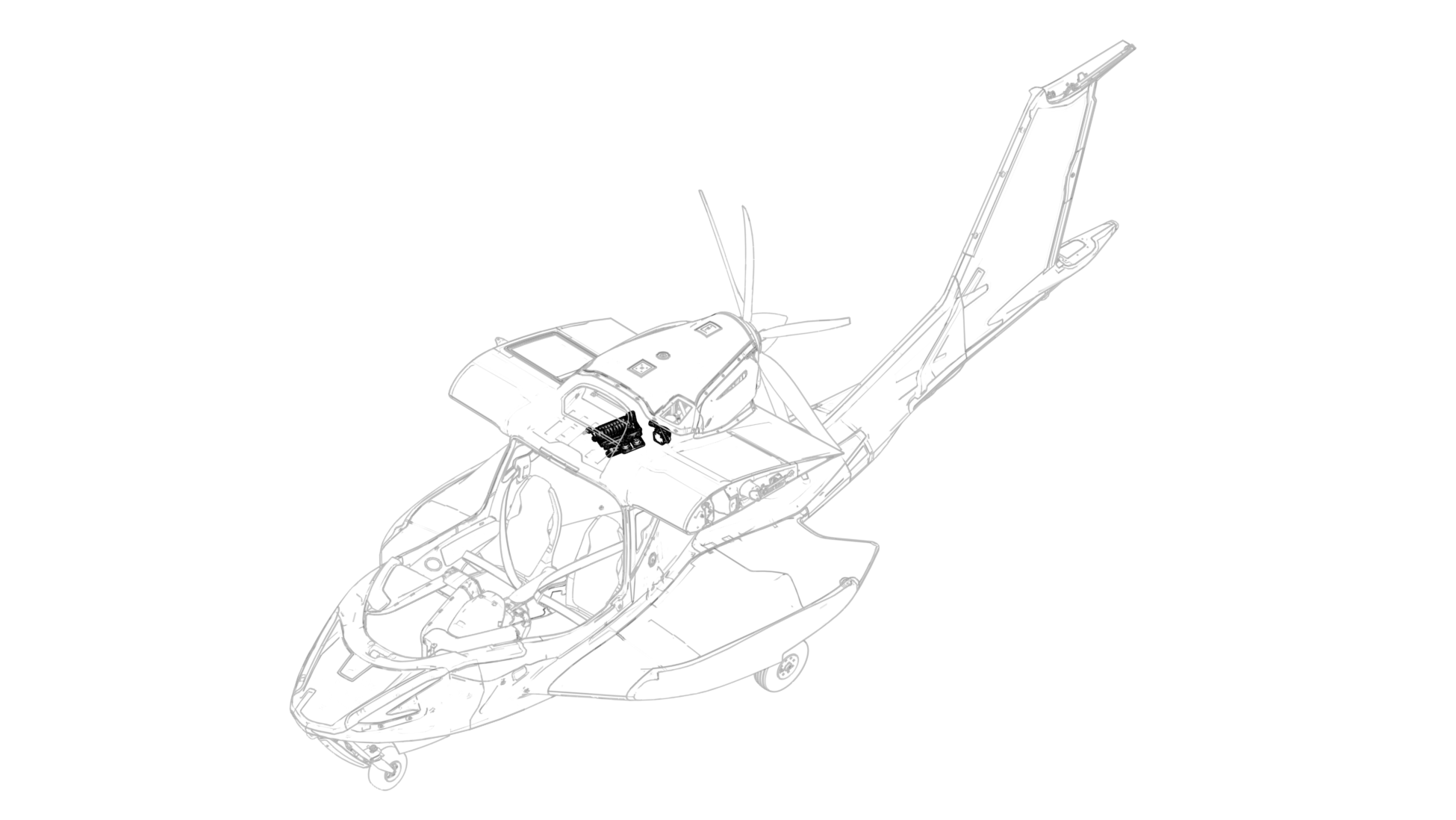

Electrical relay panel installation.

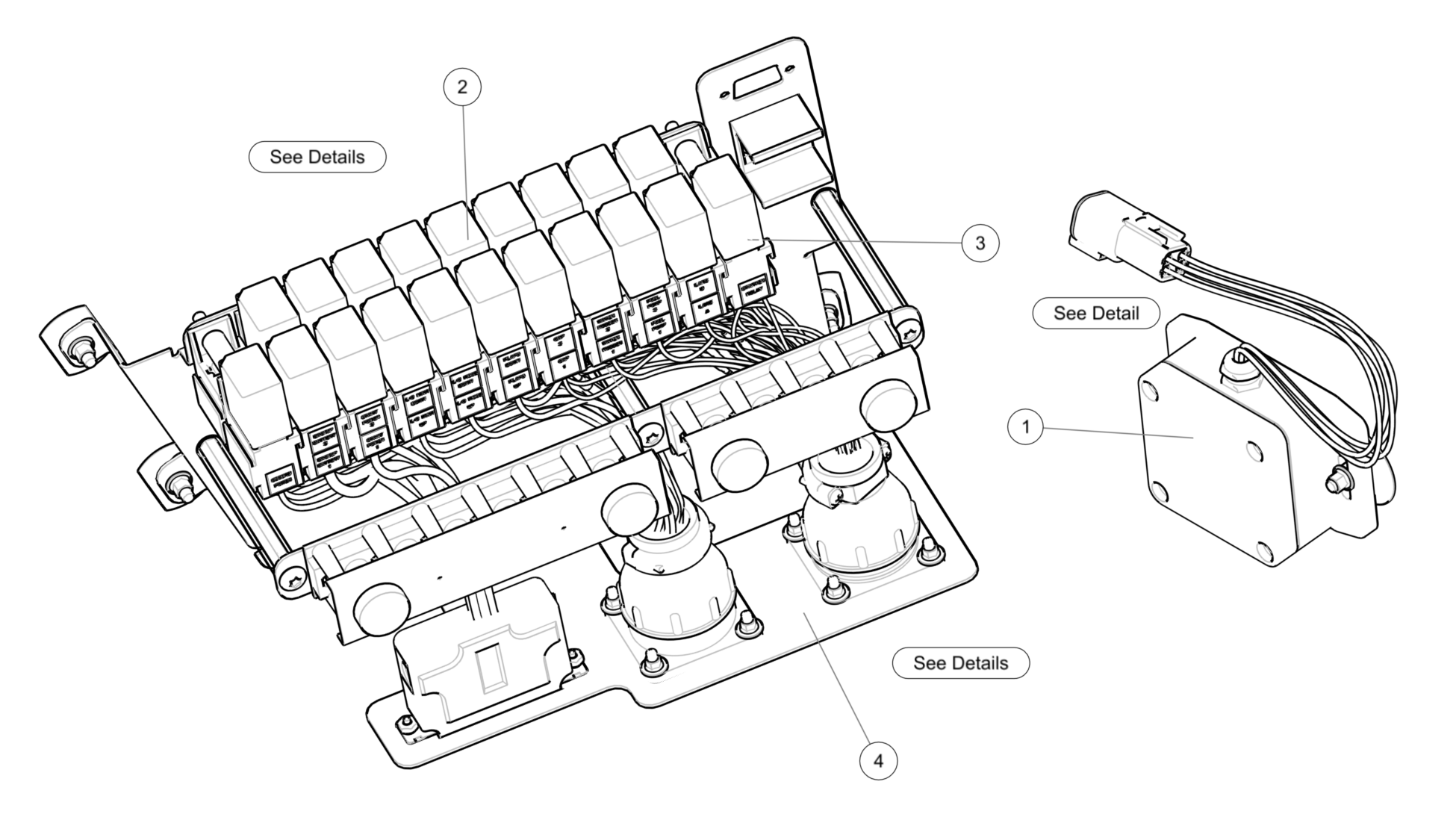

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA014549 | BOX, GENERATOR, STROBE | 1 | Each | |
2 | ME000283 | RELAY PANEL SUBASSY | 1 | Each | |
3 | ICA011867 | WIRE HARNESS, RELAY PANEL ASSY | 1 | Each | Included in ME000283 |
4 | ICA013191 | BRACKET ASSY, BASE, RELAY PANEL | 1 | Each | Included in ME000283 |

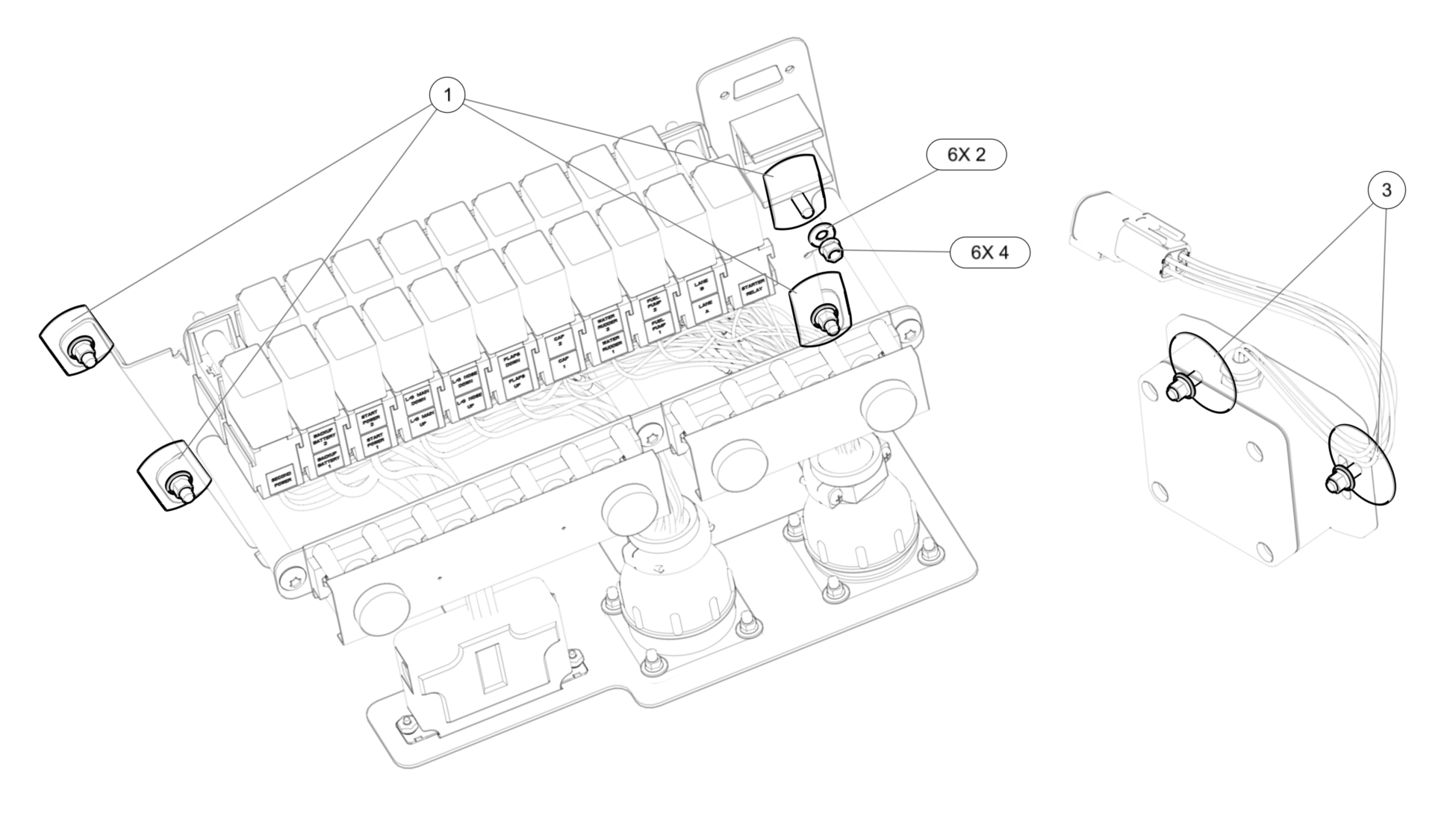

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB4000G08CRA8P750 | STUD, ADH BND, FBRG, A286, 8-32X.500 TRIM | 4 | Each | |
2 | NAS1149CN832R | WASHER, FLAT, CRES, #8X.032, PSVT | 6 | Each | |
3 | CB4000G08CRA10P | STUD, ADH BND, FBRG, A286, 8-32X.625 | 2 | Each | |
4 | MS21043-08 | NUT, SLFLKG, RDC HEX, CRES, 8-32 | 6 | Each |

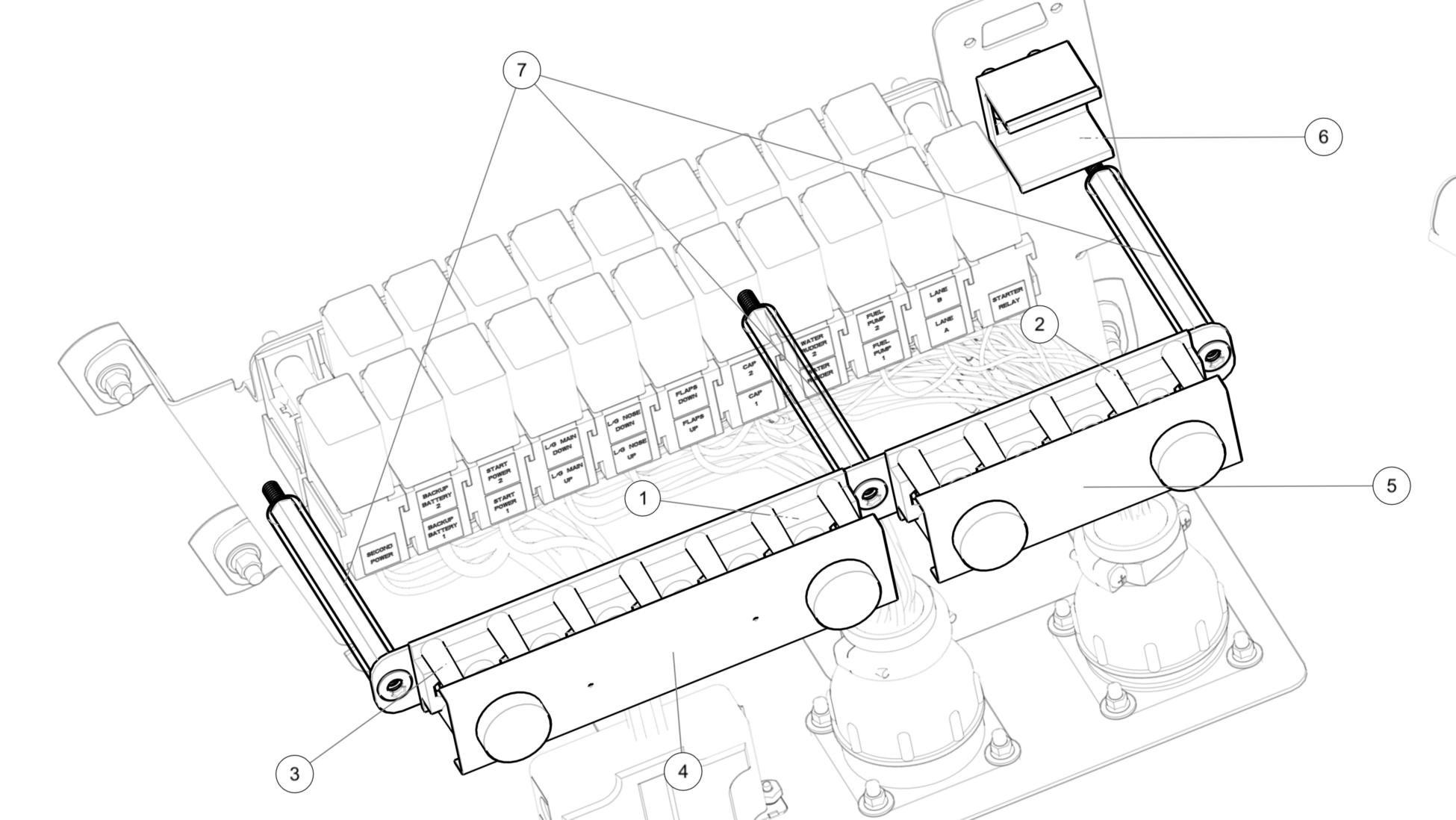

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA014189 | BRACKET, BUS BAR | 1 | Each | Included in ME000283 |
2 | MS27212-2-4 | STUD, GROUND, 4 POLE | 1 | Each | Included in ME000283 |
3 | MS27212-2-6 | STUD, GROUND, 6 POLE | 1 | Each | Included in ME000283 |
4 | MS18029-2S-6 | COVER ASSY, ELECTRICAL, .190-32, 6 STUD | 1 | Each | Included in ME000283 |
5 | MS18029-2S-4 | COVER ASSY, ELECTRICAL, .190-32, 6 STUD | 1 | Each | Included in ME000283 |
6 | SJTC02000 | TERMINAL BLOCK, MOUNTING TRACK, 2 UNIT, COMPOSITE | 1 | Each | Included in ME000283 |
7 | 5552K25 | TUBING, TYGON PLASTIC, FUEL & LUBRICANT, .250X.375, BUSBAR | 3 | Each | Included in ME000283 |

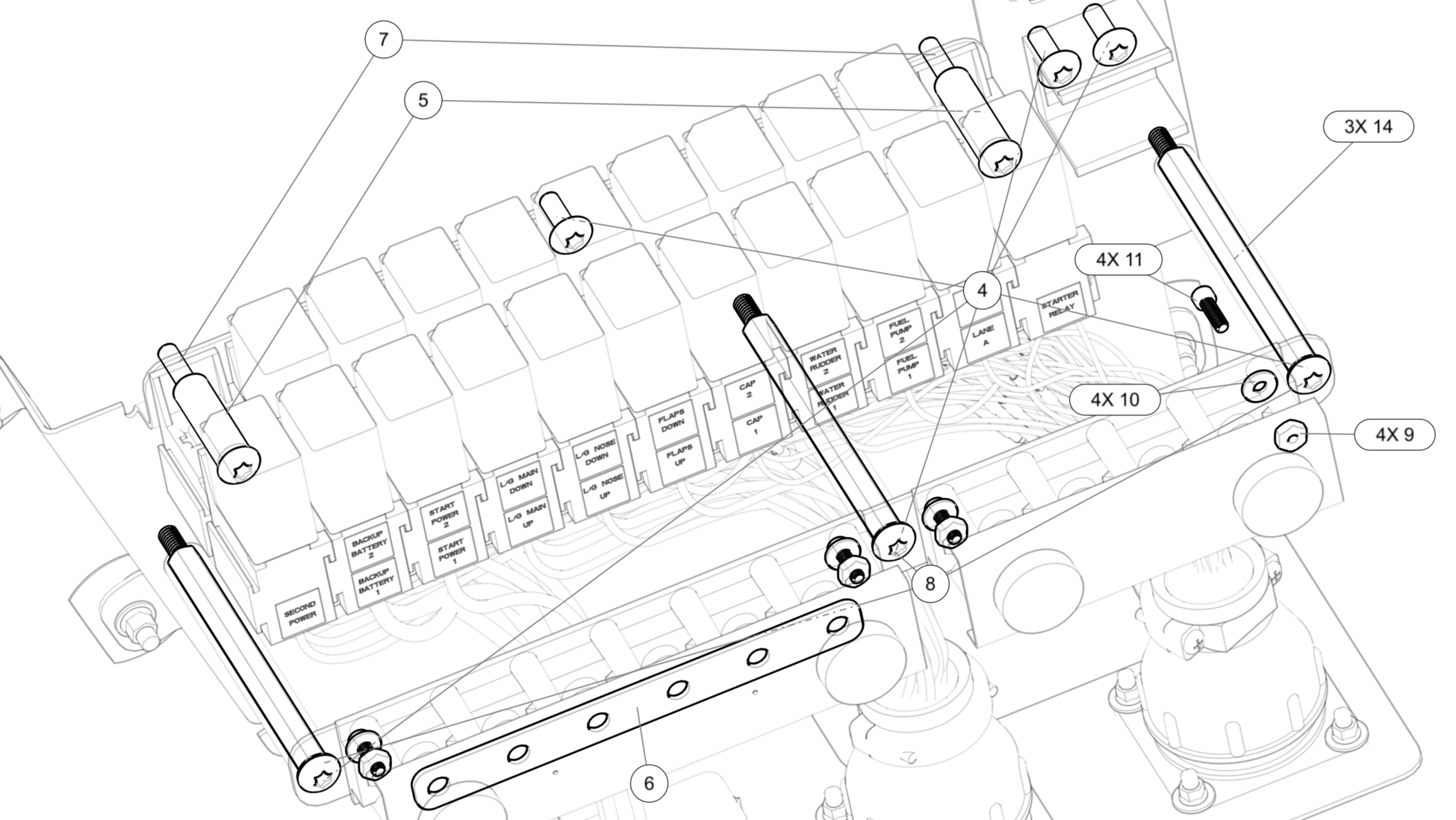

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
4 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 6 | Each | Included in ME000283 |
5 | NAS43DD3-64N | SPACER, AL, .312 X 1.0 | 2 | Each | Included in ME000283 |
6 | MS25226-4-6 | BUS BAR, 6 POLE | 1 | Each | Included in ME000283 |
7 | 8C162MTT3 | SCREW, MACH FLH, 6LOBE, CRES, 8-32X1.625 | 2 | Each | Included in ME000283 |
8 | NAS1149CN832R | WASHER, FLAT, CRES, #8X.032, PSVT | 3 | Each | Included in ME000283 |
9 | MS35649-242 | NUT, HEX, 4-40 | 4 | Each | Included in ME000283 |
10 | NAS1149CN432R | WASHER, FLAT, CRES, #4X.032, PSVT | 4 | Each | Included in ME000283 |
11 | NAS1352C04-6 | SCREW, CAP, SCH-HEX, 316 SS, 4-40X.375 | 4 | Each | Included in ME000283 |
14 | ICA014496 | STANDOFF, M/F, 3.00 LONG, .25 HEX, #8-32, 18-8 SS | 3 | Each | Included in ME000283 |

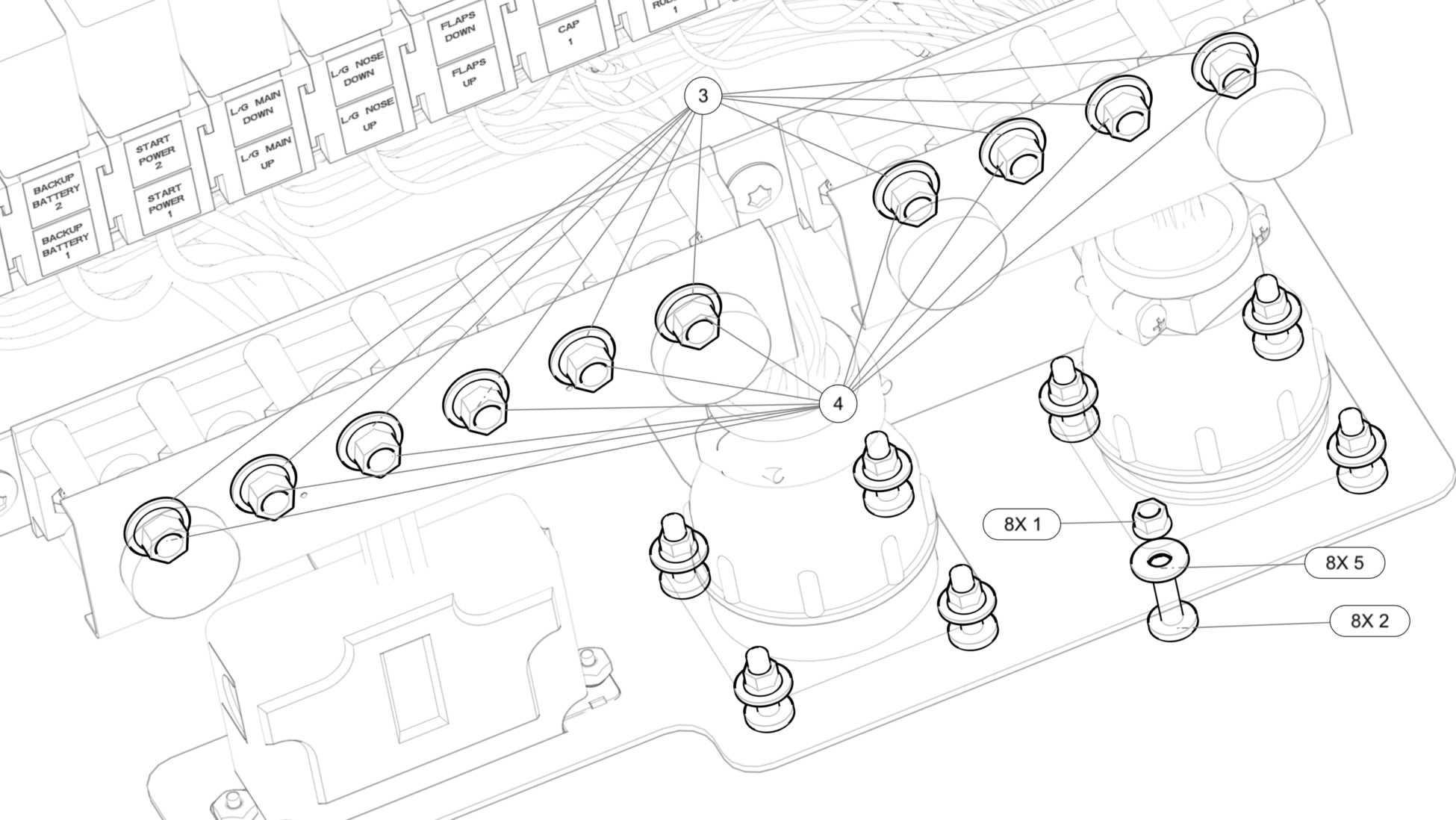

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | MS21043-06 | NUT, SLFLKG, RDC HEX, CRES, 6-32 | 8 | Each | Included in ME000283 |
2 | 6C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 6-32X.500 | 8 | Each | Included in ME000283 |
3 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 10 | Each | Included in ME000283 |
4 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 10 | Each | Included in ME000283 |
5 | NAS1149CN632R | WASHER, FLAT, CRES, #6X.032, PSVT | 8 | Each | Included in ME000283 |
