1

ICA012137

ENGINE, ROTAX 912iS

1

Each

Additional assembly required—Contact ICON

2

CB9120V5

MOUNT, CABLE TIE ANCHOR

4

Each

3

TY528MX

CABLE TIE, NYLON 6-6, 50LB, 14.2, TY-RAP

1

Each

4

TY24MX

CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP

3

Each

5

922327

OVERFLOW BOTTLE, ROTAX 912iS

1

Each

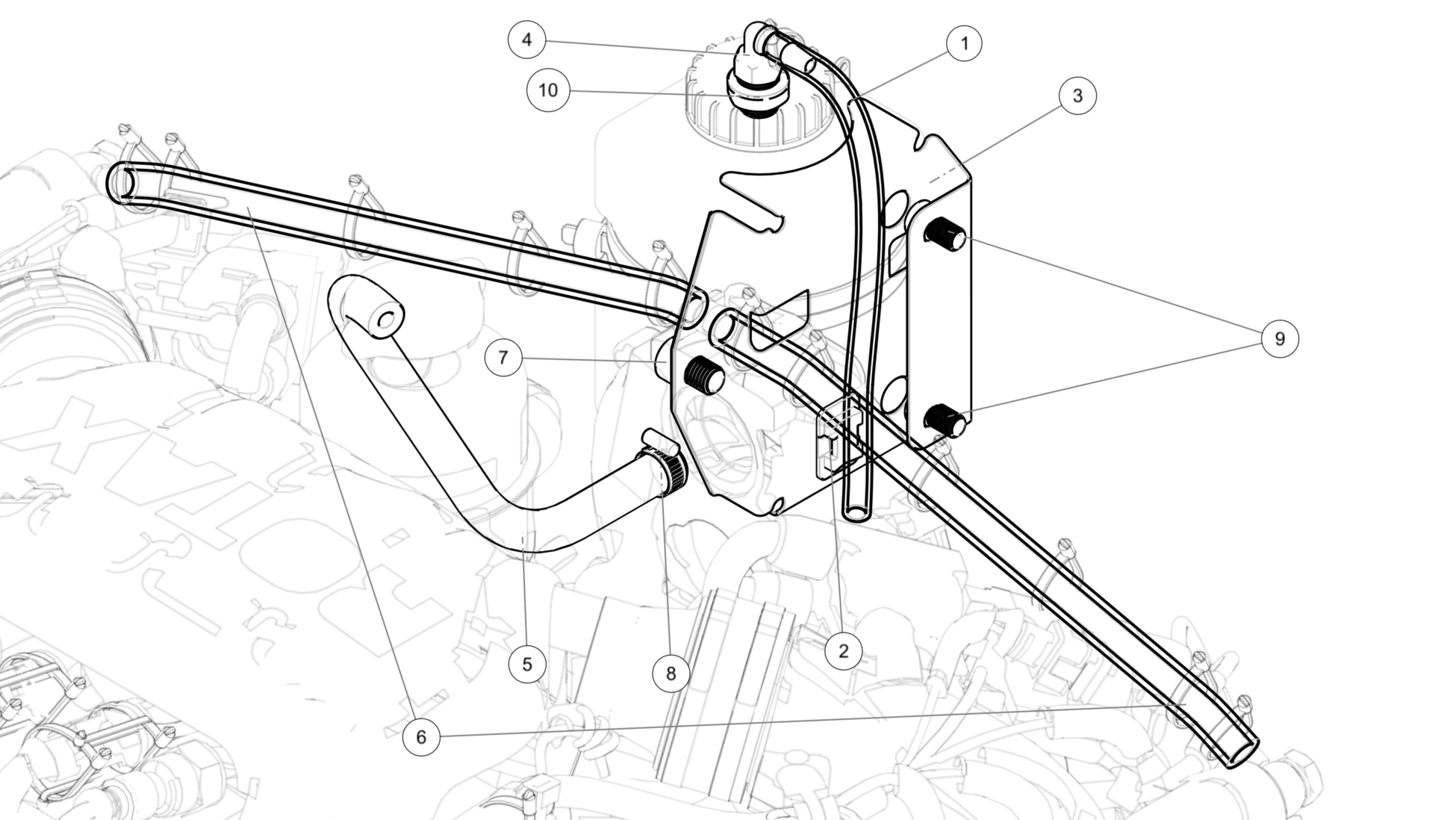

1

5552K25

TUBING, TYGON PLASTIC, FUEL & LUBRICANT, .250X.375

8

Inches

2

CB9120V5

MOUNT, CABLE TIE ANCHOR

1

Each

3

ICA011506

BRACKET, COOLANT OVERFLOW BOTTLE, ASSY

1

Each

4

ICA013376

BARBED ELBOW, NYLON, 1/4 NPT

1

Each

5

ICA011892

HOSE, HIGH TEMP, SILICONE 1-PLY .250X.56

10

Inches

6

ICA011914

INSULATION, SLEEVE, FIBERGLASS

17

Inches

7

91292A822

SCREW, MACH SHCS, 18-8SS, M10-1.5X12

1

Each

8

3804

CLAMP, WORM DRIVE, MINI, .312X.625

1

Each

9

91292A207

SCREW, MACH SHCS, CRES, M8X12

2

Each

10

ICA013375

BLACK, NYLON, NUT

1

Each

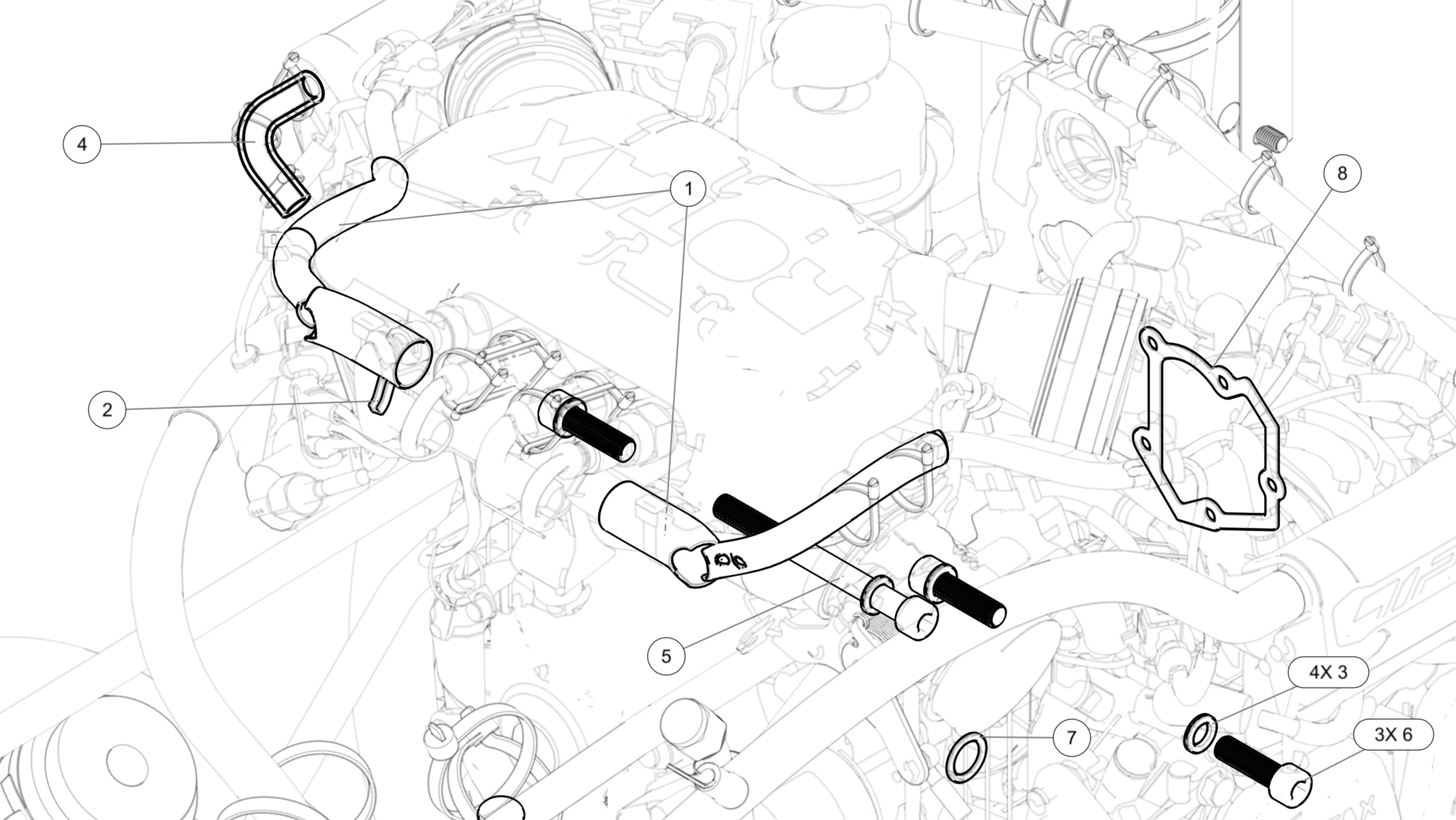

1

ICA013877

SLEEVING, ANTI-CHAFING, SELF-WRAPING, NOMEX & PPS, .75

16

Inches

2

MS21266-3N

GROMMET, PLASTIC, EDGING, .131X.220

1.5

Inches

3

NL10SS

WASHER, NORD-LOCK, CRES, 10MM X 2MM

4

Each

4

ICA011914

INSULATION, SLEEVE, FIBERGLASS

6

Inches

5

941487

SCREW, ALLEN, M10X110 DIN 912, ROTAX

1

Each

6

ICA015676

SCREW, ALLEN, M10X35

3

Each

7

430622

SEALING RING A 16X22

1

Each

8

850981

GASKET, WATER PUMP

1

Each

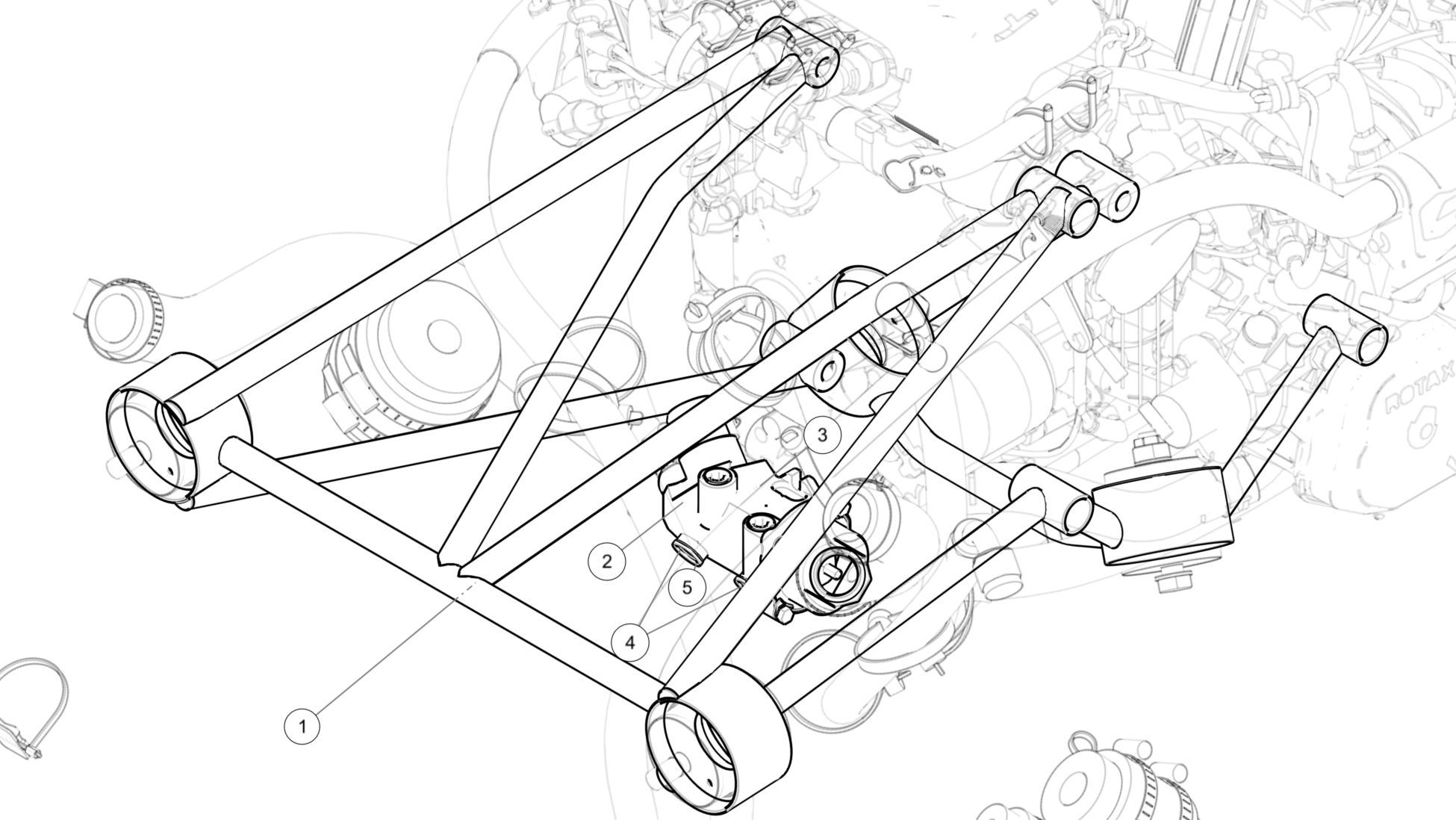

1

ME000927

ENGINE MOUNT, SUBASSY

1

Each

2

ICA014541

HOUSING, THERMOSTAT

1

Each

Included in ME000937

3

ME000937

ENGINE, THERMOSTAT, SUBASSY

1

Each

4

230387

SEAL, COPPER

2

Each

Included in ME000937

5

68HB-6-M114

FITTING, BARB-THD ADAPTER, .375XM14-1.5

2

Each

Included in ME000937

1

ICA014521

FITTING, PLUG, M14 X 1.5, TAPERED, BRASS

2

Each

Included in ME000937

2

ICA011891

THERMOSTAT, BYPASS HOLE

1

Each

Included in ME000937

3

ICA010541

SEAL, THERMOSTAT, OUTSIDE DIA 52MM X 4MM THICK

1

Each

Included in ME000937

4

10825

WASHER, SPRING, A5

4

Each

Included in ME000937

5

10815

COVER, THERMOSTAT, 45DEG

1

Each

Included in ME000937

6

10414

CONNECTION, HOSE, THREADED

3

Each

Included in ME000937

7

10826

SCREW, M5X10

4

Each

Included in ME000937

8

ICA011887

SHIM, M5, THERMOSTAT

4

Each

Included in ME000937

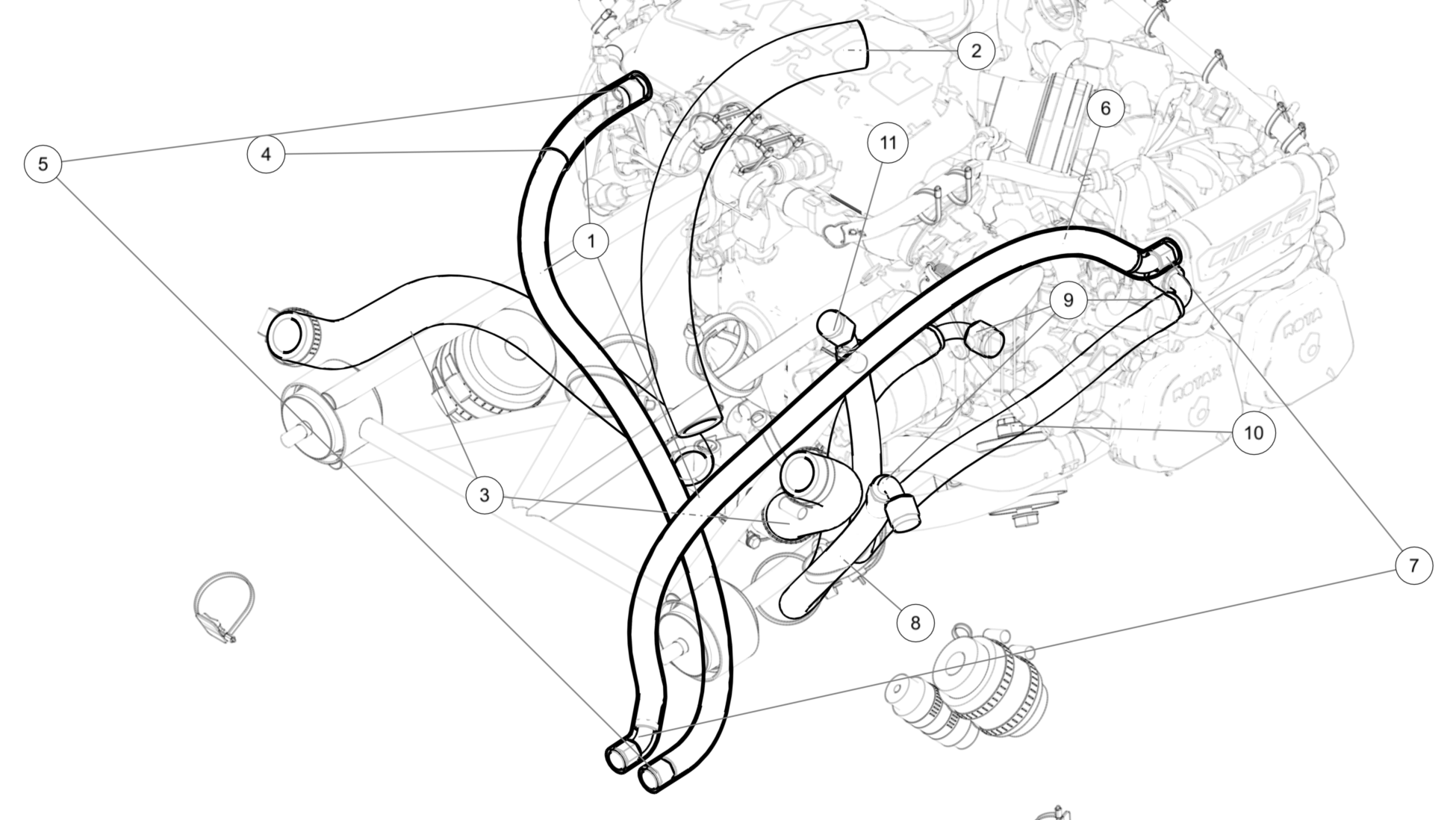

1

ICA011907

INSULATION, HOSE, REFLECTIVE

59

Inches

2

822450

HOSE, COOLANT, THERMOSTAT-ENGINE

1

Each

3

5591K15

HOSE, SILICONE RBR, WIRE REINF, 175PSI, 1.00X.156, BLUE

27

Inches

4

ICA012071

HOSE ASSY, FUEL, STRT-STRT, AN-6X26INCH

1

Each

Includes 2x FBM1012 Fittings

5

FBM1012

FITTING

2

Each

6

ICA012426

HOSE ASSY, FUEL, 45DEG-45DEG, AN-6X26INCH

1

Each

Includes 2x FBM4023-6 Fittings

7

FBM4023-6

FITTING

2

Each

8

ICA013171

HOSE ASSY, OIL, 90-90, AN-8X27.5INCH

1

Each

Includes 2x FBM1033 Fittings

9

FBM1033

FITTING

3

Each

10

ICA013169

HOSE ASSY, OIL, 45-90, AN-8X27INCH

1

Each

Includes 1x FMB1033 Fitting and 1x FBM4023-8

11

FBM4023-8

FITTING

1

Each

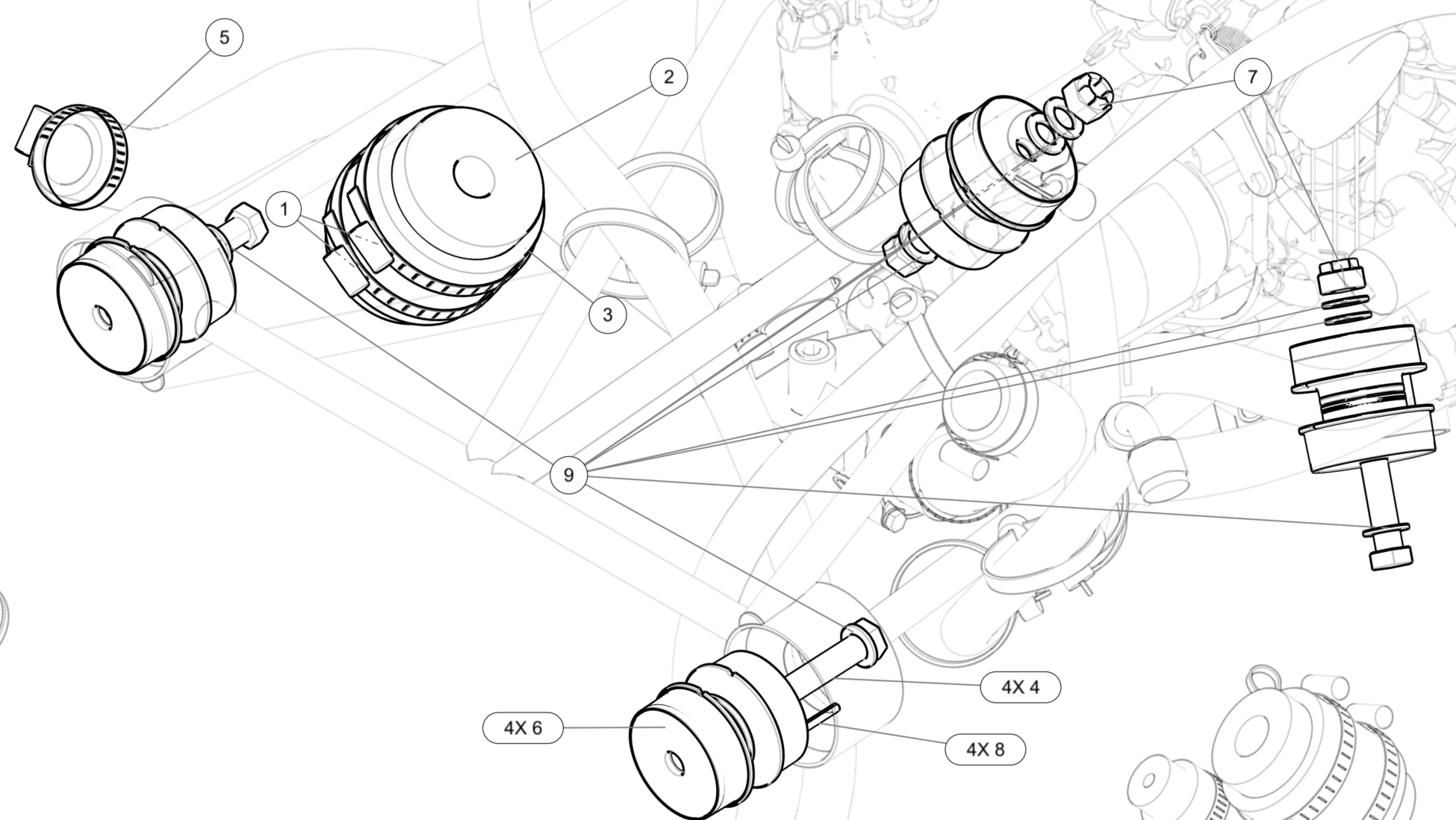

1

60-80/9-W5

CLAMP, WORM DRIVE, .35X2.375-3.125, NORMA TORRO

2

Each

2

ICA012783

INSULATING TAPE, SILICONE COATED FIBERGLASS, W3.00

As Needed

3

T-FGHD-SRHD-M051-32

INSULATING TAPE, SILICONE COATED, FIBERGLASS, 2.0 WIDE

As Needed

4

AN7C27A

BOLT, MACH, CRES, .438-20X2.313

4

Each

5

25-40/9-W5

CLAMP, WORM DRIVE, NORMA TORRO, .35X1.00-1.62

1

Each

6

94150-40

ISOLATOR, ENGINE MOUNT

4

Each

Alternate Part Number: ICA016108 ENGINE MOUNT ISOLATOR, BONDED, LORD

7

MS21046C7

NUT, SELF LOCKING, CRES, .437-20

2

Each

8

92383A700

PIN, SPRING SLOTTED, 420SS, .125X.131X1.00

4

Each

Included in ME000927

9

NAS1149C0763R

WASHER, FLAT, CRES, .437X.063, PSVT

8

Each

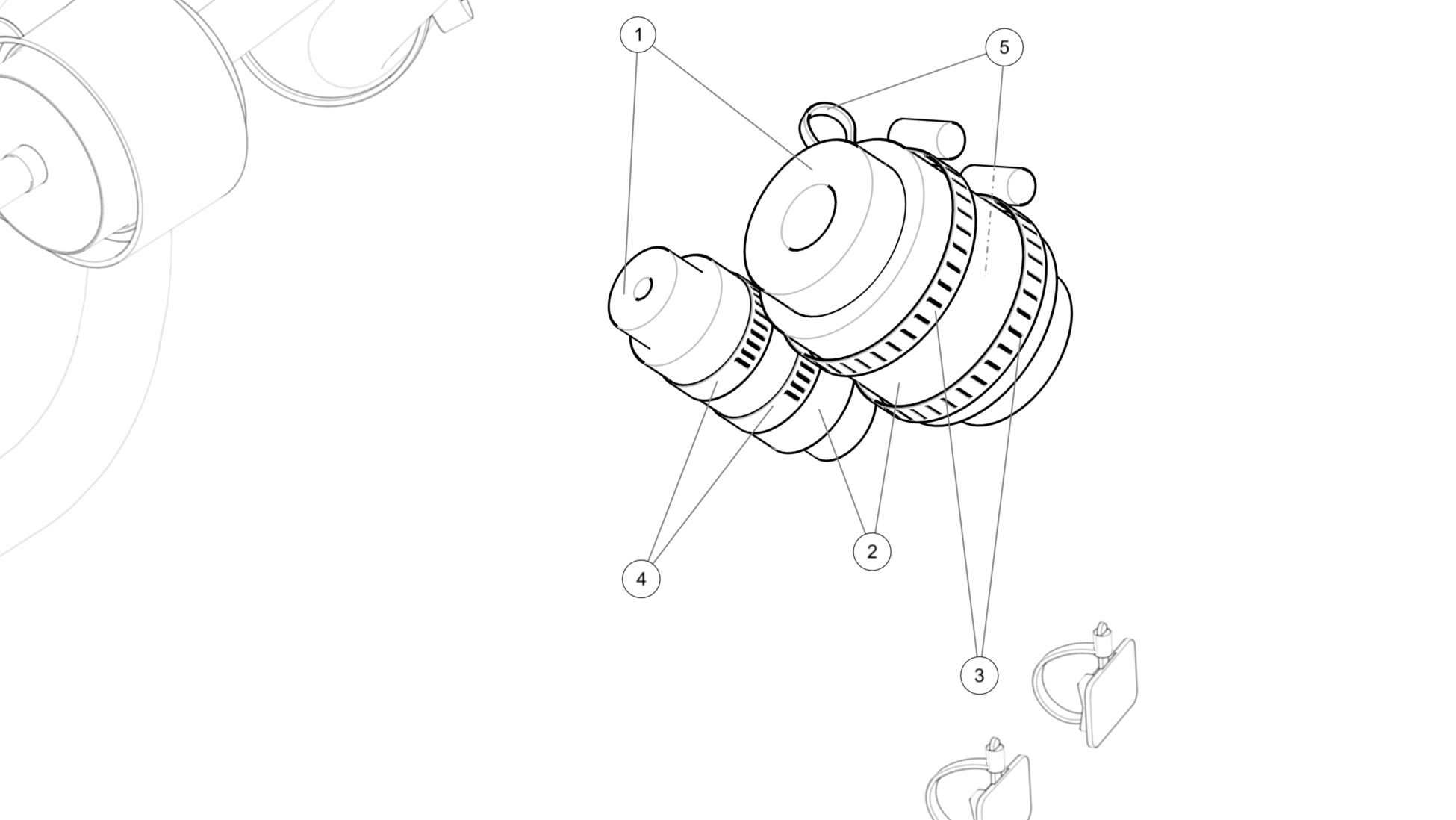

1

ICA012783

INSULATING TAPE, SILICONE COATED FIBERGLASS, W3.00

As Needed

2

T-FGHD-SRHD-M051-32

INSULATING TAPE, SILICONE COATED, FIBERGLASS, 2.0 WIDE

As Needed

3

40-60/9-W5

CLAMP, WORM DRIVE, .35X1.625-2.375, NORMA TORRO

2

Each

4

20-32/9-W5

CLAMP, WORM DRIVE, NORMA TORRO, .35X.75-1.25

2

Each

5

TY24MX

CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP

2

Each

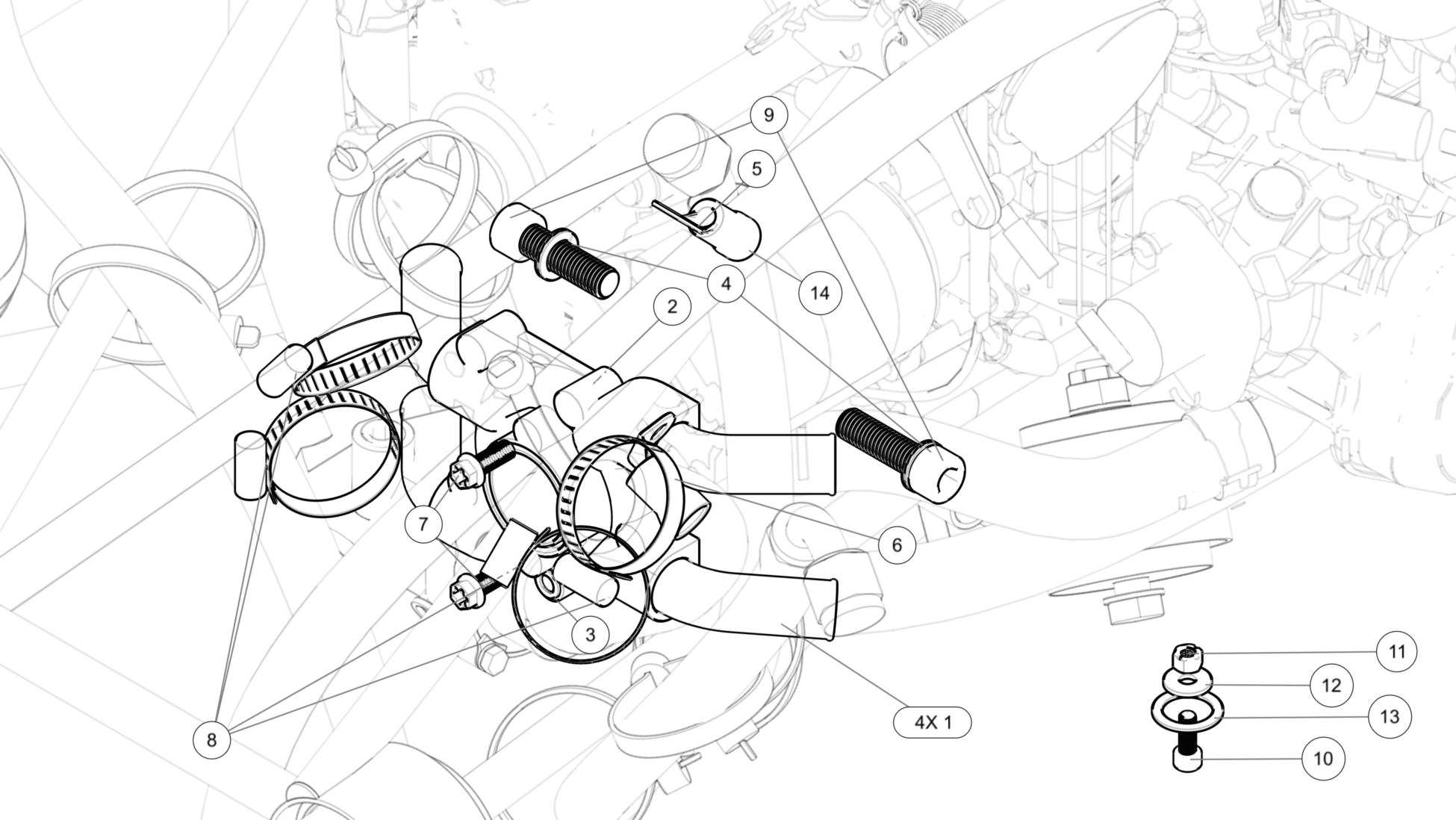

1

ICA015569

BENT SOCKET 45 DEGREES

4

Each

2

ICA015631

HOUSING, WATER PUMP

1

Each

3

230415

SEALING RING A 6X10

1

Each

4

NL10SS

WASHER, NORD-LOCK, CRES, 10MM X 2MM

2

Each

5

ICA011075

TERMINAL, RING, YELLOW, 4 x 1/4

1

Each

6

ICA013586

TERMINAL, RING, YELLOW, 90 DEG

1

Each

7

ICA014533

SCREW, TORX, HEX HEAD, M6-1.0 X 16MM, STEEL, DACROMET

2

Each

8

25-40/9-W5

CLAMP, WORM DRIVE, NORMA TORRO, .35X1.00-1.62

4

Each

9

ICA015676

SCREW, ALLEN, M10X35

2

Each

10

95263A360

SHCS, M5 X .08, 14MM, ZINC

1

Each

11

93795A210

NUT, LOCKING, M5 X 0.8, ZINC

1

Each

12

91100A140

WASHER, OVERSIZED, M5, 15MM OD, ZINC

1

Each

13

430622

SEALING RING A 16X22

1

Each

14

ICA013184

JUMPER, STARTER

1

Each

Includes ICA011075 TERMINAL, RING, YELLOW, 4 x 1/4 and ICA013586 TERMINAL, RING, YELLOW, 90 DEG

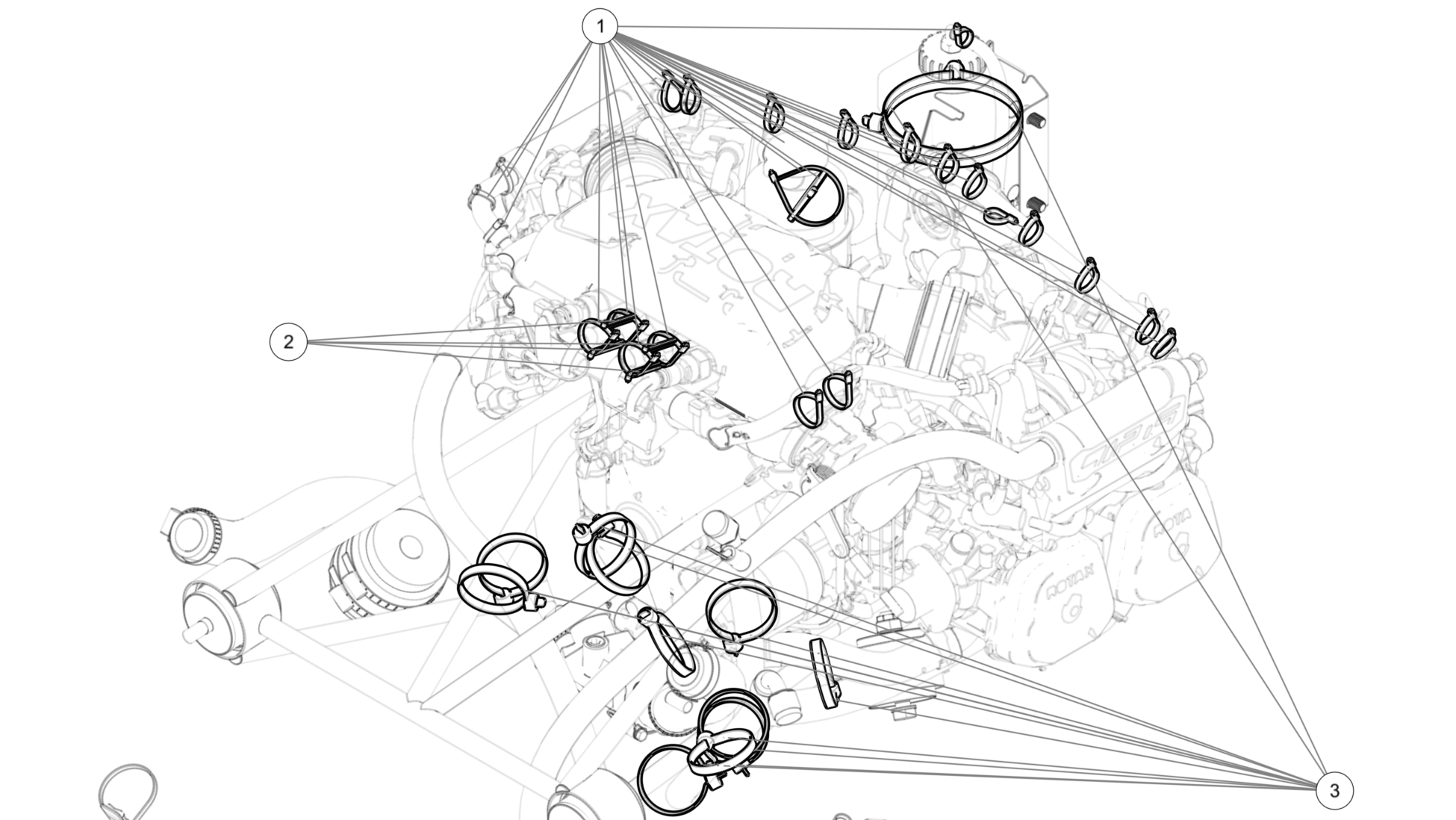

1

TY24MX

CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP

25

Each

2

TY23MX

CABLE-TIE, NYLON 6-6, 18LB, TY-RAP

4

Each

3

TY29MX

CABLE-TIE, NYLON 6-6, 120LB

13

Each

Not shown, 5 additional quantity of TY29MX are included in ICA012137 ENGINE, ROTAX 912iS
