Electrical, Wire Harness, Fuselage
100914-00

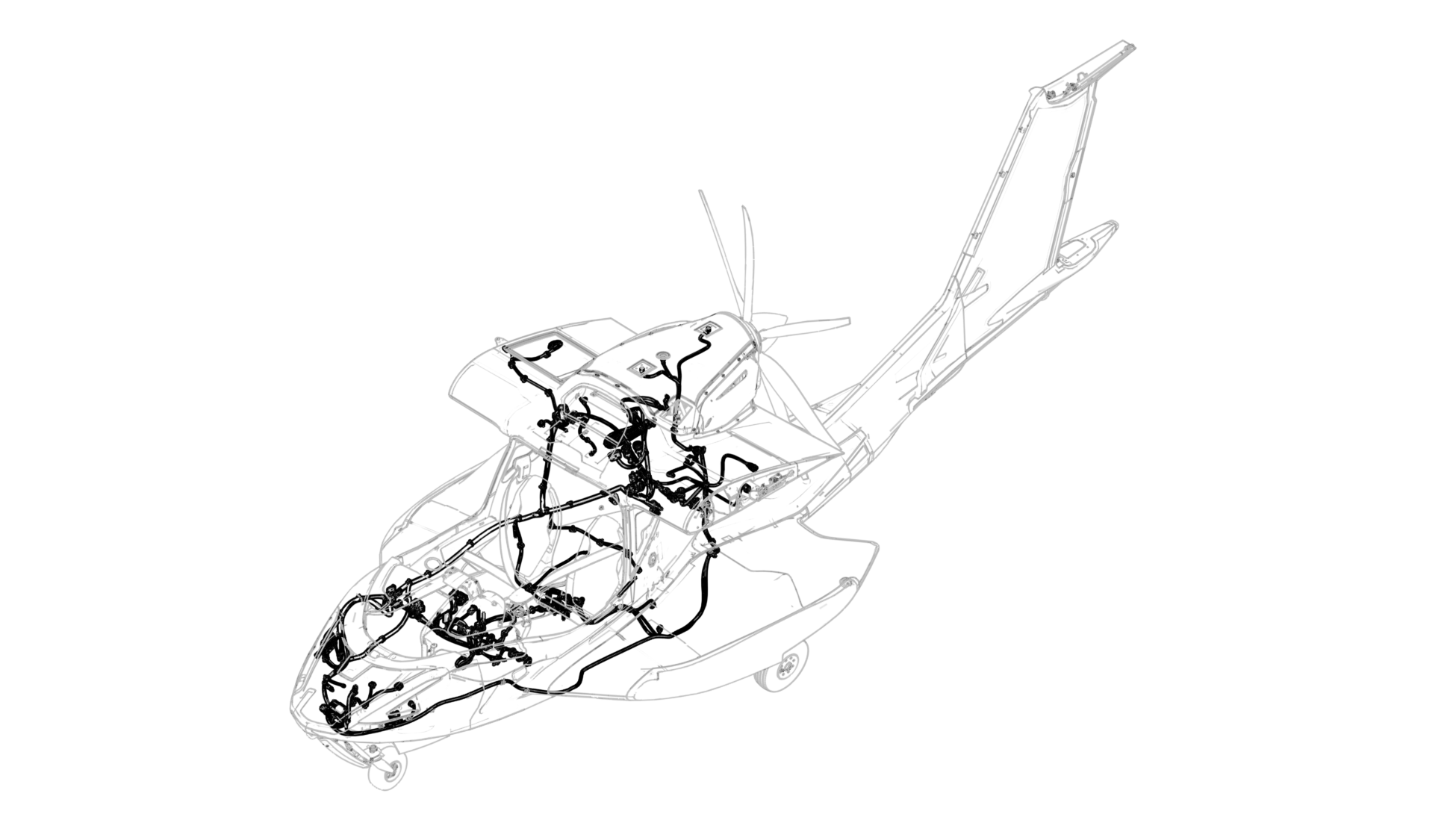

Fuselage wire harness installation. ASN 00110+, 796 configuration only.

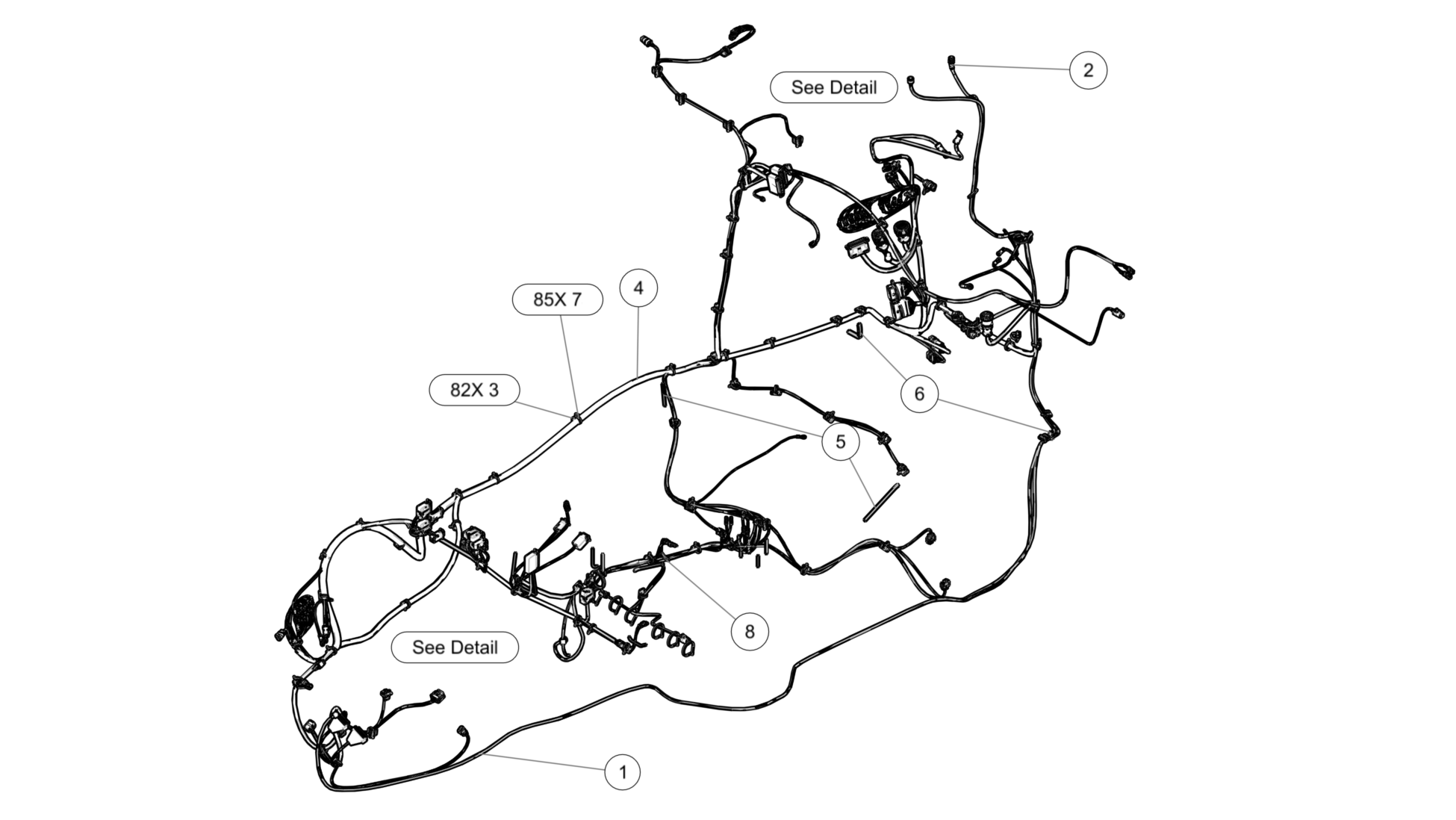

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA013183 | CABLE, TRANSPONDER | 1 | Each | |
2 | ICA013182 | CABLE, ELT | 1 | Each | |
3 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 82 | Each | |
4 | Contact ICON Aircraft | WIRE HARNESS, FUSELAGE, FWD | 1 | Each | |
5 | MS21266-3N | GROMMET, PLASTIC, EDGING, .131X.220 | 9.4 | Inches | |
6 | MS21266-4N | GROMMET, PLASTIC, EDGING, .195X.325 | 6.2 | Inches | |
7 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 85 | Each | |
8 | ICA012248 | CABLE, REMOTE, ELT | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | MS51496-P75 | WASHER, FLAT, 18-8SS, .270X.460X.029-.032 | 1 | Each | |
2 | NA0069-A060012 | SCREW, CAP, HEXSOCH, A286, M6 X 1, 12MM | 1 | Each |

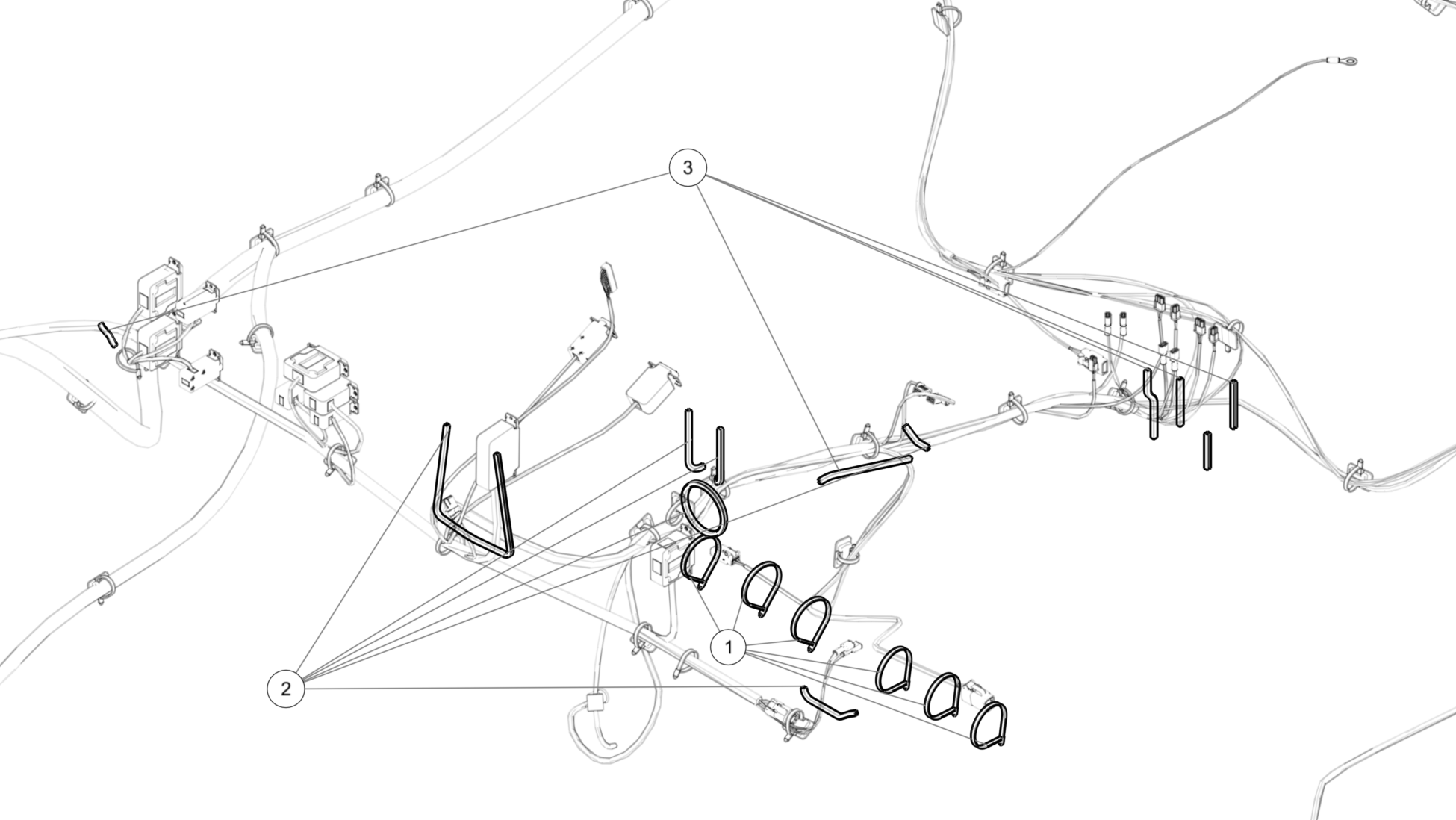

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | TY528MX | CABLE TIE, NYLON 6-6, 50LB, 14.2, TY-RAP | 6 | Each | |
2 | MS21266-1N | GROMMET, PLASTIC, EDGING, .056X.150 | 28.7 | Inches | |
3 | MS21266-2N | GROMMET, PLASTIC, EDGING, .090X.175 | 29.2 | Inches |
