Engine, Throttle
100863-00

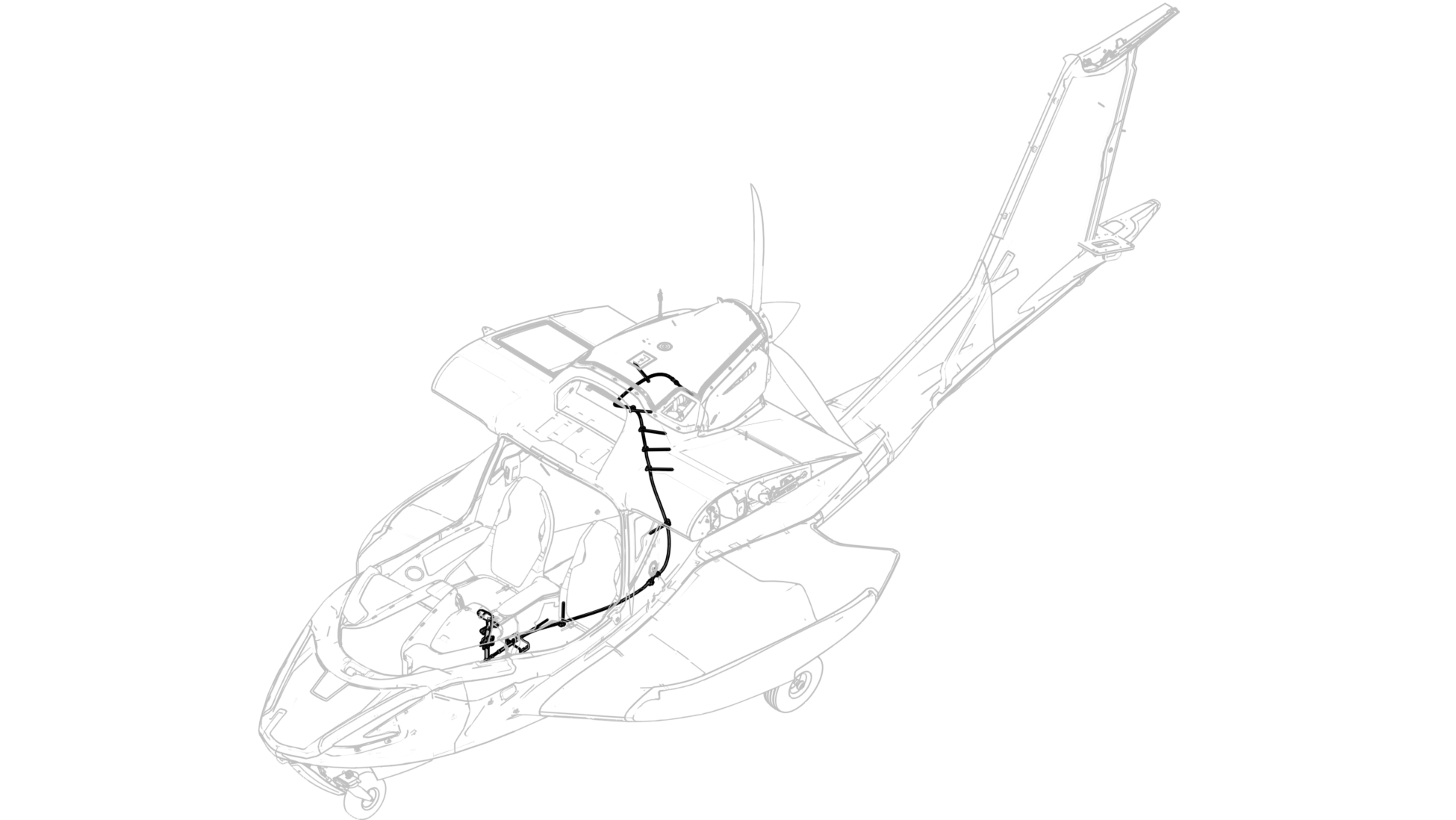

Throttle installation.

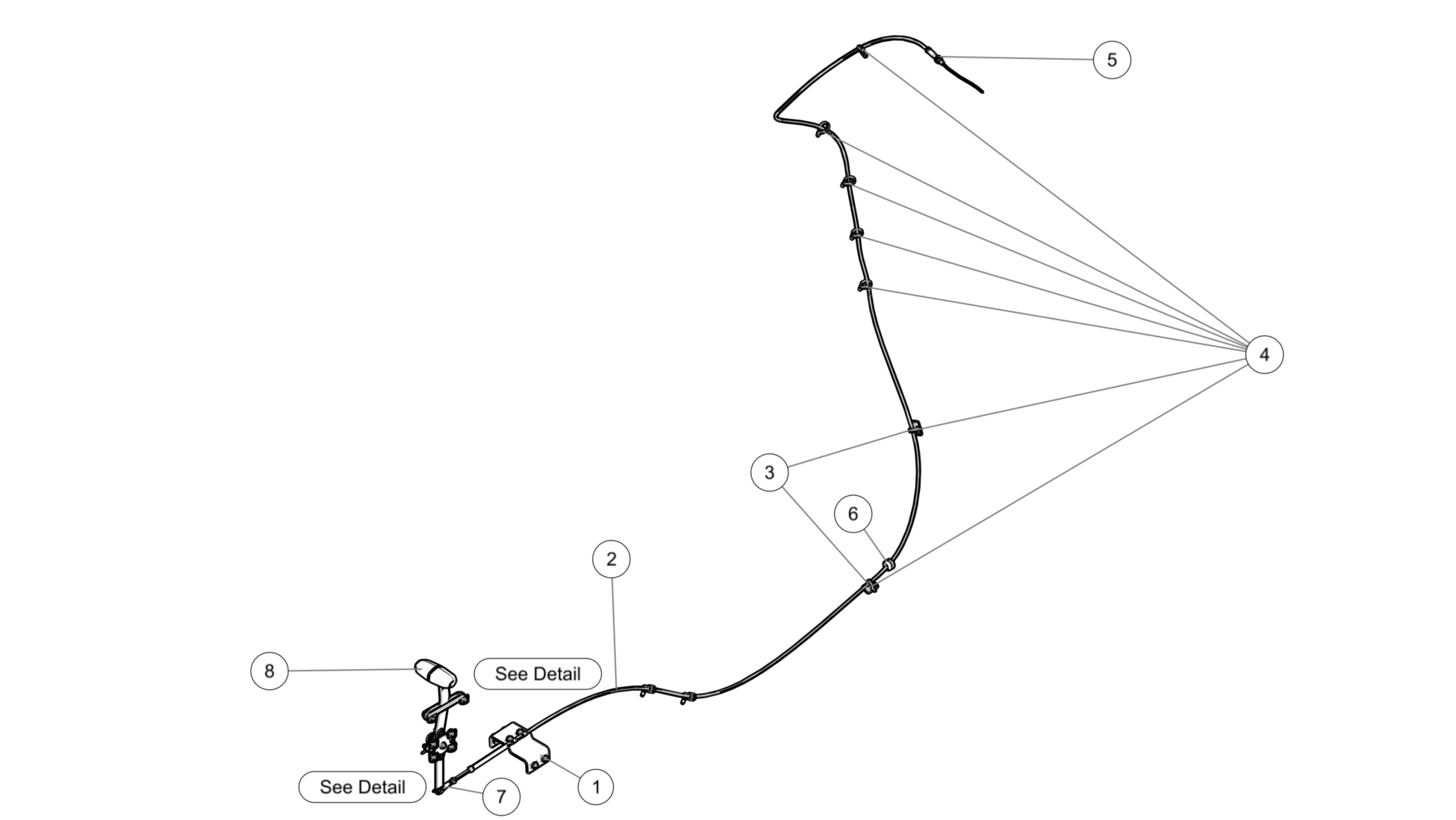

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000950 | THROTTLE CABLE BRACKET, SUBASSY | 1 | Each | |
2 | ICA012855 | CABLE, THROTTLE | 1 | Each | |
3 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 2 | Each | |
4 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 7 | Each | |
5 | 6271 | TERMINAL, CONDUIT, MCFARLANE SLIP FIT | 1 | Each | |
6 | MS35489-145 | GROMMET, SYNTH RBR, .188X.562X.75X.094 | 1 | Each | |
7 | ICA012310 | ROD END, THREADED, CLEVIS, AN665, SST | 1 | Each | |
8 | ME000556 | PAINTED, HANDLES THROTTLE | 1 | Each | Includes LH and RH |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 6 | Each | |
2 | AN742F3 | CLAMP, LOOP, PLAIN, SUPPORT, AIRCRAFT, 3/16 | 2 | Each | |
3 | MS21919WDG4 | CLAMP, LOOP TYPE, CUSH, .250 | 2 | Each | |
4 | NAS1149C0316R | WASHER, FLAT, CRES, .188x.016, PSVT | 6 | Each | |
5 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 6 | Each | |
6 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 6 | Each | |
7 | AN3C4A | BOLT, MACH, CRES, 10-32X.125 | 2 | Each |

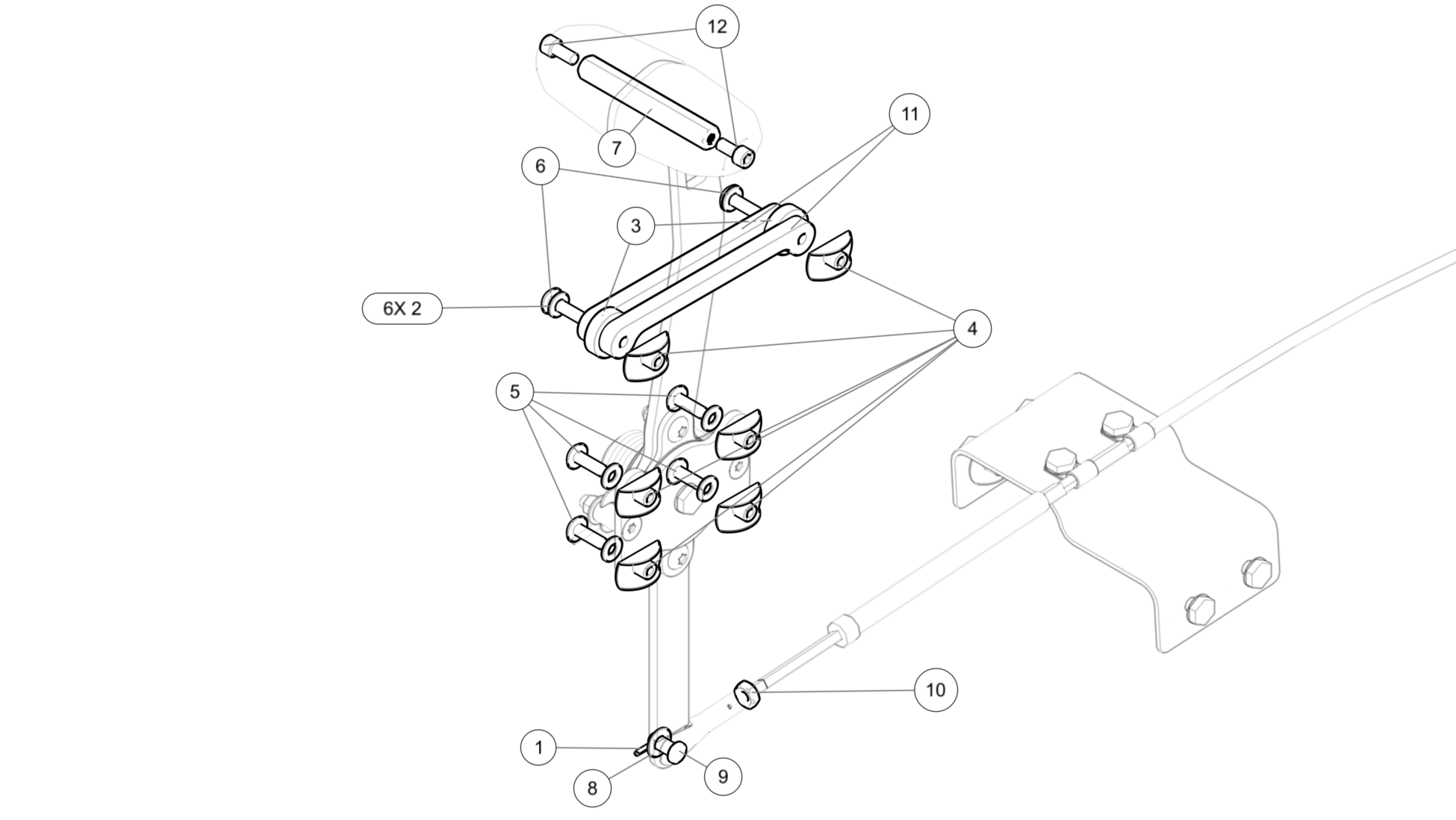

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | MS24665-151 | PIN, COTTER, CRES, .063X.500 | 1 | Each | |
2 | NAS1149CN832R | WASHER, FLAT, CRES, #8X.032, PSVT | 6 | Each | |
3 | ICA009340 | WASHER, NYLON, .700X.166X.184 | 2 | Each | |
4 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 6 | Each | |
5 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 4 | Each | |
6 | 8C112MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X1.12 | 2 | Each | |
7 | 91780A065 | STANDOFF, THREADED, HEX, AL, 8-32X.312X2.50 | 1 | Each | |
8 | NAS1149C0316R | WASHER, FLAT, CRES, .188x.016, PSVT | 1 | Each | |
9 | MS20392-2R11 | PIN, STR, HEADED, DRILLED SHK, CRES, .188X.344 | 1 | Each | |
10 | AN315C3R | NUT, HEX, CRES, 10-32RH | 1 | Each | |
11 | ICA009339 | GUIDE, THROTTLE LEVER | 2 | Each | |
12 | MS16995-25 | SCREW, CAP HD, SCH-HEX, CRES, 8-32X.375 | 2 | Each |

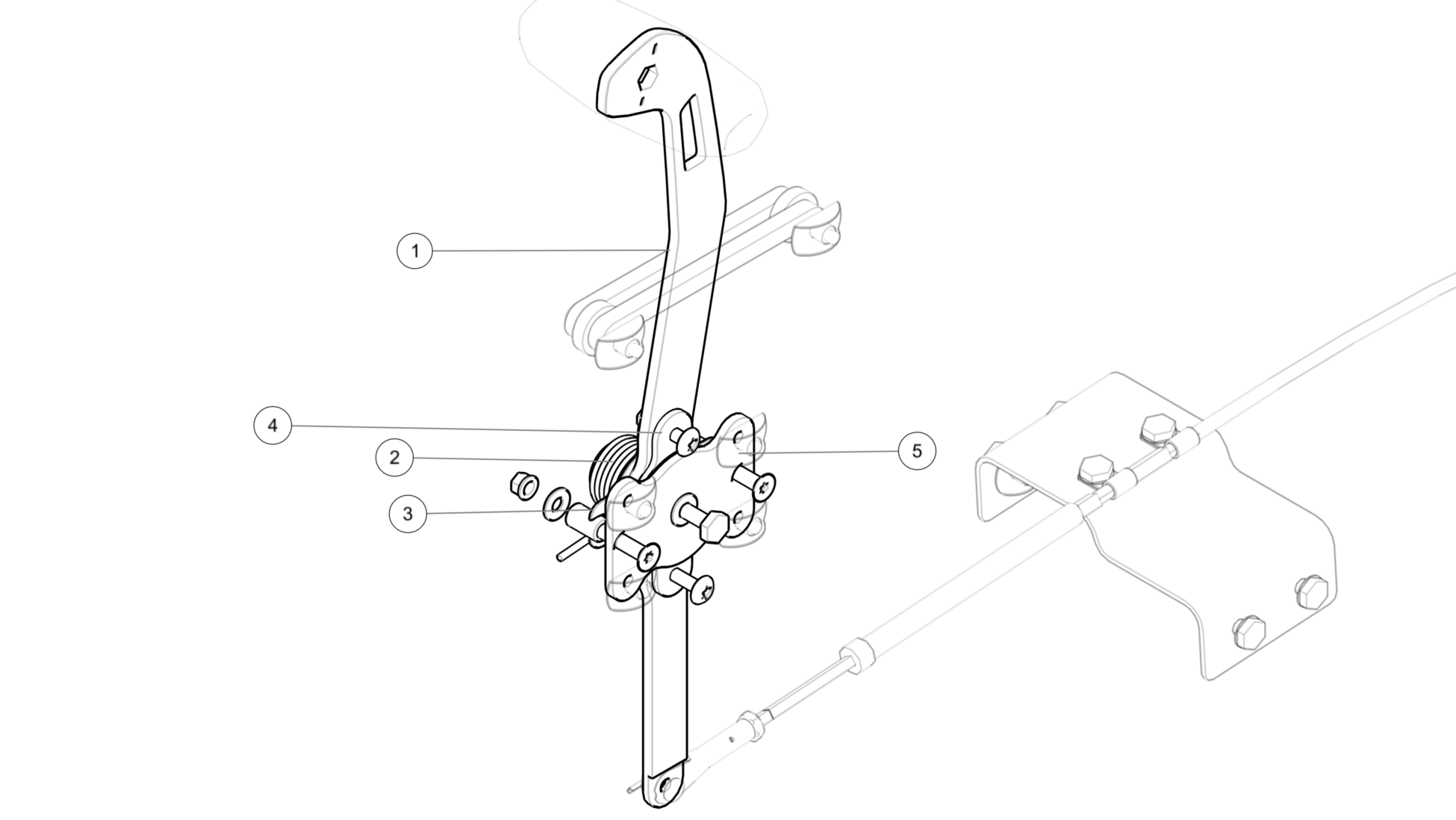

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA009337 | LEVER, THROTTLE | 1 | Each | Included in ICA007862 |
2 | ICA006711 | SPRING, TORSION, CRES, .824X.610X.085 | 1 | Each | Included in ICA007862 |
3 | ICA009003 | PLATE, FRICTION,THROTTLE LEVER, SST | 2 | Each | Included in ICA007862 |
4 | ICA008937 | PLATE, FRICTION,THROTTLE LEVER, PLASTIC | 2 | Each | Included in ICA007862 |
5 | ICA008943 | PLATE, BASE,THROTTLE LEVER | 1 | Each | Included in ICA007862 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 92217A445 | WASHER, CRES, .203X.563X.03 | 1 | Each | Included in ICA007862 |
2 | 92510A542 | SPACER, AL, .192X.312X.250 | 1 | Each | Included in ICA007862 |
3 | NAS42DD6B-68N | SPACER, AL, .192X.312X1.063 | 1 | Each | Included in ICA007862 |
4 | AN3C11A | BOLT, MACH, CRES, 10-32X.750 | 1 | Each | Included in ICA007862 |
5 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 4 | Each | Included in ICA007862 |
6 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 3 | Each | Included in ICA007862 |
7 | NAS1149CN832R | WASHER, FLAT, CRES, #8X.032, PSVT | 1 | Each | Included in ICA007862 |
8 | 8C87MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.875 | 1 | Each | Included in ICA007862 |
9 | 8C62MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.625 | 1 | Each | Included in ICA007862 |
10 | 92217A439 | WASHER, CRES, .1875X.625X.03 | 1 | Each | Included in ICA007862 |
11 | ICA009004 | CAP,FRICTION, THROTTLE LEVER | 1 | Each | Included in ICA007862 |
12 | 92510A565 | SPACER, AL, .192X.312X.500 | 1 | Each | Included in ICA007862 |
13 | 10F100MTF3/100/37TL | SCREW, MACH FLH, 6LOBE, CRES, 10-32X1.00X.37 | 1 | Each | Included in ICA007862 |
14 | 17-0029 | SPRING, BELLEVILLE, CRES, .204X.509 | 6 | Each | Included in ICA007862 |
15 | 10F150MTF3/100/37TL | SCREW, MACH FLH, 6LOBE, CRES, 10-32X1.50X.37 | 1 | Each | Included in ICA007862 |
16 | MS21043-08 | NUT, SLFLKG, RDC HEX, CRES, 8-32 | 2 | Each | Included in ICA007862 |
