Wing, Light, Position and Anti-Collision, LH
100817-00

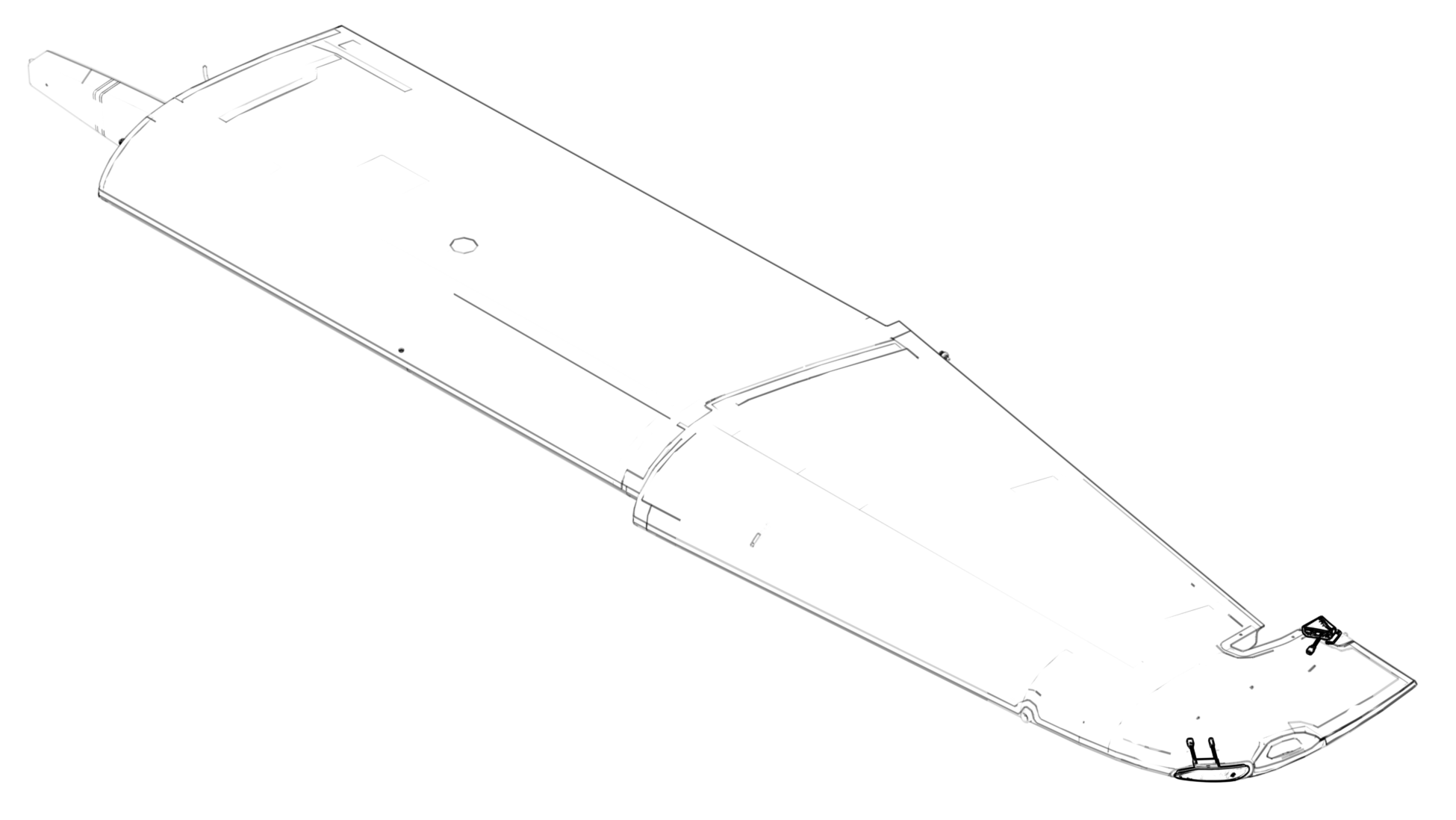

Left-side position and anti-collision light installation into wing.

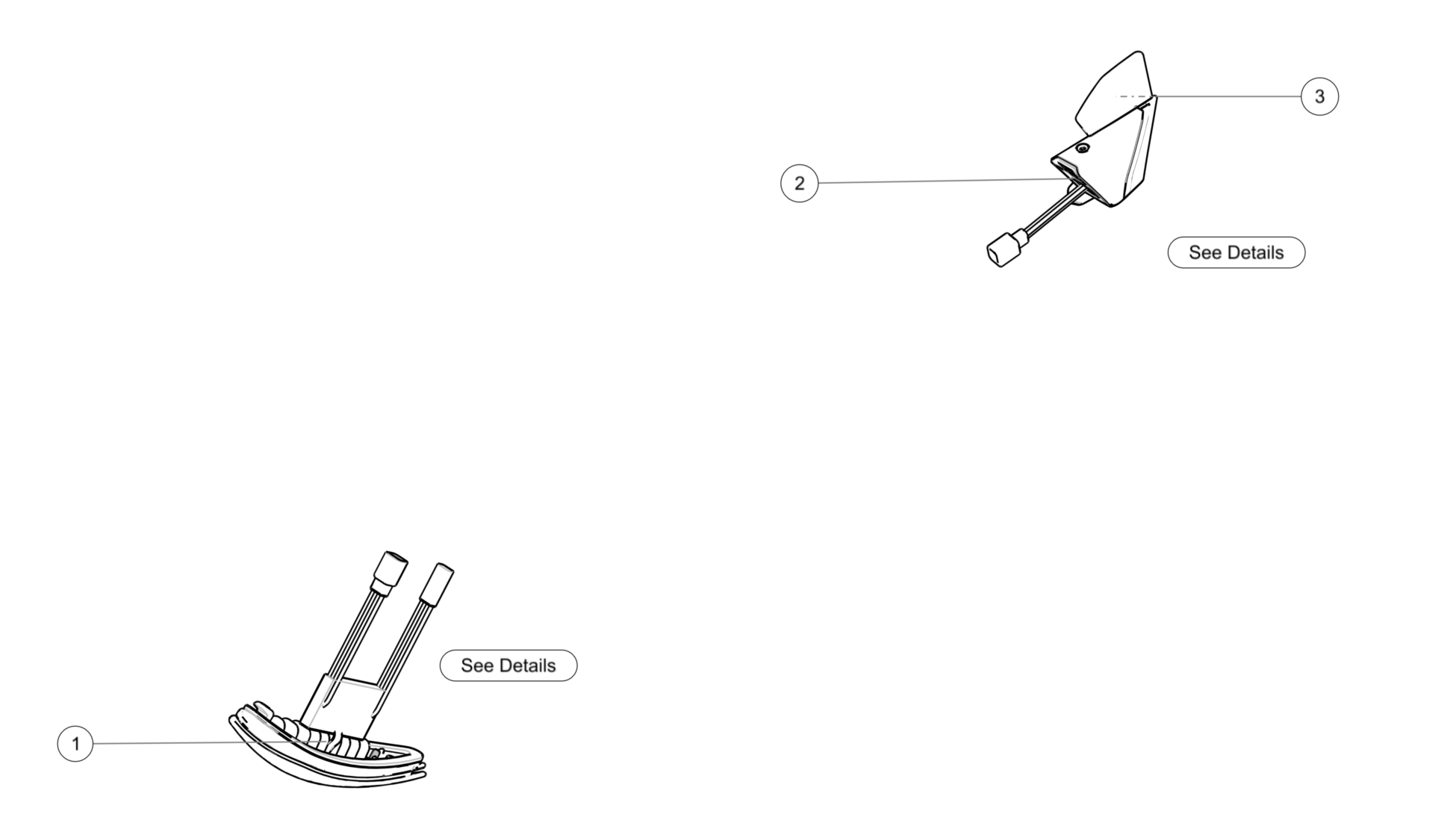

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA013956 | LIGHT, POSITION & STROBE, LE-LH | 1 | Each | |
2 | GTV-IC1600-1-AJ | LIGHT, POSITION & STROBE, TE-LH | 1 | Each | |
3 | ICA010558 | FENCE, WING, AFT-INBD, LIGHT, LH | 1 | Each |

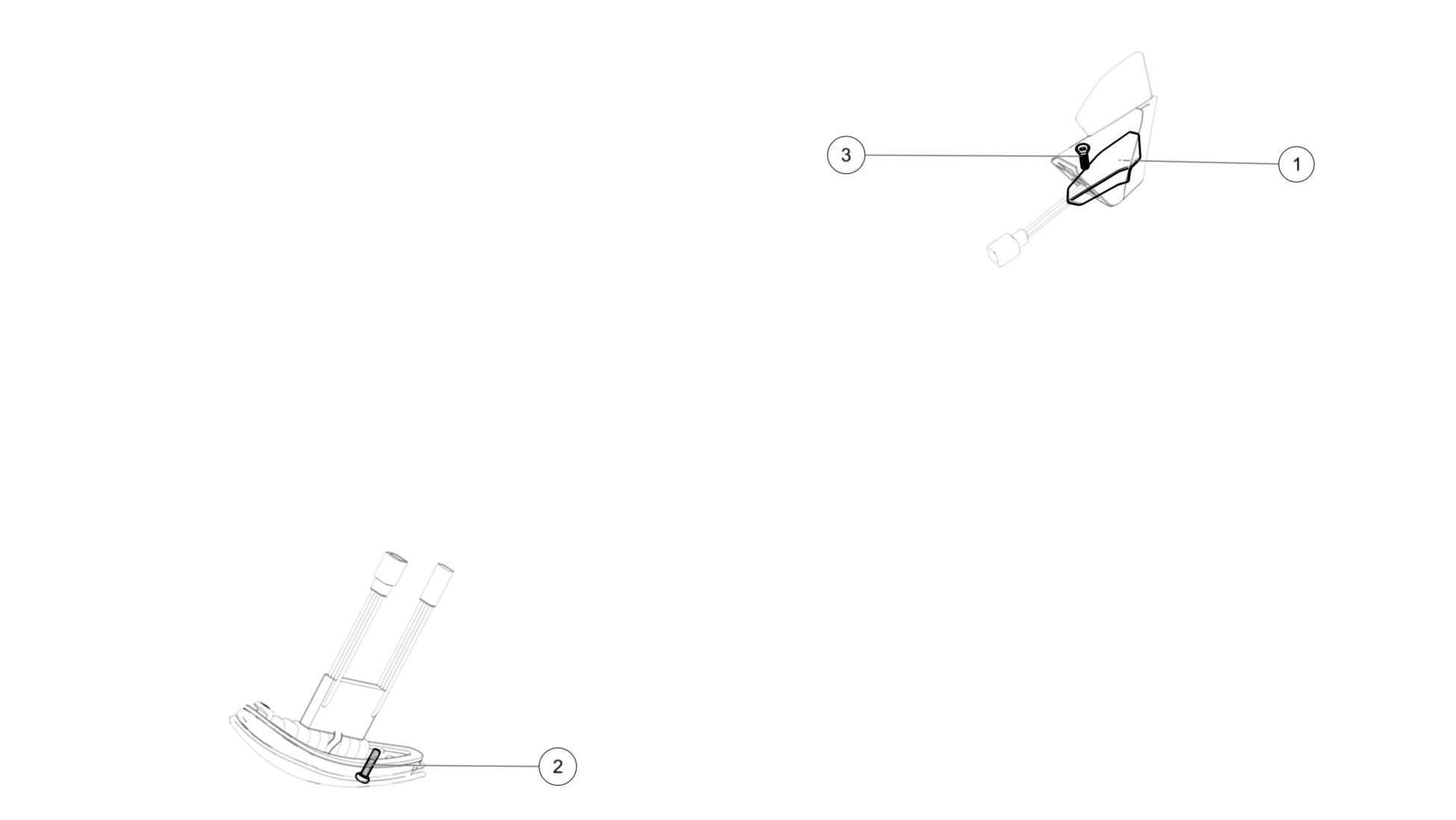

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA009034 | FENCE, WING, AFT-OUTBD, LIGHT, LH | 1 | Each | |
2 | ICA014012 | SCREW, TORX, BUTTON HEAD, BUNA SEAL, 300SS, 8-32X.625 | 1 | Each | |
3 | 8-32X5-8TXFL82-316SS-BUN | SCREW, FL BUNA-N, 8-32x5-8T | 1 | Each |
