Wing, Tie Down/Jack Point, LH
100815-00

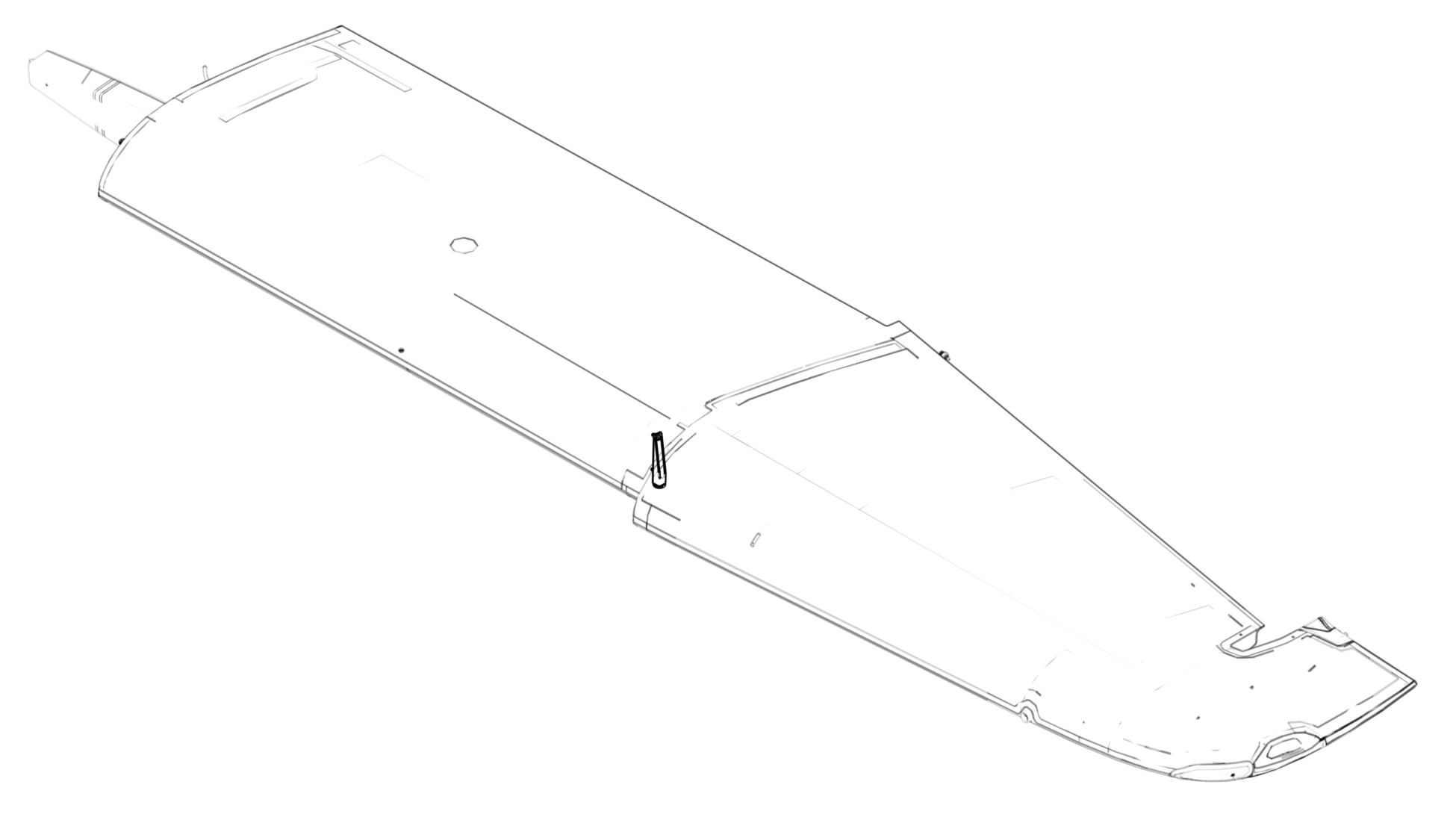

Left-side tie down/jack point installation into wing.

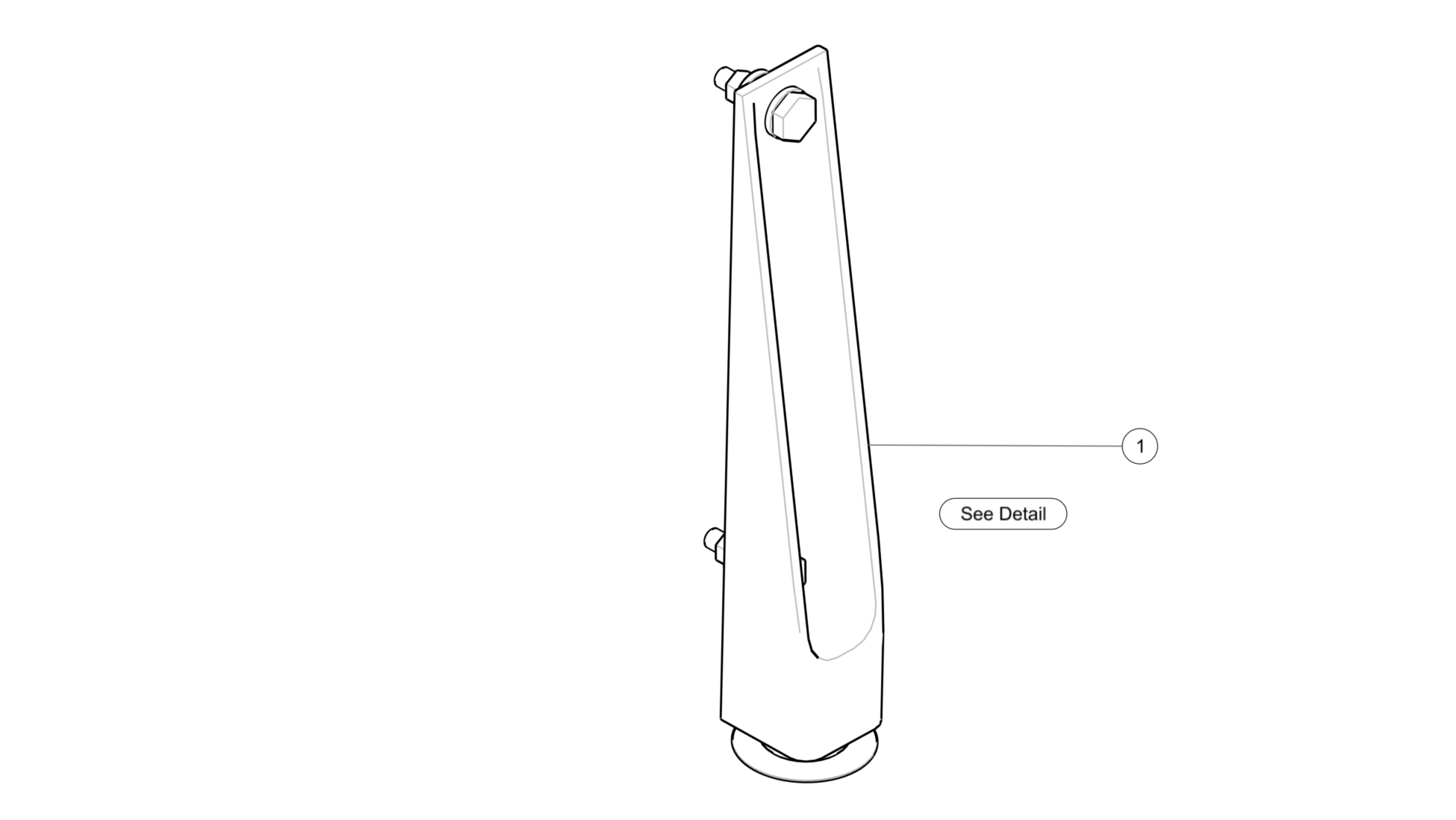

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA008418 | LUG, TIE DOWN & JACKING, WING | 1 | Each |

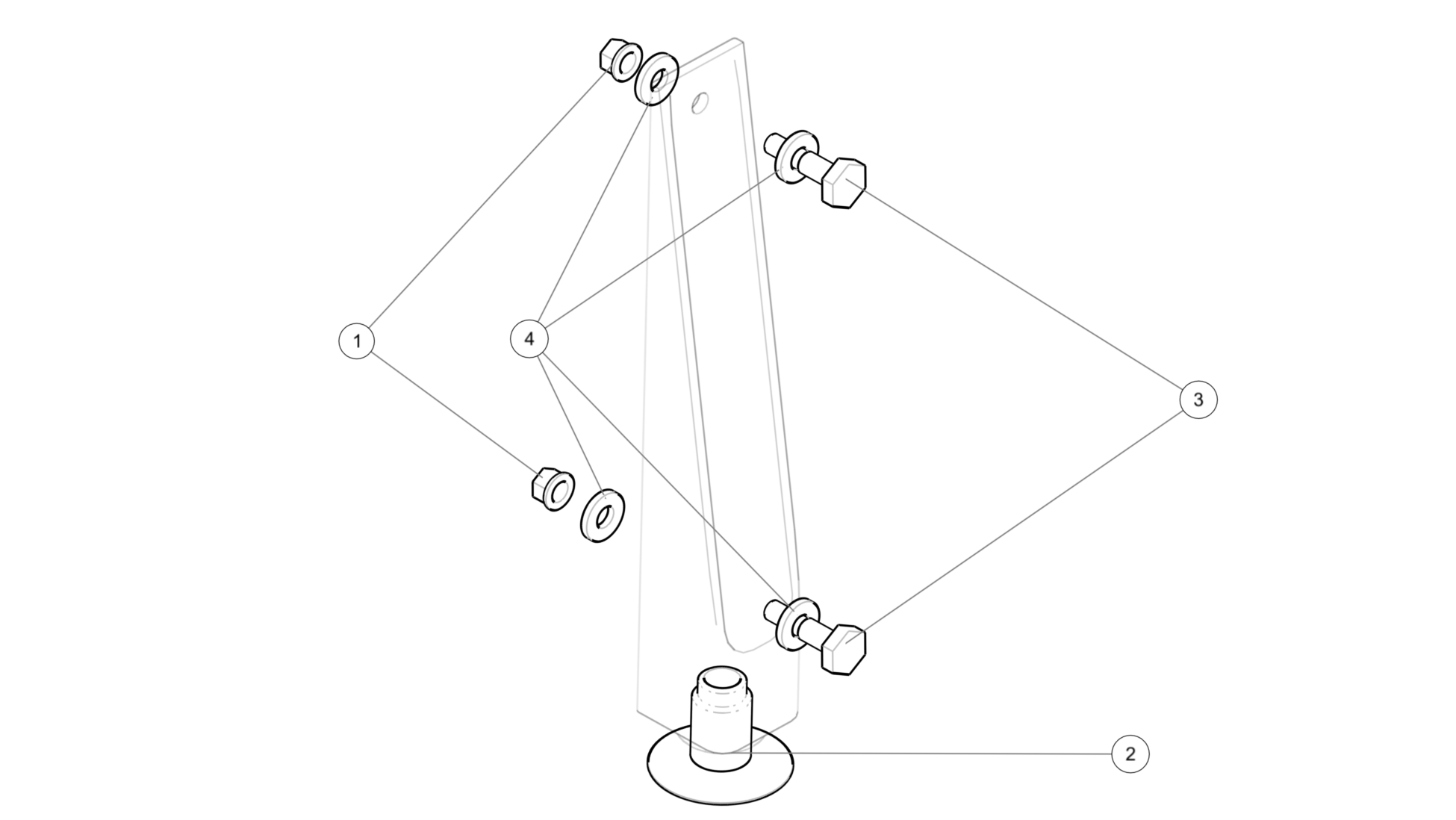

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 2 | Each | |
2 | ICA008417 | BUSHING, TIEDOWN, JACKING WING | 1 | Each | |
3 | AN3C6A | BOLT, MACH, CRES, 10-32X.375 | 2 | Each | |
4 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 4 | Each |
