Wing, Angle of Attack
100819-00

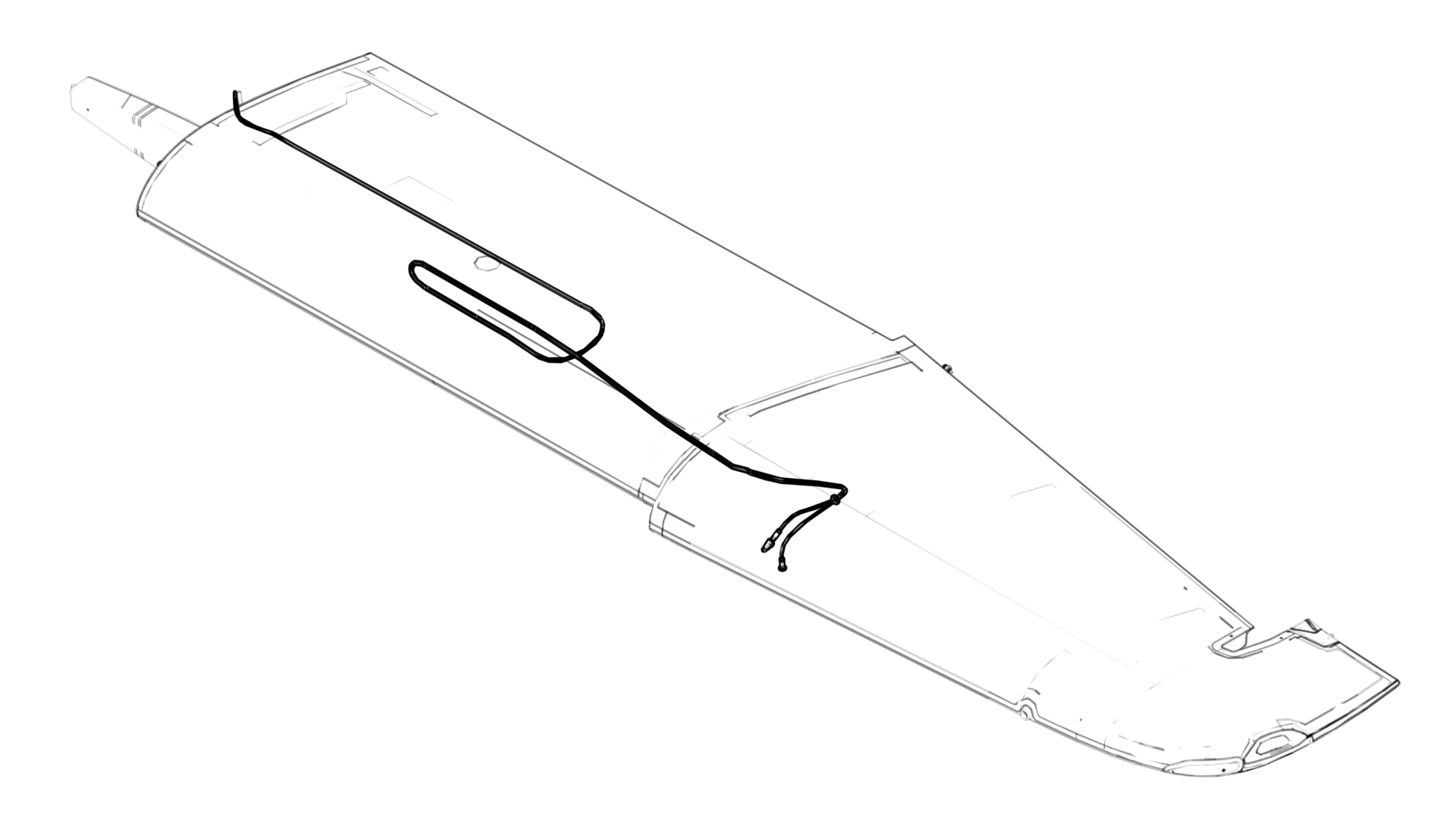

Angle of attack installation into wing.

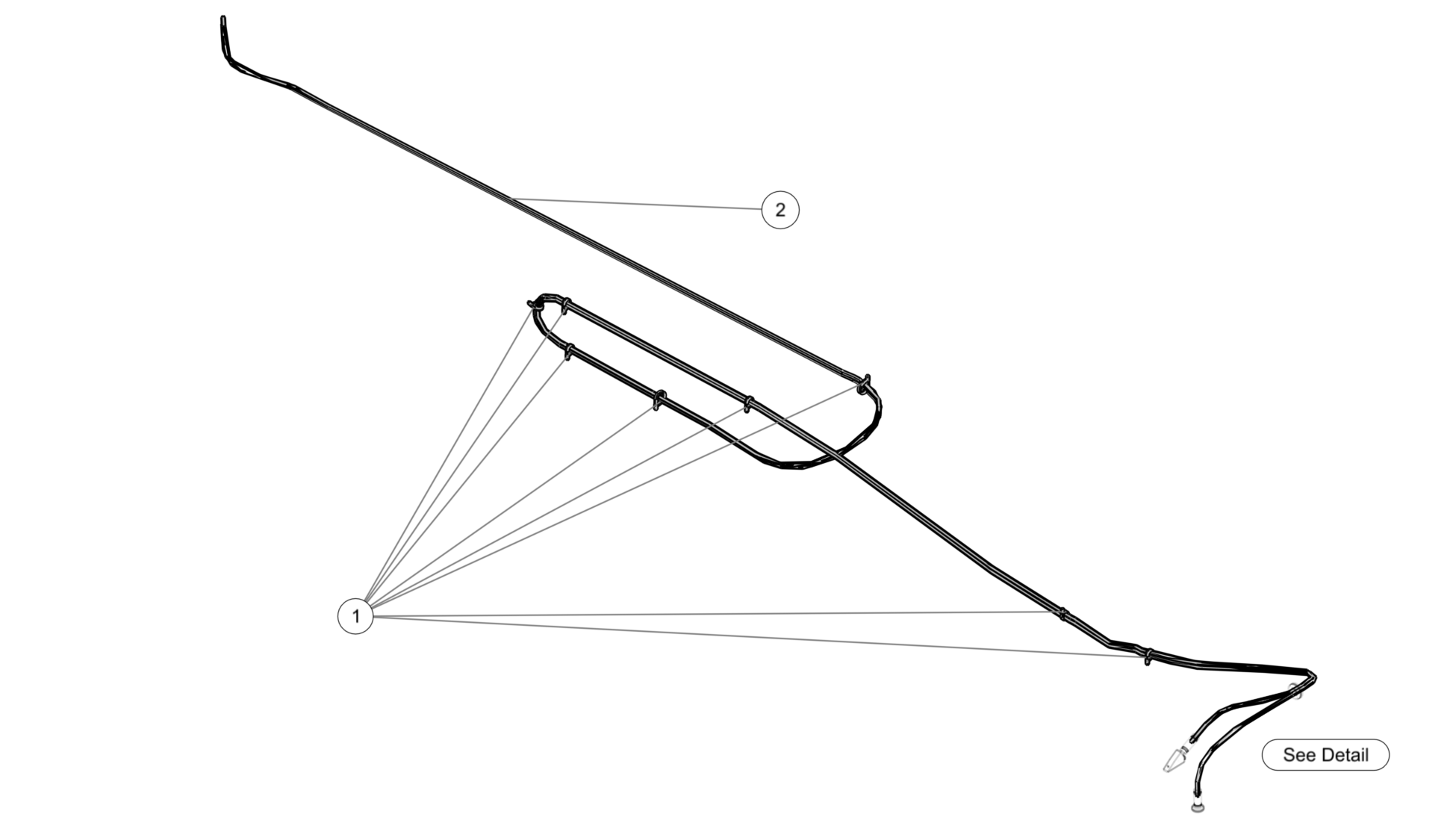

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 8 | Each | |
2 | 33N | TUBING, NYLON 11, NYLO-SEAL, .137 X .188, NATURAL | 359 | Inches |

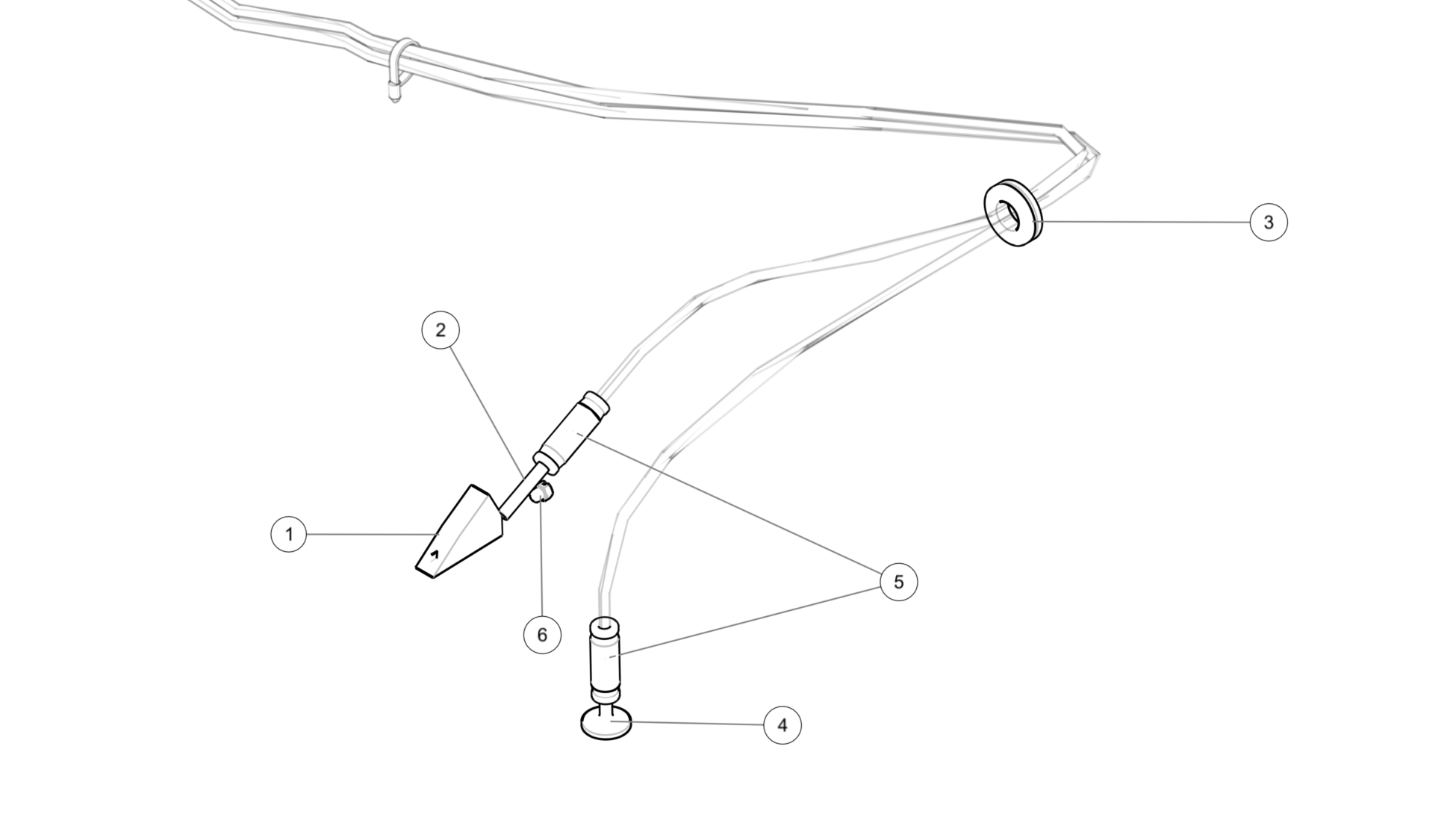

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA015449 | PORT, LOW PRESS, ANGLE OF ATTACK | 1 | Each | |
2 | ICA011812 | TUBE, RING GROOVED, CRES, .188X.028X1.30 | 1 | Each | |
3 | MS35489-149 | GROMMET, SYNTH RBR, .500X.750X1.000X.062 | 1 | Each | |
4 | ICA011593 | PORT, MOUNT, .188 | 1 | Each | |
5 | ICA011138 | CONNECTOR, PUSH-ON, STRAIGHT, .188 | 2 | Each | |
6 | ICA015460 | PORT PLUG, STRAIGHT THREAD, 10-32 | 1 | Each |
