Wing, Wire Harness, LH
100826-00

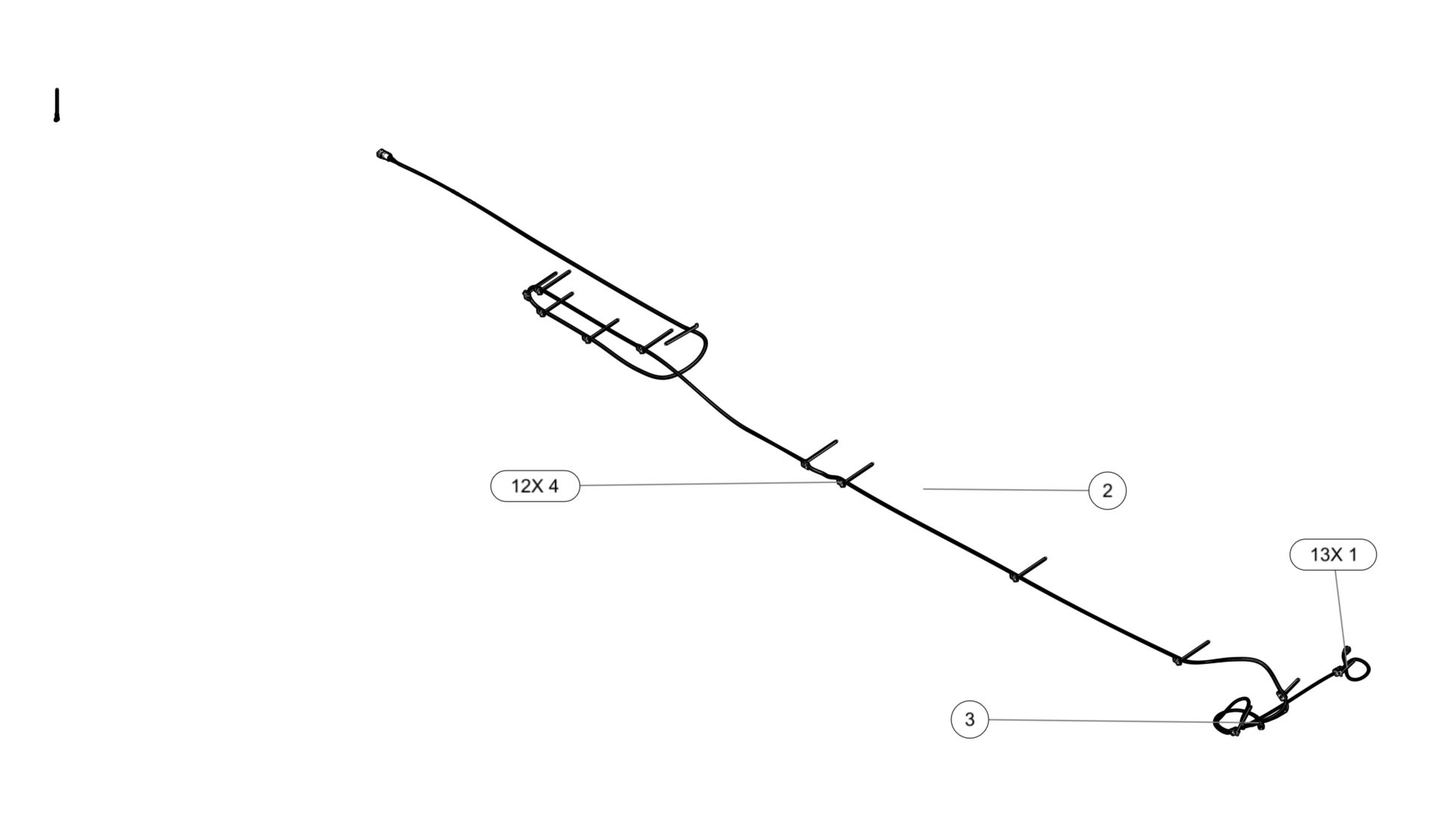

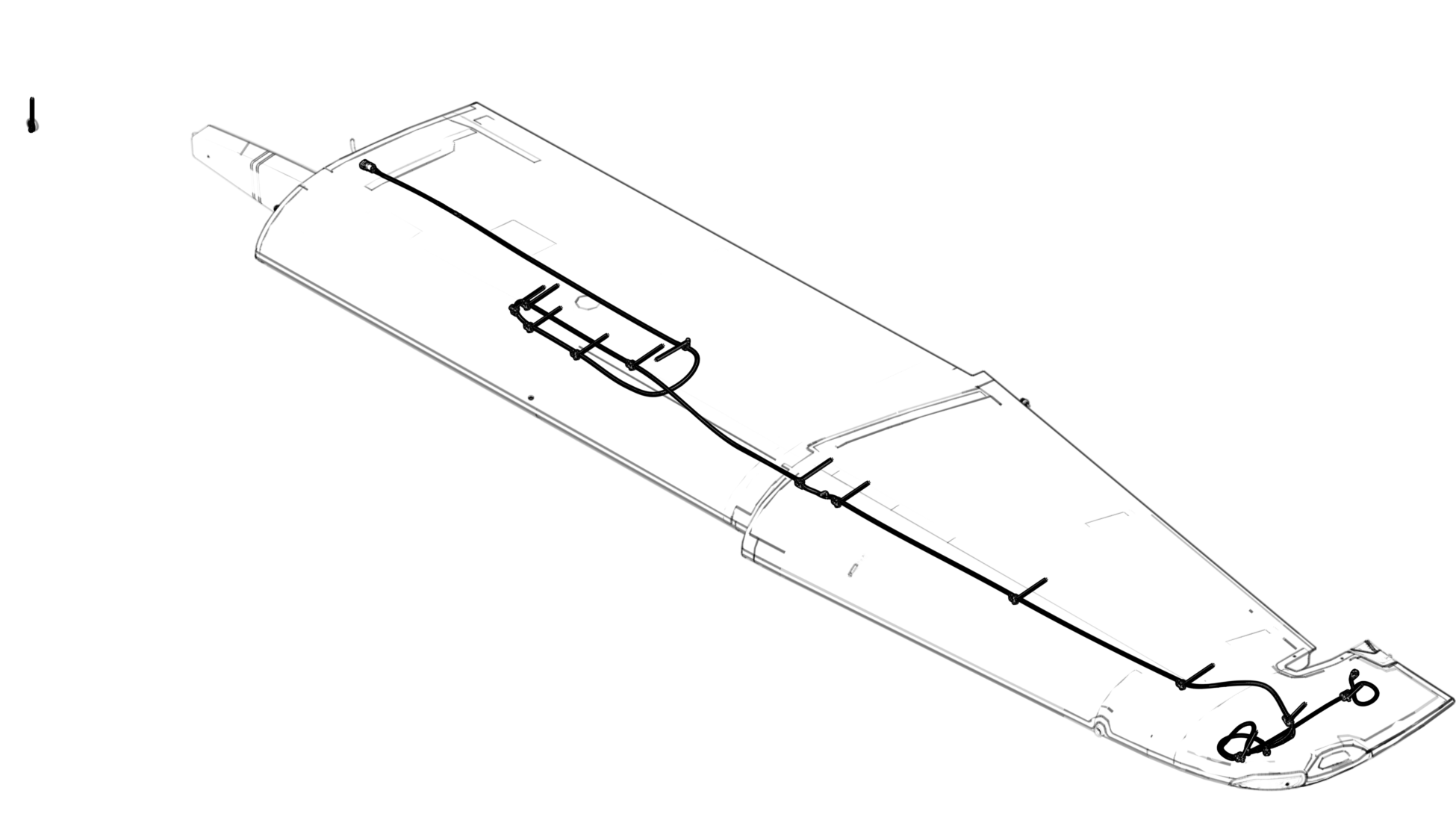

Left-hand wire harness installation into the wing.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 13 | Each | |
2 | ICA011397 | WIRE HARNESS, LH WING | 1 | Each | For 796 configuration only. For G3X, use ICA015597 WIRE HARNESS, LH WING |
3 | ICA012174 | WIRE HARNESS, LH WING, JUMPER | 1 | Each | |
4 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 12 | Each |
