Wing, Wire Harness, RH
100827-00

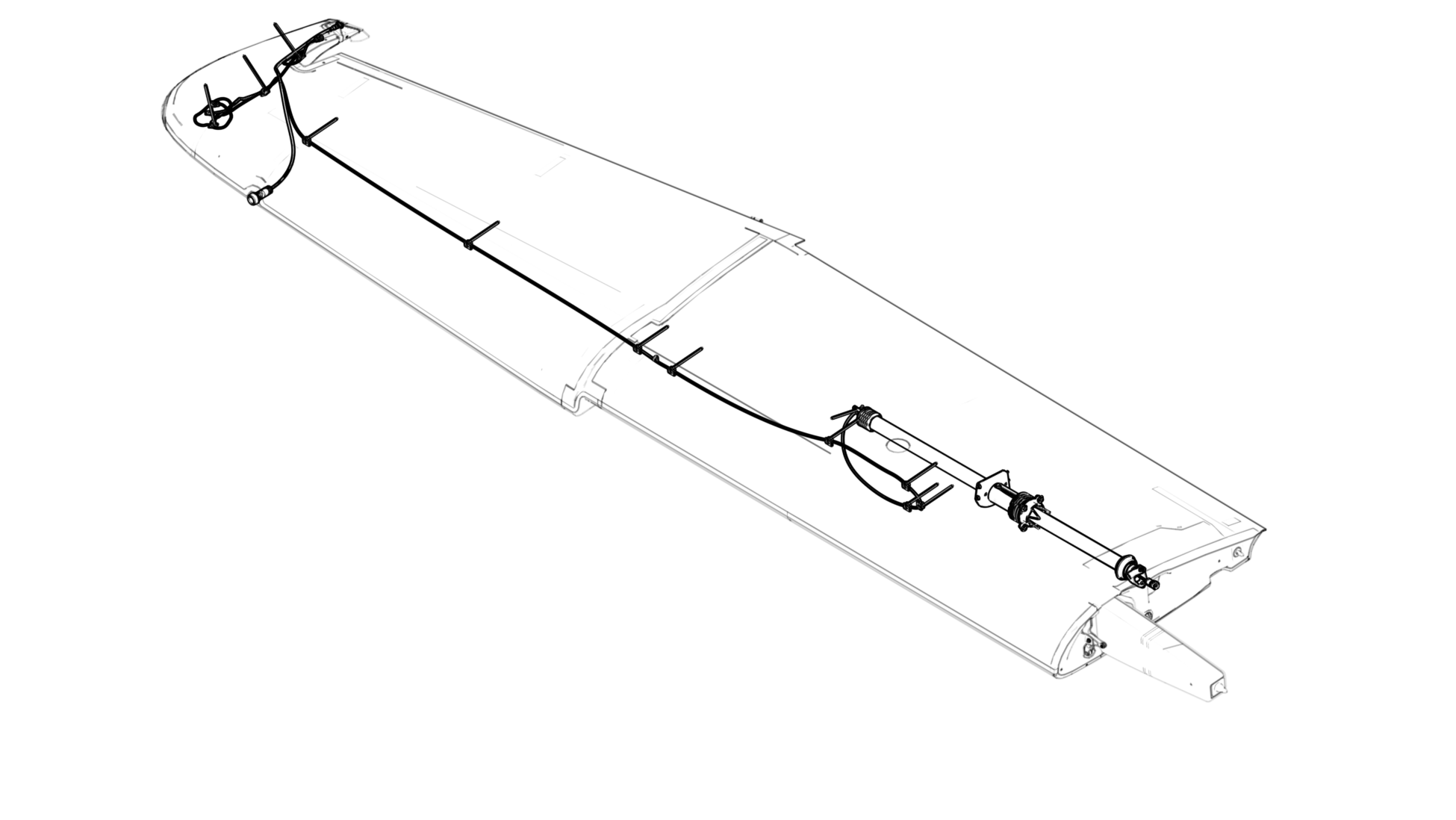

Right-hand wire harness installation into the wing.

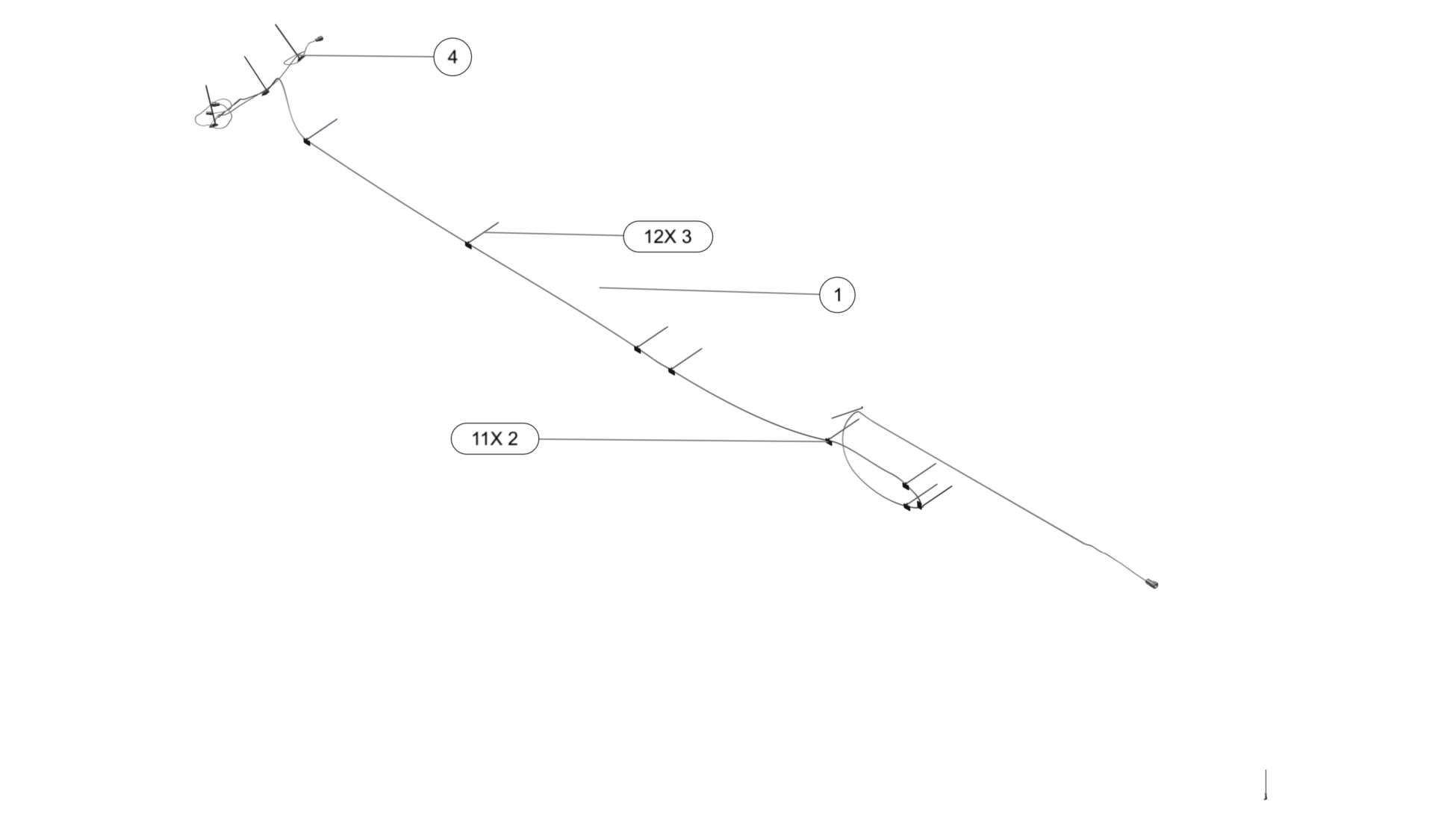

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011395 | WIRE HARNESS, RH WING | 1 | Each | |
2 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 11 | Each | |
3 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 12 | Each | |
4 | ICA012168 | WIRE HARNESS, RH WING, JUMPER | 1 | Each |
