Electrical, Wire Harness, HT
100913-00

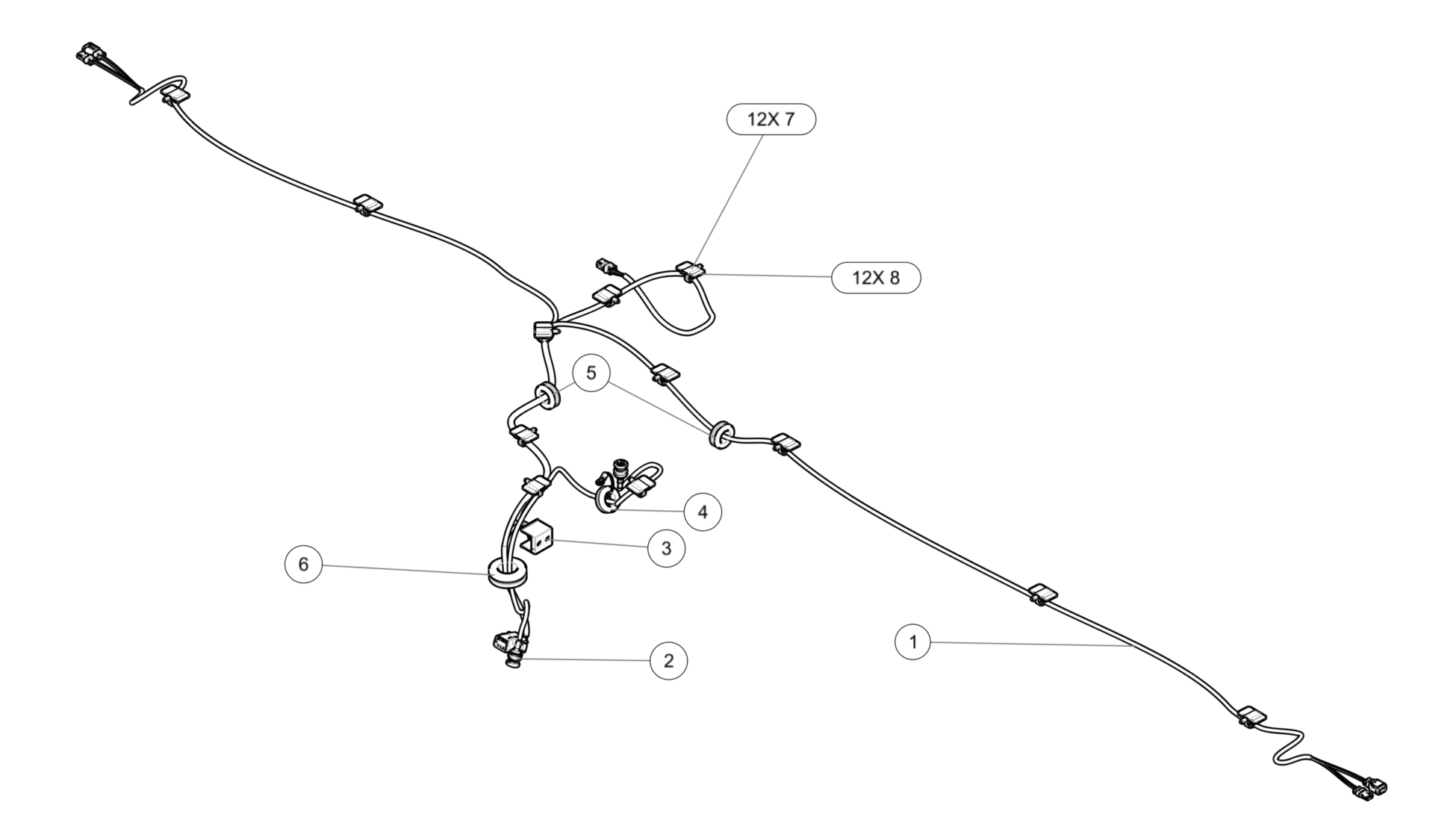

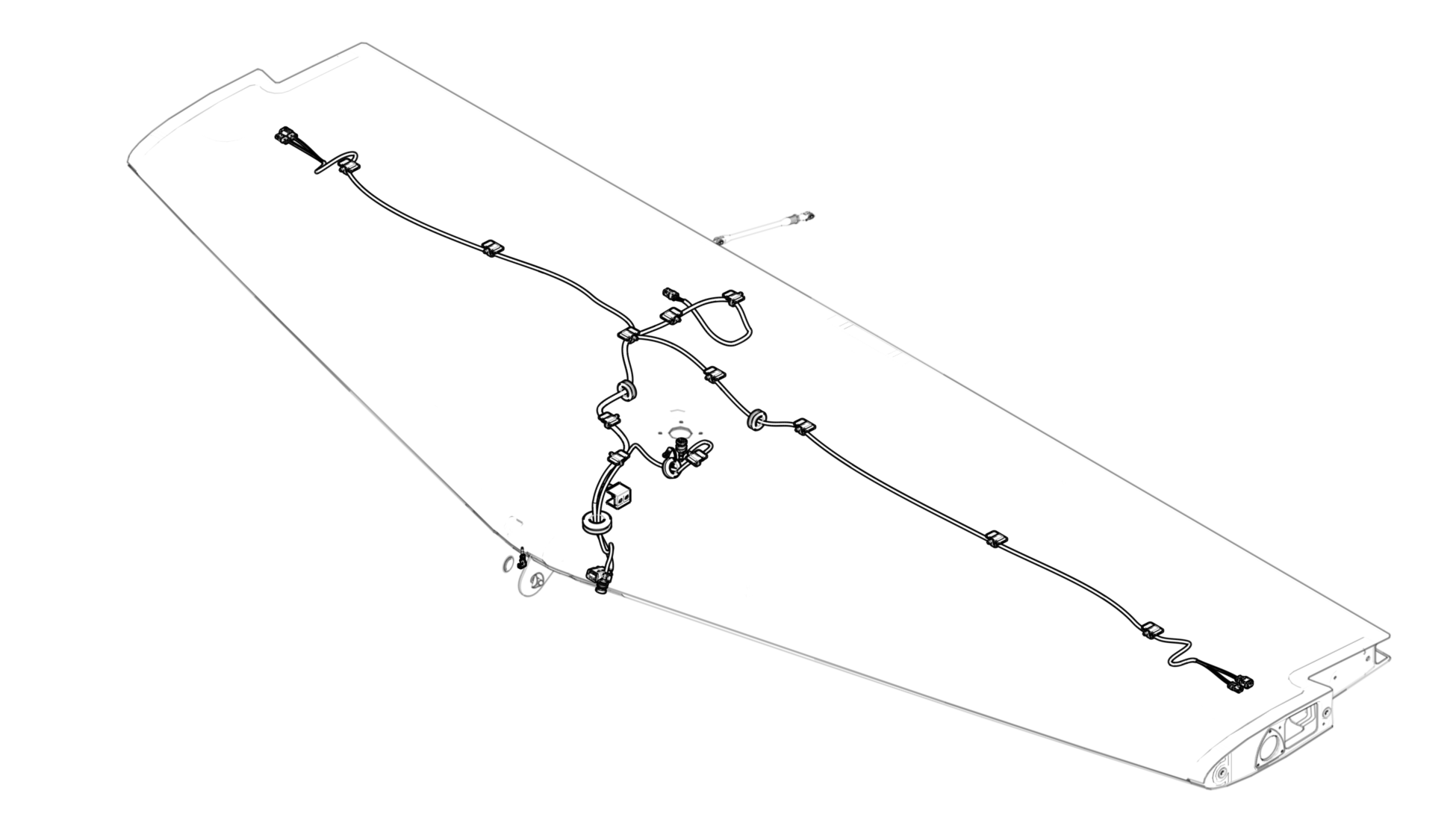

Horizontal Tail wire harness installation.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | Contact ICON Aircraft | WIRE HARNESS, HT | 1 | Each | |
2 | Contact ICON Aircraft | WIRE HARNESS, HT, COAX | 1 | Each | |
3 | SJTC02000 | TERMINAL BLOCK, MOUNTING TRACK, 2 UNIT, COMPOSITE | 1 | Each | |
4 | MS35489-17 | GROMMET, SYNTH RBR, .625X.875X1.125X.062 | 1 | Each | |
5 | MS35489-75 | GROMMET, SYNTH RBR, .625X.875X1.125X.188 | 2 | Each | |
6 | MS35489-51 | GROMMET, SYNTH RBR, .875X1.25X1.62X.125 | 1 | Each | |
7 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 12 | Each | |
8 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP .5 DIA | 12 | Each |
