Engine, Firewall
100861-00

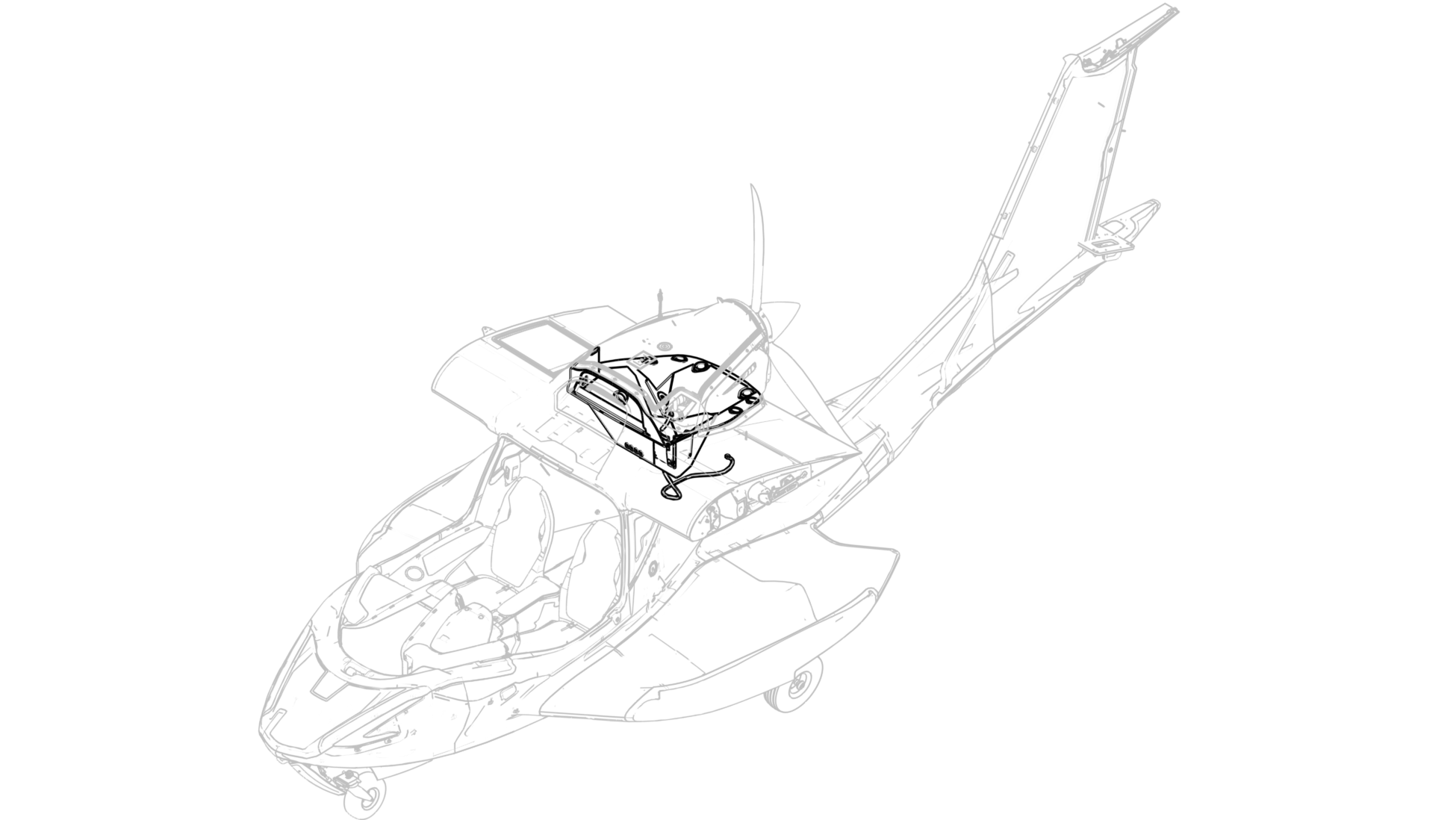

Firewall installation.

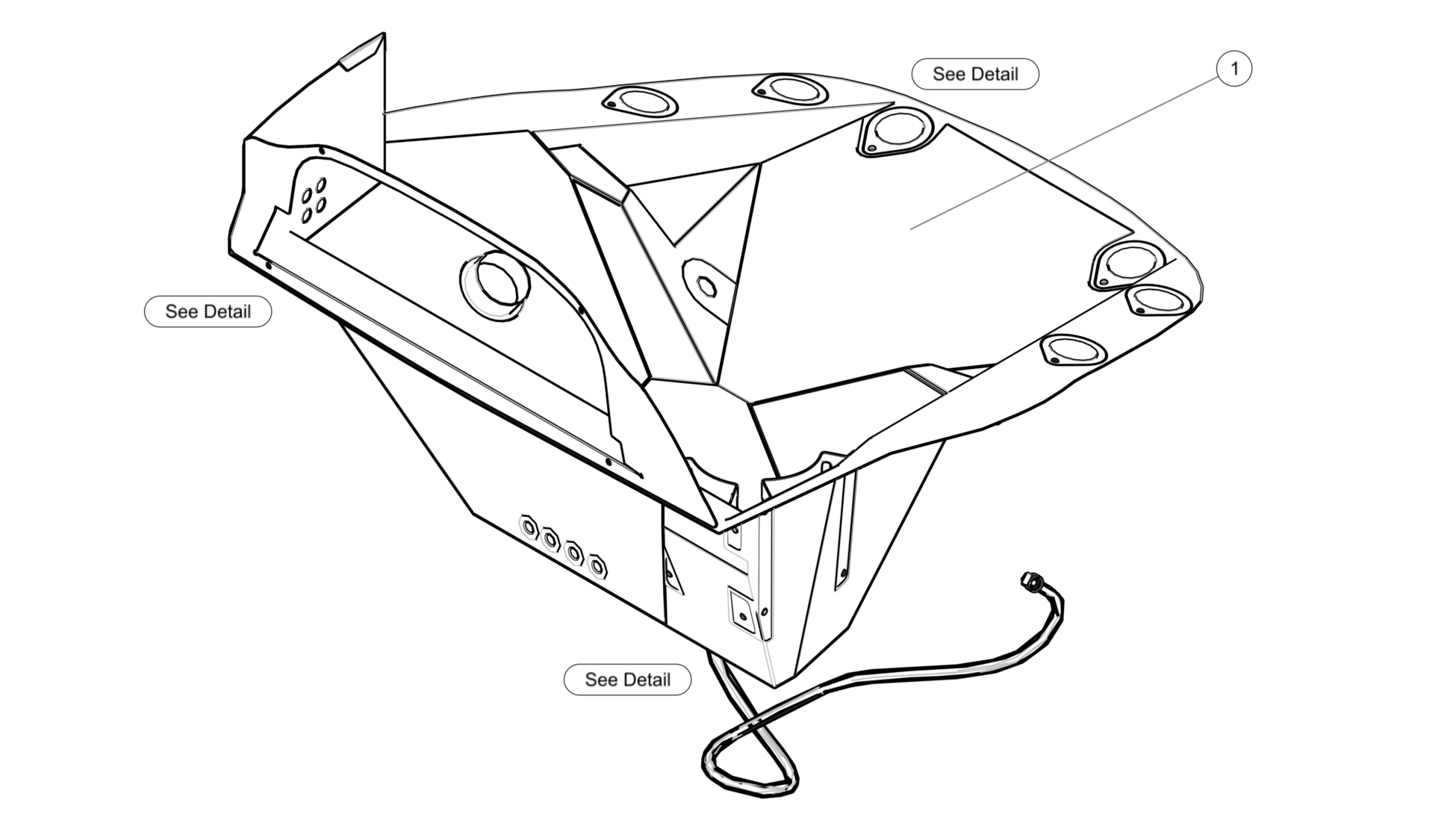

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | Contact ICON | FIREWALL ASSY, ENGINE | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | Contact ICON | FIREWALL, AIR PLENUM BOX | 1 | Each | |
2 | ICA011762 | PANEL, ACCESS, FIREWALL | 6 | Each | |
3 | Contact ICON | FIREWALL, CLOSEOUT, PARACHUTE | 1 | Each | |
4 | CR2673-4-01 | RIVET, BLIND, UNIVERSAL HEAD, .025 MIN GRIP LENGTH | 6 | Each |

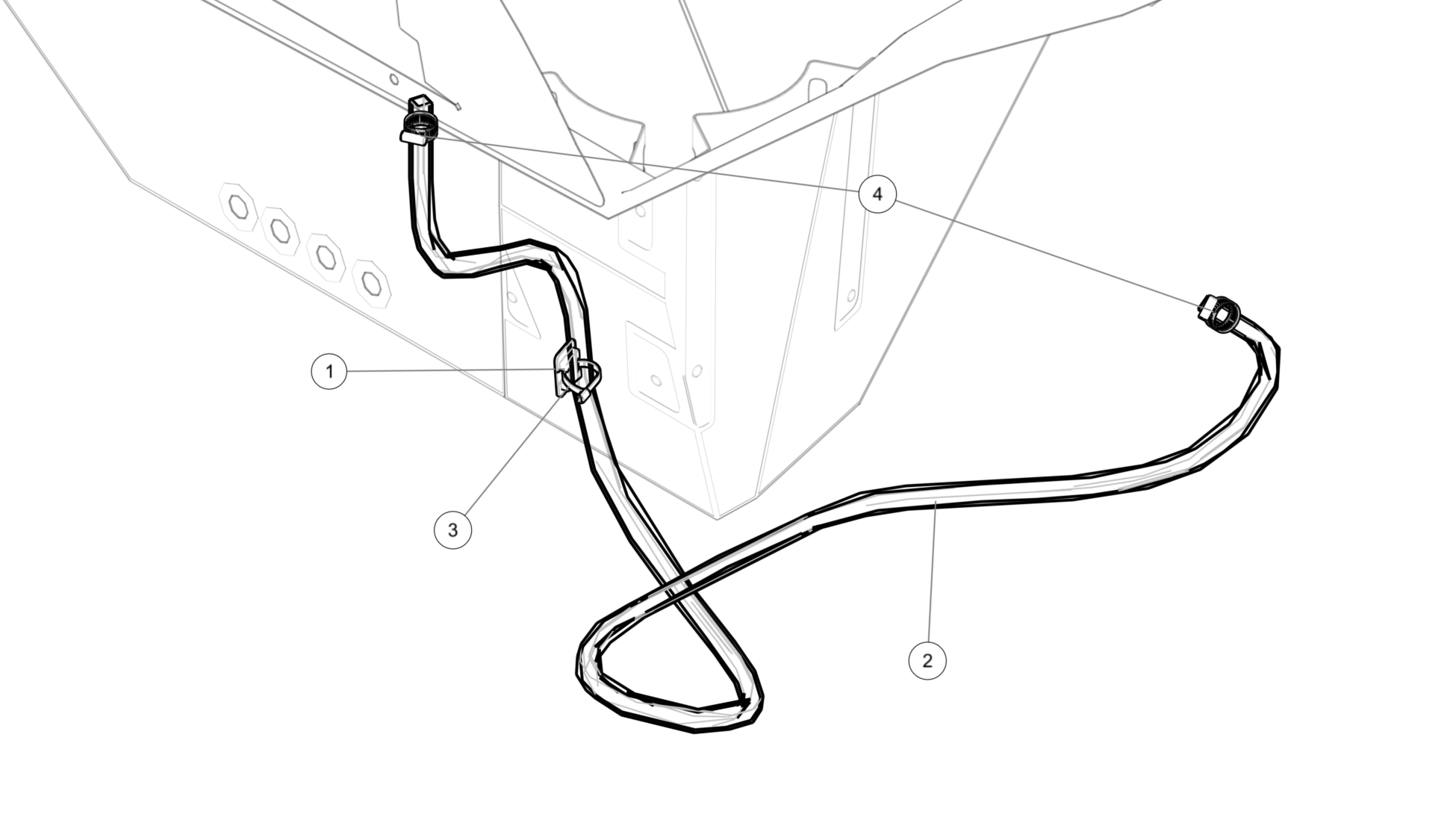

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 1 | Each | |
2 | 5552K27 | TUBING, TYGON PLASTIC, FUEL & LUBRICANT, .375X.500 | 68 | Inches | |
3 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 1 | Each | |
4 | 3804 | CLAMP, WORM DRIVE, MINI, .312X.625 | 2 | Each |
