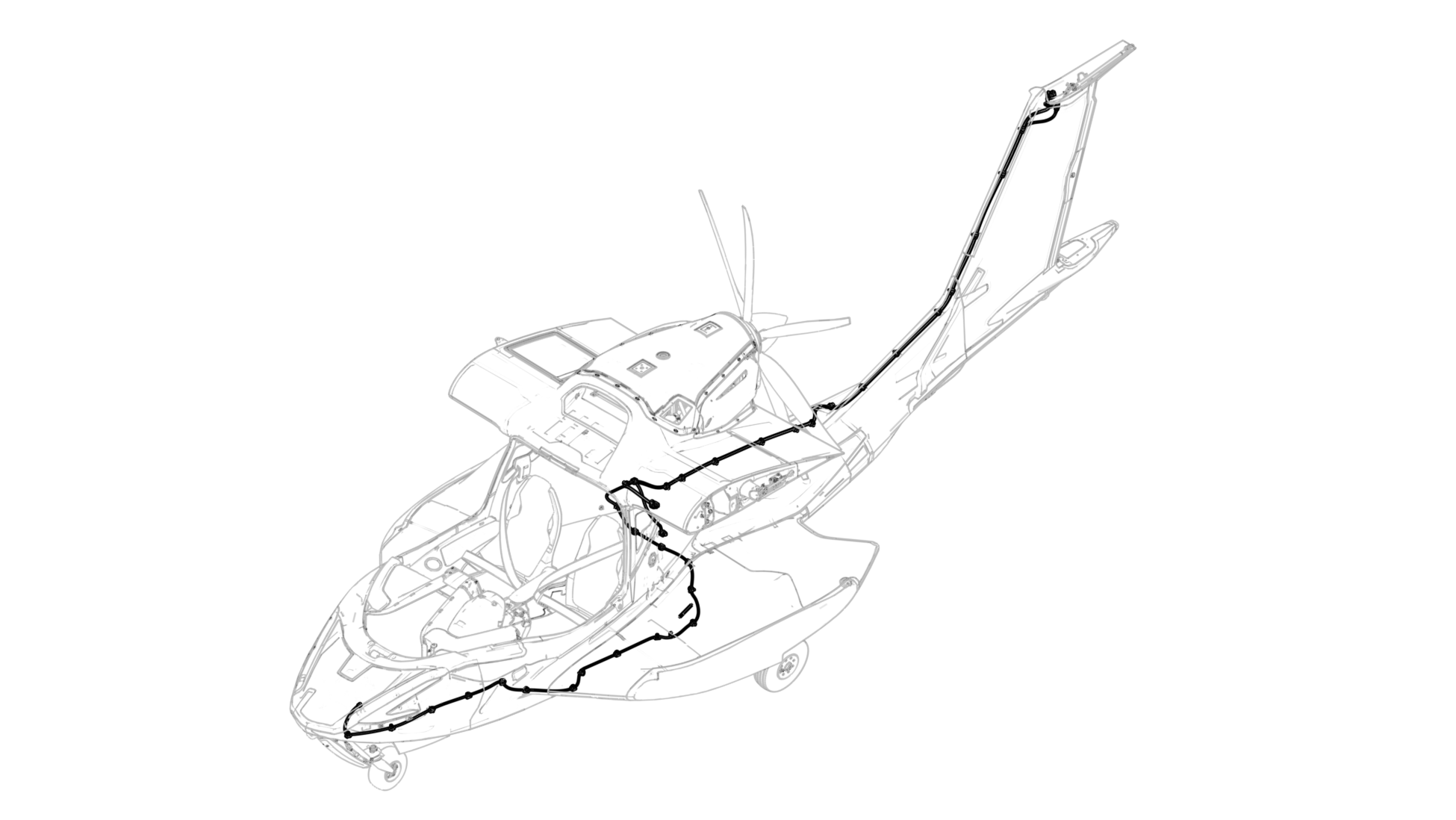

Electrical, Wire Harness, Fuselage, AFT
100912-00

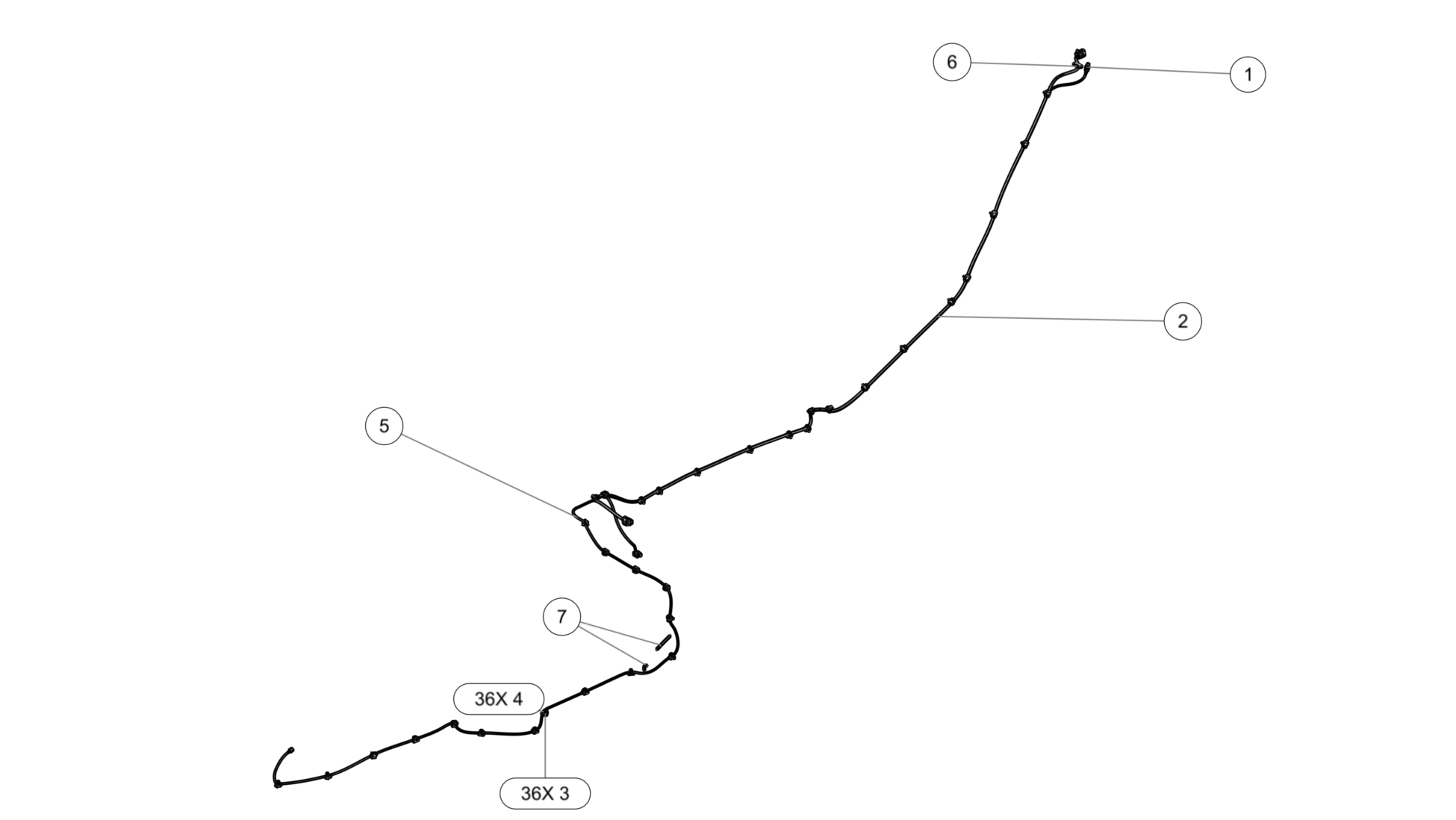

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 31-4803 | ADAPTER, BULKHEAD, BNC, ISOLATED | 1 | Each | |
2 | Contact ICON Aircraft | WIRE HARNESS, FUSELAGE, AFT | 1 | Each | |
3 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 36 | Each | |
4 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 36 | Each | |
5 | Contact ICON Aircraft | WIRE HARNESS, COAX, FUSELAGE, AFT | 1 | Each | |
6 | MS21266-2N | GROMMET, PLASTIC, EDGING, .090X.175 | 4.4 | Inches | |
7 | MS21266-3N | GROMMET, PLASTIC, EDGING, .131X.220 | 5.9 | Inches |
