Electrical, Bilge Pump
100911-00

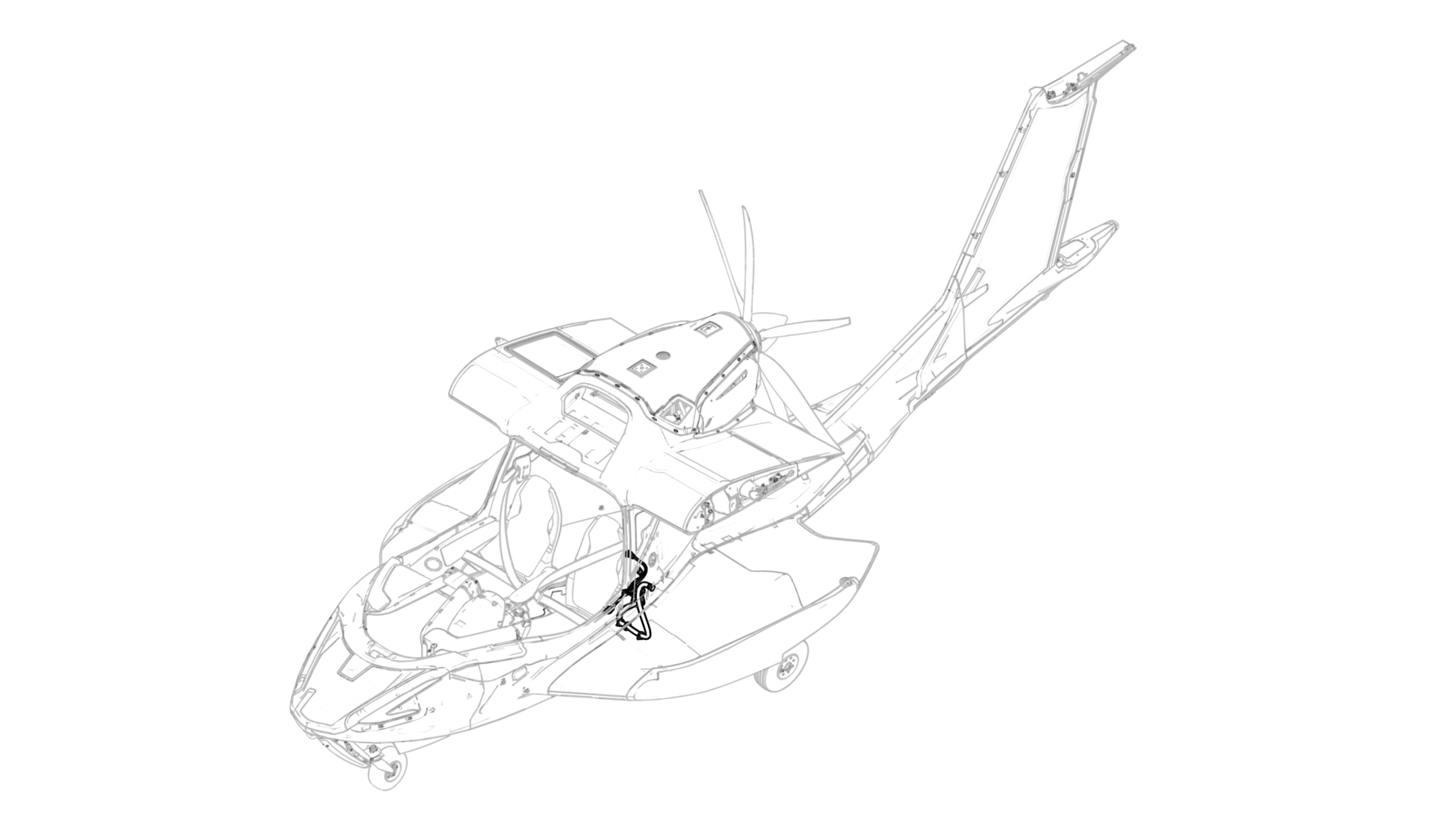

Bilge Pump electrical installation.

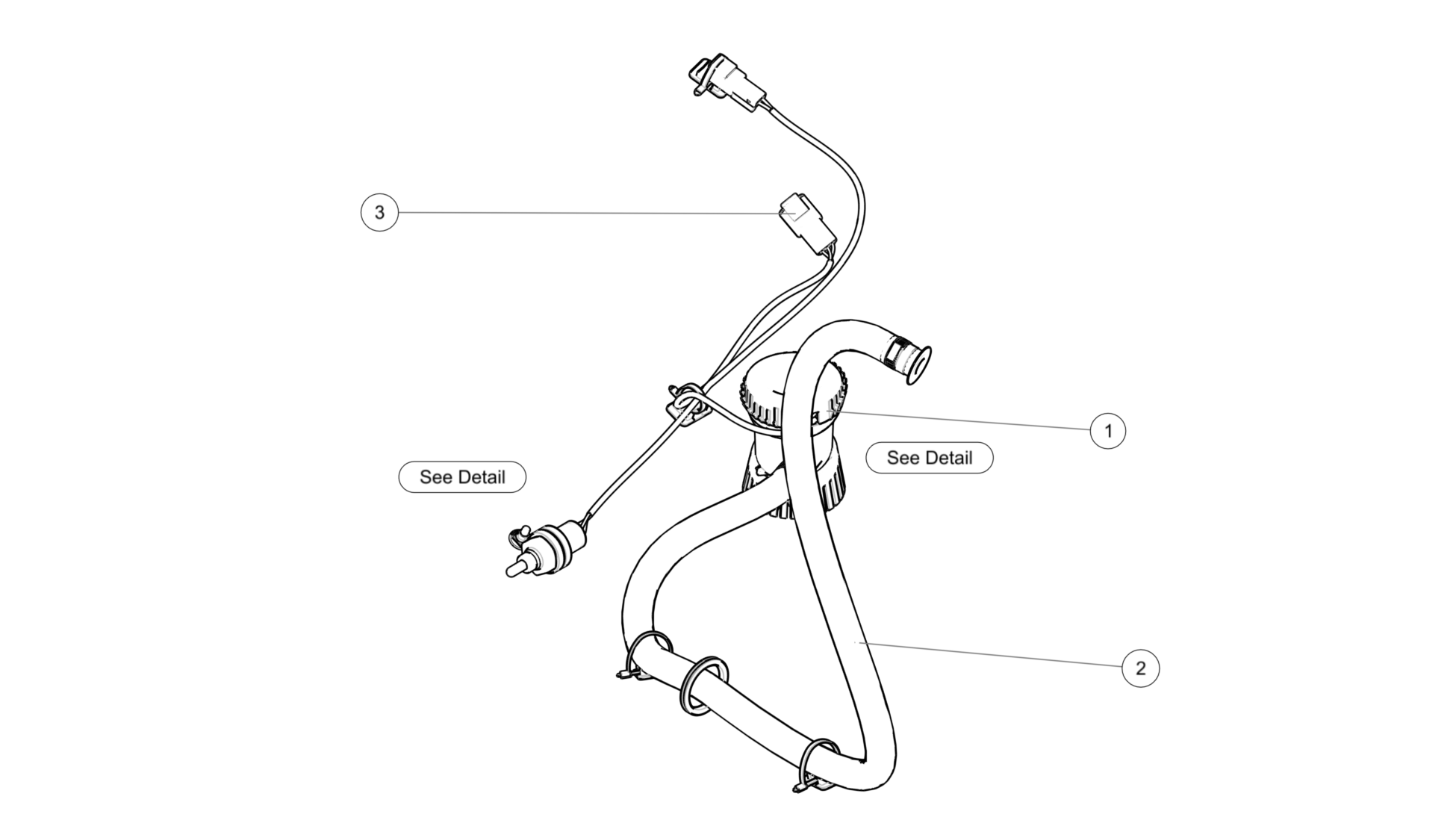

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA006181 | PUMP, BILGE, 12V | 1 | Each | |
2 | 16-120-0340W | HOSE, SHIELDS BILGEFLEX, .75, WHITE, BILGE PUMP | 1 | Each | |
3 | 250919 | SENSOR, LEVEL, CAPACITANCE | 1 | Each |

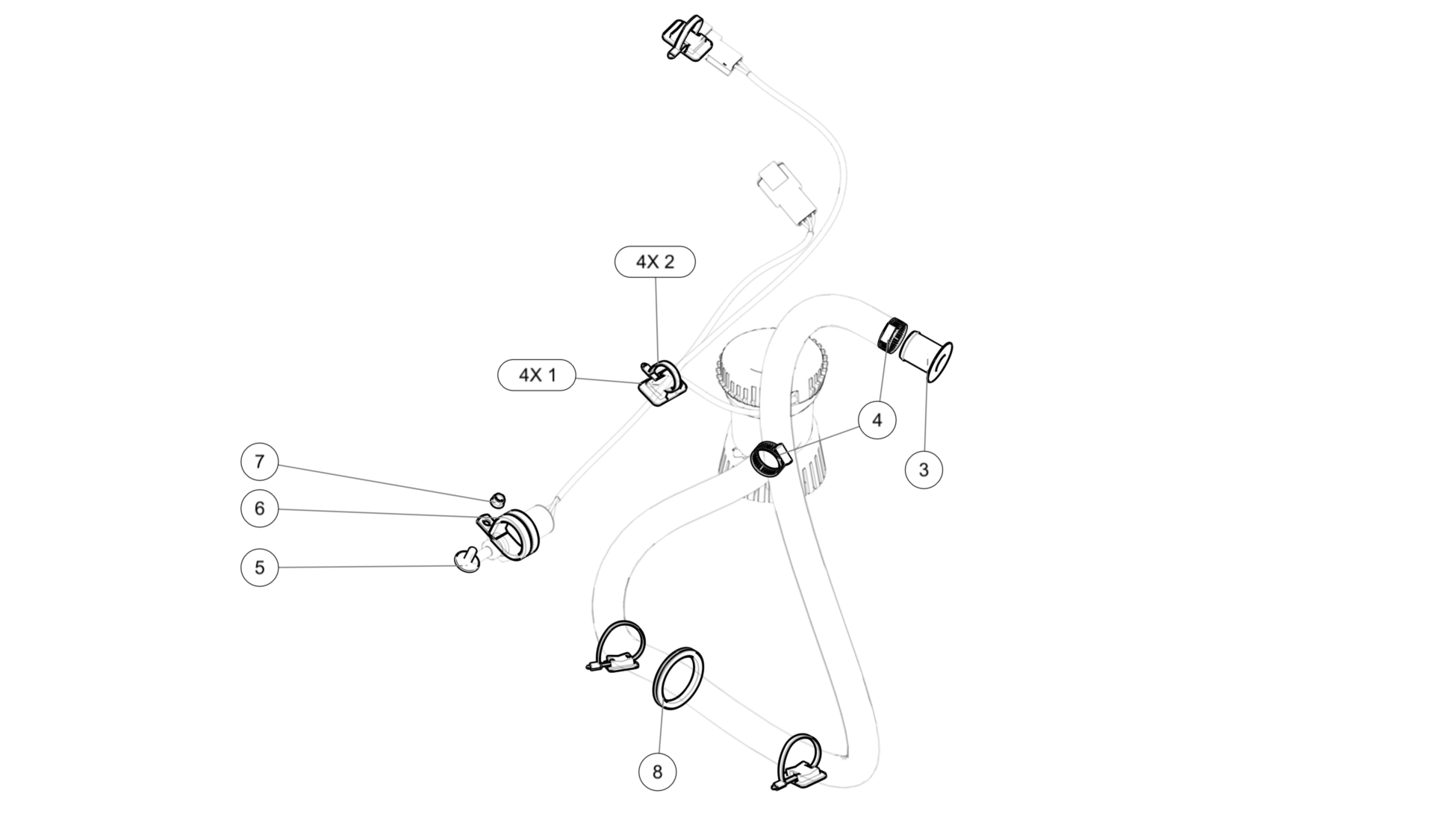

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 4 | Each | |
2 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 4 | Each | |
3 | ICA008249 | FITTING, THRU-HULL, BILGE PUMP | 1 | Each | |
4 | 3806 | CLAMP, WORM DRIVE, MINI, .312X0.781 | 2 | Each | |
5 | CB5000CRA3-8P | STUD, ADH BONDED, SMALL BASE, .190-32X.500 | 1 | Each | |
6 | MS21919WCG15 | CLAMP, LOOP TYPE, CUSH, 0.9375, CRES | 1 | Each | |
7 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 1 | Each | |
8 | MS21266-1N | GROMMET, PLASTIC, EDGING, .056X.100 | 1 | Each |
