Instruments, Ground Plane, COMM Antenna
100896-00

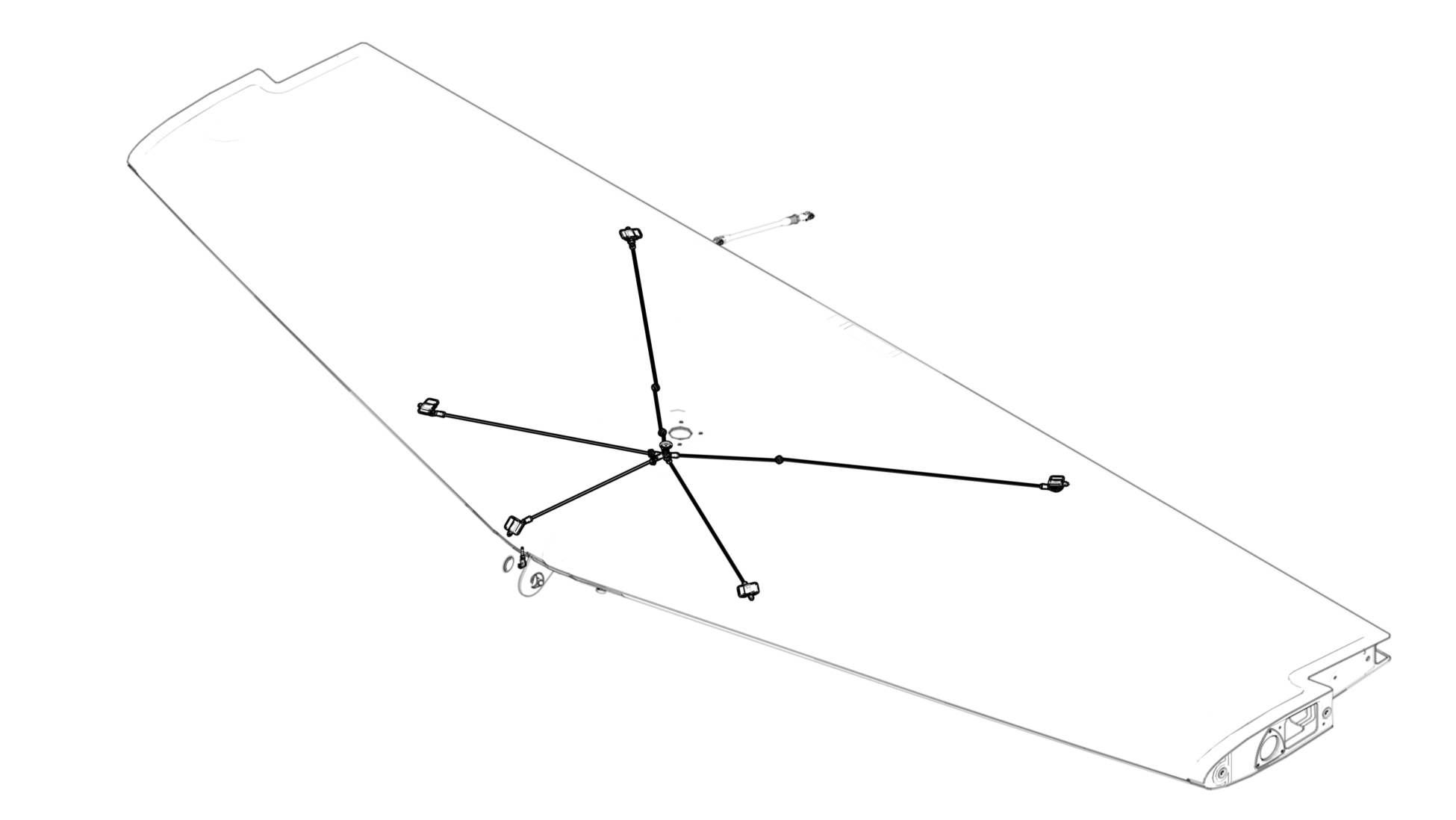

Ground plane installation.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011960 | WIRE ASSY, 18 AWG, 23.1 IN, GROUND PLANE | 1 | Each | |
2 | ICA011957 | WIRE ASSY, 18 AWG, 14 IN, GROUND PLANE | 1 | Each | |
3 | ICA011956 | WIRE ASSY, 18 AWG, 10.1 IN, GROUND PLANE | 1 | Each | |
4 | ICA011958 | WIRE ASSY, 18 AWG, 14.6 IN, GROUND PLANE | 1 | Each | |
5 | ICA011959 | WIRE ASSY, 18 AWG, 23.1 IN, GROUND PLANE | 1 | Each | |
6 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP .5 DIA | 5 | Each | |
7 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 5 | Each | |
8 | PN18-8R | TERMINAL, RING, RED, 18-22X#8, PANDUIT | 4 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | MS35489-1 | GROMMET, SYNTH RBR, .125X.250X.344X.062 | 5 | Each | |
2 | ICA011955 | STANDOFF, THREADED, 18-8 SST, 8-32X.25X.50 | 1 | Each | |
3 | CB5000CRA08-16P | STUD, ADH BONDED, SMALL BASE, .164-32X1.000 | 1 | Each | |
4 | MS21043-08 | NUT, SLFLKG, RDC HEX, CRES, 8-32 | 1 | Each |
