IPS, Harness/Riser Installation
100806-00

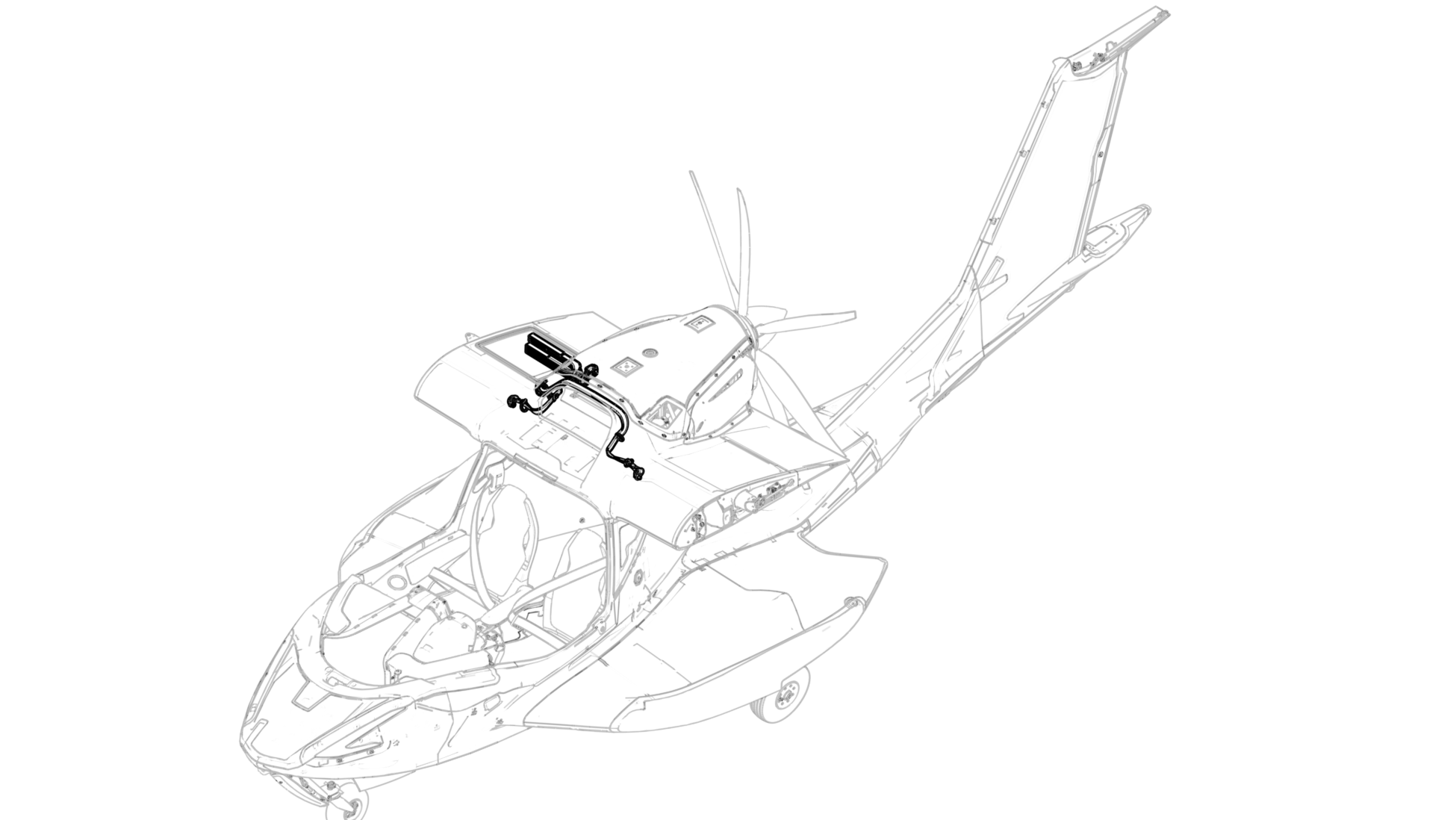

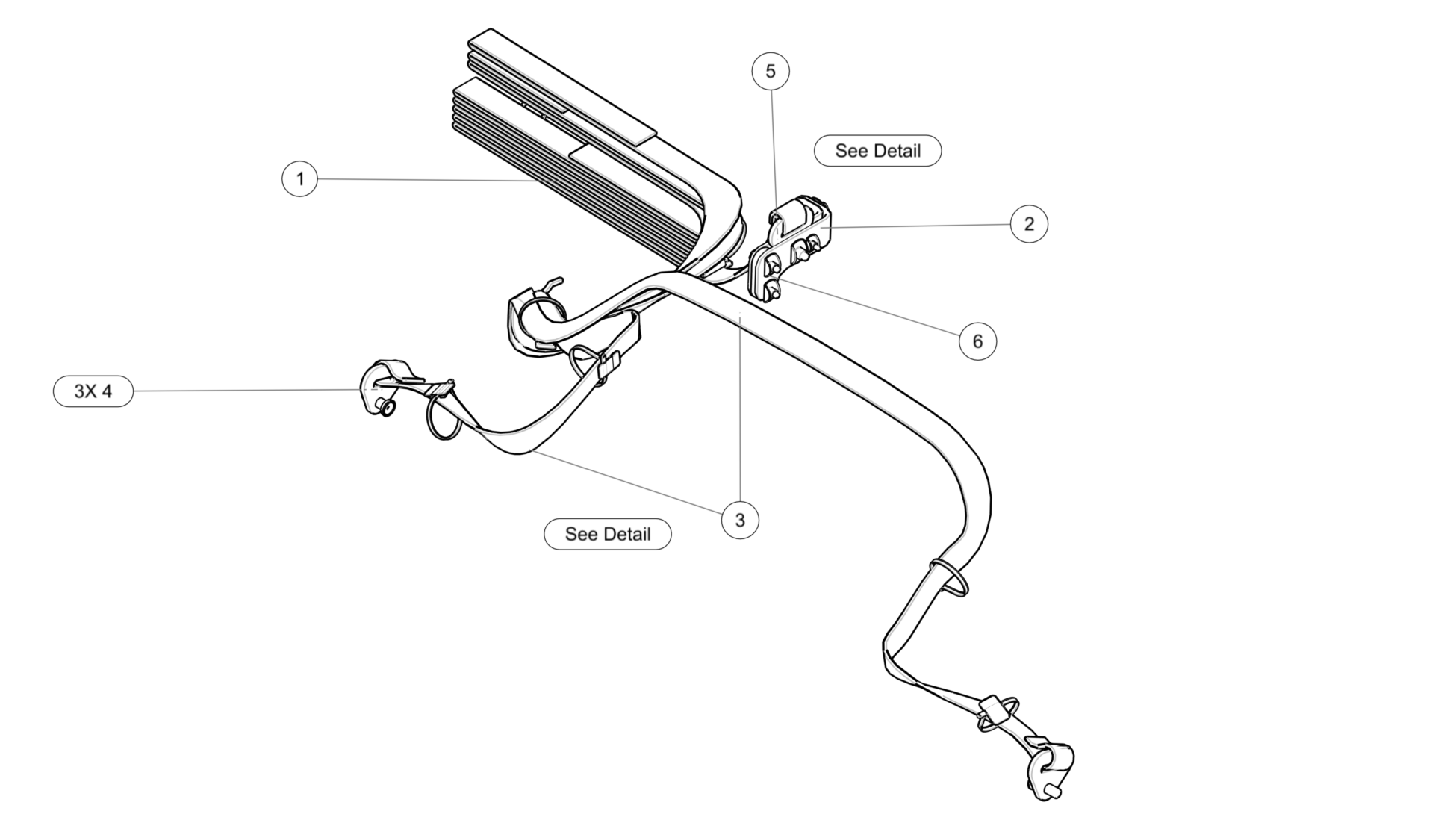

Harness/Riser installation of the ICON Parachute System (IPS).
Note:
Contact ICON for assistance with IPS Harness/Riser Parts.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | Contact ICON | BRIDLE, KEVLAR, A175.5/153.5C | 1 | Each | |
2 | Contact ICON | ANGLE, HARNESS ATTACH, AFT-INBD | 1 | Each | |
3 | Contact ICON | BRIDLE, KEVLAR, A170/148C | 2 | Each | |
4 | Contact ICON | TANG, BRIDLE, A5 | 3 | Each | |
5 | Contact ICON | ANGLE, HARNESS ATTACH, AFT-OUTBD | 1 | Each | |
6 | Contact ICON | DOUBLER, AFT HARNESS MOUNT | 1 | Each |

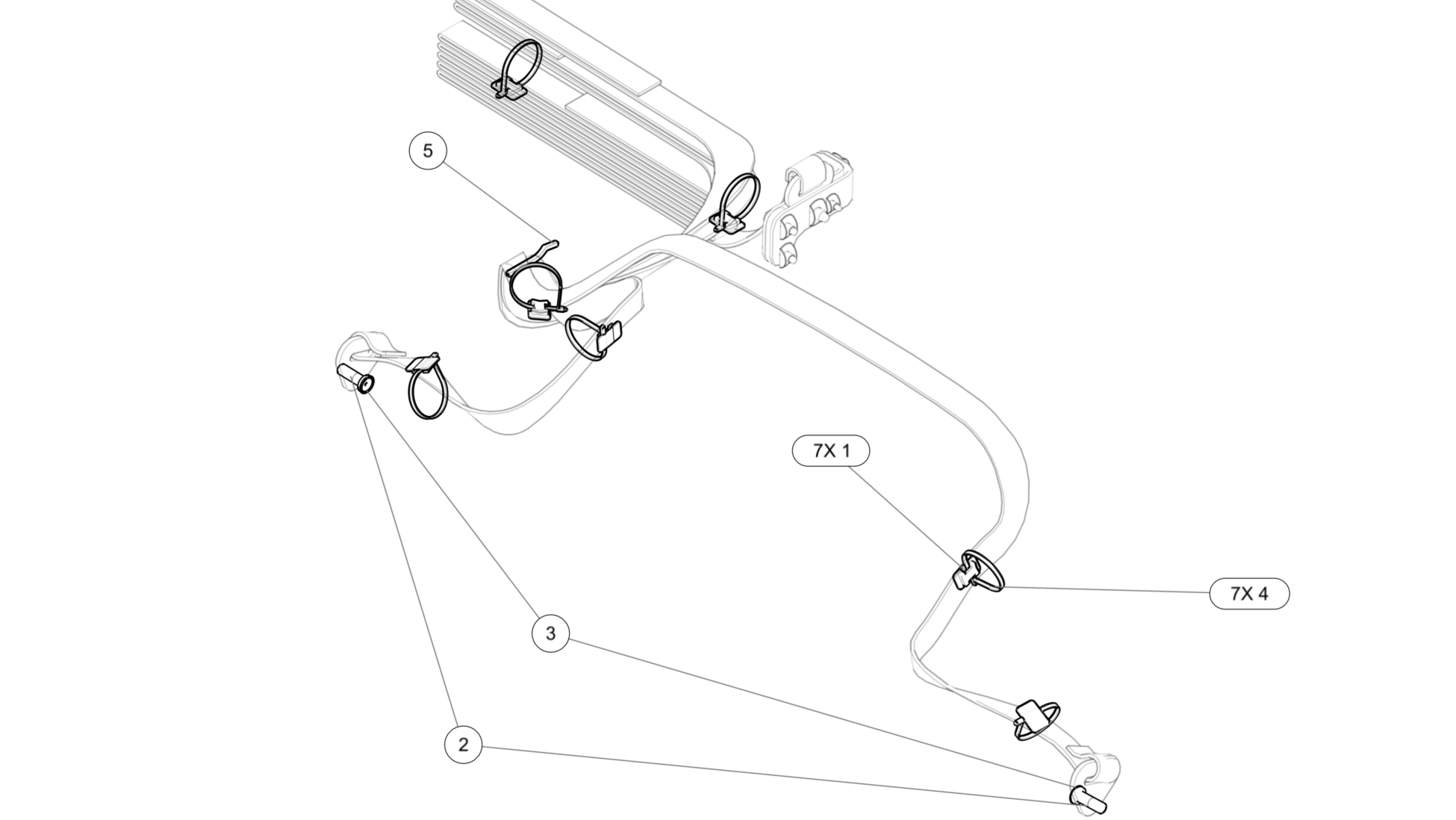

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | Contact ICON | MOUNT, CABLE TIE ANCHOR | 7 | Each | |
2 | Contact ICON | PIN, TIE OFF, IPS | 2 | Each | |
3 | Contact ICON | RETAINING RING, INTERNAL, LIGHT DUTY, 316SS, .656X.0118 | 2 | Each | |
4 | Contact ICON | 004000-01.prt | 7 | Each | |
5 | Contact ICON | GROMMET, PLASTIC, EDGING, .056X.100 | 2.5 | Inches |

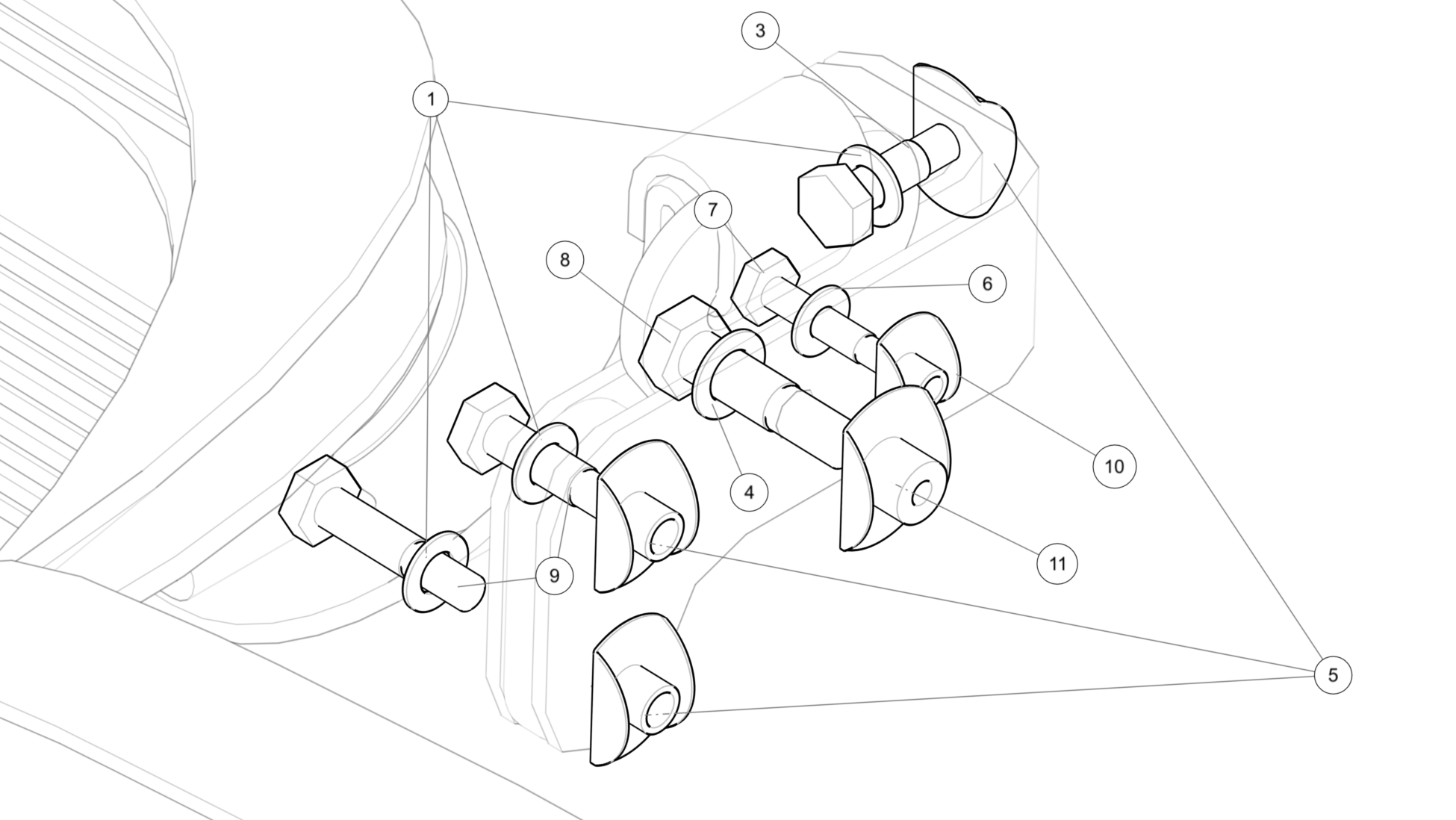

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
Contact ICON | WASHER, FLAT, CRES, .250X.032, PSVT | 3 | Each | ||
3 | Contact ICON | BOLT, MACH, CRES, .250-28X.563 | 1 | Each | |
4 | Contact ICON | WASHER, FLAT, CRES, .312X.032, PSVT | 1 | Each | |
5 | Contact ICON | NUT PLATE, TWO LUG, ADH BND, .250-28 | 3 | Each | |
6 | Contact ICON | WASHER, FLAT, CRES, .203X.032, PSVT | 1 | Each | |
7 | Contact ICON | BOLT, MACH, CRES, 10-32X.750 | 1 | Each | |
8 | Contact ICON | BOLT, MACH, CRES, .312-24X.688 | 1 | Each | |
9 | Contact ICON | BOLT, MACH, CRES, .250-28X.688 | 2 | Each | |
10 | Contact ICON | NUT PLATE, TWO LUG, ADH BND, .190-32 | 1 | Each | |
11 | Contact ICON | NUT PLATE, TWO LUG, ADH BND, .312-24 | 1 | Each |
