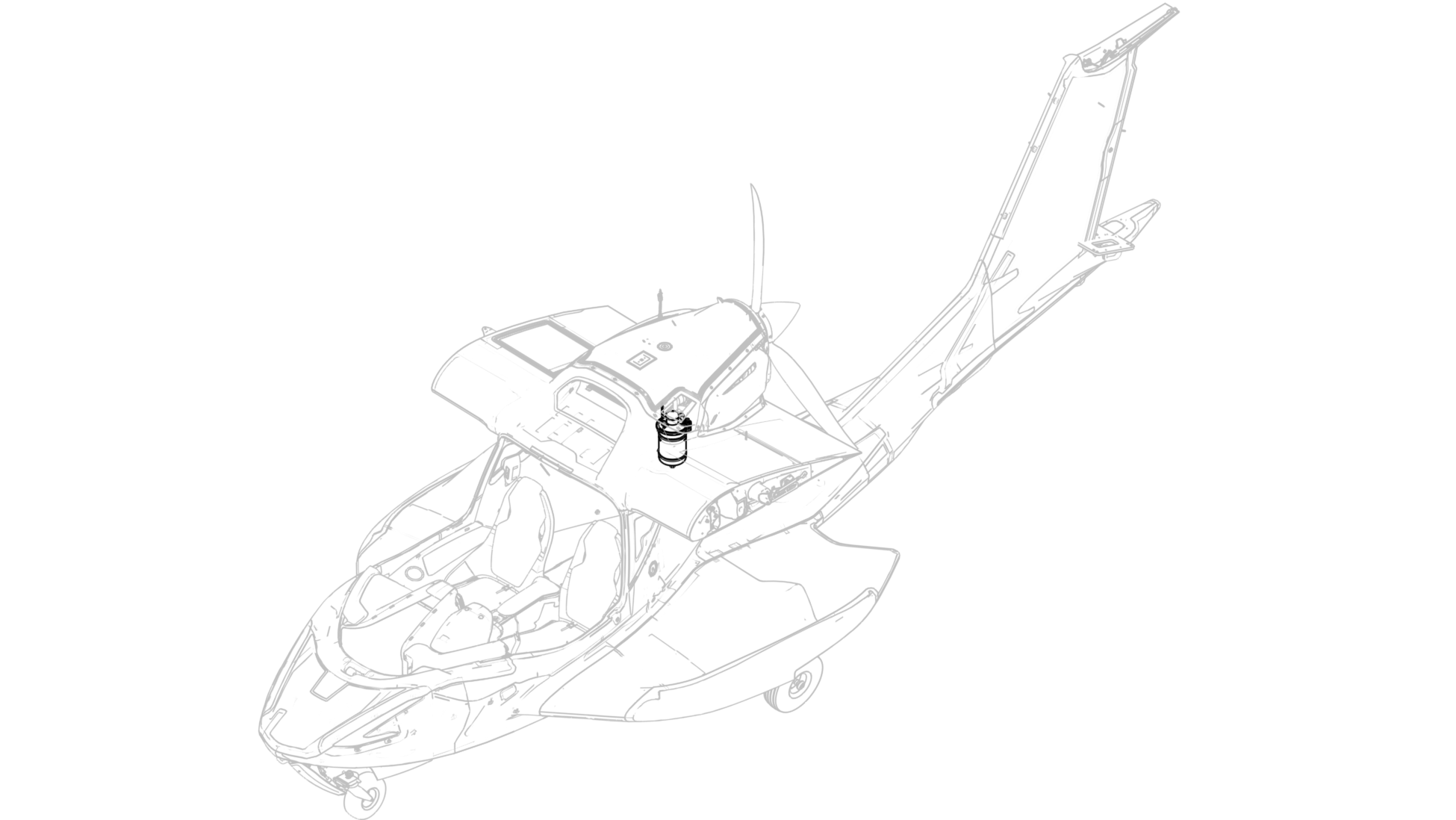

Engine, Lubrication Installation
100860-00

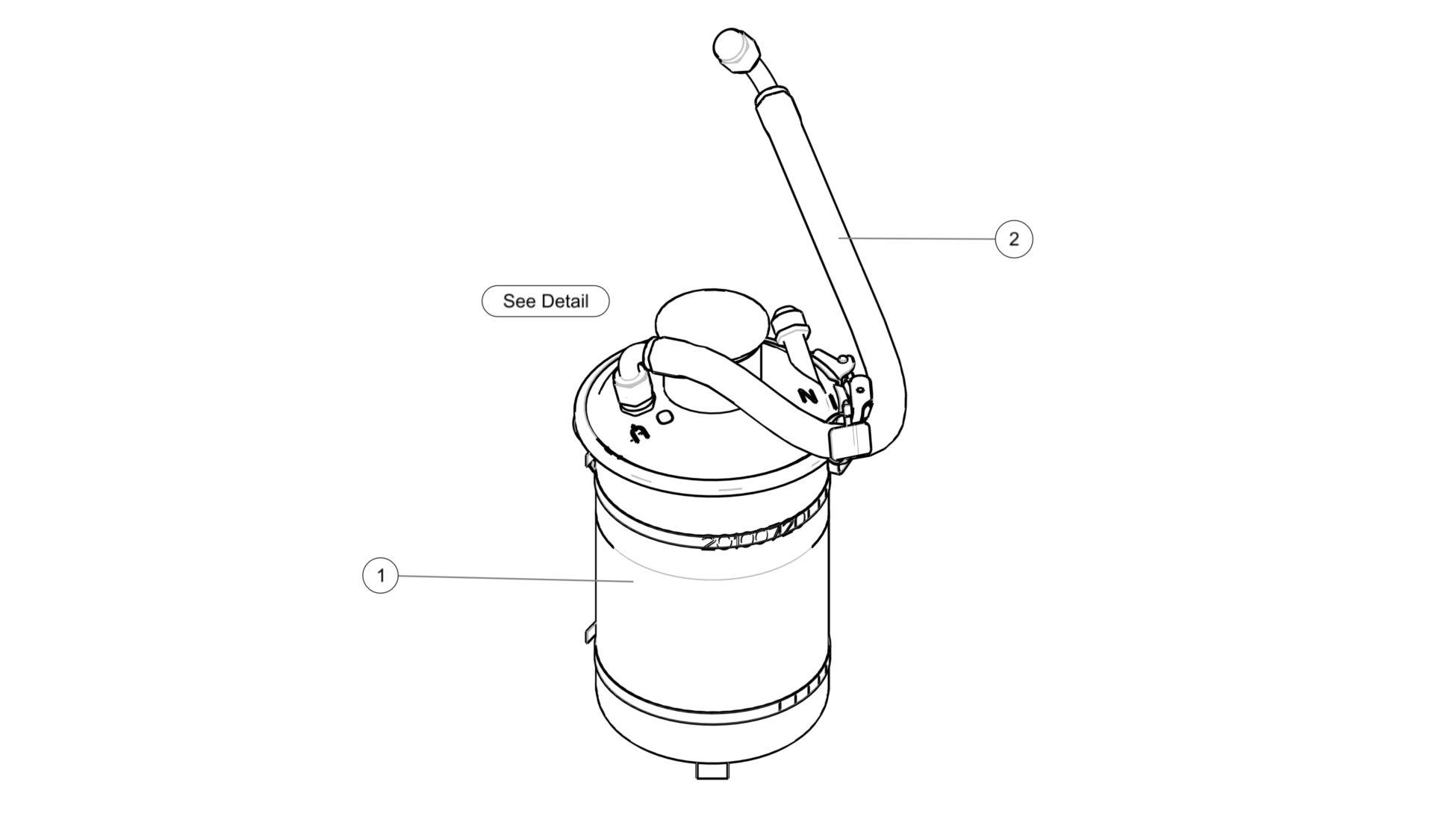

Lubrication installation.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA012139 | TANK, OIL, ROTAX 912iS | 1 | Each | |
2 | ICA013170 | HOSE ASSY, OIL, 90-90, AN-8X19.875INCH | 1 | Each | Includes 2x FBM1033 Fittings |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA013589 | OIL VALVE, CURTIS | 1 | Each | |
2 | 5552K27 | TUBING, TYGON PLASTIC, FUEL & LUBRICANT, .375X.500,1,Each | 1 | Each | |
3 | J1508F-88 | CLAMP, WORM DRIVE, .50X5.50 | 2 | Each | |
4 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 2 | Each | |
5 | 3804 | CLAMP, WORM DRIVE, MINI, .312X.625 | 1 | Each | |
6 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 1 | Each |
