Engine, Propeller, Three Blade
100859-00

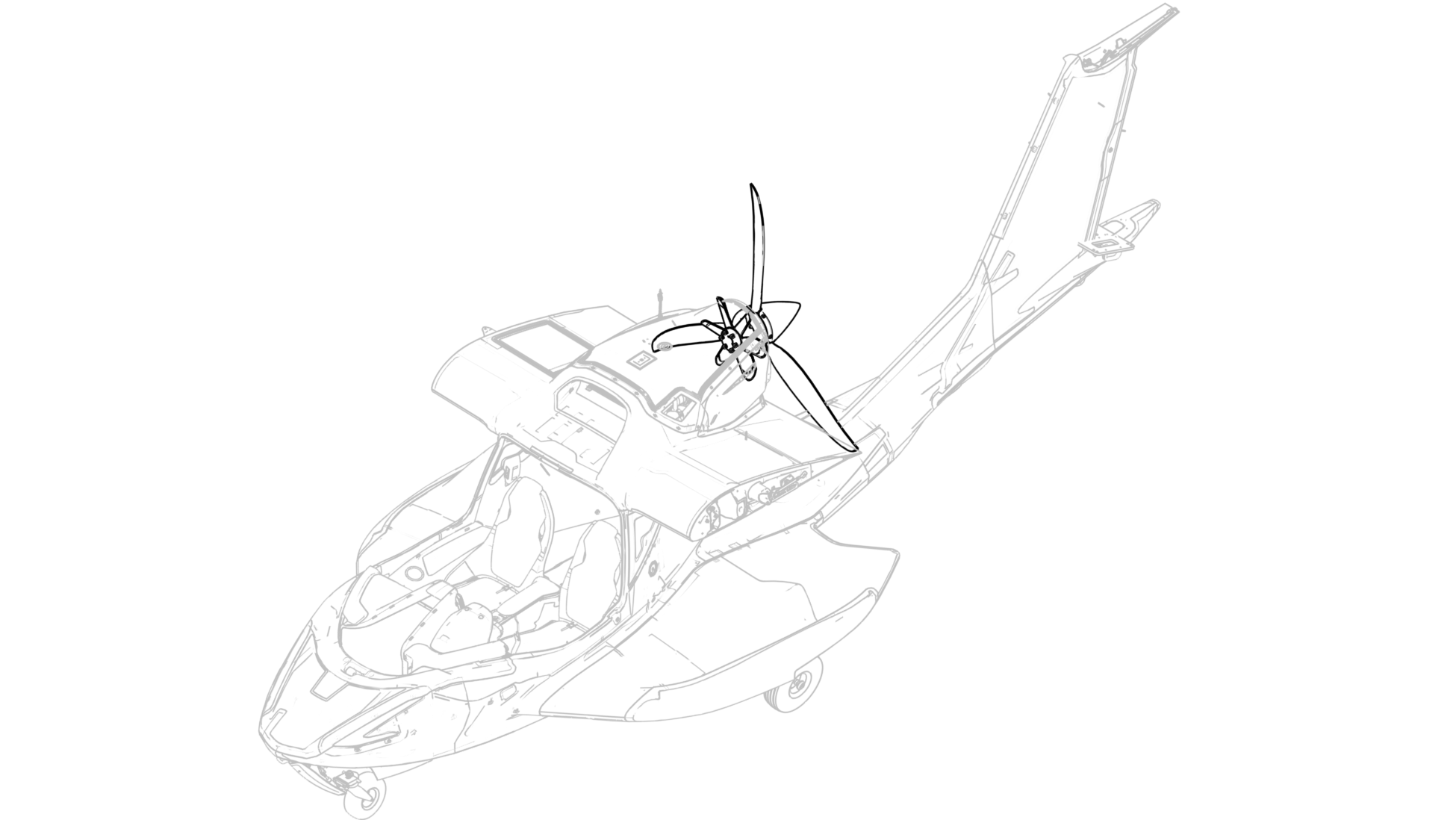

The three blade propeller installation onto the engine.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

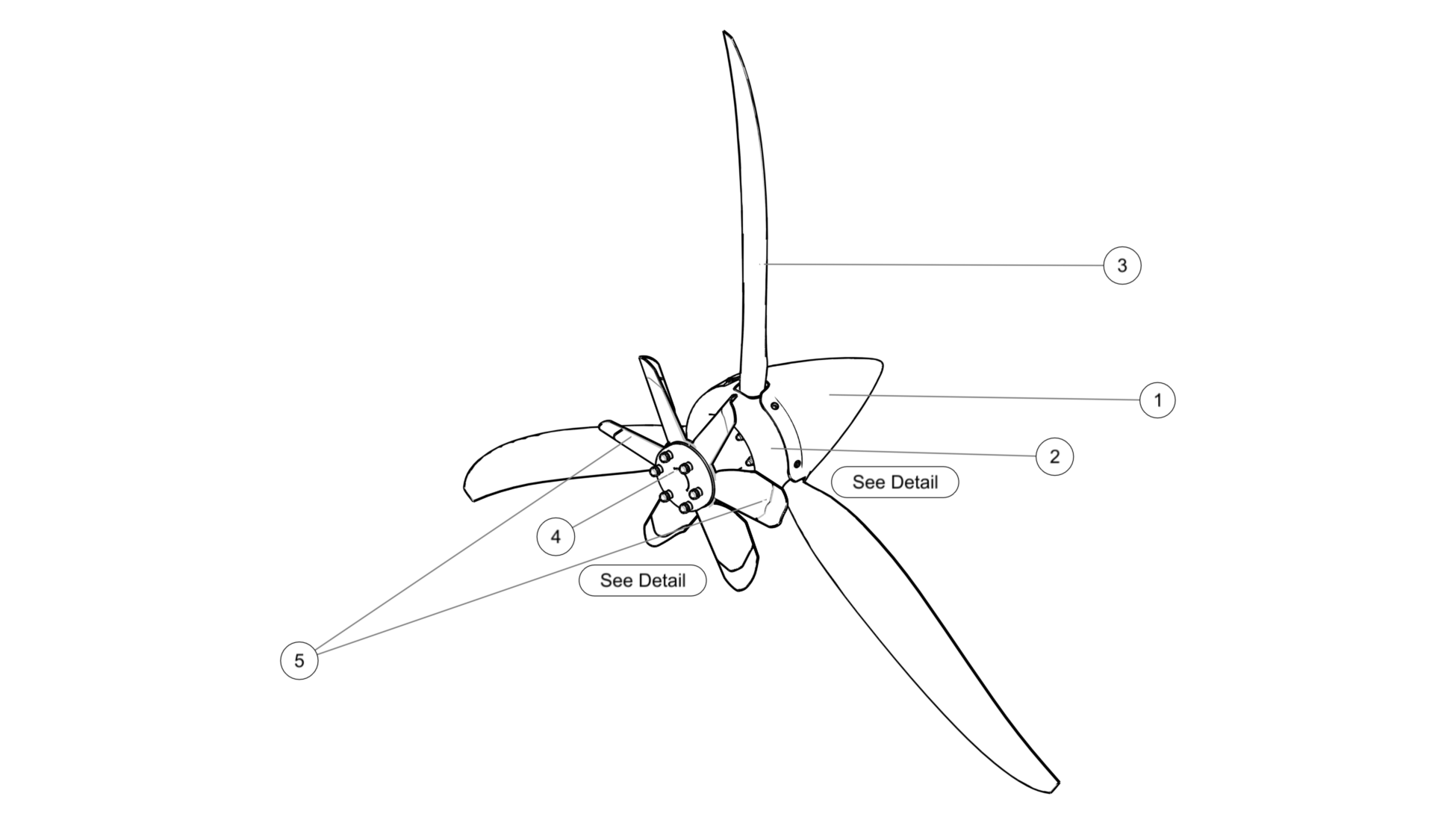

1 | ME000538 | PAINTED, DOME SPINNER | 1 | Each | |
2 | ME000832 | PAINTED, SPINNER BULKHEAD | 1 | Each | |
3 | ICA015027 | PROPELLER, 3 BLADE, SQUARE TIP | 1 | Each | |
4 | 6-IN-ROTAX | EXTENSION, PROPELLER, 6.00 | 1 | Each | |
5 | ICA005858 | FAN, COOLING, ENGINE, HALF, 15.5 DIA | 2 | Each | Alternate Part Number: ME001139 (FAN, COOLING, ENGINE, HALF, 15.5 DIA) |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | NAS1149C0563R | WASHER, FLAT, CRES, .312X.063, PSVT | 6 | Each | |

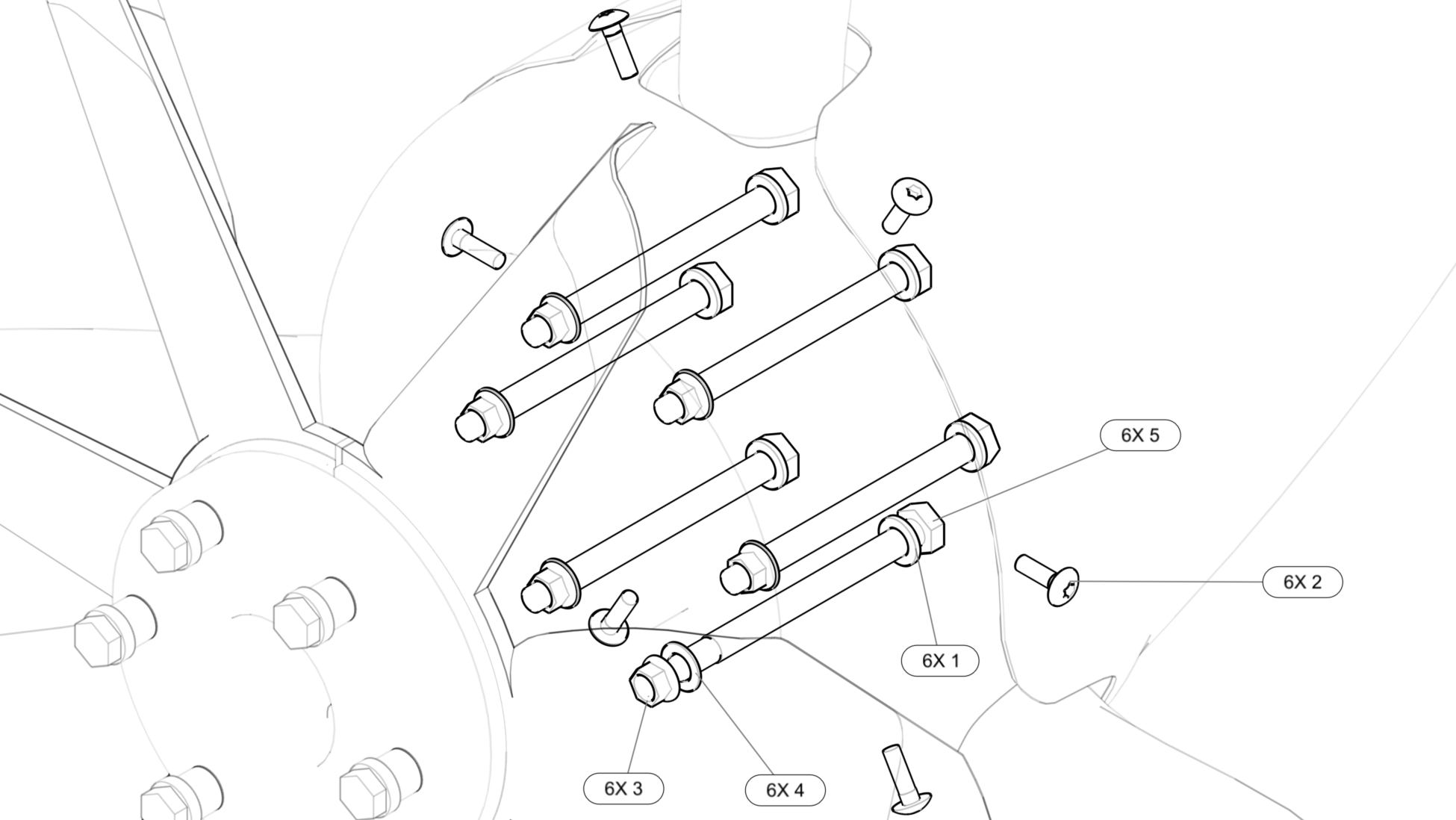

2 | 10F62MTT3/50TL | SCREW, MACH TRH, 6LOBE, CRES, 10-32X.625X.50 | 6 | Each | Grip length and/or washer stackup may vary. See Maintenance Manual task 100055 – Balance Propeller. |
3 | MS21043-5 | NUT, SLFLKG, RDC HEX, CRES, .312-24 | 6 | Each | |
4 | NAS1149C0532R | WASHER, FLAT, CRES, .312X.032, PSVT | 6 | Each | |
5 | AN5C34A | BOLT, MACH, CRES, .312-24X3.06 | 6 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

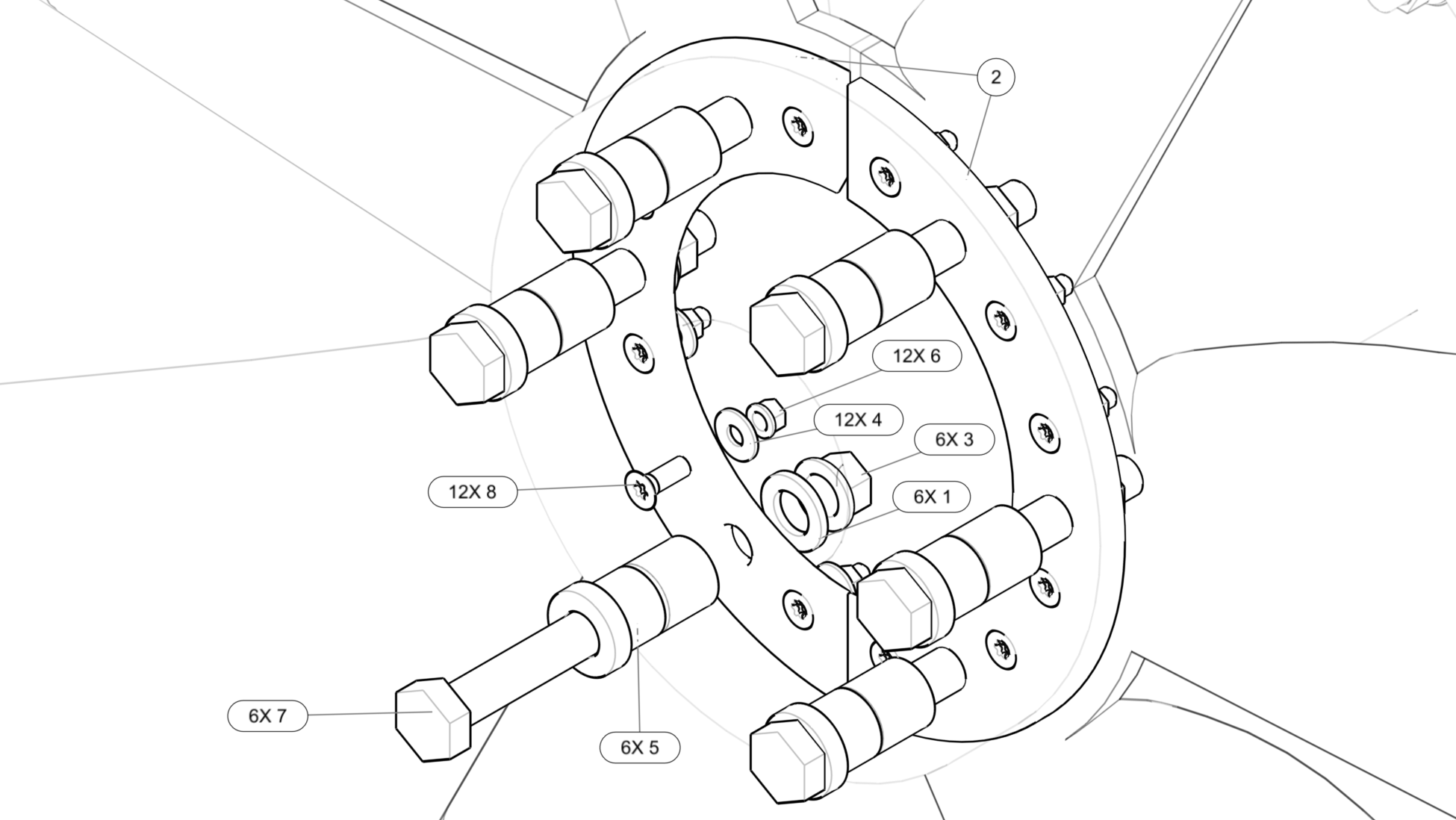

1 | NAS1149C0563R | WASHER, FLAT, CRES, .312X.063, PSVT | 6 | Each | |
2 | ICA011499 | BACKING PLATE, ENGINE COOLING FAN | 2 | Each | |
3 | MS21043-5 | NUT, SLFLKG, RDC HEX, CRES, .312-24 | 6 | Each | |
4 | NAS1149CN632R | WASHER, FLAT, CRES, #6X.032, PSVT | 12 | Each | |
5 | ICA012162 | BUSHING, PROP FLANGE, ROTAX | 6 | Each | |
6 | MS21043-06 | NUT, SLFLKG, RDC HEX, CRES, 6-32 | 12 | Each | |
7 | AN5C20A | BOLT, MACH, CRES, .312-24X1.563 | 6 | Each | |
8 | 6C62MTF3-100 | SCREW, MACH FLH, 6LOBE, CRES, 6-32X.625 | 12 | Each |
