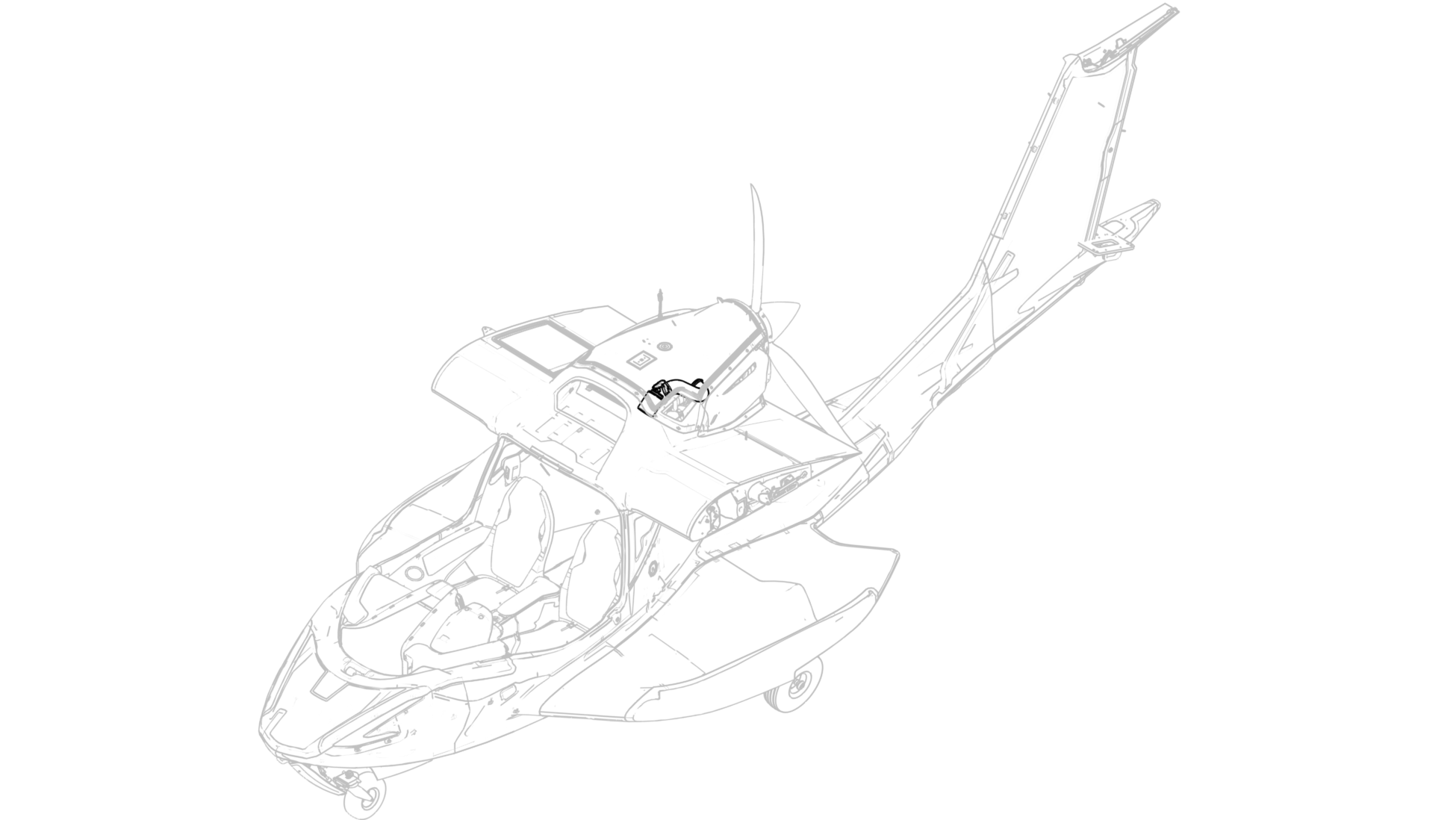

Engine, Induction Air Installation
100858-00

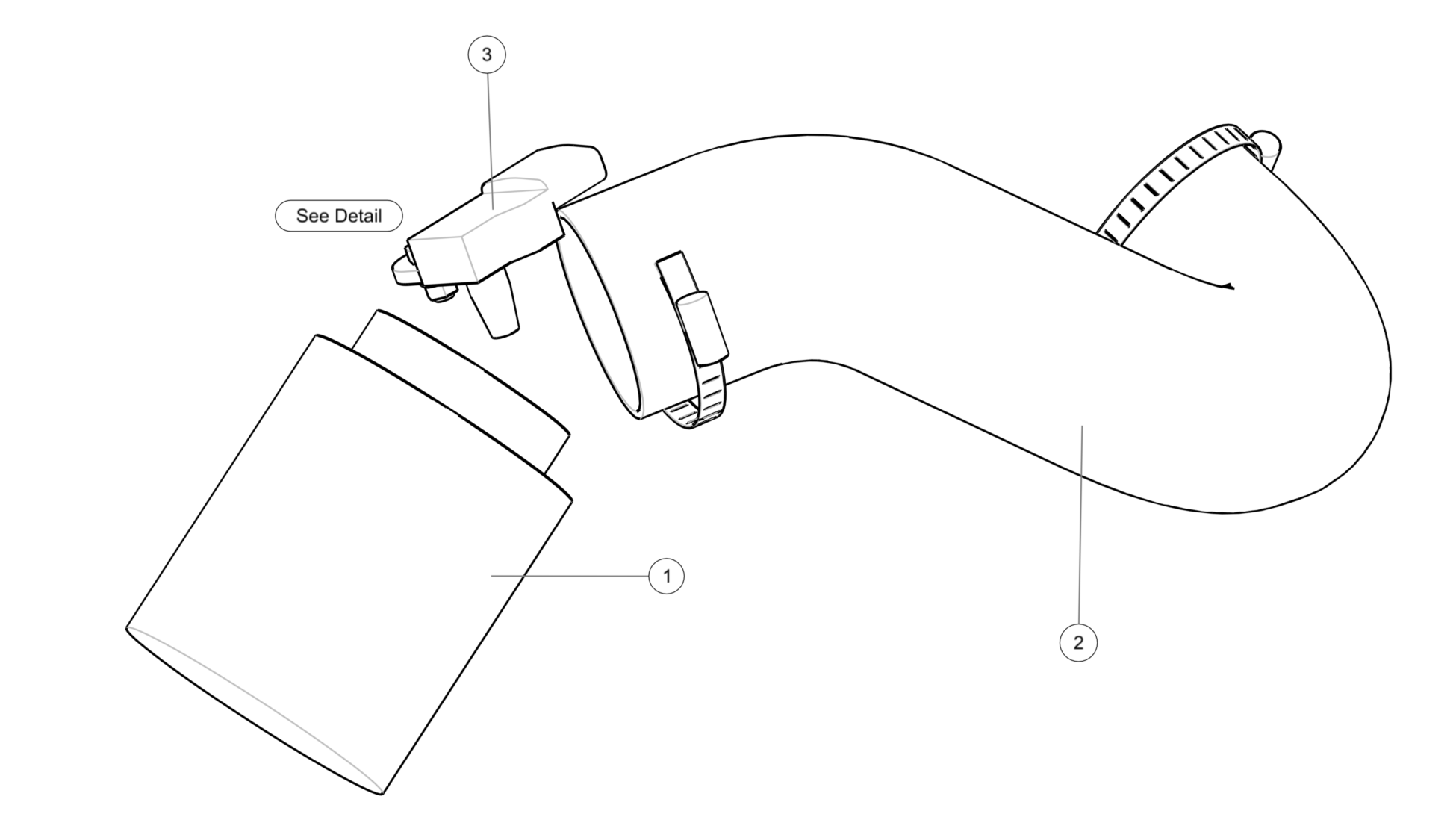

Induction air installation.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | RU-0800 | FILTER, AIR, CYLINDER, ROTAX 912iS | 1 | Each | Includes 50-70_9-W5 (CLAMP, WORM DRIVE, .35X2-2.75, NORMA TORRO) |
2 | ICA011517 | DUCT, INDUCTION AIR | 1 | Each | |
3 | ICA012146 | SENSOR, AAPTS | 1 | Each |

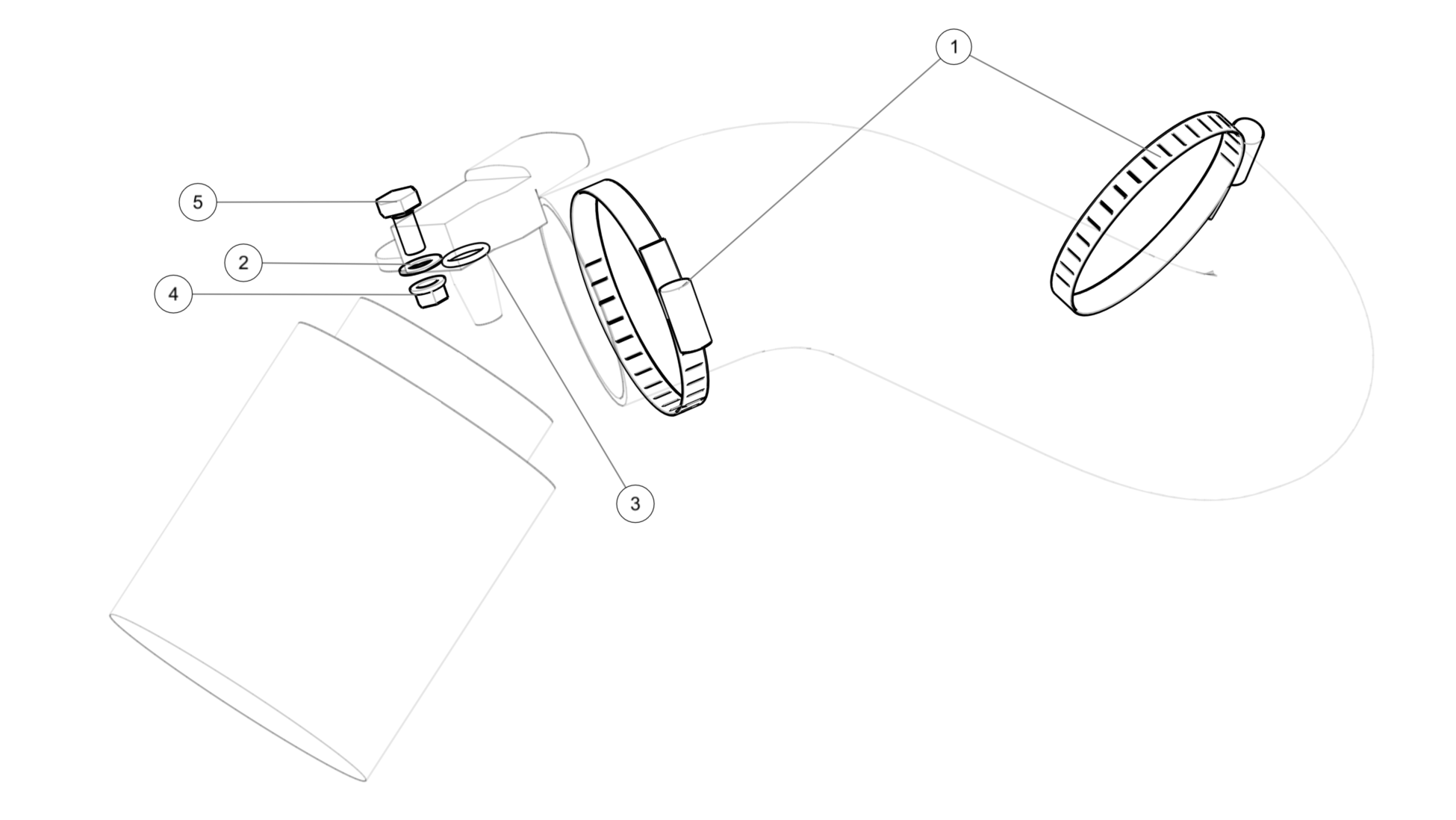

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 50-70/9-W5 | CLAMP, WORM DRIVE, .35X2-2.75, NORMA TORRO | 2 | Each | |
2 | NAS1149C0432R | WASHER, FLAT, CRES, .250X.032, PSVT | 1 | Each | |
3 | AS3209-013 | O-RING, FKM (VITON), .426X.070 | 1 | Each | |
4 | MS21043-4 | NUT, SLFLKG, RDC HEX, CRES, .250-28 | 1 | Each | |
5 | AN4C4A | BOLT, MACH, CRES, .250-28X.063 | 1 | Each |
