Landing Gear, Brake, Hydraulic Line
100853-00

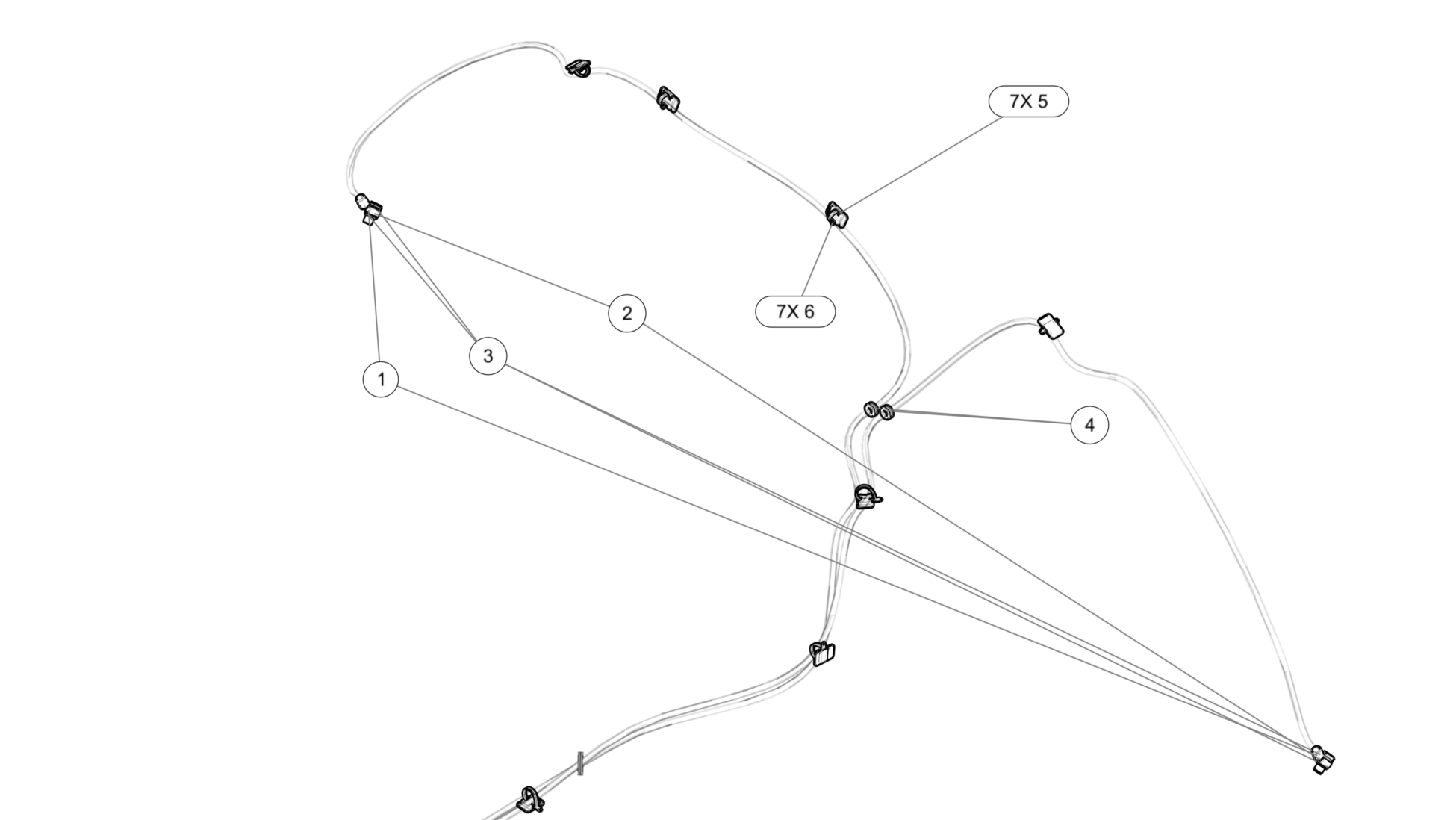

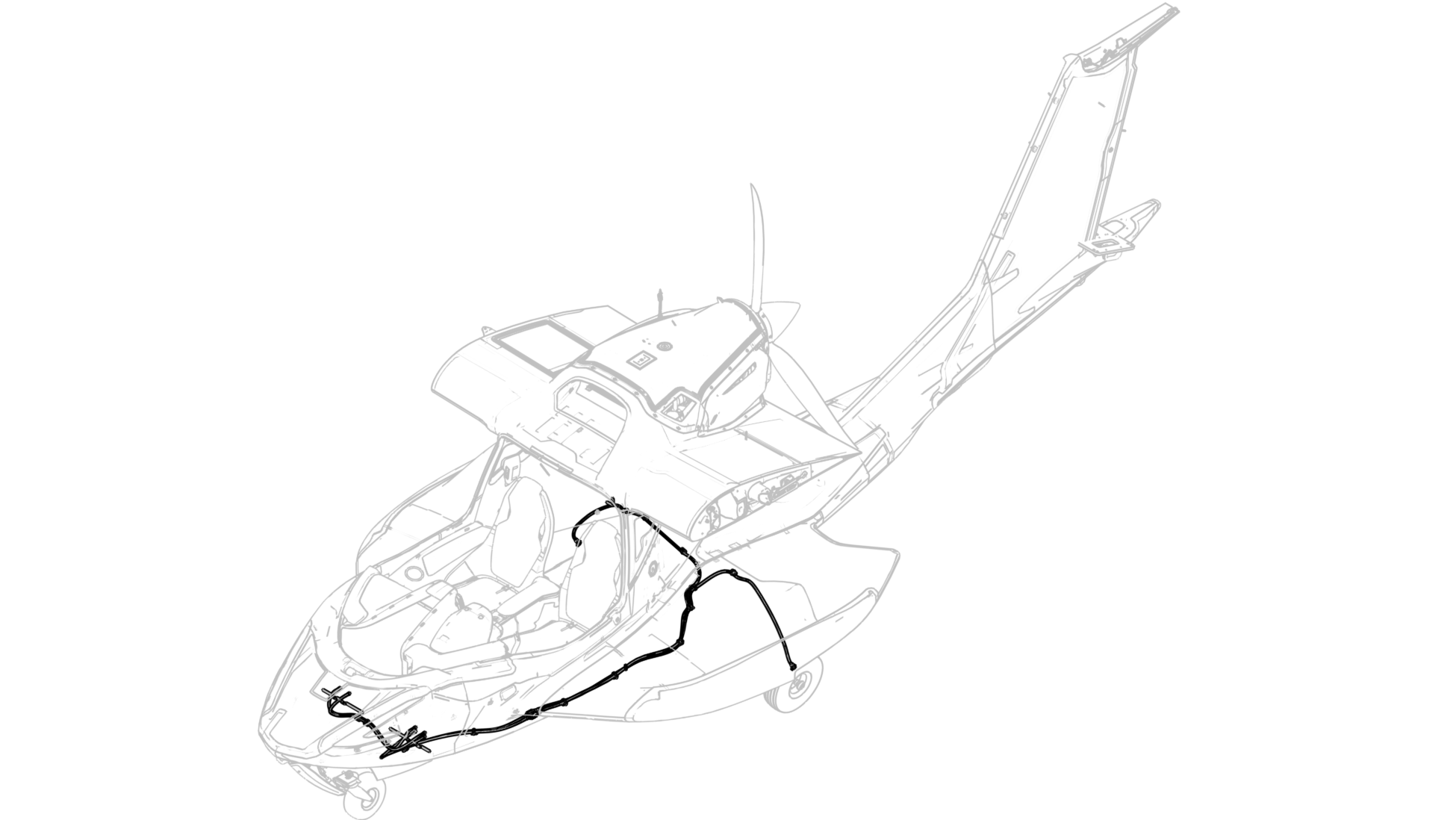

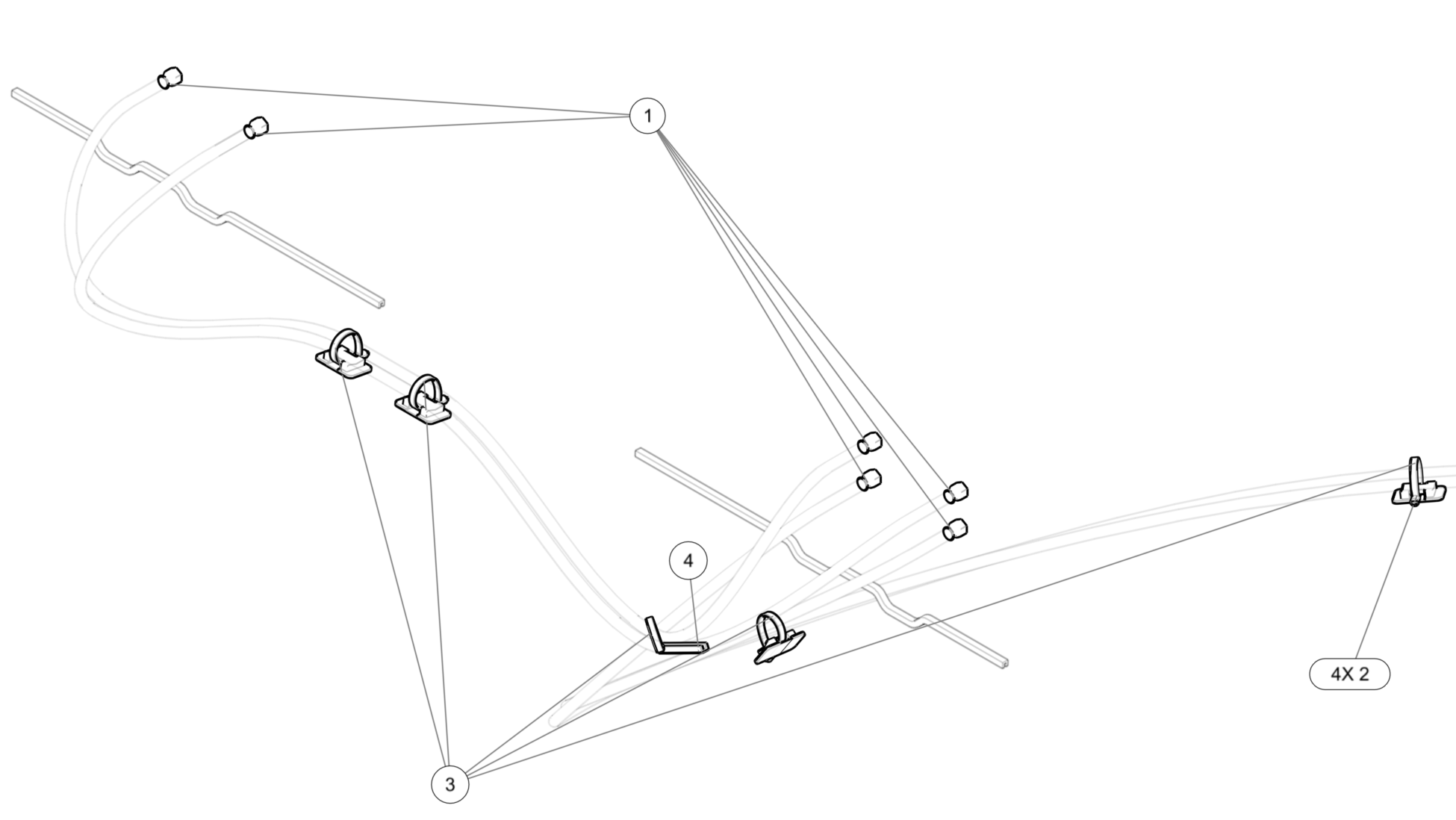

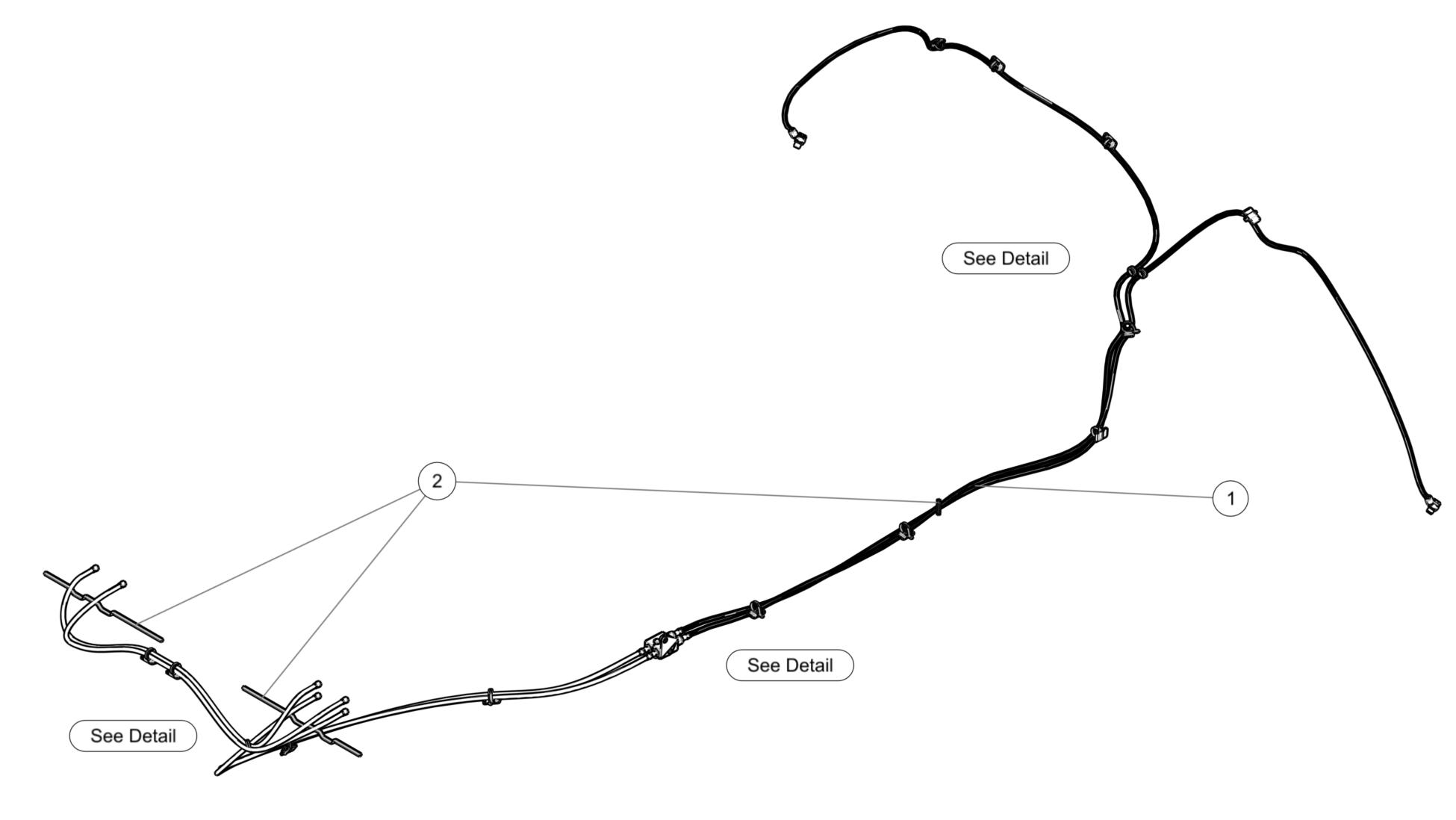

Brake hydraulic lines installation into landing gear.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | HDB01 | HOSE, PTFE LINED, SS BRAIDED, 6.7MM | 31 | Feet | |
2 | MS21266-1N | GROMMET, PLASTIC, EDGING, .056X.150 | 26.5 | Inches |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | HYD-008P | FITTING, BRAKE LINE, AN3 | 6 | Each | |
2 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 4 | Each | |
3 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 5 | Each | |
4 | MS21266-2N | GROMMET, PLASTIC, EDGING, .090X.175 | 1.5 | Inches |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA007841 | HANDLE, PARKING BRAKE | 1 | Each | Included in ME000672 |
2 | HYD-008P | FITTING, BRAKE LINE, AN3 | 4 | Each | |
3 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 2 | Each | |
4 | AN3C10A | BOLT, MACH, CRES, 10-32X.625 | 2 | Each | |
5 | 92703A301 | SCREW, FLAT HEAD, TORX, 18-8 SST, 8-32X0.250 | 1 | Each | Included in ME000672 |
6 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 1 | Each | |
7 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 1 | Each | |
8 | AN816-3D | FITTING, STRAIGHT, .188 TUBE TO .375-27 PIPE | 4 | Each | Included in ME000672 |
9 | ME000672 | PARKING BRAKE VALVE, SUBASSY | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | HEA01 | FITTING, BANJO, 6.7MMX20DEG | 2 | Each | |
2 | HYD-003P | BANJO BOLT, M10X100 | 2 | Each | |
3 | HYD-005B | COPPER SEAL, CRUSH WASHER | 4 | Each | |
4 | MS35489-35 | GROMMET, SYNTH RBR, .250X.438X.625X.125 | 2 | Each | |
5 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 7 | Each | |
6 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 7 | Each |
