Instruments, Angle of Attack, Fuselage
100899-00

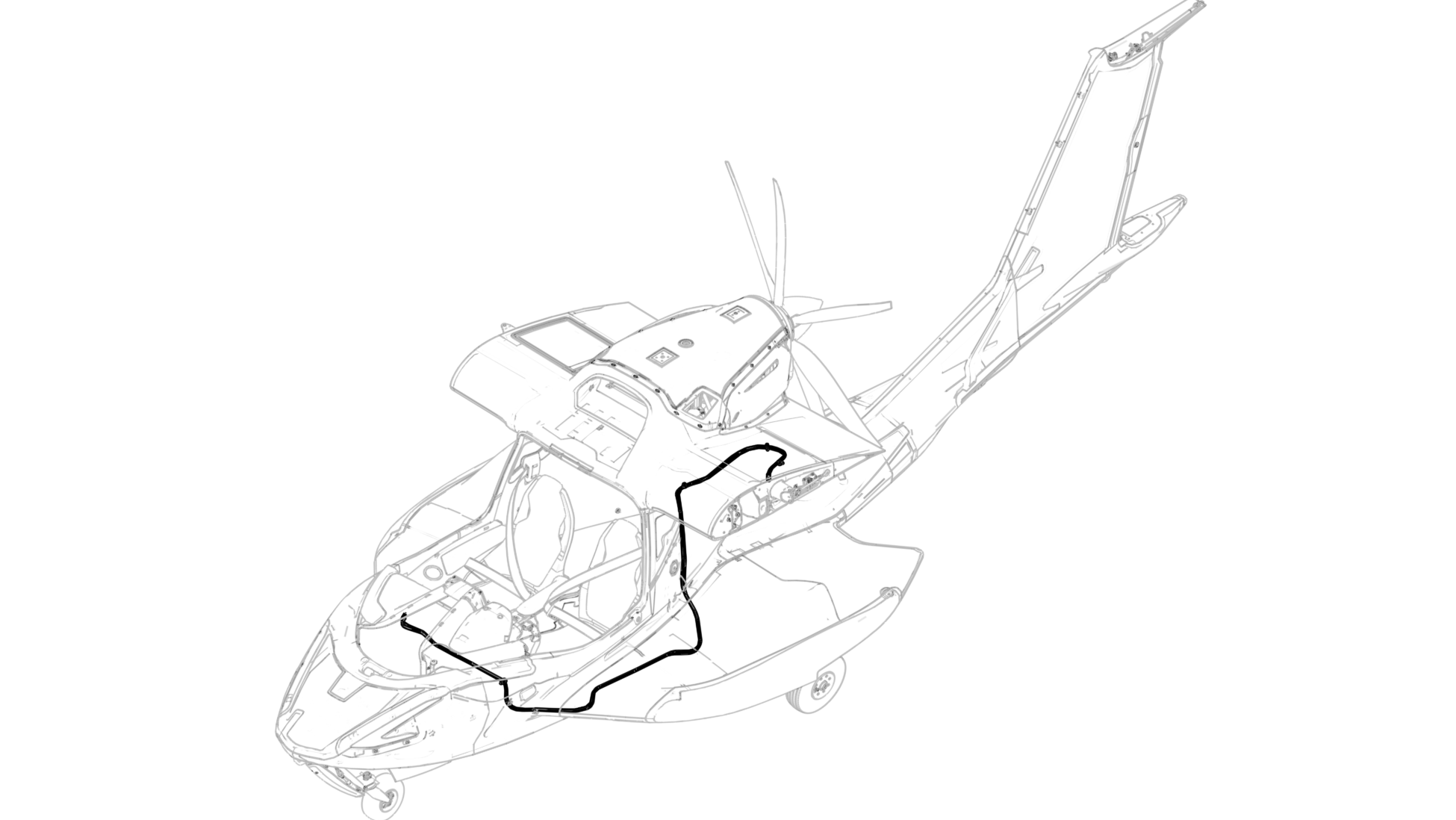

Angle of Attack installation in fuselage.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP .75 DIA | 4 | Each | |
2 | 33N | TUBING, NYLON 11, NYLO-SEAL, .137 X .188, NATURAL | 346 | Inches |

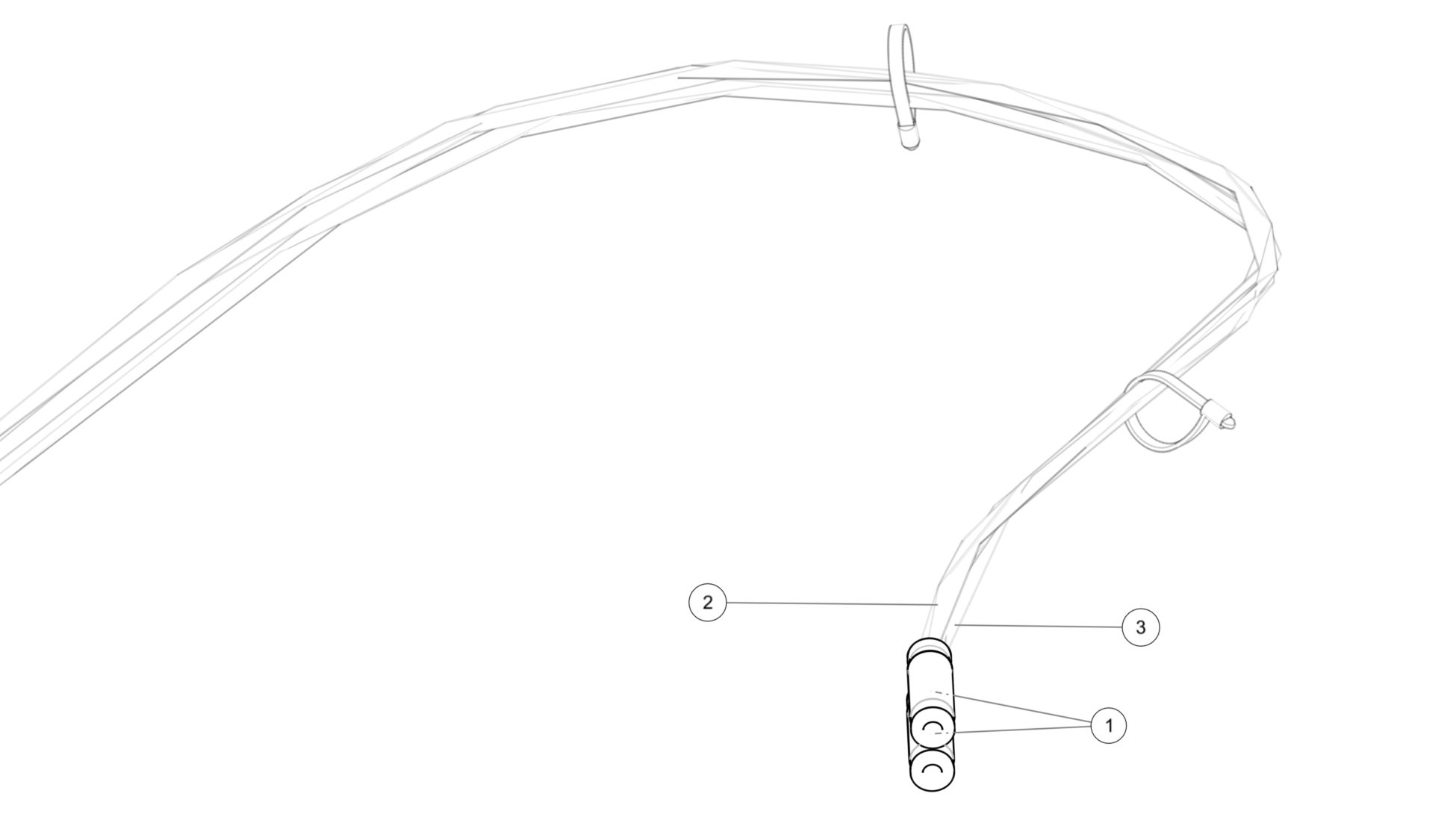

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011138 | CONNECTOR, PUSH-ON, STRAIGHT, .188 | 2 | Each | |
2 | ME000612 | LABEL, HIGH PRESSURE AOA | 1 | Each | Represents location of ME000612 |
3 | ME000613 | LABEL, LOW PRESSURE AOA | 1 | Each | Represents location of ME000613 |

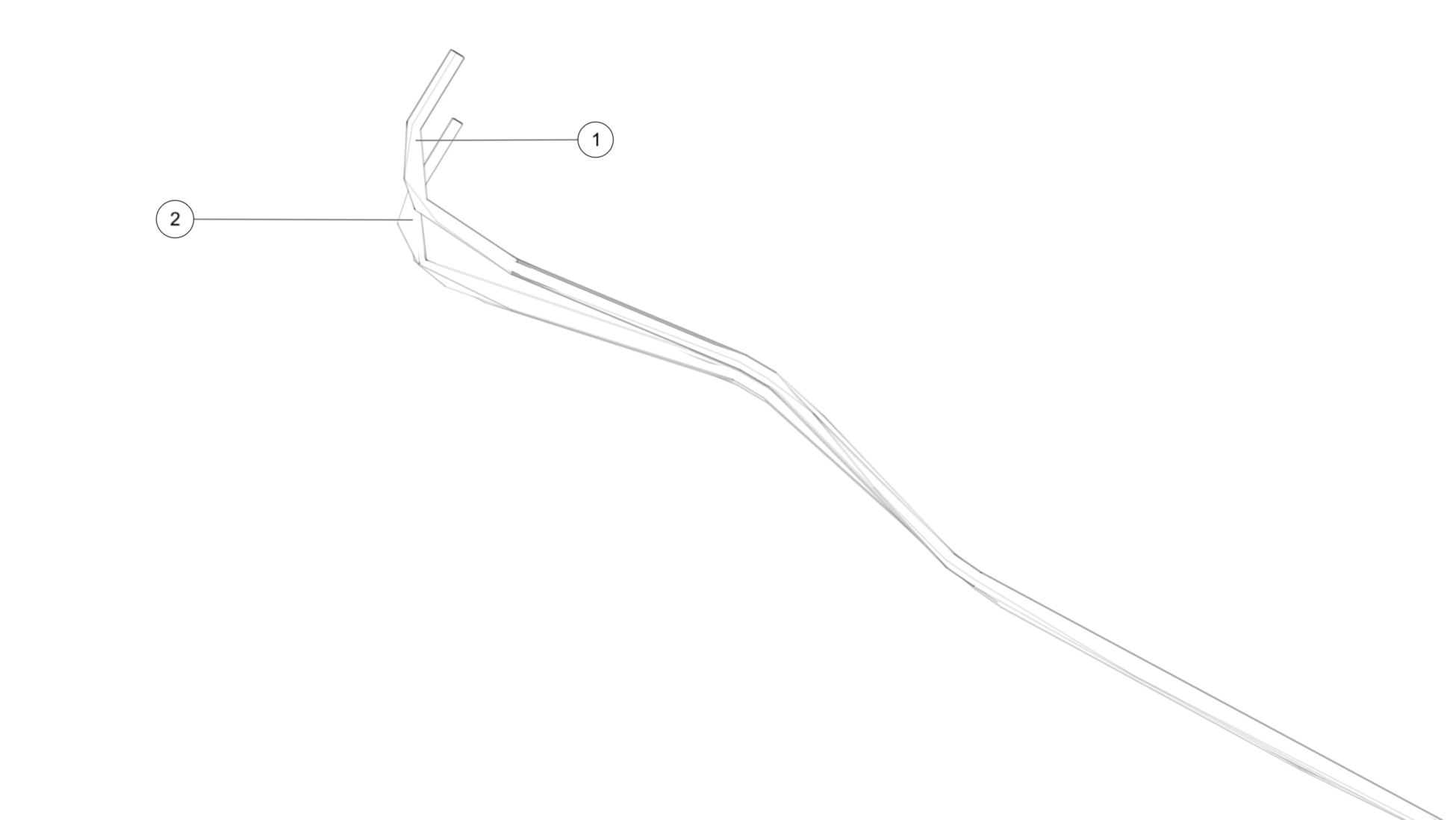

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000612 | LABEL, HIGH PRESSURE AOA | 1 | Each | Represents location of ME000612 |
2 | ME000613 | LABEL, LOW PRESSURE AOA | 1 | Each | Represents location of ME000613 |
