Instruments, Avionics Installation
100900-00

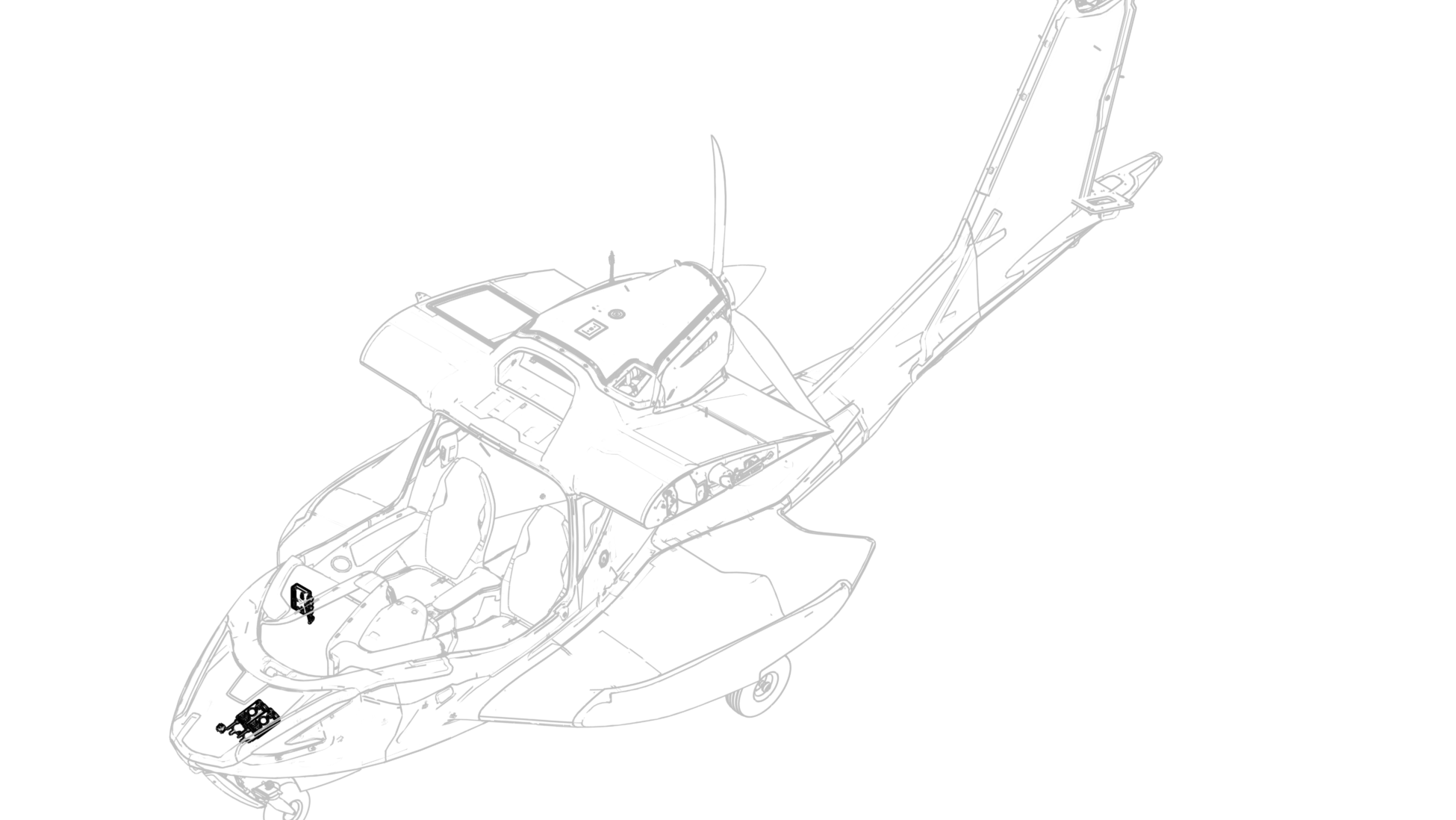

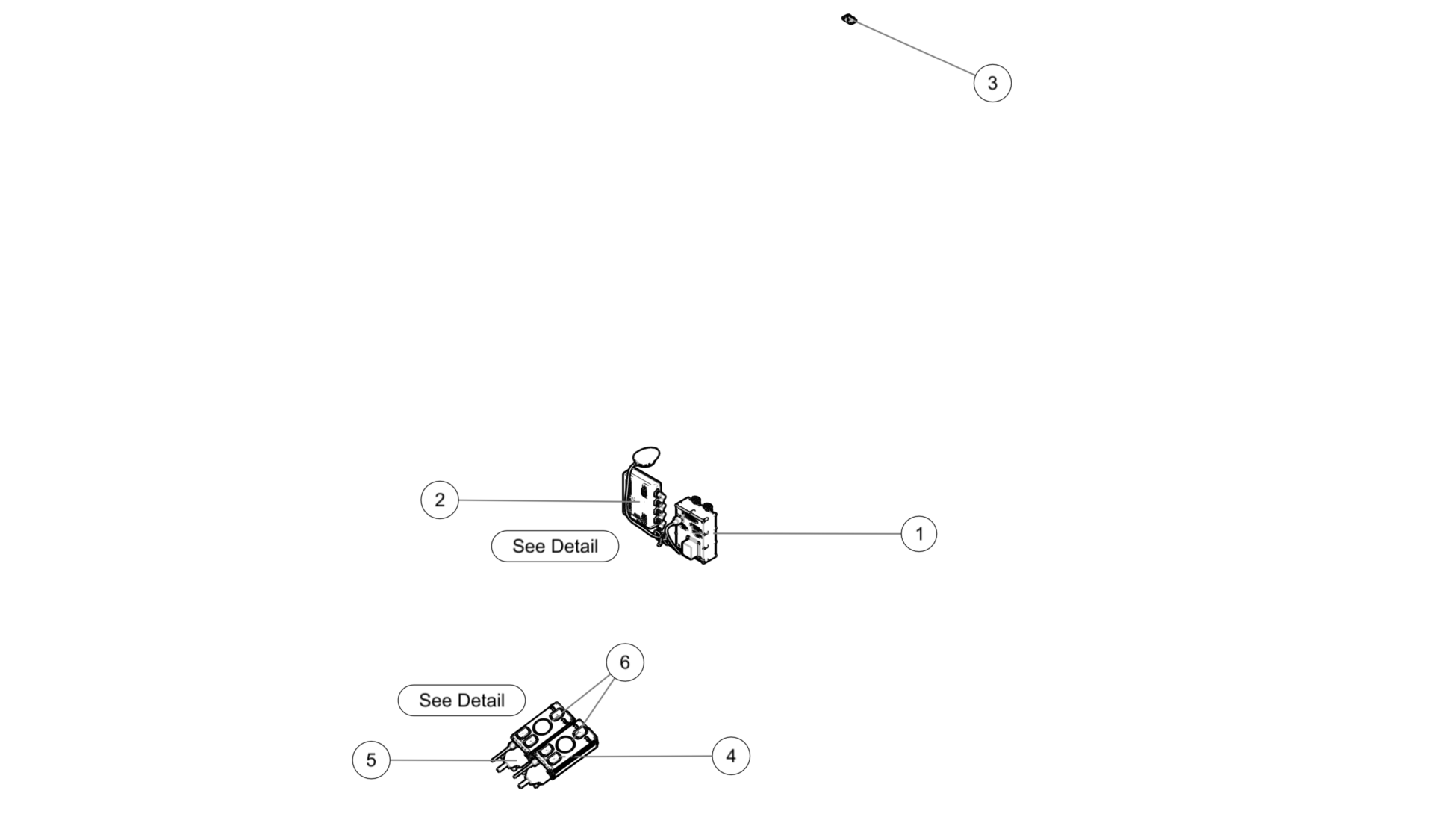

Avionics installation. 796 configuration shown.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA010394 | CONVERTER, DIGITAL TO ANALOG | 1 | Each | |
2 | ICA011651 | CONTROLLER, MULTIPLE SYSTEMS | 1 | Each | |
3 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 1 | Each | |
4 | 00882-00-01 | RADIO, VHF, TY91 | 1 | Each | |
5 | 00745-00-01 | TRANSPONDER UNIT, TT22 | 1 | Each | |
6 | 00667-00 | MOUNTING TRAY, TRANSPONDER, TT21&TY91 | 2 | Each |

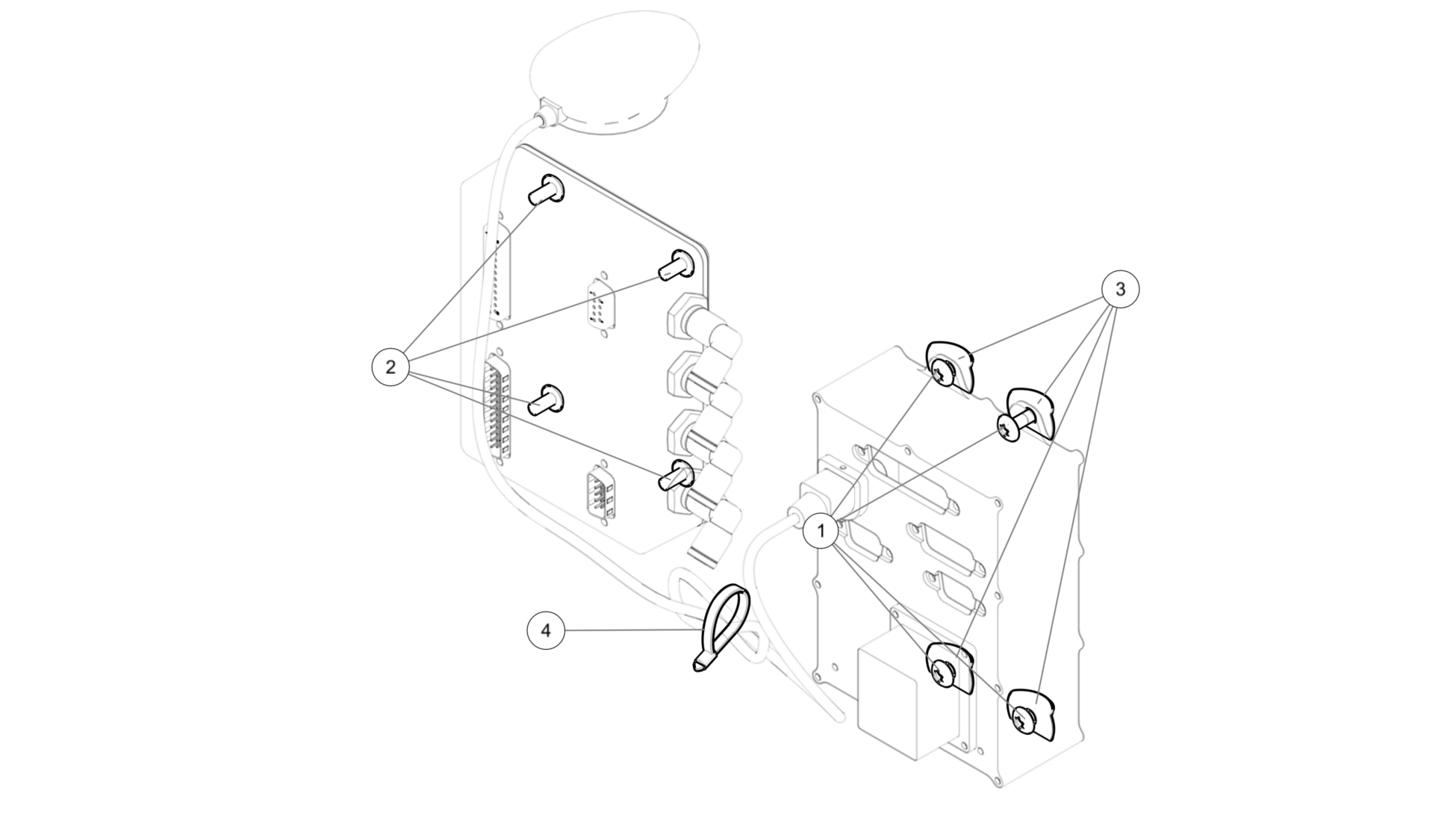

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 4 | Each | |
2 | 8C37MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32 X 0.375 | 4 | Each | |
3 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 4 | Each | |
4 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP .75 DIA | 1 | Each |

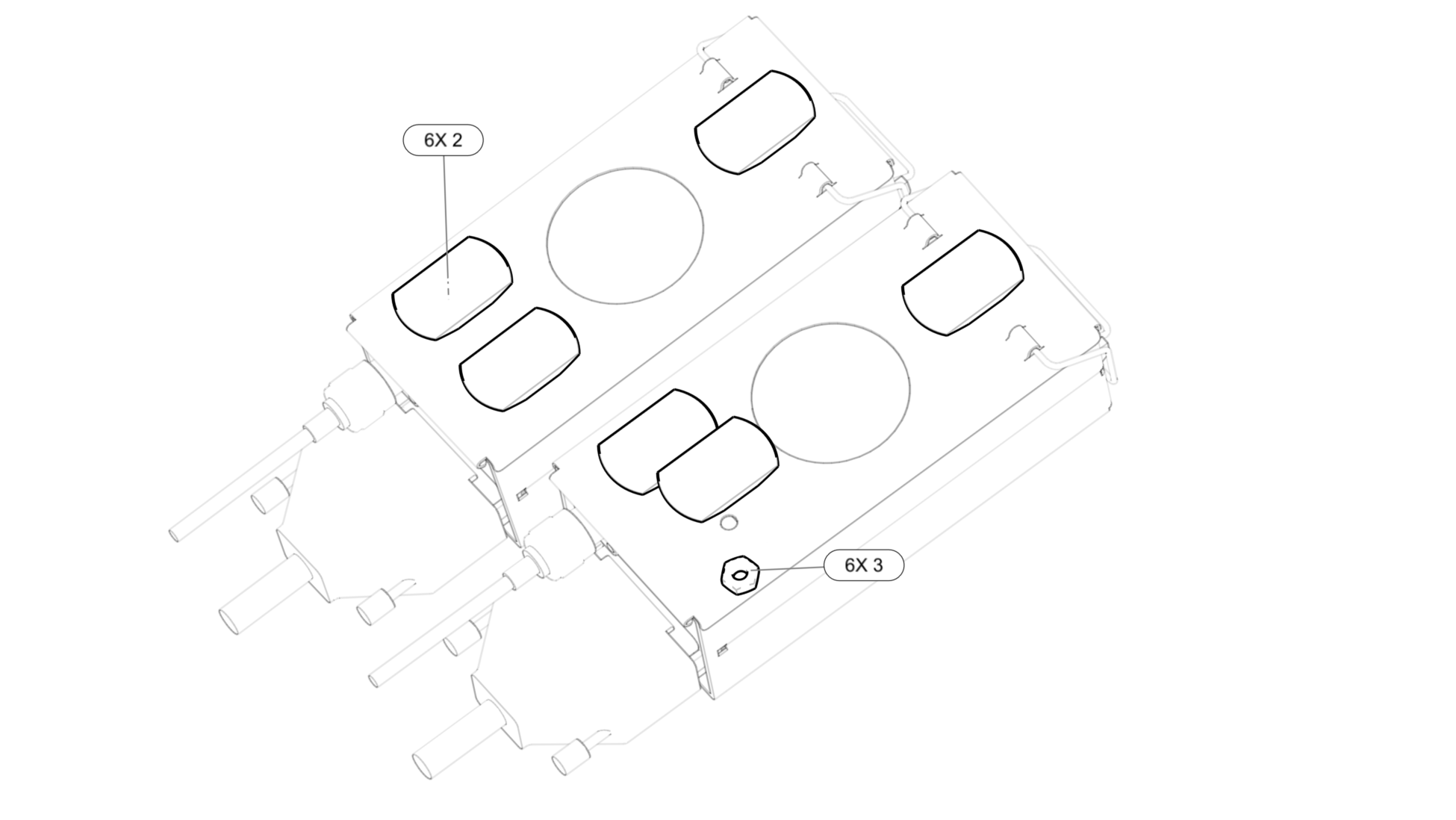

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
2 | CB4000G08CRA4P750 | STUD, ADH BND, FBRG, A286, 8-32X.250 TRIM | 6 | Each | |
3 | 90257A009 | NUT, PLAIN, HEX, 316SS, 8-32X.125 | 6 | Each |
