Instruments, ELT Installation
100901-00

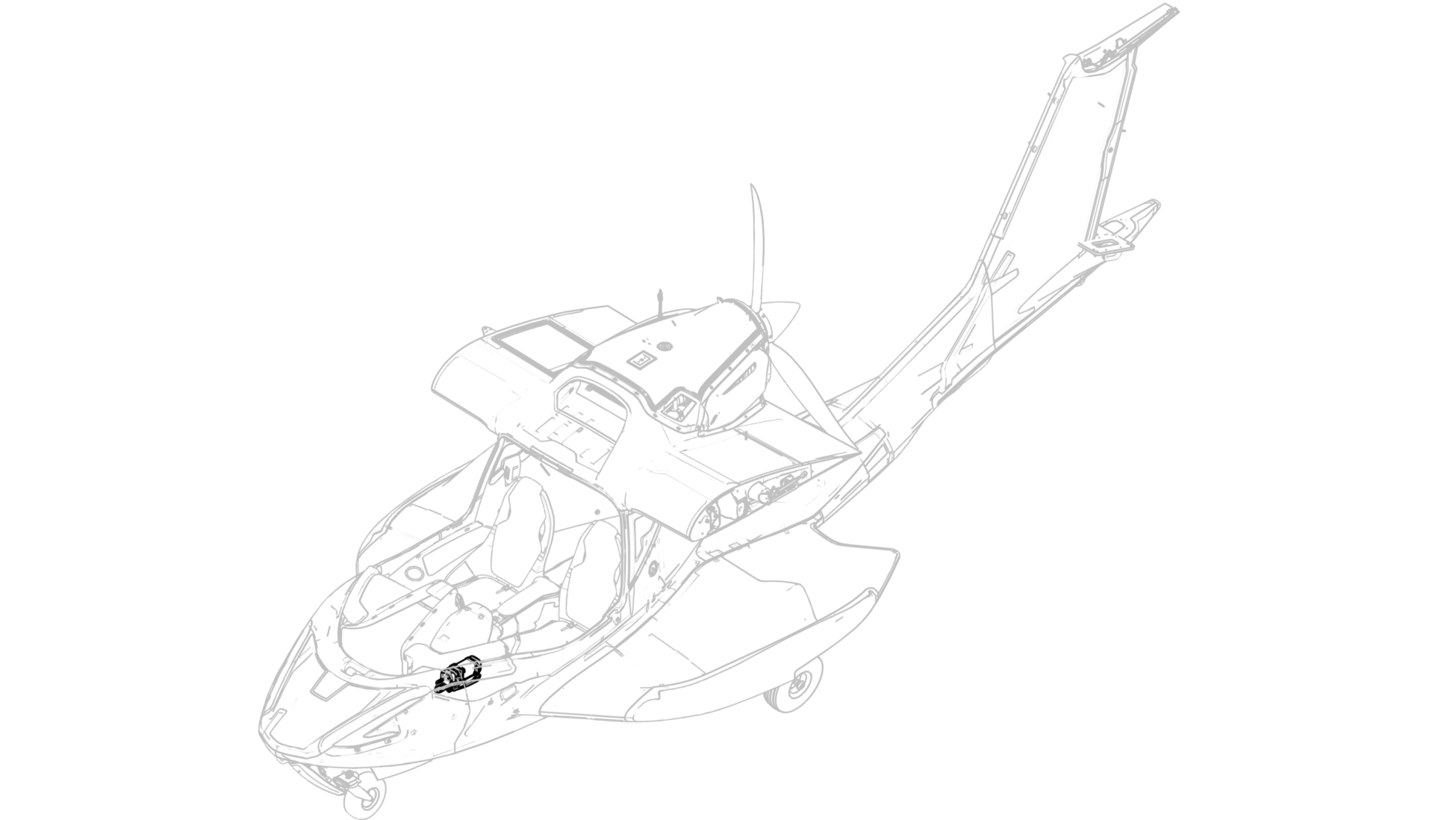

Emergency Location Transmitter (ELT) installation.

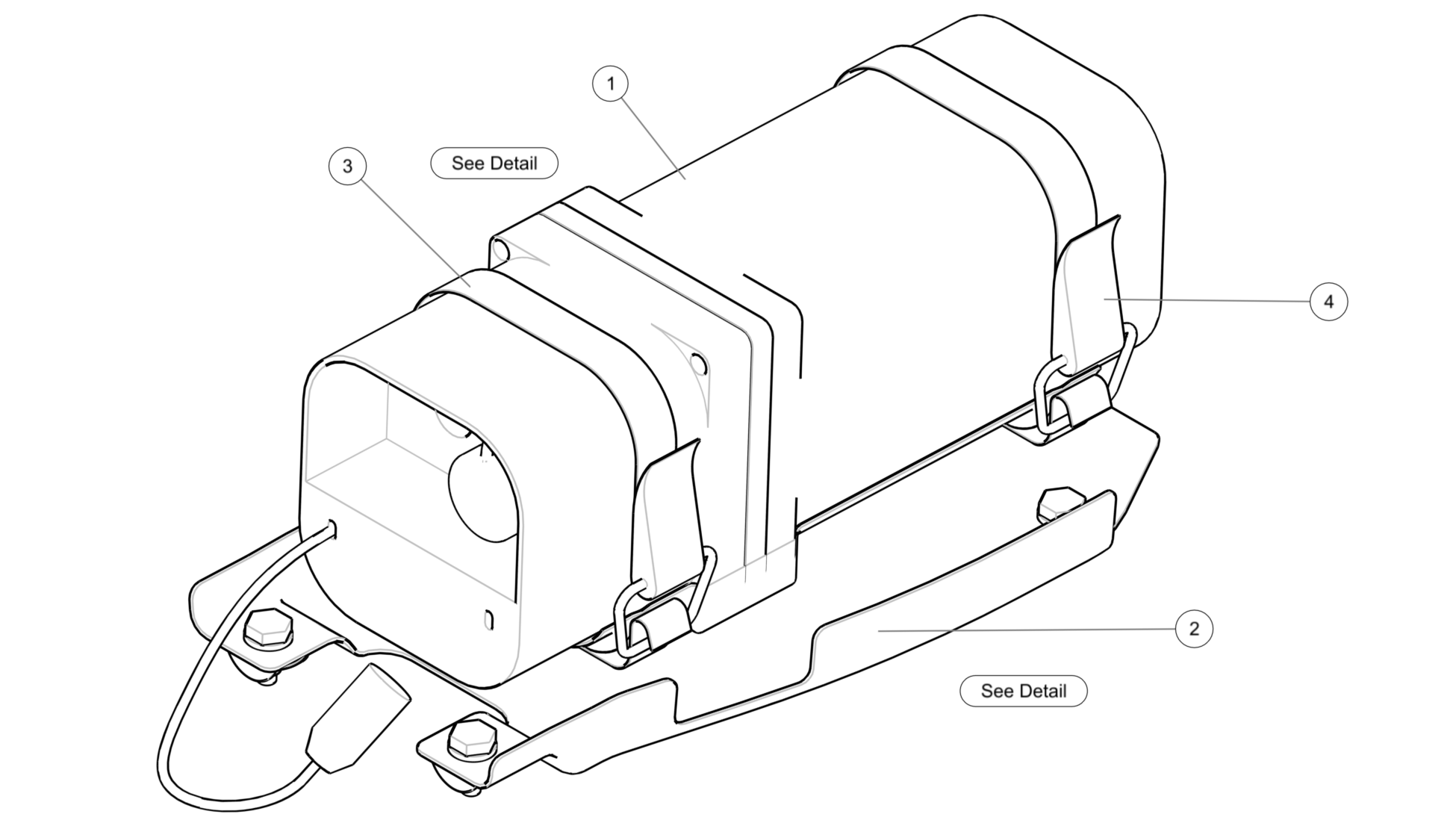

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA012256 | ELT ASSY, TRANSMITTER & BATTERY | 1 | Each | |
2 | ME000699 | ELT MOUNT BRACKET, SUBASSY | 1 | Each | Includes 4x CN609CR08P NUT PLATE, TWO LUG, ADH BND 8-32 |
3 | ICA012252 | STRAP, RETAINING, REAR | 1 | Each | |
4 | ICA012251 | STRAP, BATTERY, FRONT | 1 | Each |

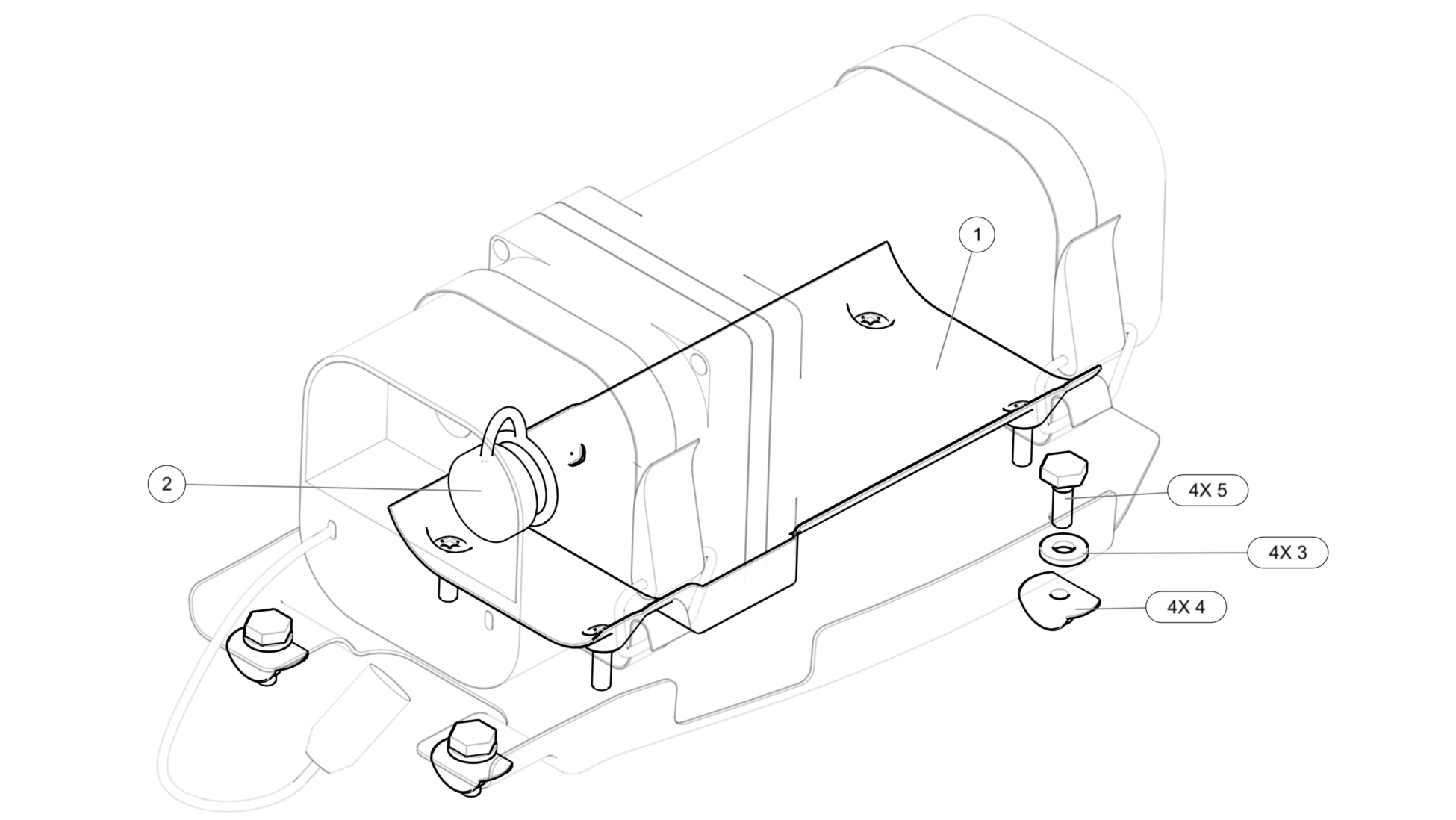

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA012250 | TRAY, MOUNTING, ELT | 1 | Each | |
2 | ICA012249 | COVER, ELT, RUBBER, RED | 1 | Each | |
3 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 4 | Each | |
4 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 4 | Each | |
5 | AN3C4A | BOLT, MACH, CRES, 10-32X.125 | 4 | Each |

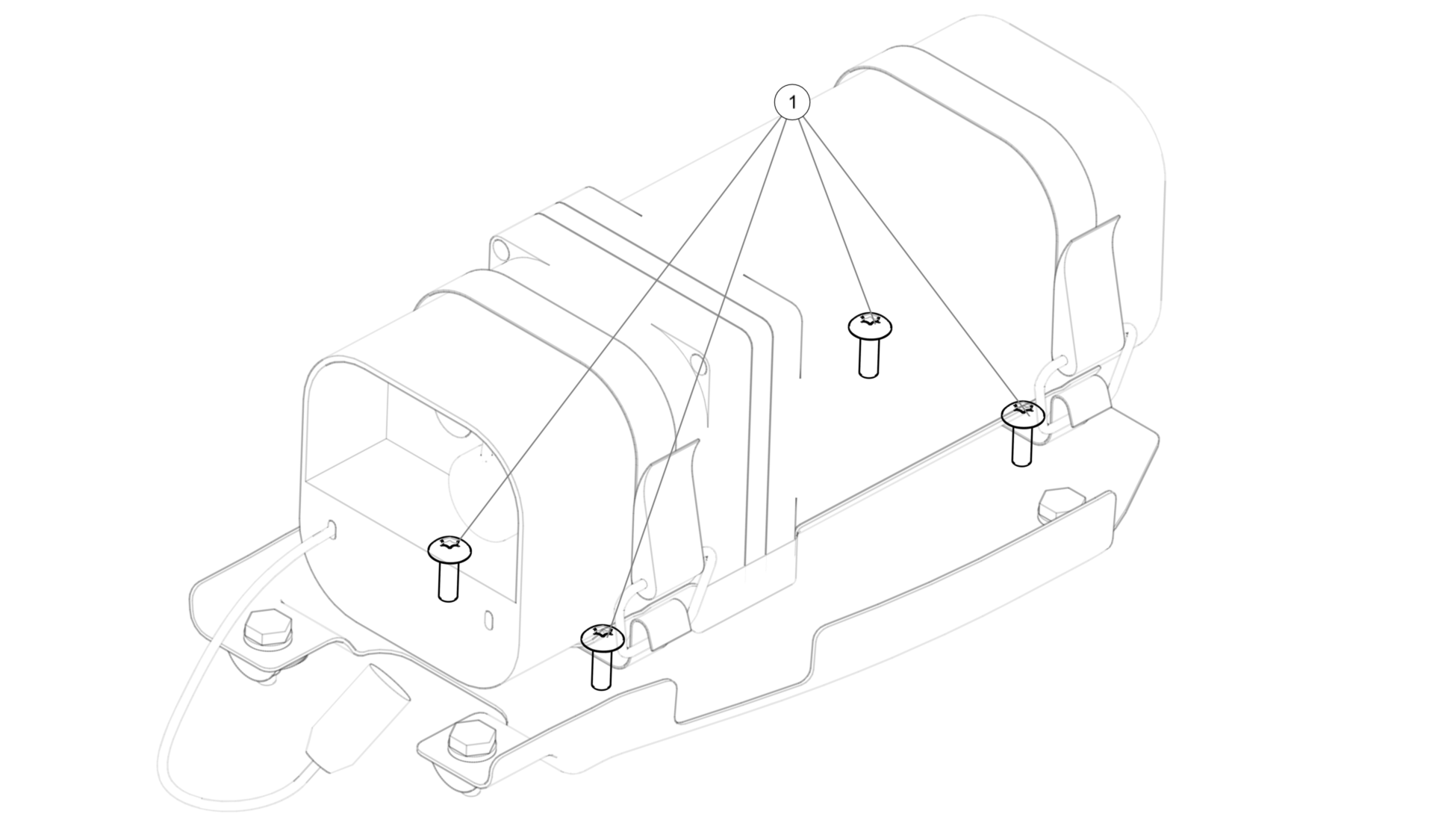

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 4 | Each |
