Doors and Windows, Door, NLG
100879-00

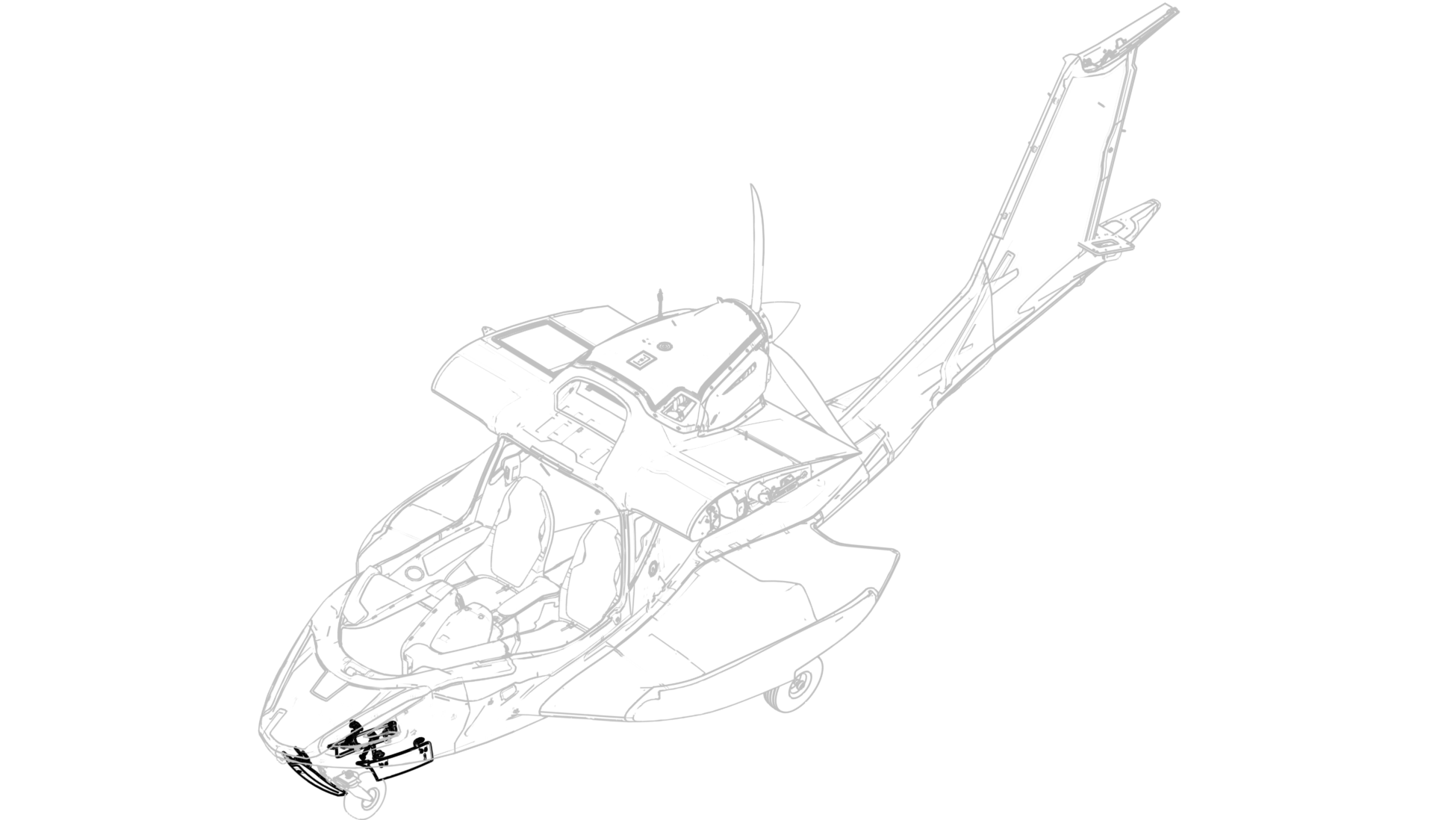

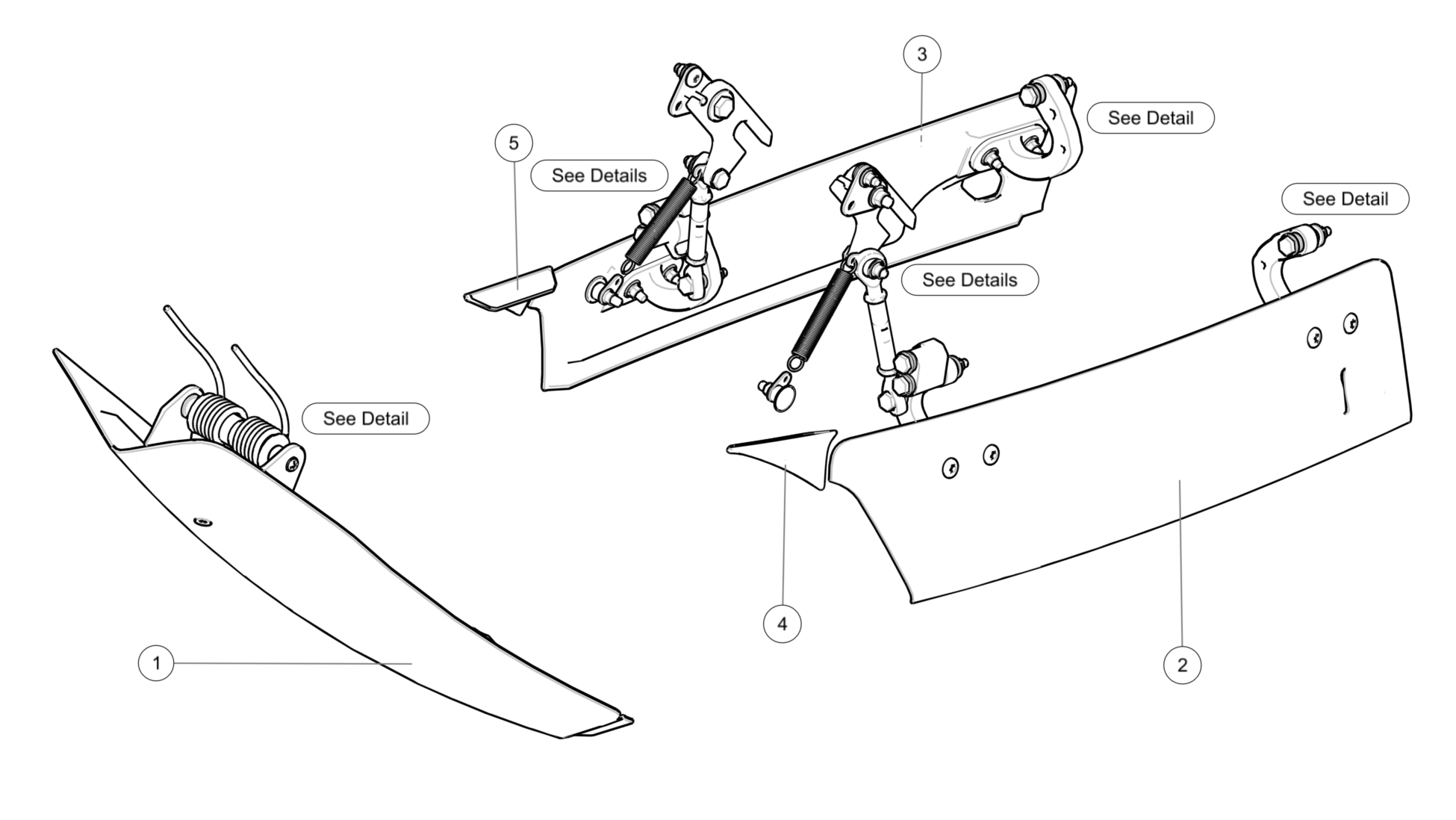

Nose Landing Gear door installation.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000915 | PAINTED, FWD NLG DOOR | 1 | Each | Includes 2x CN614CR3P NUTPLATES) |
2 | ME000853 | PAINTED, NOSE LANDING GEAR DOOR, AFT, LH | 1 | Each | |
3 | ME000851 | PAINTED, NOSE LANDING GEAR DOOR, AFT, RH | 1 | Each | |
4 | ME001014 | DEFLECTOR, SEAWEED, NLG DOOR, LH, SUBASSY | 1 | Each | Includes 1x ICA010331 DEFLECTOR, SEAWEED, NLG DOOR, LH and 70006738424 3M VHB TAPE 5915WF WHITE, 1/2 IN X 72 YD 16 MIL |
5 | ME001013 | DEFLECTOR, SEAWEED, NLG DOOR, RH, SUBASSY | 1 | Each | Includes 1x ICA010330 DEFLECTOR, SEAWEED, NLG DOOR, RH and 70006738424 3M VHB TAPE 5915WF WHITE, 1/2 IN X 72 YD 16 MIL |

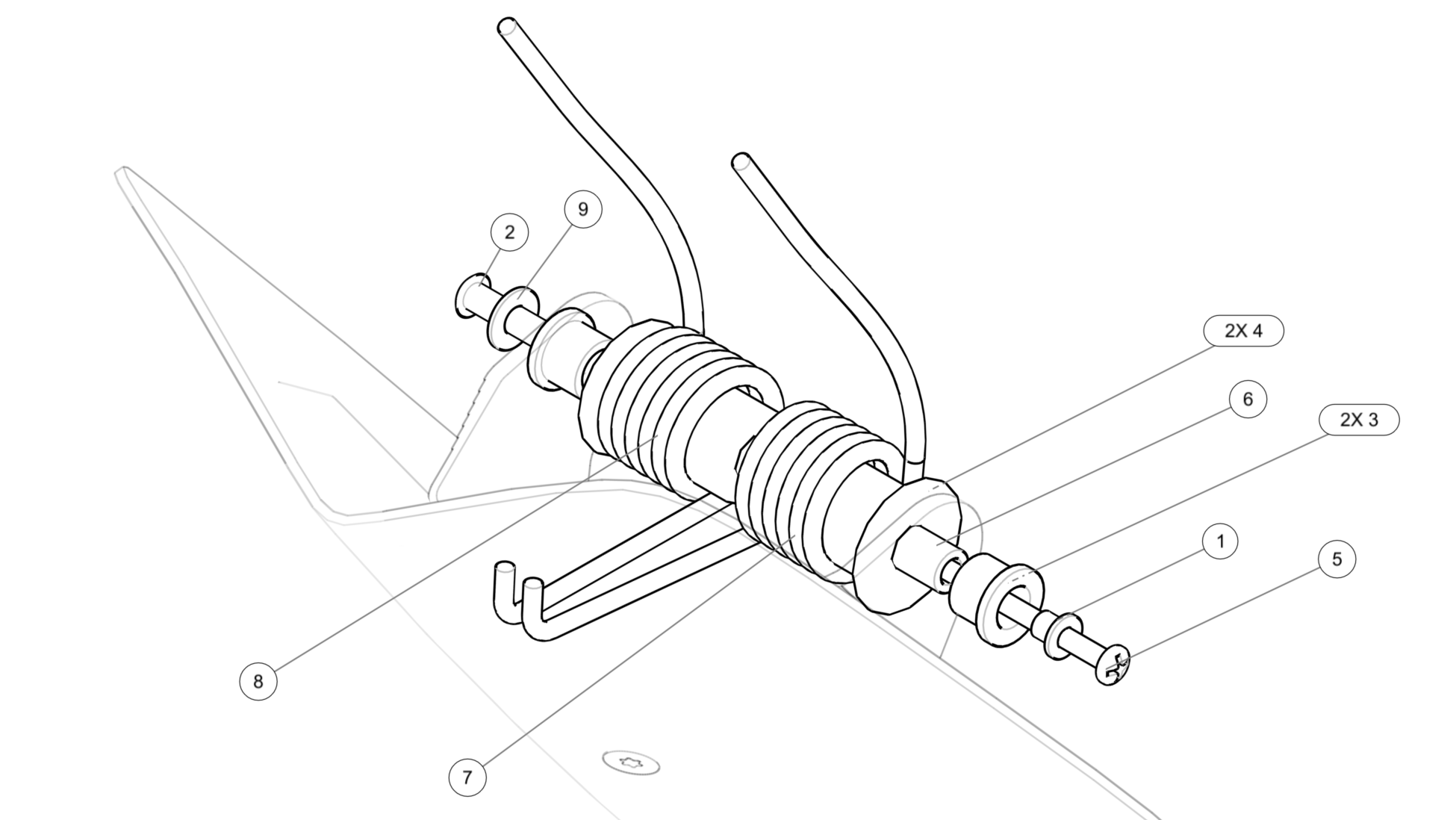

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 15258-032-188SSMOD-12 | BUSHING, FLANGED, CRES, .144X.187X.313X.188 | 1 | Each | |
2 | Z4110-316SS | BINDING POST, CRES, .138-32X.188X1.00 | 1 | Each | |
3 | ICA014951 | BEARING, FLANGED, BRONZE OILITE, .3145 ID, .4405 OD, .375 L | 2 | Each | |
4 | ICA008817 | MOUNT, TORSION SPRING, FWD DOOR, NLG | 2 | Each | |
5 | ICA012114 | SCREW, MACH, CRES, 6-32X2.75 | 1 | Each | |
6 | 4040RSS3.125MOD-12 | SPACER, UNTHREADED, CRES, .194X.3125X3.125 | 1 | Each | |
7 | LTR125S01S | SPRING, TORSION, DOOR, FWD, NLG-RH | 1 | Each | |
8 | LTL125S01S | SPRING, TORSION, DOOR, FWD, NLG-LH | 1 | Each | |
9 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA014424 | BELLCRANK, GOOSENECK, NLG DOOR, 1 | 1 | Each | Not shown, ICA010389 (SHIM, NLG AFT DOOR) located between the bellcrank and door. As needed, max 4. |
2 | ICA014425 | BELLCRANK, GOOSENECK, NLG DOOR, 2 | 1 | Each | Not shown, ICA010389 (SHIM, NLG AFT DOOR) located between the bellcrank and door. As needed, max 4. |
3 | ICA010082 | STOP, LH DOOR, NLG | 1 | Each | |
4 | ICA010039 | FORK, DOOR, NLG | 1 | Each | |
5 | ICA010049 | MOUNT, NLG FORK | 1 | Each | |
6 | 9654K196 | SPRING, .375X.0348X3.00X.82LB/IN | 1 | Each |

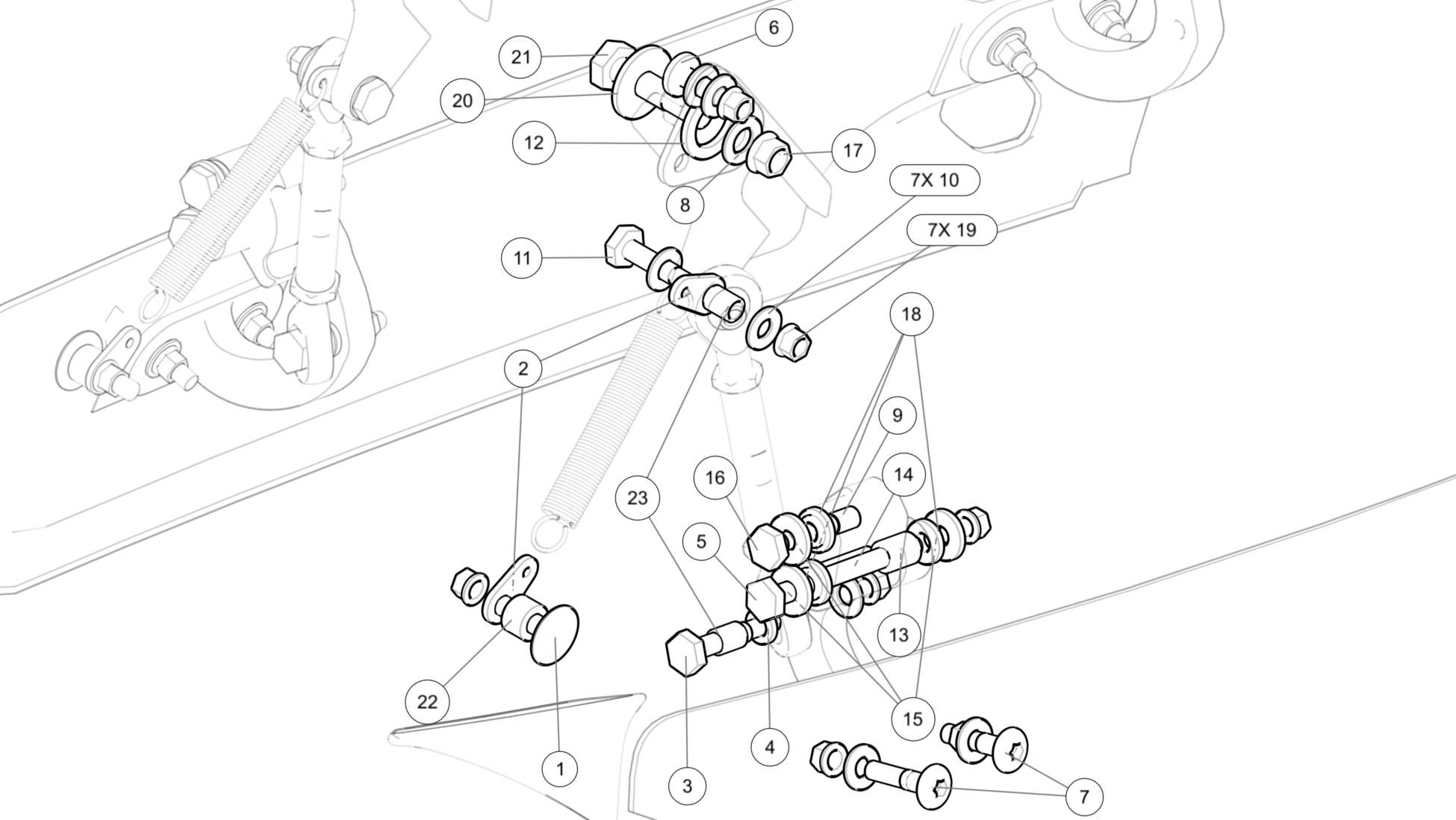

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB5000CRA3-12P | STUD, ADH BONDED, SMALL BASE, .190-32X.750 | 1 | Each | |
2 | ICA010385 | CLIP, NLG DOOR EXTENSION SPRING | 2 | Each | |
3 | AN3C11A | BOLT, MACH, CRES, 10-32X.750 | 1 | Each | |
4 | NAS620C10 | WASHER, FLAT, CRES, .195X.354X.063 | 1 | Each | |
5 | AN3C20A | BOLT, MACH, CRES, 10-32X1.625 | 1 | Each | |
6 | 10F50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 10-32X.500 | 1 | Each | |
7 | 10F87MTT3/50TL | SCREW, MACH TH, 6LOBE, CRES, 10-32X.875 | 2 | Each | |
8 | NAS1149C0432R | WASHER, FLAT, CRES, .250X.032, PSVT | 1 | Each | |
9 | 3591-3CN285 | INSERT, HELICOIL,SST, 10-32X.285 | 1 | Each | |
10 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 7 | Each | |
11 | AN3C10A | BOLT, MACH, CRES, 10-32X.625 | 1 | Each | |
12 | 90295A492 | WASHER, FLAT, NYLON, .505X.750X.057-.067 | 1 | Each | |
13 | ICA014423 | BEARING, SLEEVE, BRONZE, .188X.314X.375 | 1 | Each | |
14 | 97395A485 | PIN, CRES, .250X.750 | 1 | Each | |
15 | 75101 | WASHER, SELF SEALING, #10 | 3 | Each | |
16 | AN3C4A | BOLT, MACH, CRES, 10-32X.125 | 1 | Each | |
17 | MS21043-4 | NUT, SLFLKG, RDC HEX, CRES, .250-28 | 1 | Each | |
18 | NAS77C3-005 | BUSHING, FLNGD, UNLINED, CRES, .190X.050 | 3 | Each | |
19 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 7 | Each | |
20 | ICA011794 | WASHER, FLAT, SS, .250X.750X.06-.09, PSVT | 1 | Each | |
21 | AN4C11A | BOLT, MACH, CRES, .250-28X.688 | 1 | Each | |
22 | 93013A605 | SPACER, AL, .192X.375X.250 | 1 | Each | |
23 | ICA008887 | BUSHING, CRES, .190X.250X.340 | 2 | Each |

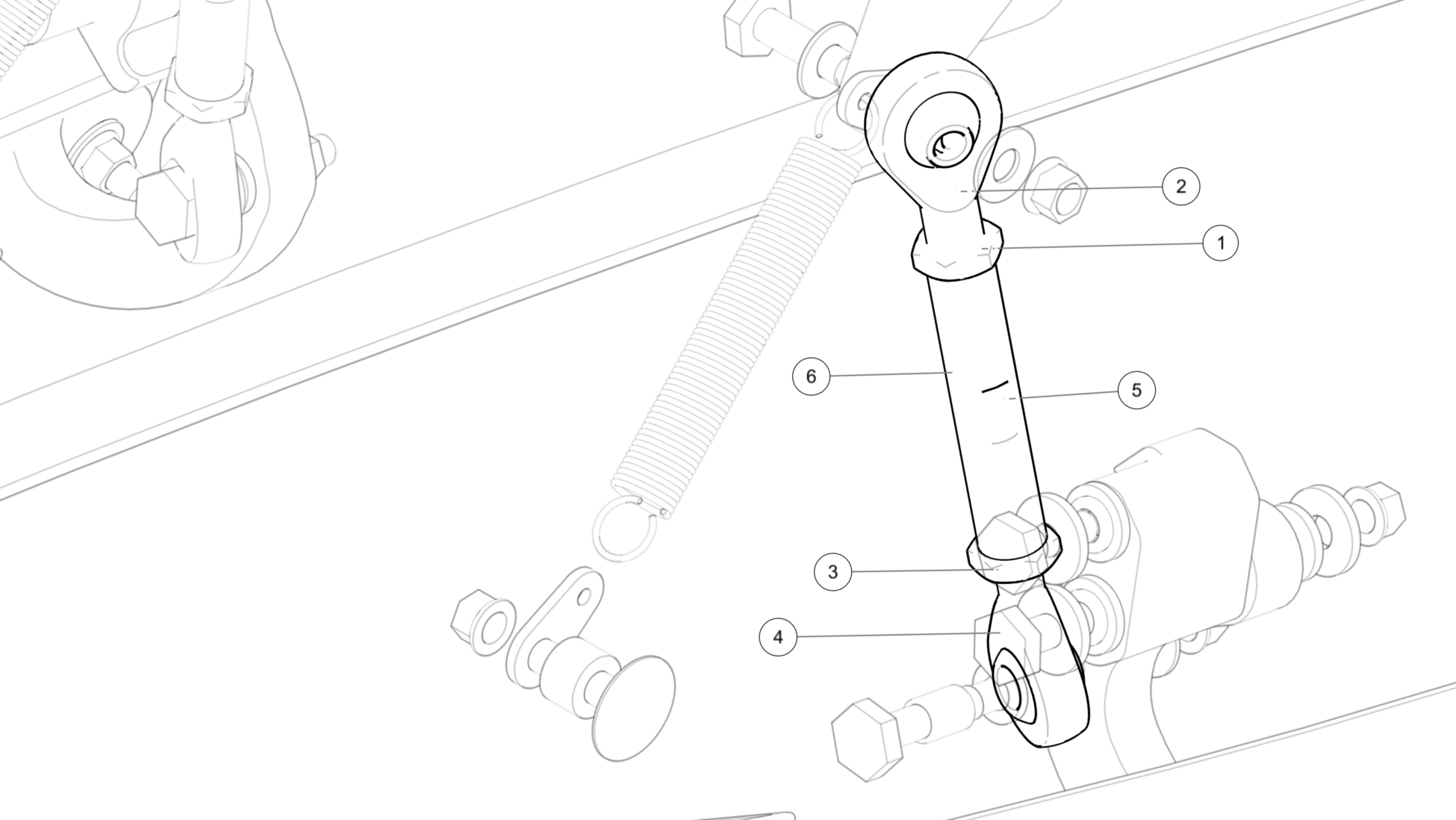

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | AN316C4R | NUT, JAM, HEX, CRES, .250-28RH | 1 | Each | Included in ME000270 |
2 | 60645K121 | ROD END, SPHER, EXT THD, .250-28RHX.250 | 1 | Each | Included in ME000270 |
3 | AN316C4L | NUT, JAM, HEX, CRES, .250-28LH | 1 | Each | Included in ME000270 |
4 | 60645K122 | ROD END, SPHER, EXT THD, .250-28LHX_.250 | 1 | Each | Included in ME000270 |
5 | ICA010048 | PUSHROD, AFT NLG DOOR | 1 | Each | Included in ME000270 |
6 | ME000270 | PUSH ROD, AFT NLG DOOR, SUBASSY | 1 | Each |

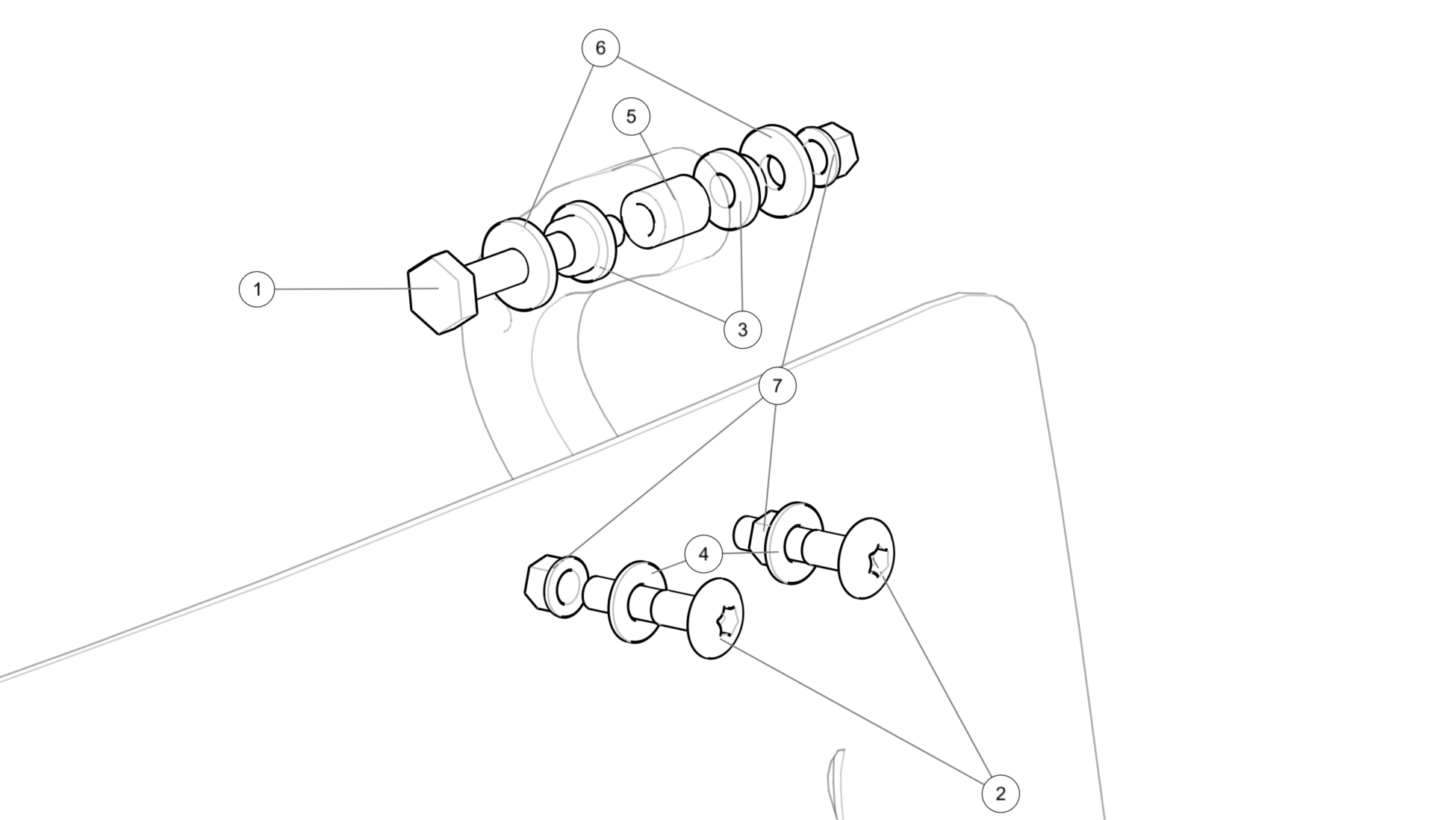

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

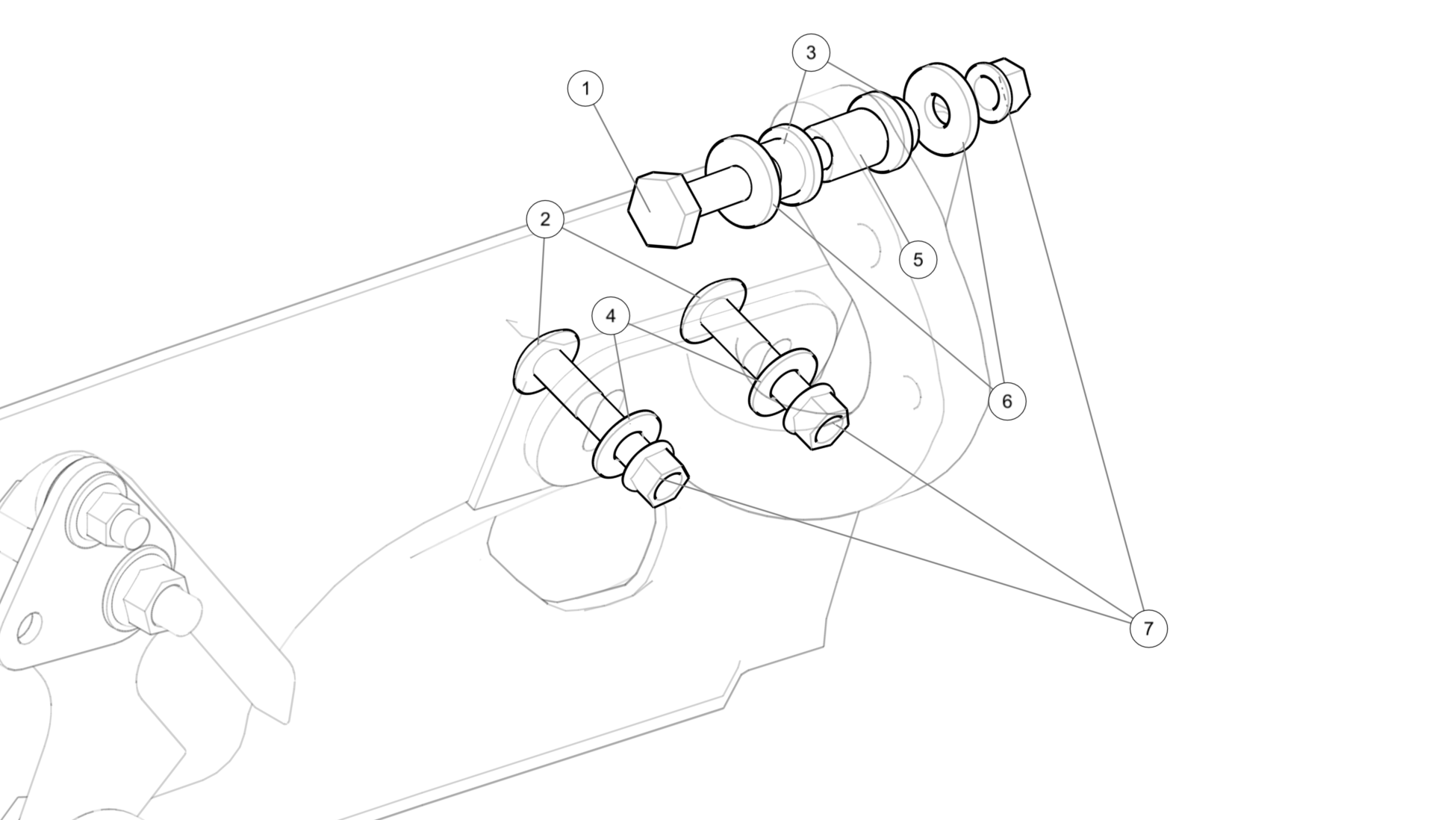

1 | AN3C12A | BOLT, MACH, CRES, 10-32X.875 | 1 | Each | |
2 | 10F87MTT3/50TL | SCREW, MACH TH, 6LOBE, CRES, 10-32X.875 | 2 | Each | |
3 | NAS77C3-013 | BUSHING, FLNGD, UNLINED, | 2 | Each | |
4 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 2 | Each | |
5 | ICA014423 | BEARING, SLEEVE, BRONZE, .188X.314X.375 | 1 | Each | |
6 | 75101 | WASHER, SELF SEALING, #10 | 2 | Each | |
7 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 3 | Each |

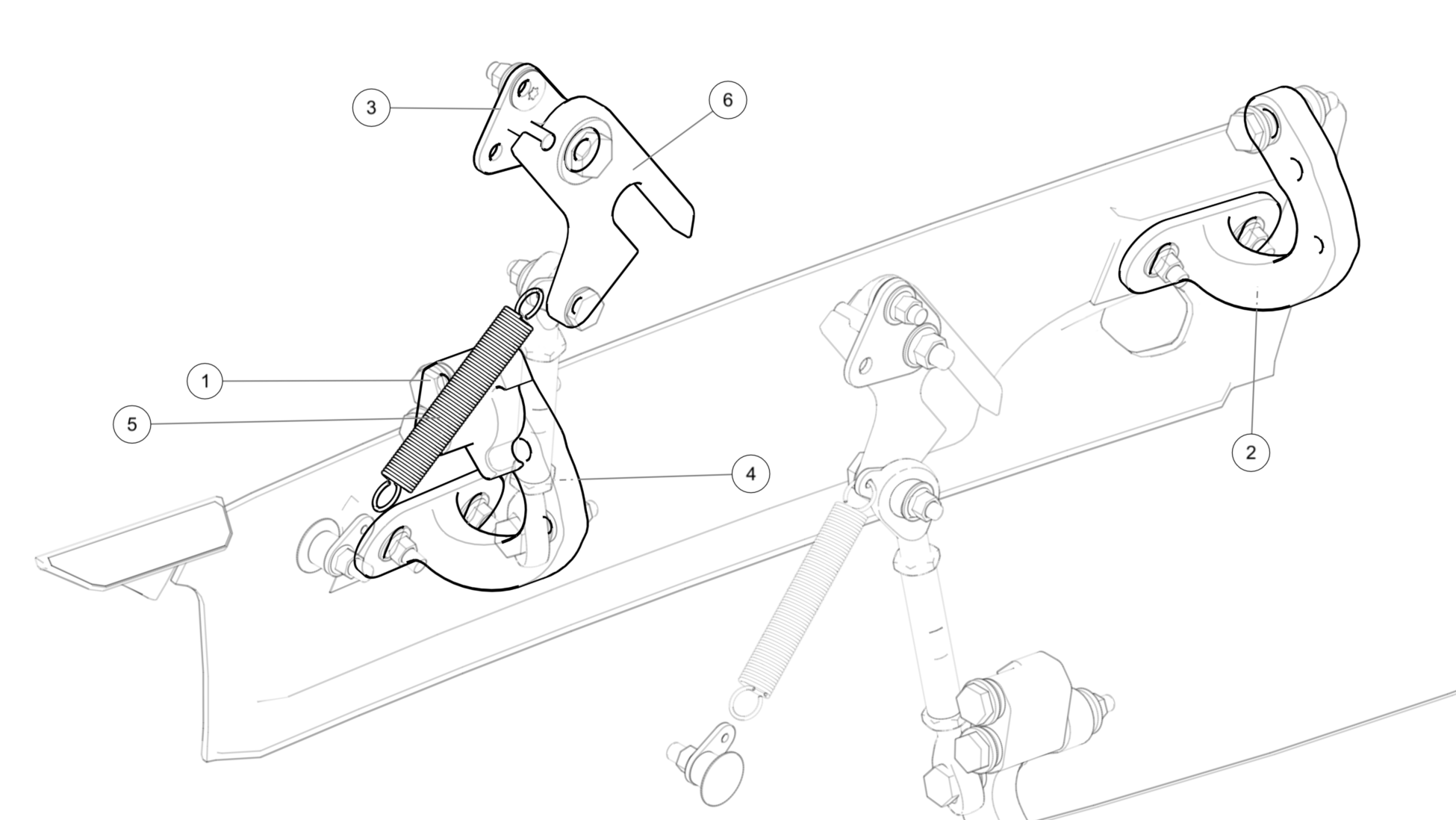

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA010044 | STOP, RH DOOR, NLG | 1 | Each | |
2 | ICA014425 | BELLCRANK, GOOSENECK, NLG DOOR, 2 | 1 | Each | Not shown, ICA010389 (SHIM, NLG AFT DOOR) located between the bellcrank and door. As needed, max 4. |
3 | ICA010049 | MOUNT, NLG FORK | 1 | Each | |
4 | ICA014424 | BELLCRANK, GOOSENECK, NLG DOOR, 1 | 1 | Each | Not shown, ICA010389 (SHIM, NLG AFT DOOR) located between the bellcrank and door. As needed, max 4. |
5 | 9654K196 | SPRING, .375X.0348X3.00X.82LB/IN | 1 | Each | |
6 | ICA010039 | FORK, DOOR, NLG | 1 | Each |

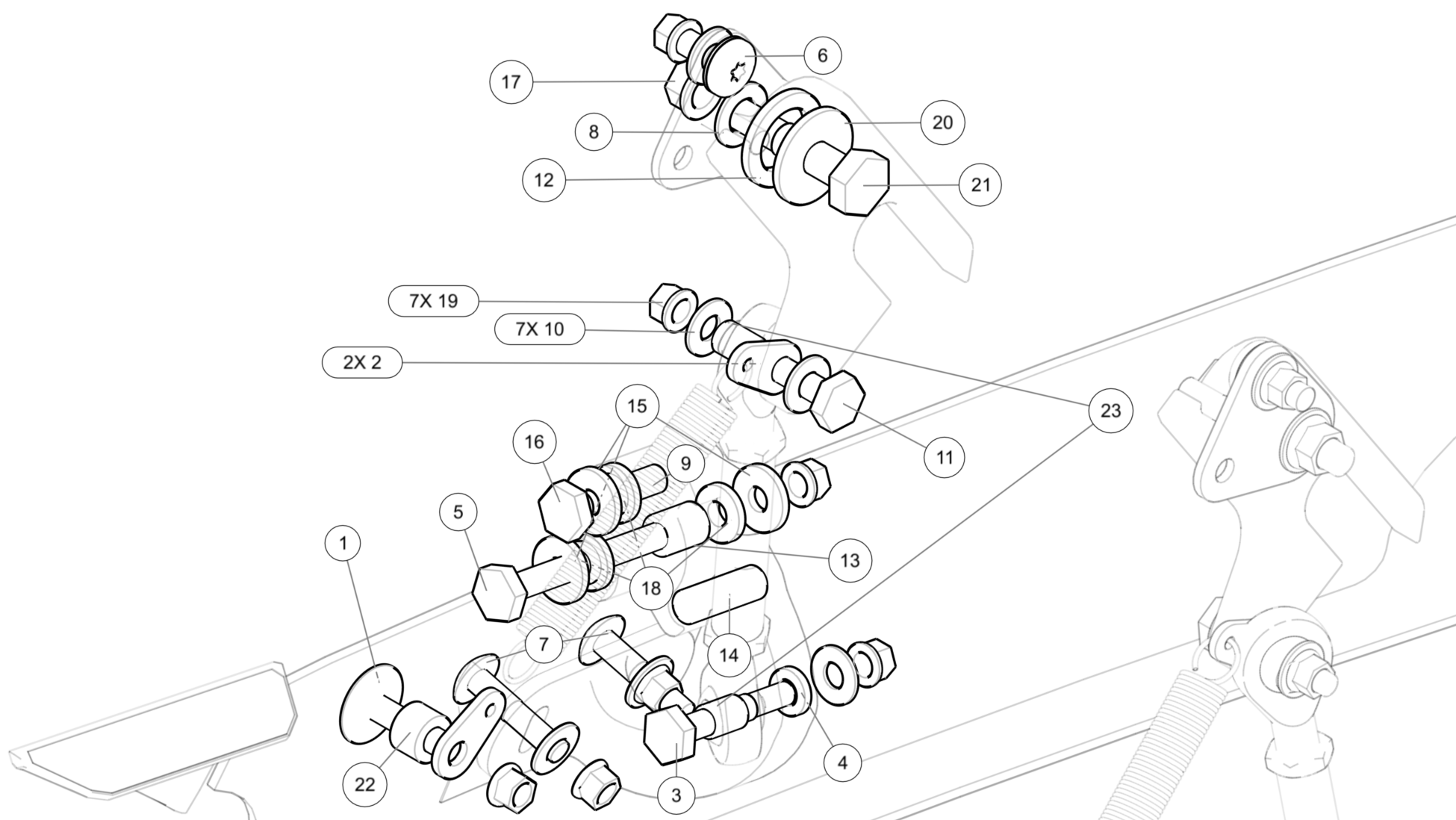

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | CB5000CRA3-12P | STUD, ADH BONDED, SMALL BASE, .190-32X.750 | 1 | Each | |
2 | ICA010385 | CLIP, NLG DOOR EXTENSION SPRING | 2 | Each | |
3 | AN3C11A | BOLT, MACH, CRES, 10-32X.750 | 1 | Each | |
4 | NAS620C10 | WASHER, FLAT, CRES, .195X.354X.063 | 1 | Each | |
5 | AN3C20A | BOLT, MACH, CRES, 10-32X1.625 | 1 | Each | |
6 | 10F50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 10-32X.500 | 1 | Each | |
7 | 10F87MTT3/50TL | SCREW, MACH TH, 6LOBE, CRES, 10-32X.875 | 2 | Each | |
8 | NAS1149C0432R | WASHER, FLAT, CRES, .250X.032, PSVT | 1 | Each | |
9 | 3591-3CN285 | INSERT, HELICOIL,SST, 10-32X.285 | 1 | Each | |
10 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 7 | Each | |
11 | AN3C10A | BOLT, MACH, CRES, 10-32X.625 | 1 | Each | |
12 | 90295A492 | WASHER, FLAT, NYLON, .505X.750X.057-.067 | 1 | Each | |
13 | ICA014423 | BEARING, SLEEVE, BRONZE, .188X.314X.375 | 1 | Each | |
14 | 97395A485 | PIN, CRES, .250X.750 | 1 | Each | |
15 | 75101 | WASHER, SELF SEALING, #10 | 3 | Each | |
16 | AN3C4A | BOLT, MACH, CRES, 10-32X.125 | 1 | Each | |
17 | MS21043-4 | NUT, SLFLKG, RDC HEX, CRES, .250-28 | 1 | Each | |
18 | NAS77C3-005 | BUSHING, FLNGD, UNLINED, CRES, .190X.050 | 3 | Each | |
19 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 7 | Each | |
20 | ICA011794 | WASHER, FLAT, SS, .250X.750X.06-.09, PSVT | 1 | Each | |
21 | AN4C11A | BOLT, MACH, CRES, .250-28X.688 | 1 | Each | |
22 | 93013A605 | SPACER, AL, .192X.375X.250 | 1 | Each | |
23 | ICA008887 | BUSHING, CRES, .190X.250X.340 | 2 | Each |

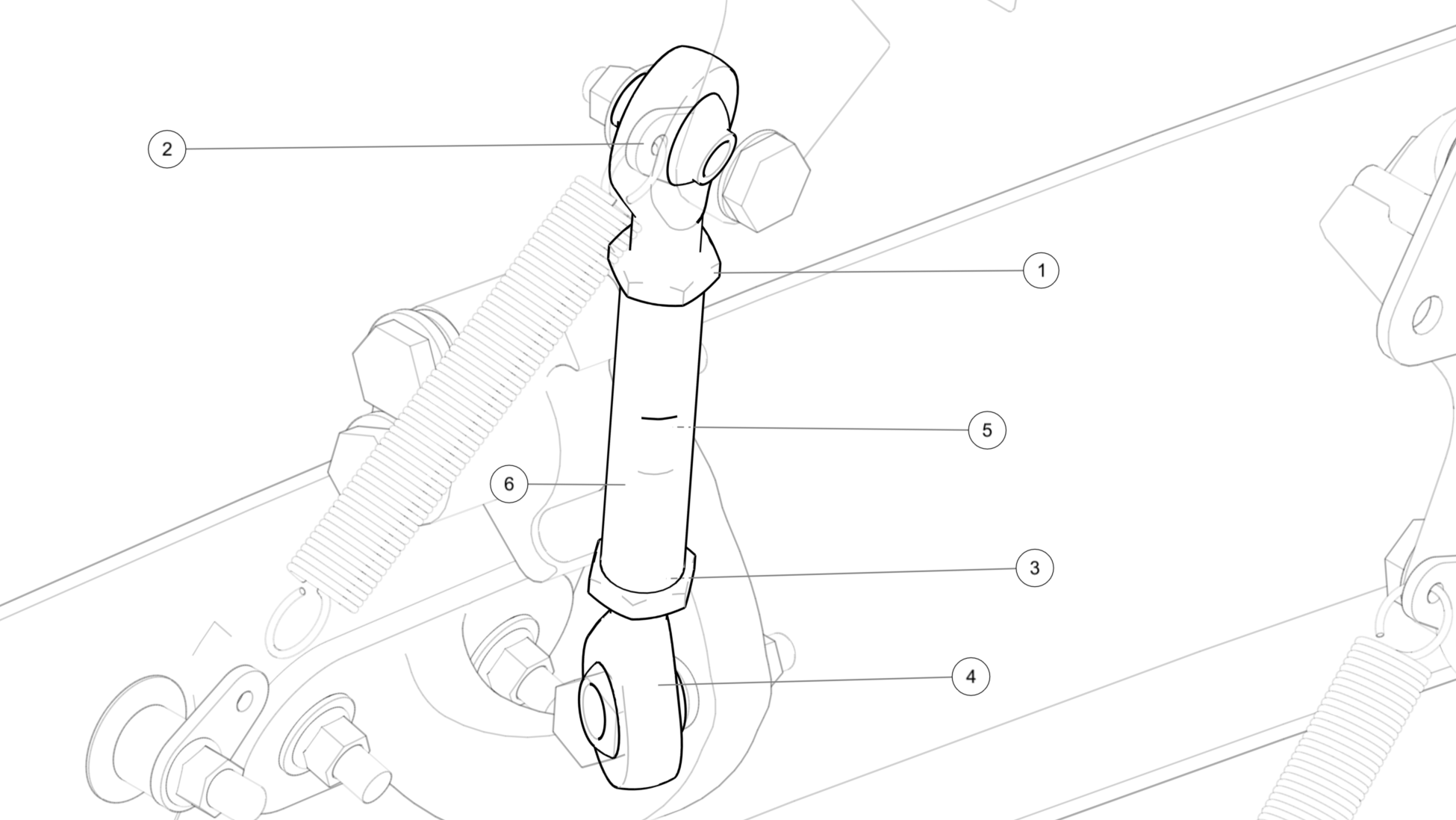

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | AN316C4R | NUT, JAM, HEX, CRES, .250-28RH | 1 | Each | Included in ME000270 |
2 | 60645K121 | ROD END, SPHER, EXT THD, .250-28RHX.250 | 1 | Each | Included in ME000270 |
3 | AN316C4L | NUT, JAM, HEX, CRES, .250-28LH | 1 | Each | Included in ME000270 |
4 | 60645K122 | ROD END, SPHER, EXT THD, .250-28LHX_.250 | 1 | Each | Included in ME000270 |
5 | ICA010048 | PUSHROD, AFT NLG DOOR | 1 | Each | Included in ME000270 |
6 | ME000270 | PUSH ROD, AFT NLG DOOR, SUBASSY | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | AN3C12A | BOLT, MACH, CRES, 10-32X.875 | 1 | Each | |
2 | 10F87MTT3/50TL | SCREW, MACH TH, 6LOBE, CRES, 10-32X.875 | 2 | Each | |
3 | NAS77C3-013 | BUSHING, FLNGD, UNLINED, | 2 | Each | |
4 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 2 | Each | |
5 | ICA014423 | BEARING, SLEEVE, BRONZE, .188X.314X.375 | 1 | Each | |
6 | 75101 | WASHER, SELF SEALING, #10 | 2 | Each | |
7 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 3 | Each |
