Instruments, Antenna Installation, ELT, XPDR and COM GND PLN
100902-00

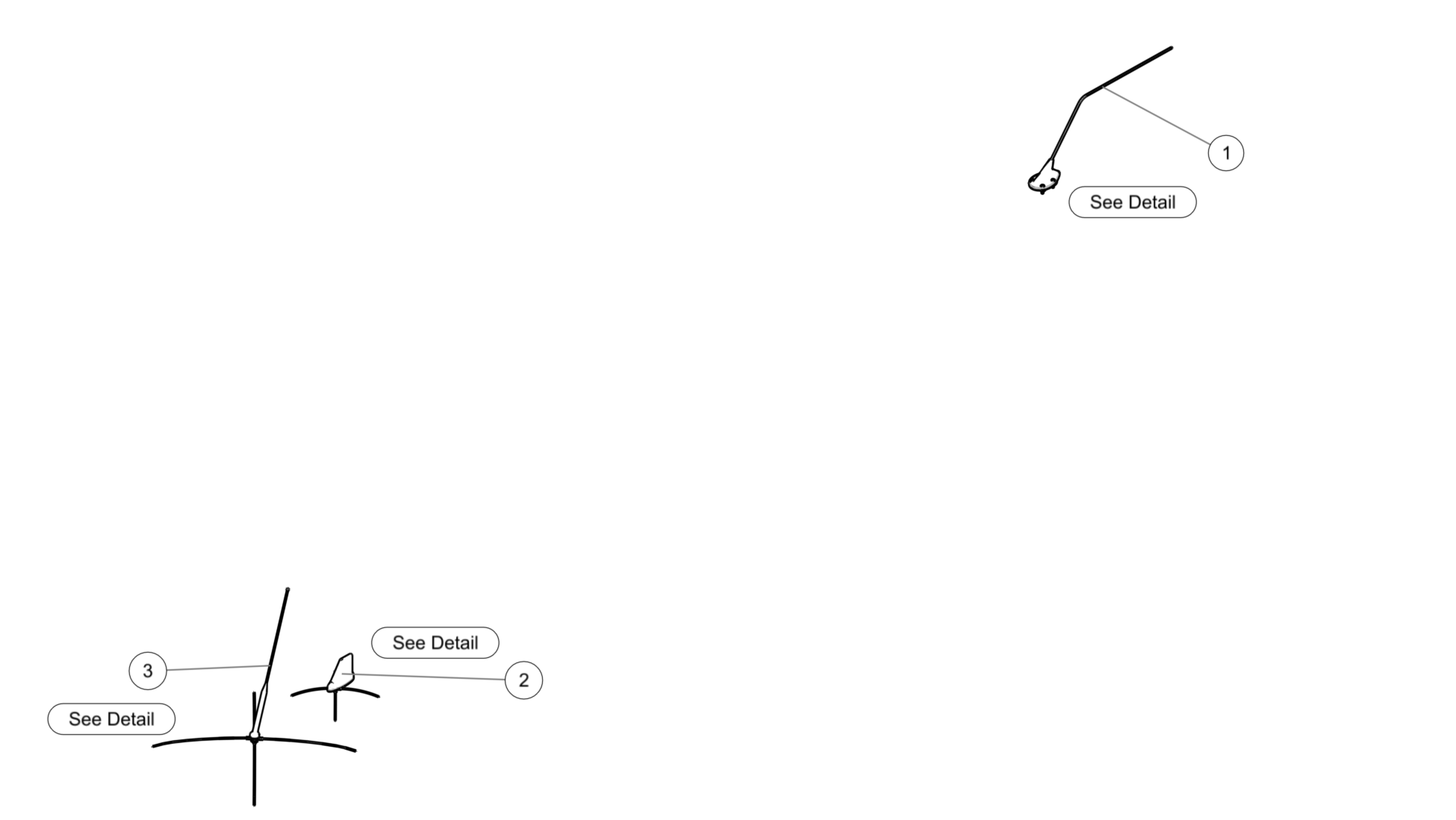

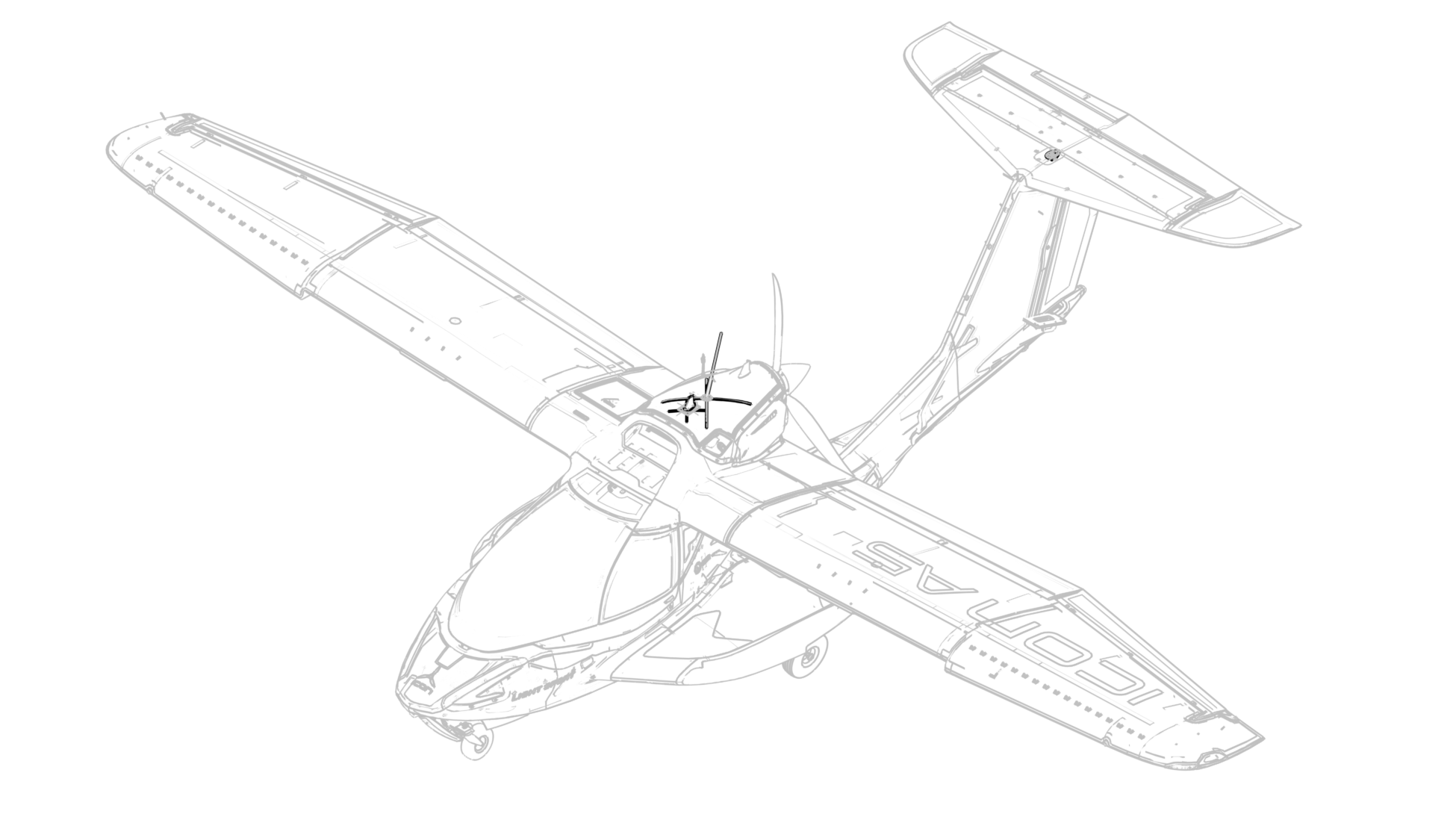

Antenna installation for the Emergency Locator Transmitter (ELT), XPDR, and COM ground plane. 796 configuration shown.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | AV-17 | ANTENNA, COM | 1 | Each | |
2 | AV-74 | ANTENNA, TRANSPONDER | 1 | Each | |
3 | ICA012199 | ANTENNA, ELT, ASSY | 1 | Each | This part is obsolete. Refer to SB-021425. |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C100MTF3/100 | SCREW, MACH FLH, 6LOBE, CRES, 8-32X1.00 | 4 | Each | |
2 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 4 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

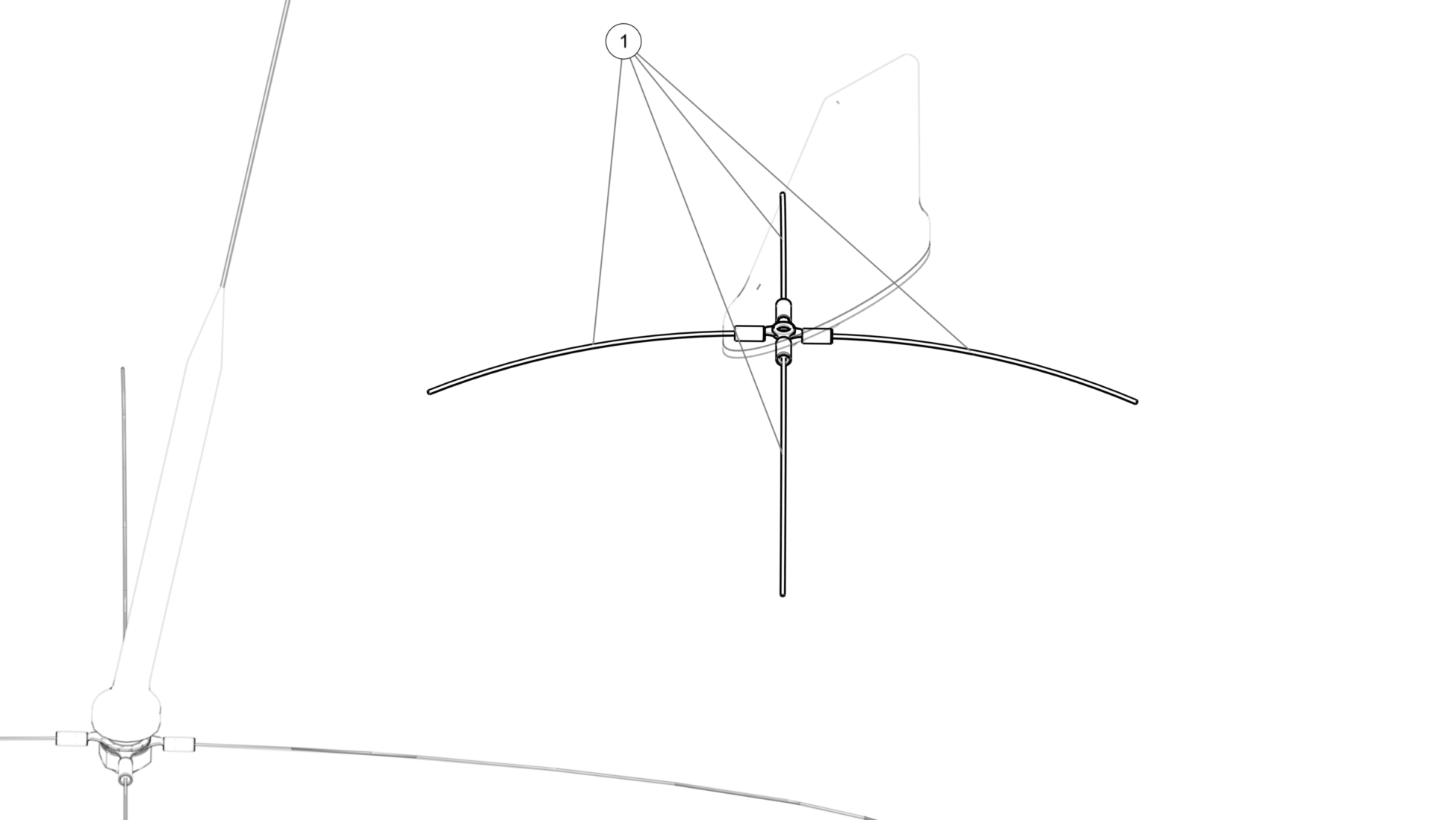

1 | ICA012181 | GROUND PLANE, TRANSPONDER ANTENNA | 4 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

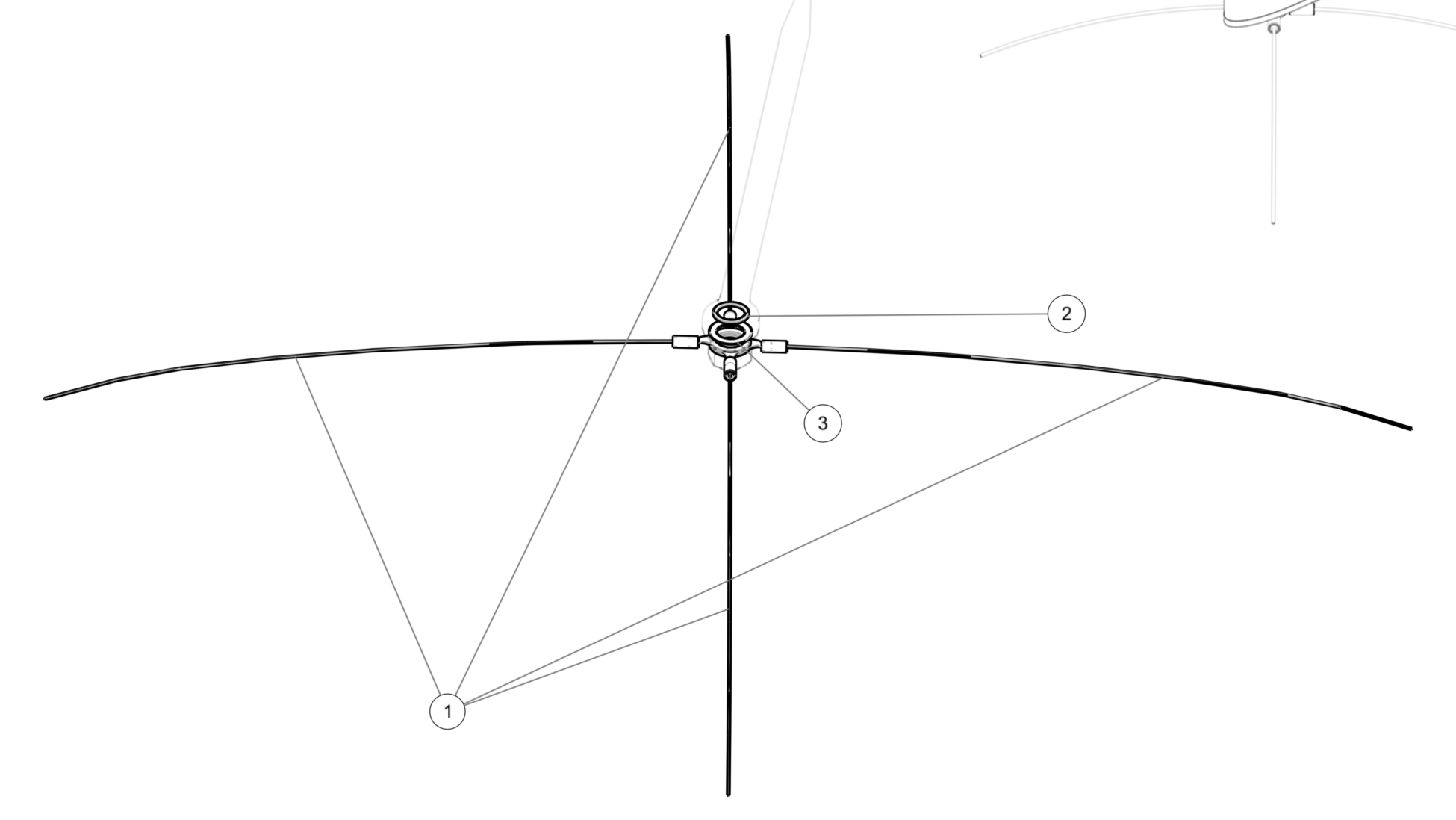

1 | ICA012182 | GROUND PLANE, ELT ANTENNA | 4 | Each | |
2 | ICA015003 | WASHER, ELECTRICAL-INSULATING, .500 ID, .625 OD, .028-.034 | 1 | Each | |
3 | ICA015004 | WASHER, ELECTRICAL-INSULATING, .500 ID, .750 OD, .014-.016 | 1 | Each |
