Fuselage, Control Surface, Air Rudder
100837-00

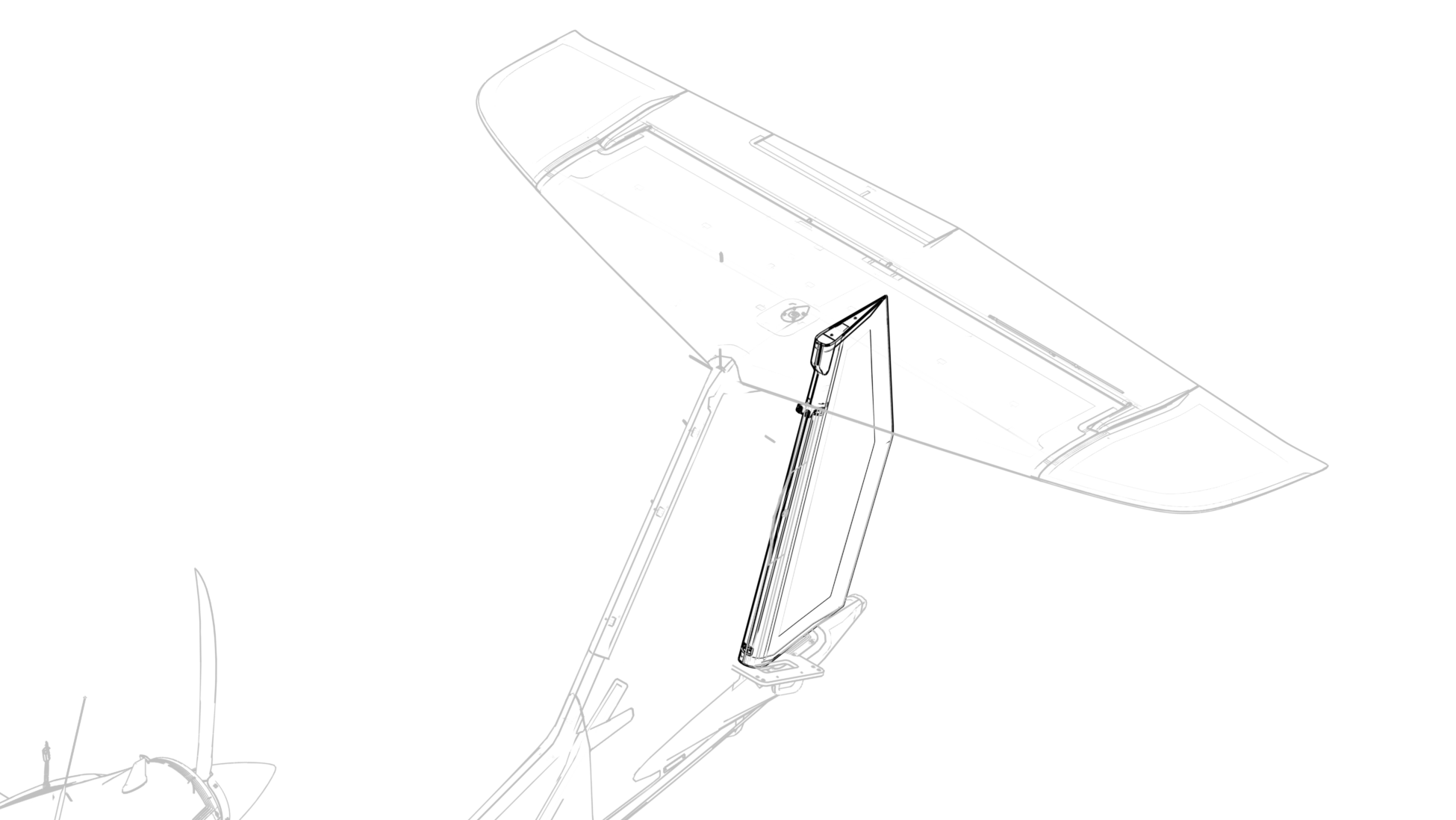

Air rudder installation into the fuselage.

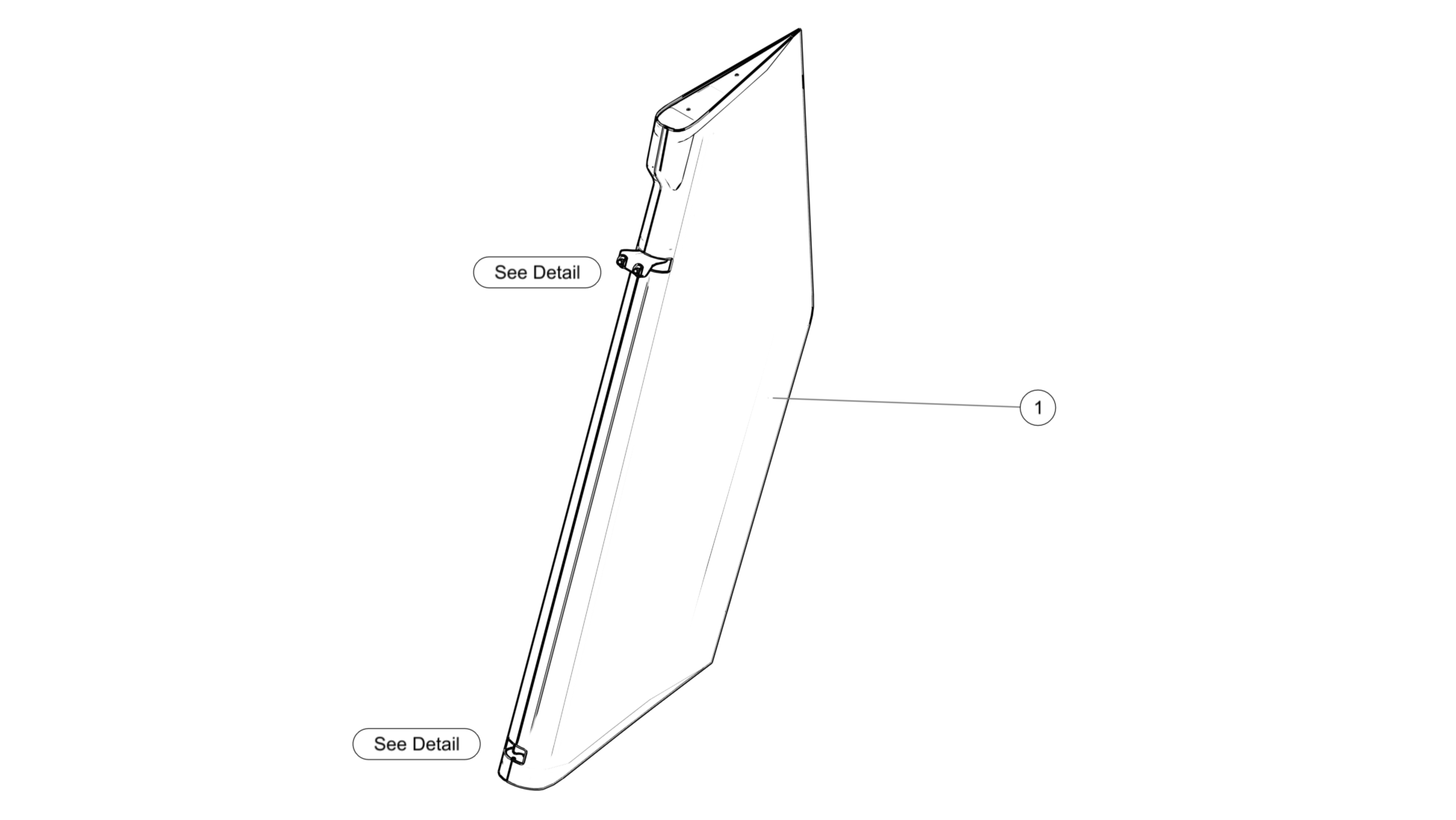

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000688 or ME001109-PSAPR ME001109-PSEBL ME001109-PSEGR ME001109-PSPUR ME001109-PSSGY ME001109-PSVEL ME001109-PSARD | AIR RUDDER BALANCE, SUBASSY or AIR RUDDER, NO BALLAST, SUBASSY | 1 | Each | ME000688, AIR RUDDER BALANCE, SUBASSY with the RG-25XC Lead Acid Battery ME001109, AIR RUDDER, NO BALLAST, SUBASSY with the RG-12LSA Lead Acid Battery PSAPR, PSVEL, and PSPUR are interchangeable (white) PSEBLE, PSARD, and PSSGY are interchangeable (gray) |

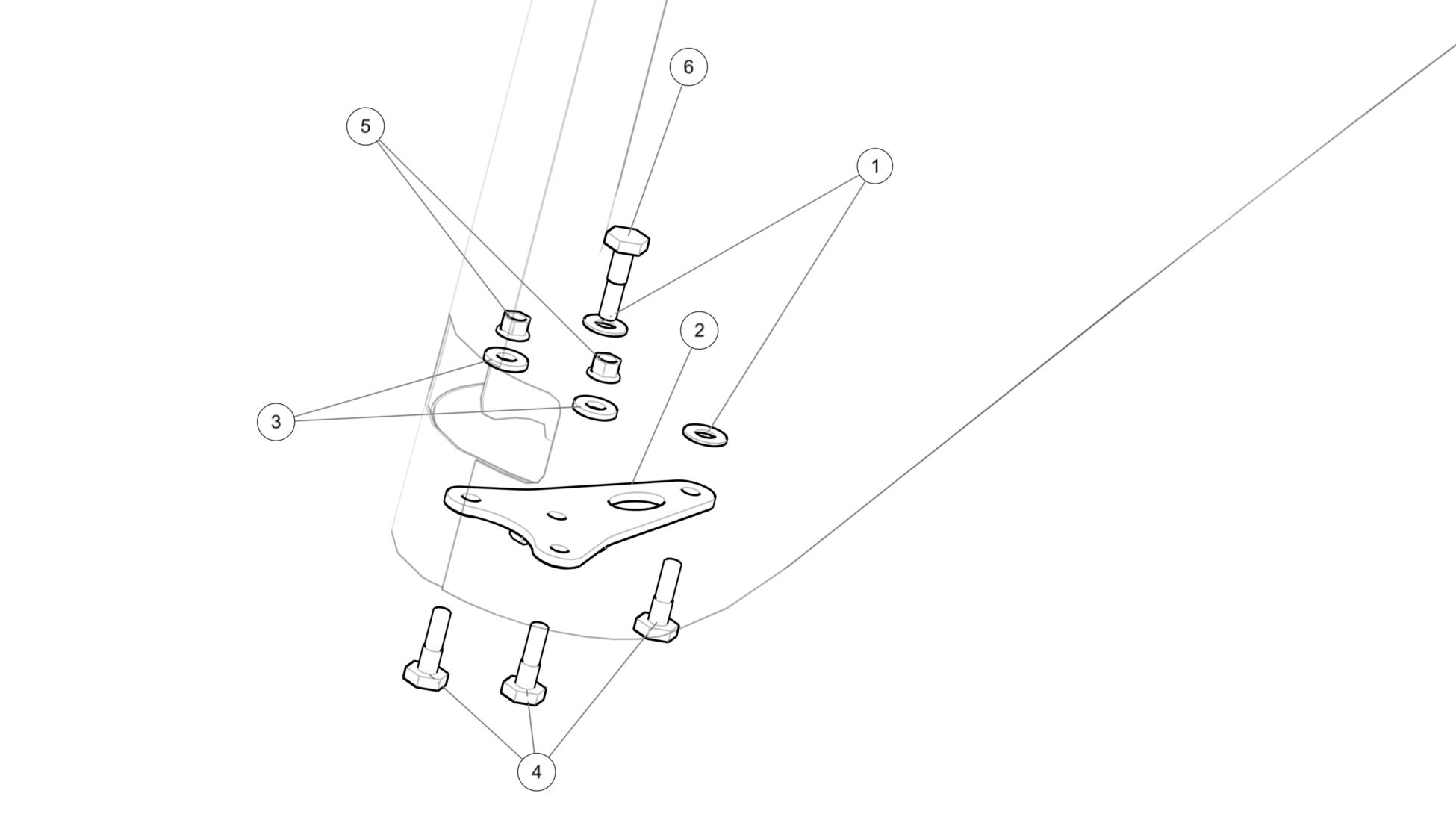

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 2 | Each | Included in ME000688 and ME001109 |
2 | ICA007682 | PLATE, TORQUE, AIR RUDDER | 1 | Each | Included in ME000688 and ME001109 |
3 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 2 | Each | Included in ME000688 and ME001109 |
4 | AN3C5A | BOLT, MACH, CRES, 10-32X.250 | 3 | Each | Included in ME000688 and ME001109 |
5 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 2 | Each | Included in ME000688 and ME001109 |
6 | AN3C6A | BOLT, MACH, CRES, 10-32X.375 | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | M81934/2-06C008 | BEARING, SLEEVE, FLGD, SLFLBR, CRES, .375X.250 | 1 | Each | |
2 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 2 | Each | |
3 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 2 | Each | |
4 | AN3C6A | BOLT, MACH, CRES, 10-32X.375 | 2 | Each | |
5 | ME000750 | AIR RUDDER HINGE, SUBASSY | 1 | Each | Includes M81934/2-06C008, BEARING, SLEEVE, FLGD, SLFLBR, CRES, .375X.250 |
