Wing, Control Surface, Flap, LH
100811-01

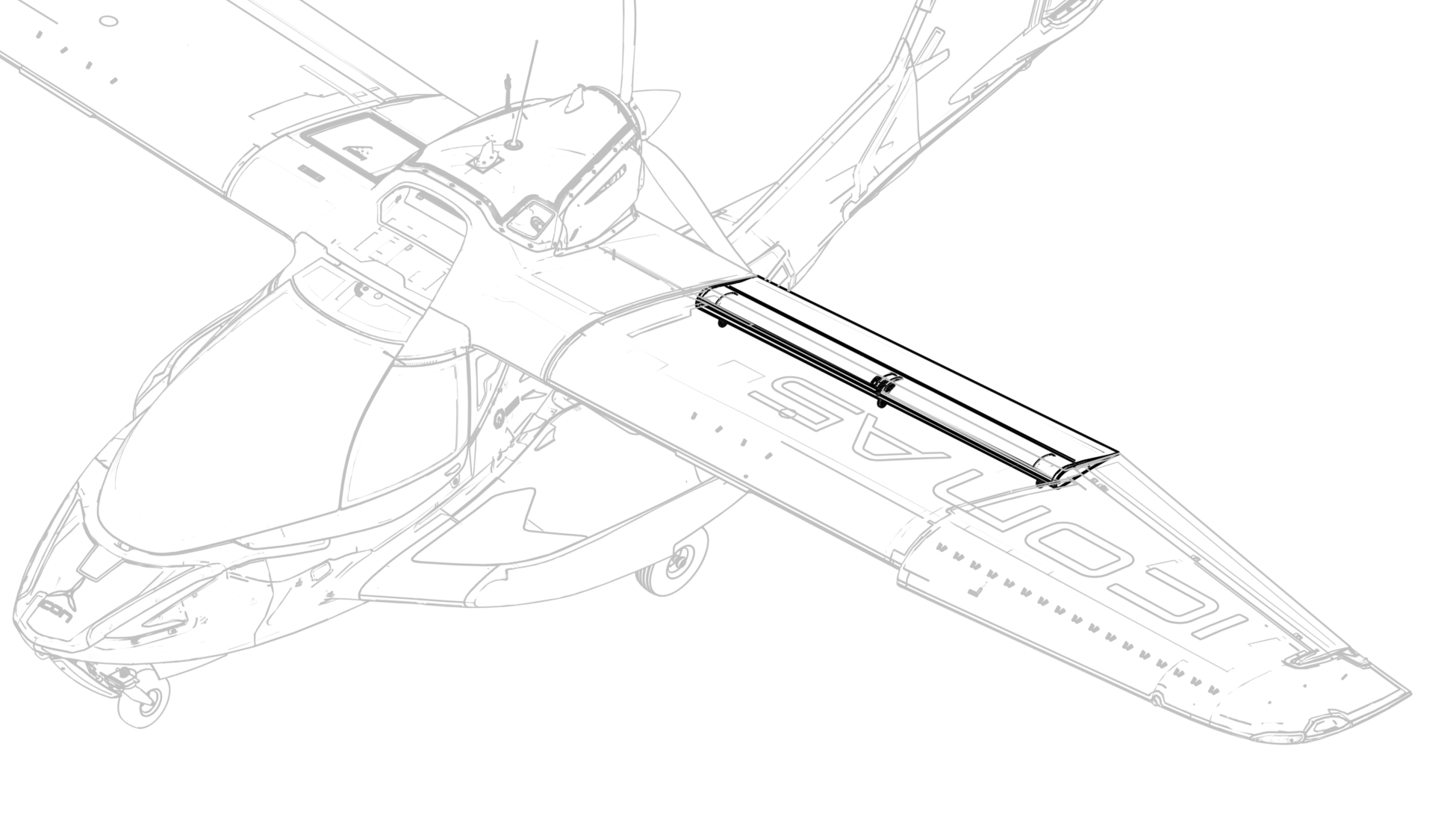

Left-hand side flap control surface installation onto wing.

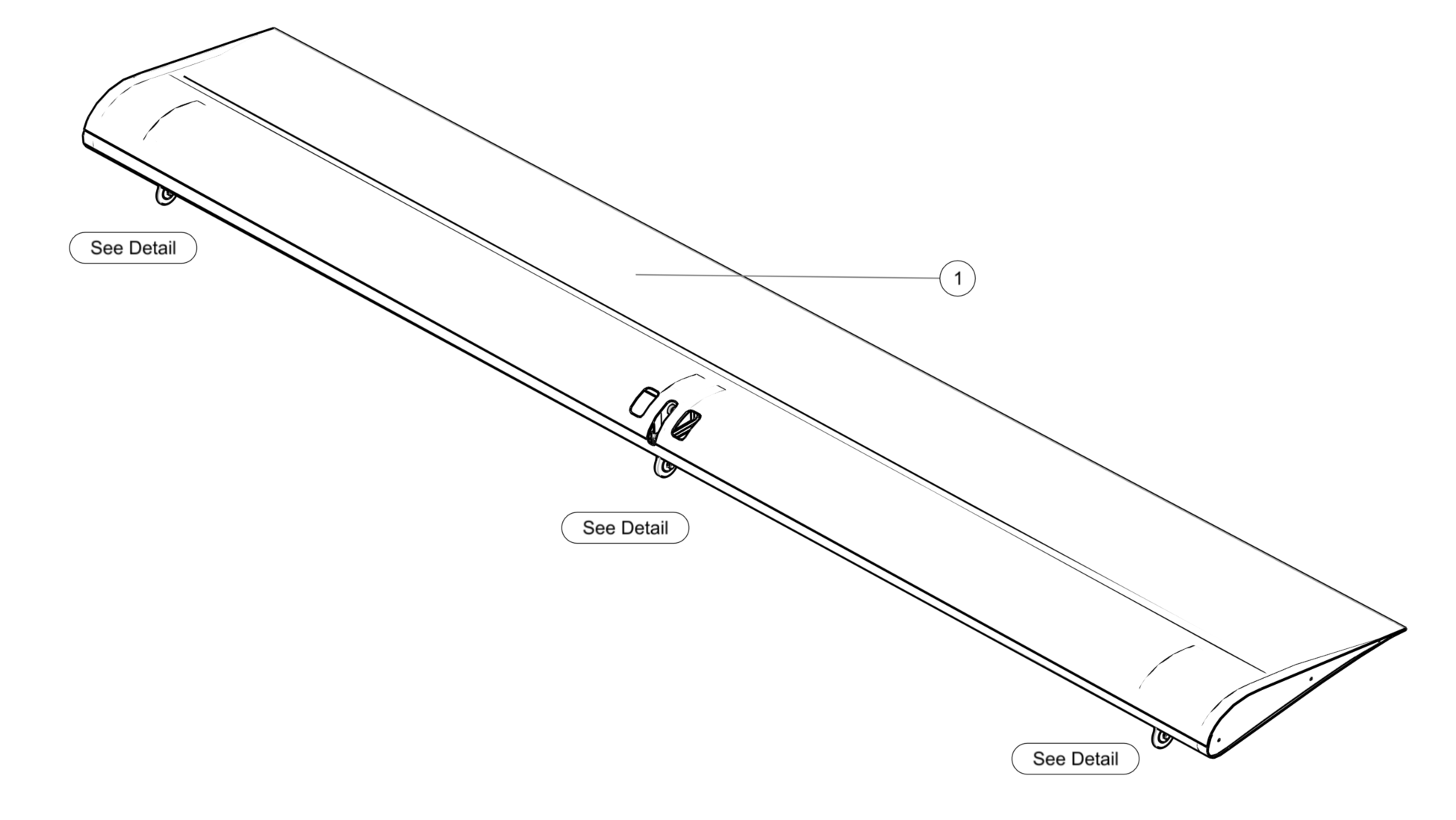

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000895 | PAINTED, FLAP, LH | 1 | Each |

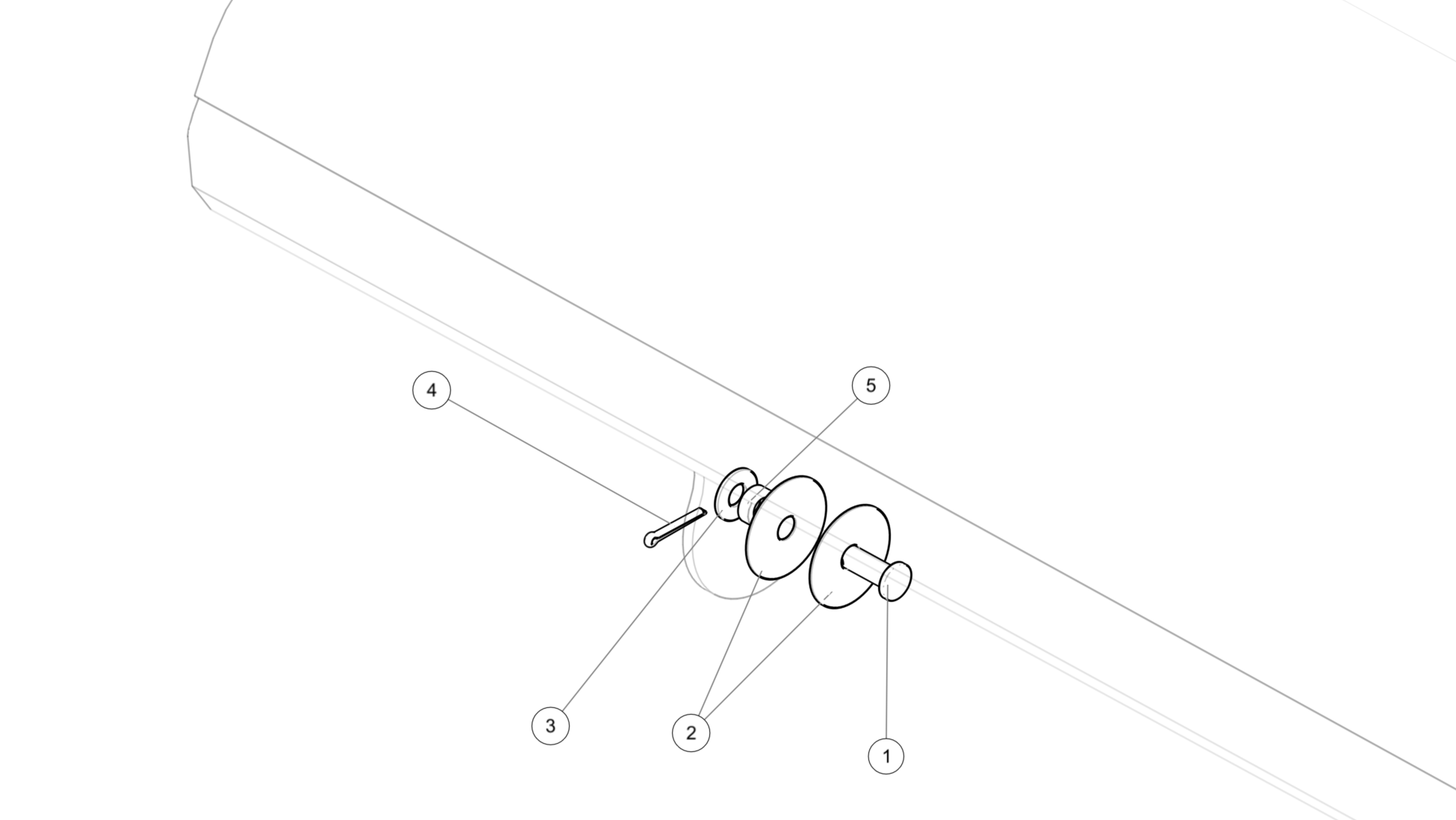

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA010725 | PIN, HINGE, FLAP, INBD, OUTBD | 1 | Each | |
2 | 95630A460 | WASHER, FLAT, PTFE, .210X.880X.017-.023 | 2 | Each | |
3 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 1 | Each | |
4 | MS24665-151 | PIN, COTTER, CRES, .063X.500 | 1 | Each | |
5 | ICA011943 | BUSHING, PLAIN, CRES, .1890 X .314 X.109 | 1 | Each | Included in ME000895 |

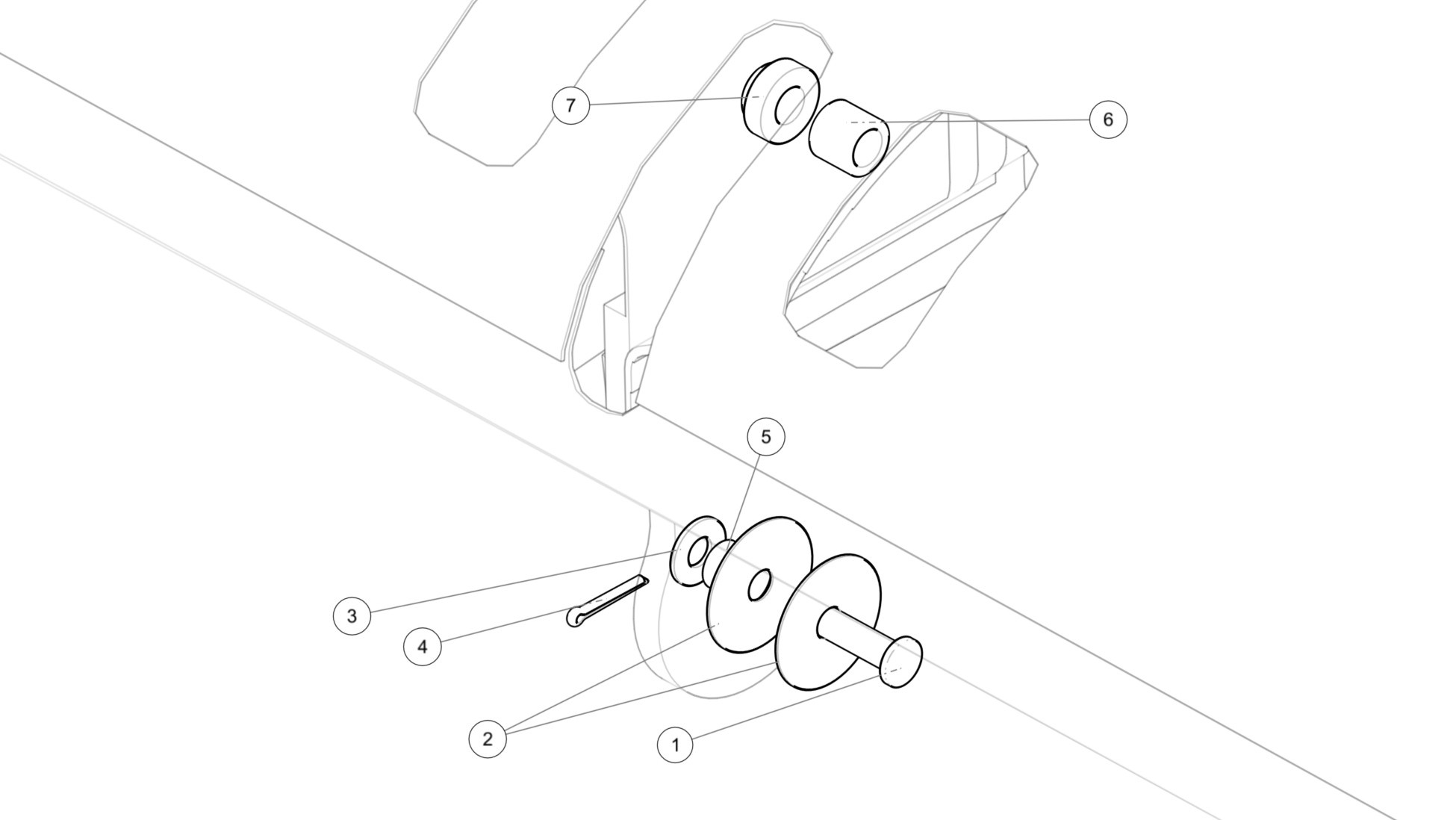

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA010726 | PIN, HINGE, FLAP, CTR | 1 | Each | |
2 | 95630A460 | WASHER, FLAT, PTFE, .210X.880X.017-.023 | 2 | Each | |
3 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 1 | Each | |
4 | MS24665-151 | PIN, COTTER, CRES, .063X.500 | 1 | Each | |
5 | ICA011944 | BUSHING, PLAIN CRES, .1890 X 314 X .27 | 1 | Each | Included in ME000895 |
6 | NAS75C4-010 | BUSHING, PLAIN, CRES, .250X.375X.313 | 1 | Each | Included in ME000895 |
7 | ICA009377 | BUSHING, FLANGE, .250X.500X.235 | 1 | Each | Included in ME000895 |

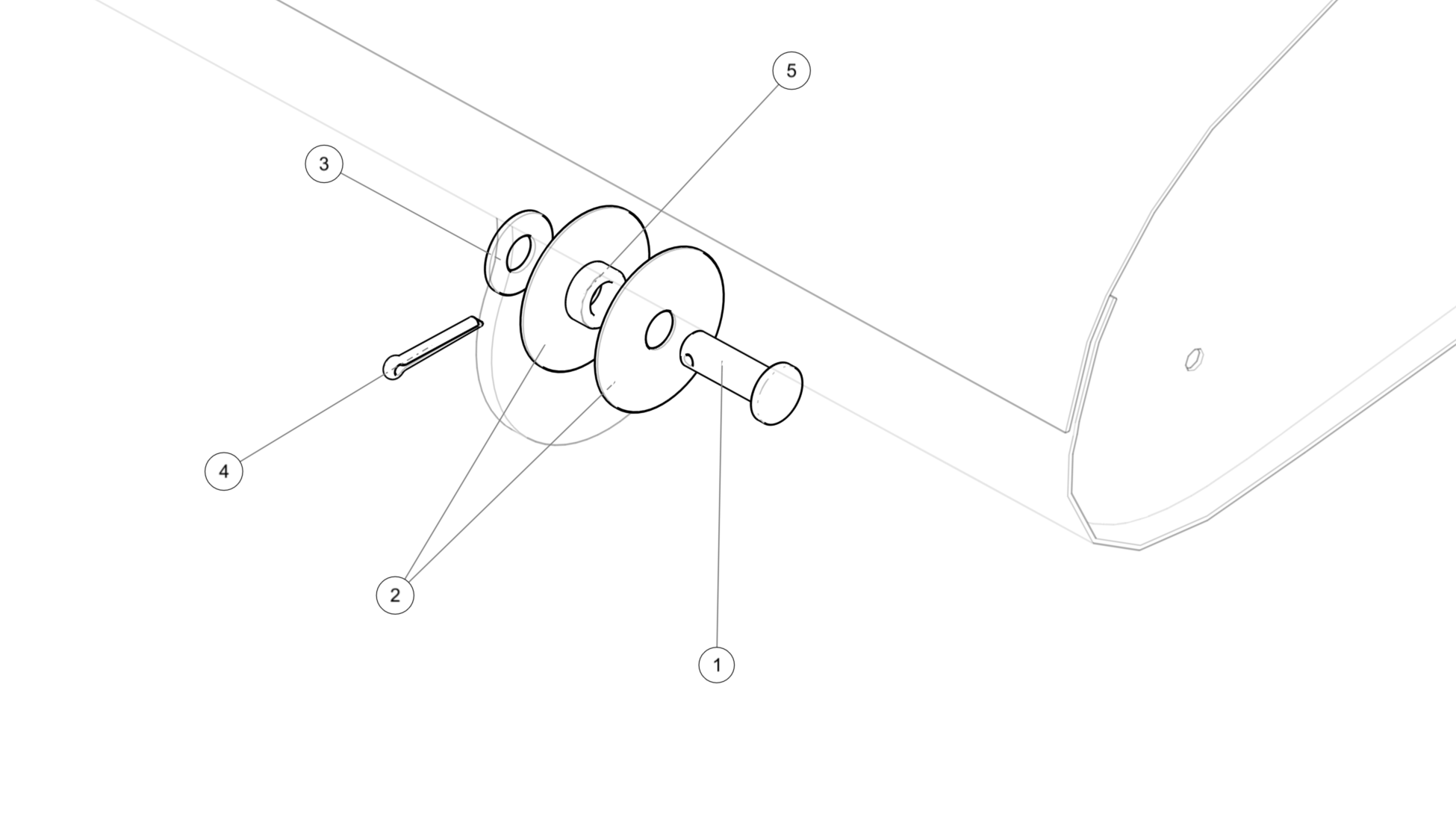

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA010725 | PIN, HINGE, FLAP, INBD, OUTBD | 1 | Each | |
2 | 95630A460 | WASHER, FLAT, PTFE, .210X.880X.017-.023 | 2 | Each | |
3 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 1 | Each | |
4 | MS24665-151 | PIN, COTTER, CRES, .063X.500 | 1 | Each | |
5 | ICA011943 | BUSHING, PLAIN, CRES, .1890 X .314 X.109 | 1 | Each | Included in ME000895 |
