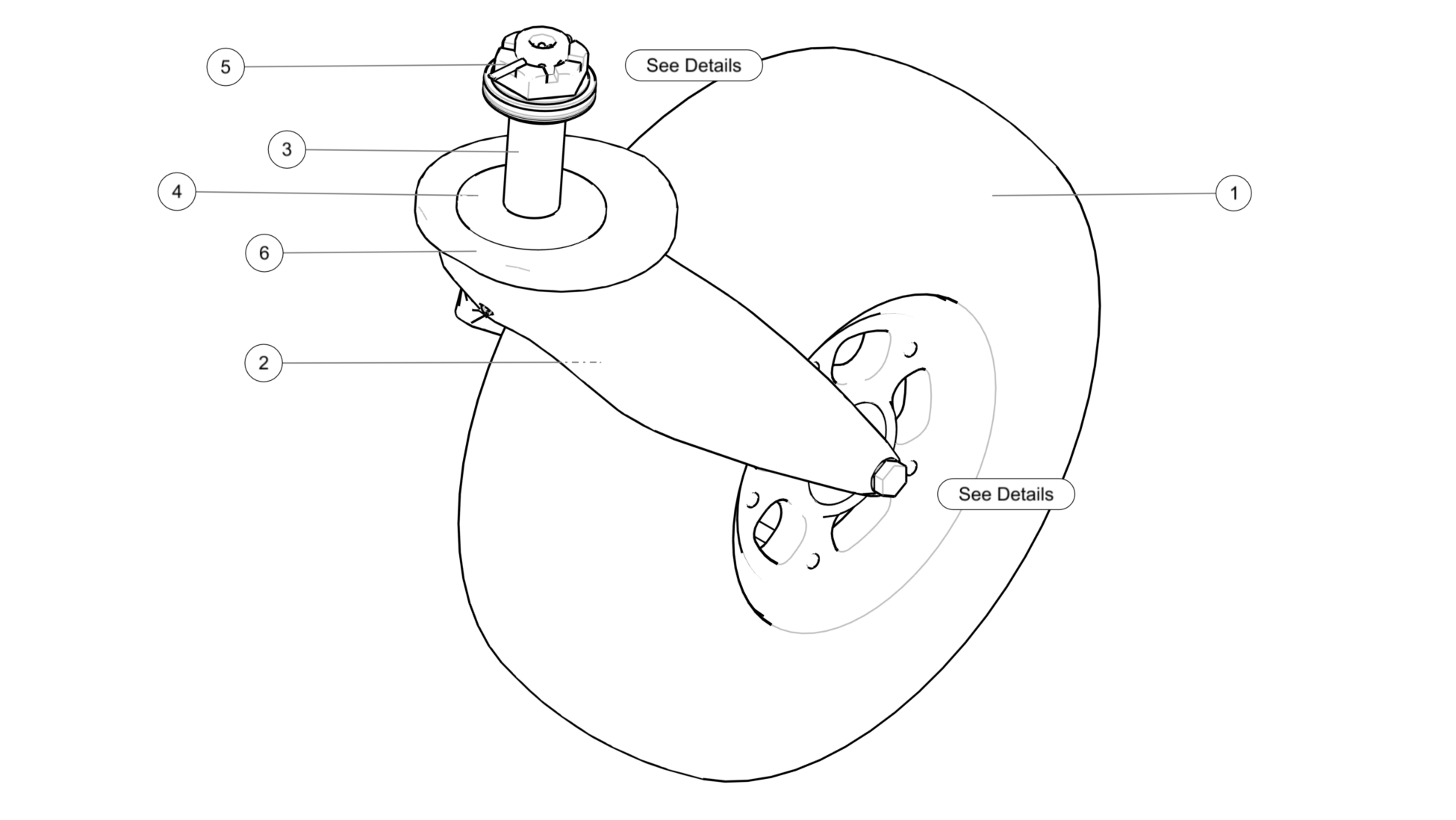

1

ICA013789

TIRE, 10-3.50 X 4.00, 4 PLY

1

Each

Alternate Part Number: ICA013710 (TIRE, 10-3.50 X 4.00, 6-PLY)

2

ICA006076

FORK, NLG

1

Each

3

ICA007118

SHAFT, FORK PIVOT, NLG

1

Each

4

ICA007173

BEARING, THRUST, FORK, NLG

1

Each

5

AN320C12

NUT, PLAIN, CSTL, CRES, .75-16

1

Each

6

ICA007172

CAM, HORIZONTAL, WHEEL CENTERING, NLG

1

Each

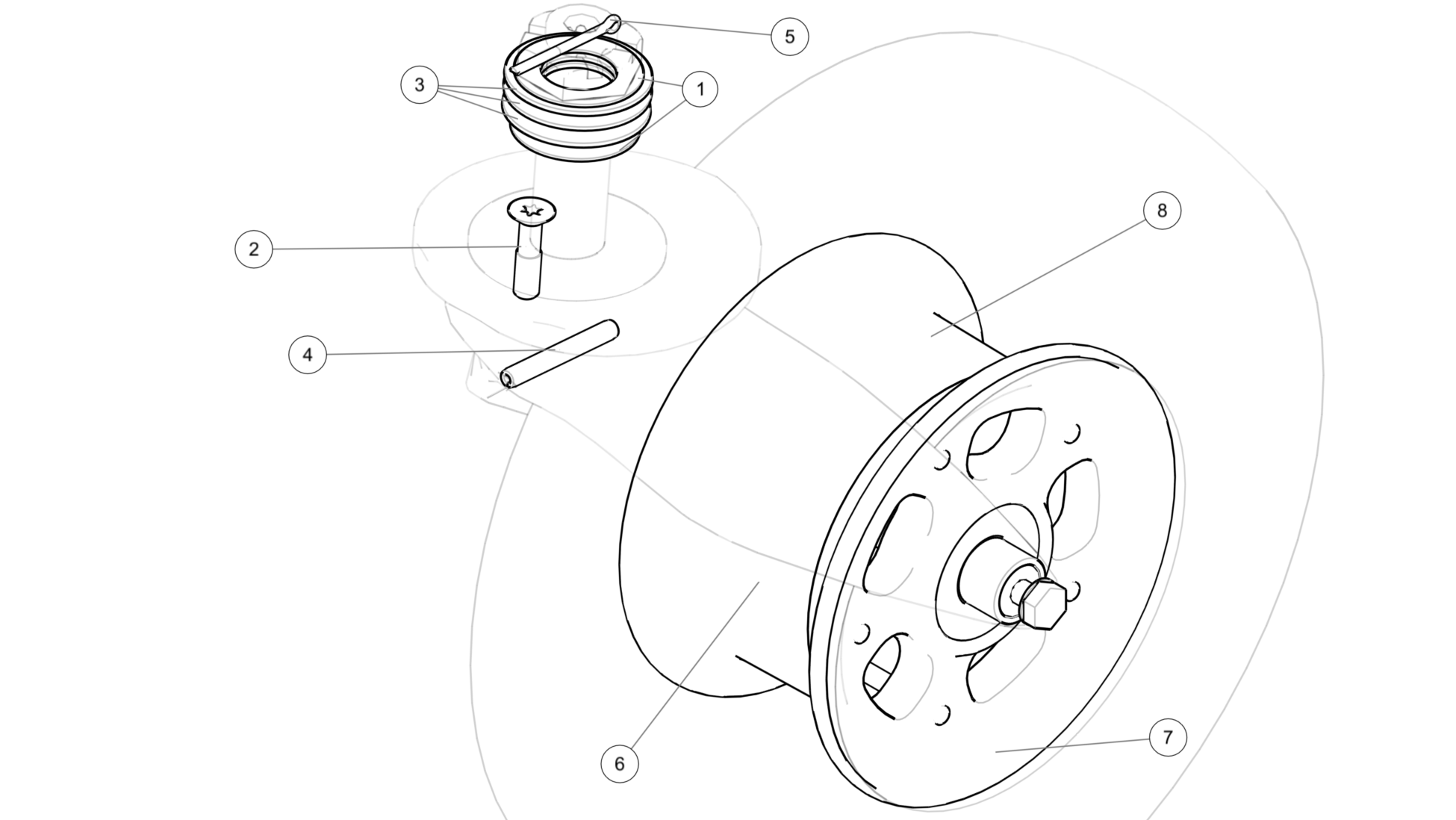

1

NAS1149C1232R

WASHER, FLAT, CRES, .750X.032, PSVT

2

Each

2

25C100MTF3/100/50TL

SCREW, MACH FLH, 6LOBE, CRES, .250-20X1.00X.50

1

Each

3

9713K86

WASHER, BELLEVILLE, .755X1.500X.045

3

Each

4

MS16562-240

PIN, SPRING, CRES, .188X1.500

1

Each

5

MS24665-304

PIN, COTTER, CRES, .094X1.25

1

Each

6

ICA015073

WHEEL, 3.5-4, BLACK, NLG, LH

1

Each

Included in ICA015074

7

ICA015072

WHEEL, 3.5-4, BLACK, NLG, RH

1

Each

Included in ICA015074

8

ICA015074

WHEEL ASSY, 3.5-4, BLACK, NLG

1

Each

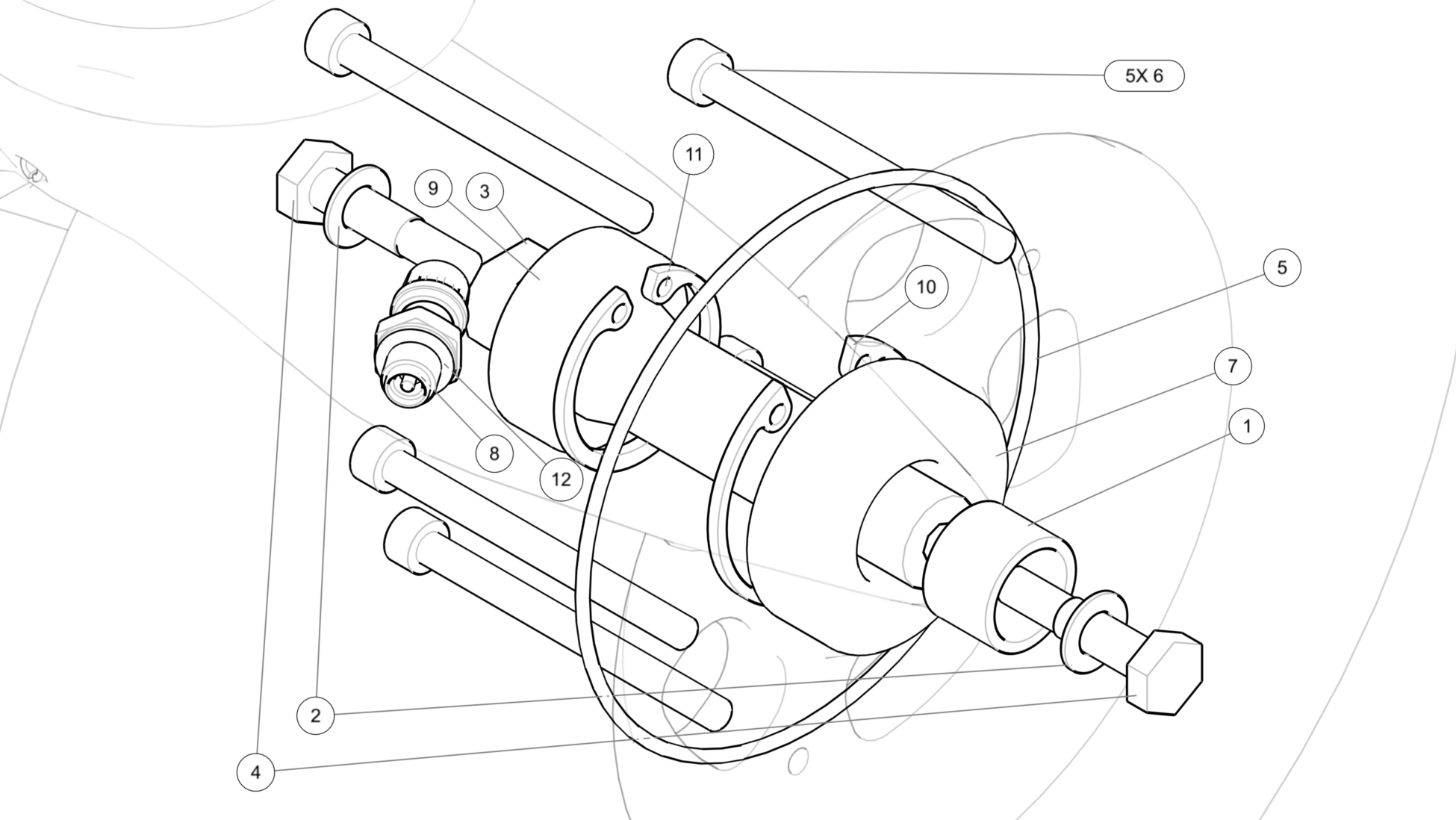

1

ICA011894

SPACER, AXLE, NOSE WHEEL

1

Each

2

NAS1149C0432R

WASHER, FLAT, CRES, .250X.032, PSVT

2

Each

3

AV-ICON-002

AXLE, WHEEL, NLG

1

Each

4

AN4C11A

BOLT, MACH, CRES, .250-28X.688

2

Each

5

ICA015034

O-RING, WHEEL, 3.5-4, NLG

1

Each

Included in ICA015074

6

ICA015040

SCREW, WHEEL, 3.50-4, NLG

5

Each

Included in ICA015074

7

ICA015039

BEARING, WHEEL, STAINLESS, NLG, RH

1

Each

Included in ICA015074

8

ICA015037

VALVE, WHEEL

1

Each

Included in ICA015074

9

ICA015038

BEARING, WHEEL, STAINLESS, NLG, LH

1

Each

Included in ICA015074

10

ICA015036

CIRCLIP, WHEEL, NLG, RH

1

Each

Included in ICA015074

11

ICA015035

CIRCLIP, WHEEL, NLG, LH

1

Each

Included in ICA015074

12

ICA015033

O-RING, VALVE, WHEEL

1

Each

Included in ICA015074
