Engine, ECU
100856-00

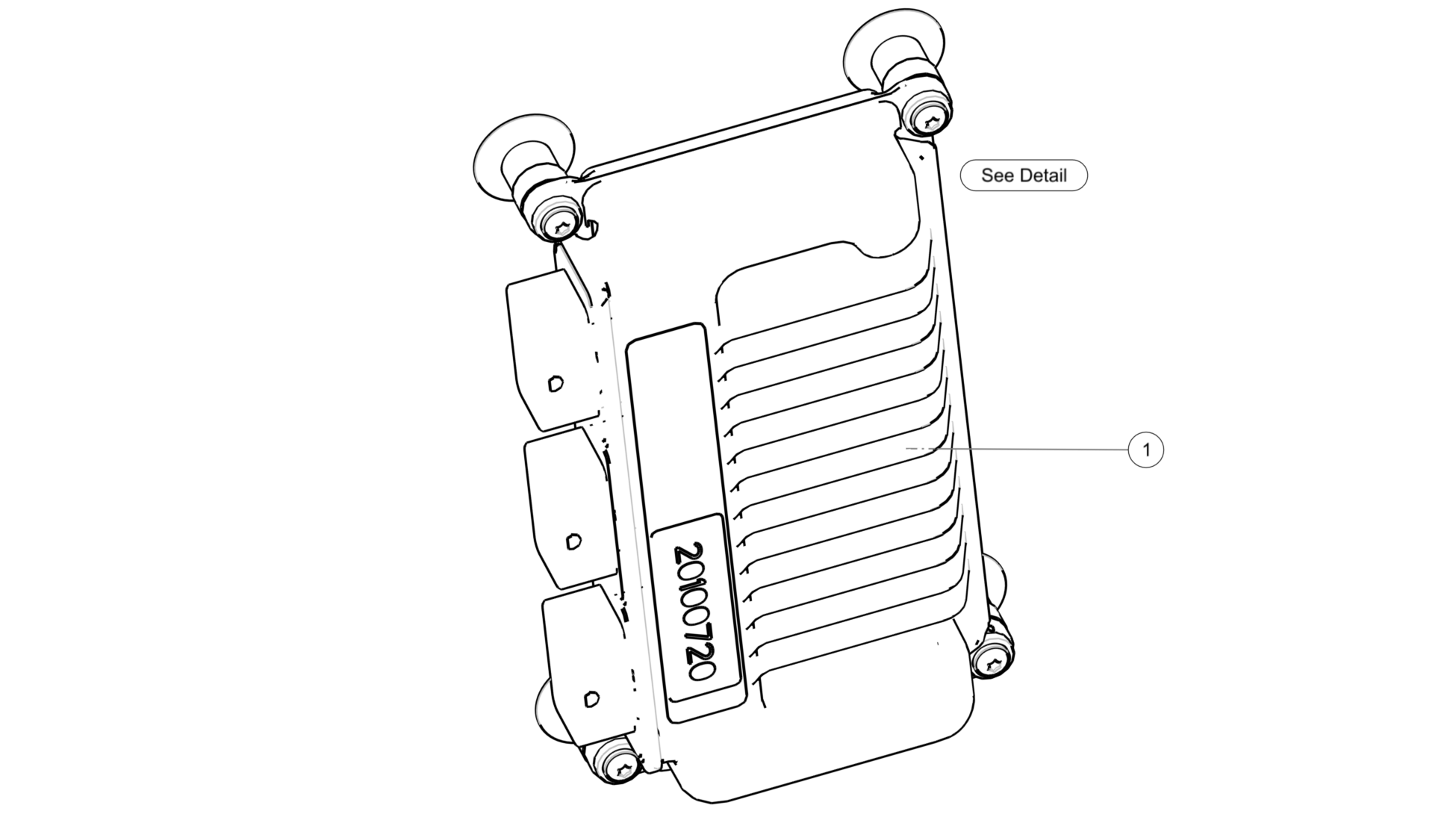

ECU Installation.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA012135 | ECU, ROTAX 912iS | 1 | Each |

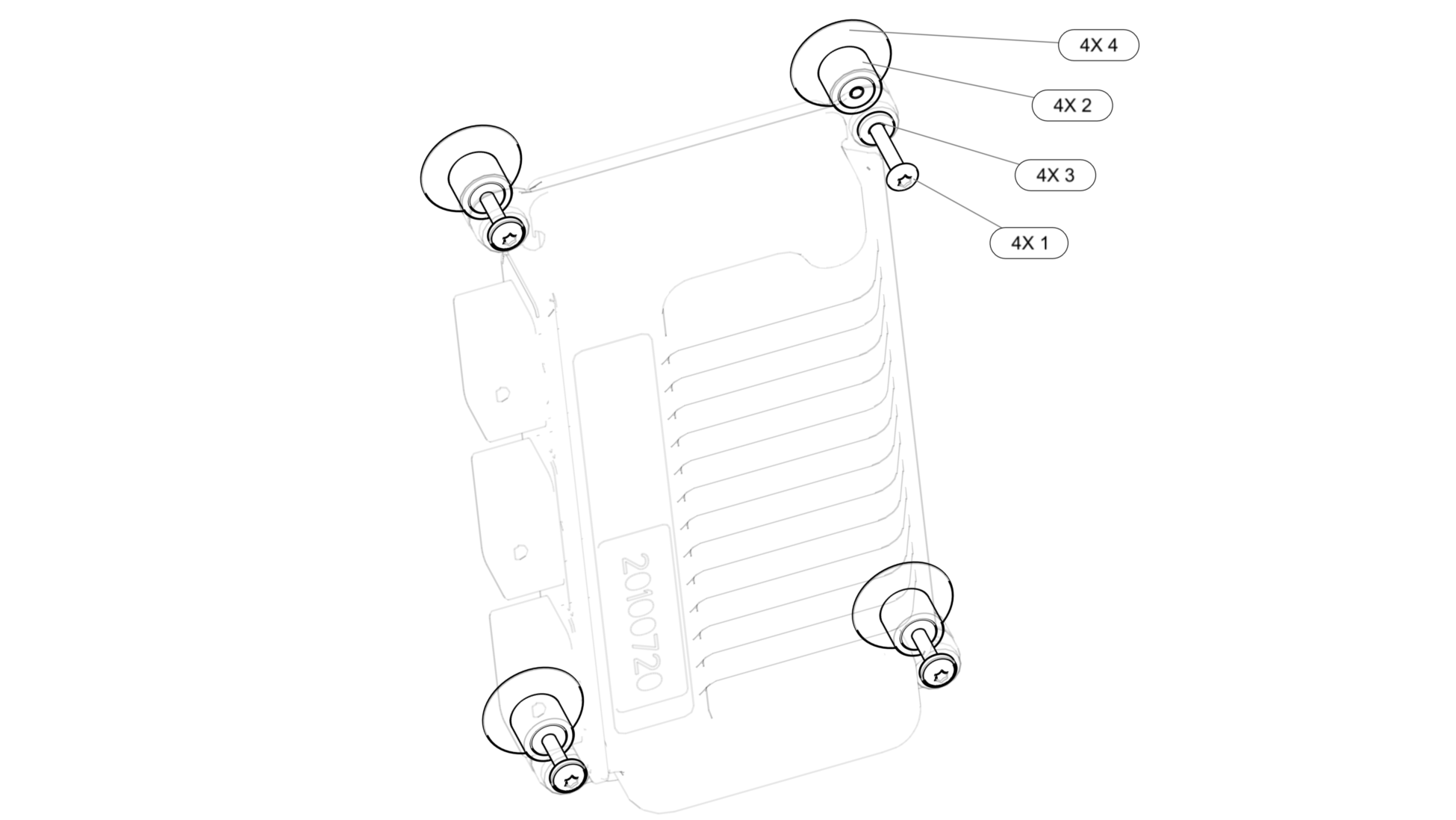

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 8C112MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X1.12 | 4 | Each | |
2 | ICA011419 | ISOLATOR, ELECTRONIC EQUIPMENT | 4 | Each | |
3 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 4 | Each | |
4 | CB4000G08CRA4P | STUD, ADH BND, FBRG, A286, 8-32X.250 | 4 | Each |
