Instruments, Static Installation
100895-00

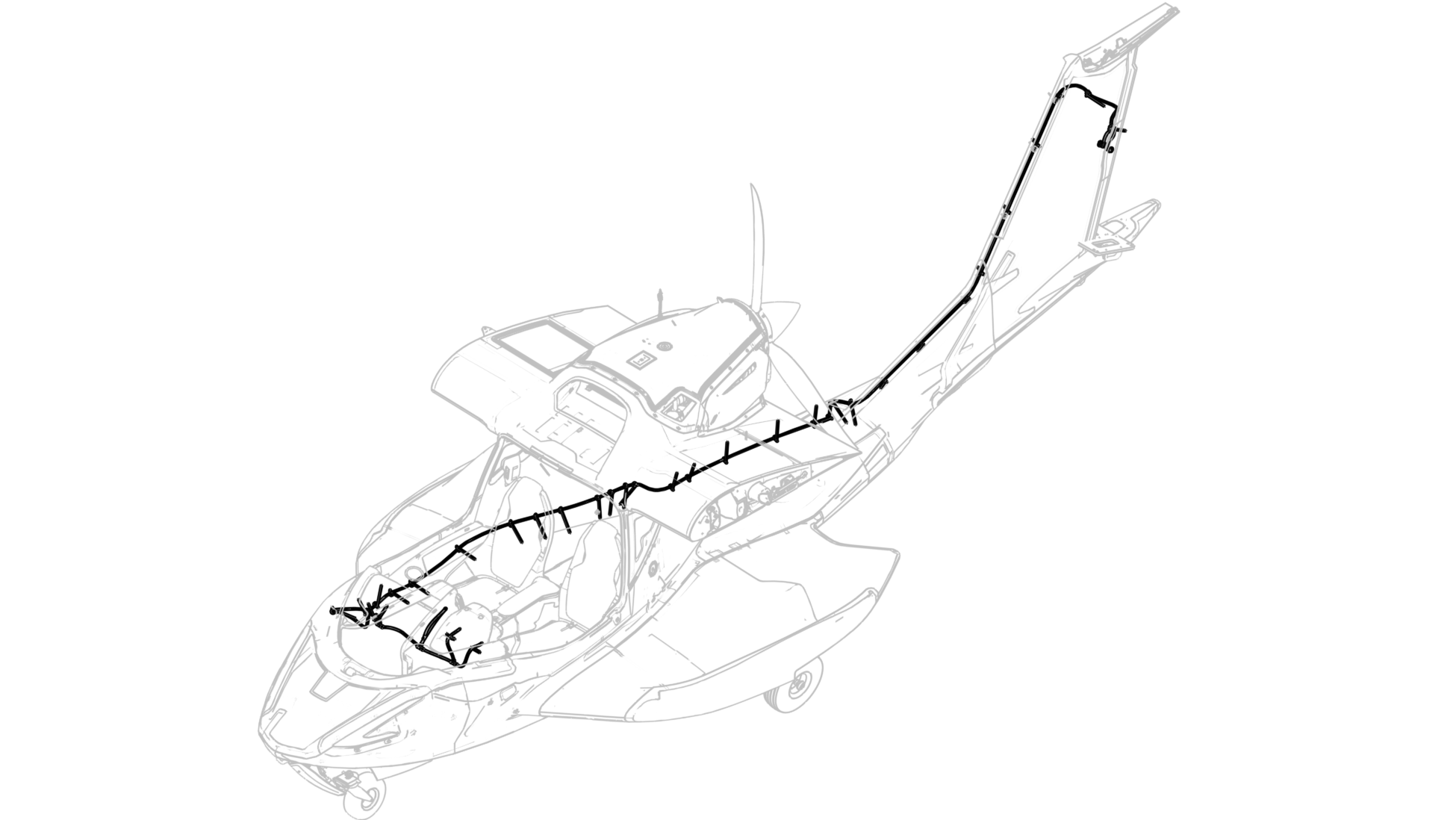

Static installation.

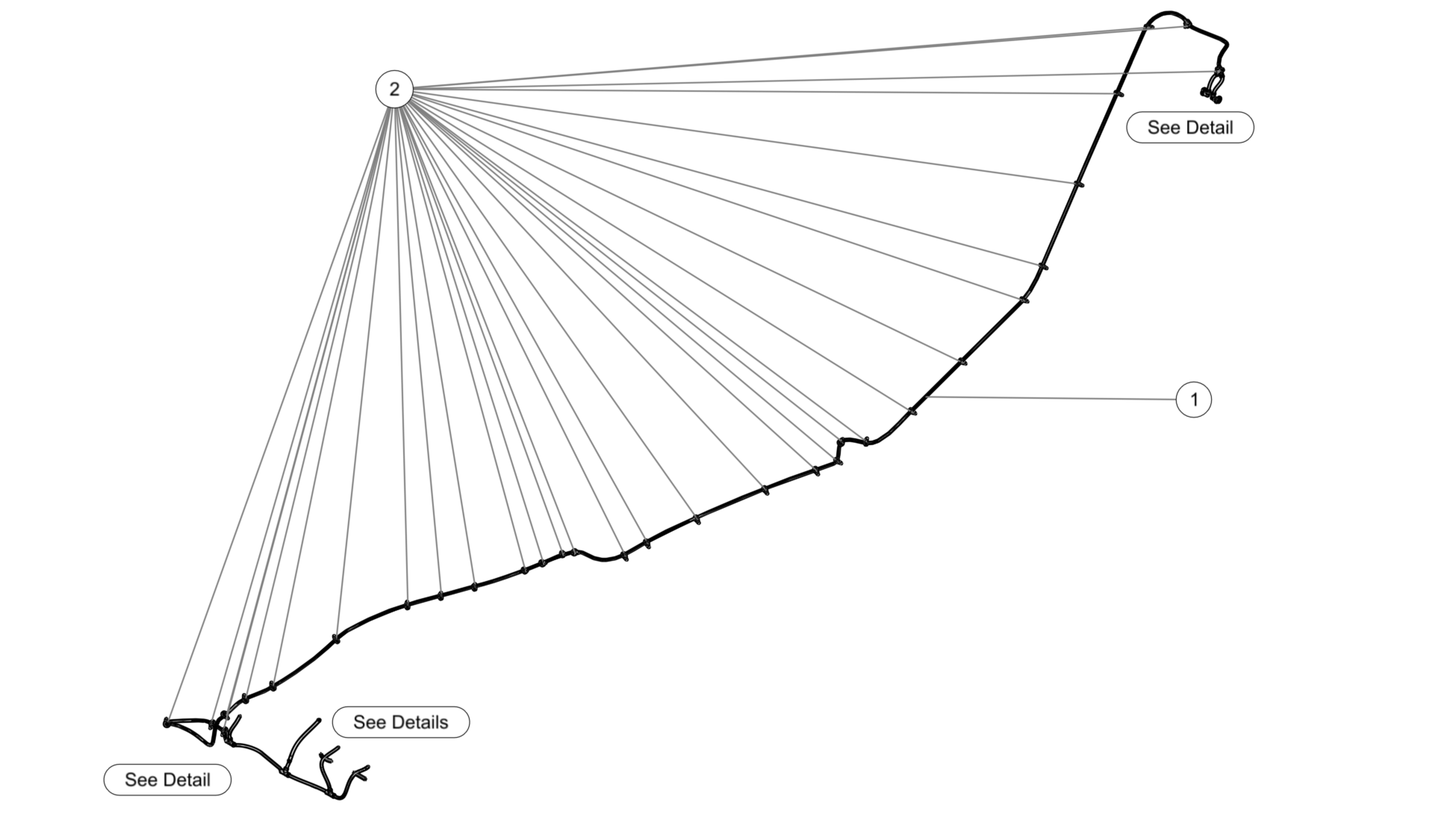

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 33N | TUBING, NYLON 11, NYLO-SEAL, .137 X .188, NATURAL | 351 | Inches | |
2 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP | 31 | Each |

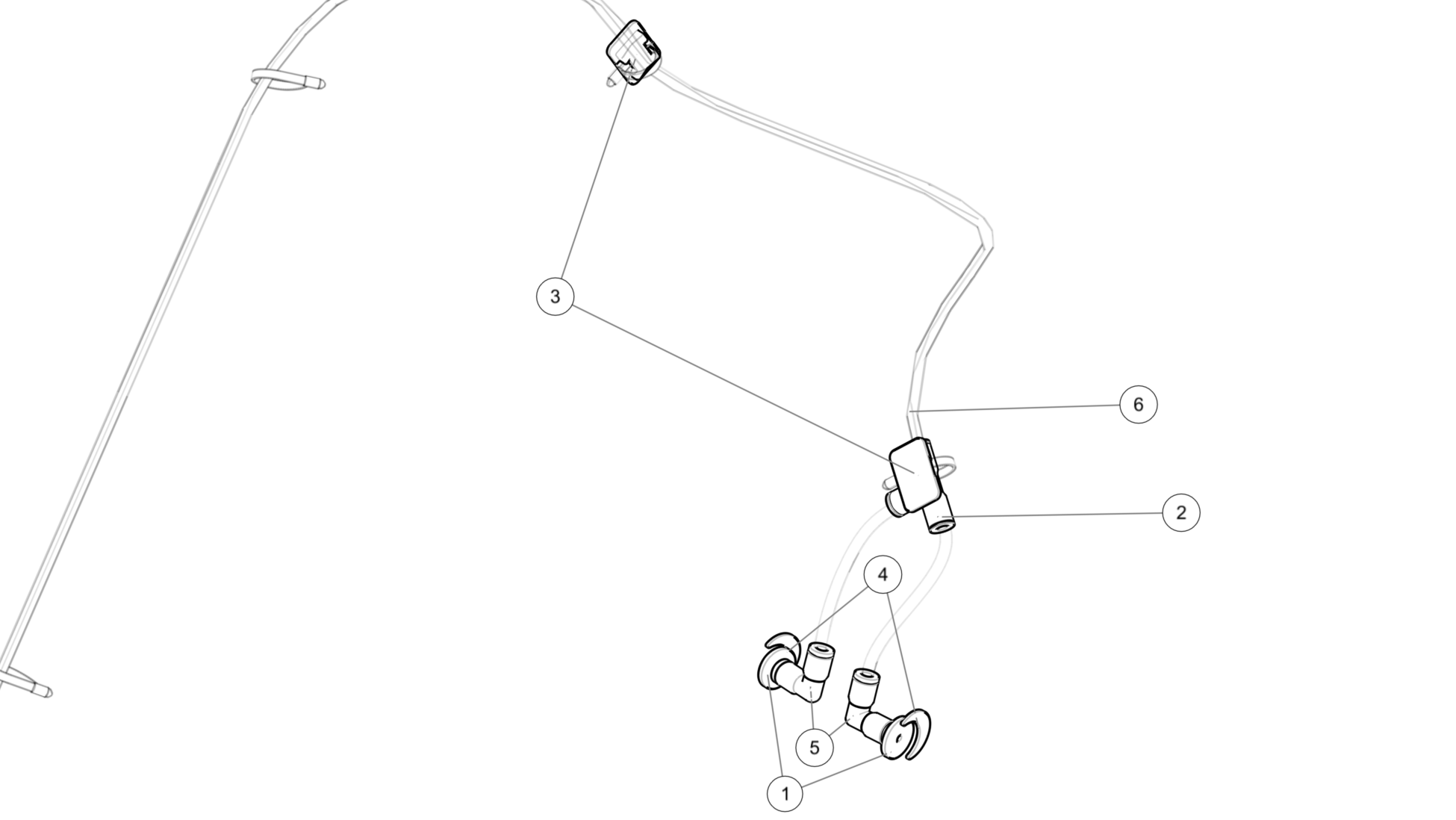

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011593 | PORT, MOUNT, .188 | 2 | Each | |
2 | ICA011589 | CONNECTOR, PUSH-ON, T-UNION, .188 | 1 | Each | |
3 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 2 | Each | |
4 | ME000643 | PAINTED, TUNER, STATIC PORT | 2 | Each | |
5 | ICA011590 | CONNECTOR, PUSH-ON, ELBOW, .188 | 2 | Each | |
6 | ME000610 | LABEL, STATIC | 1 | Each | Represents location of ME000610 |

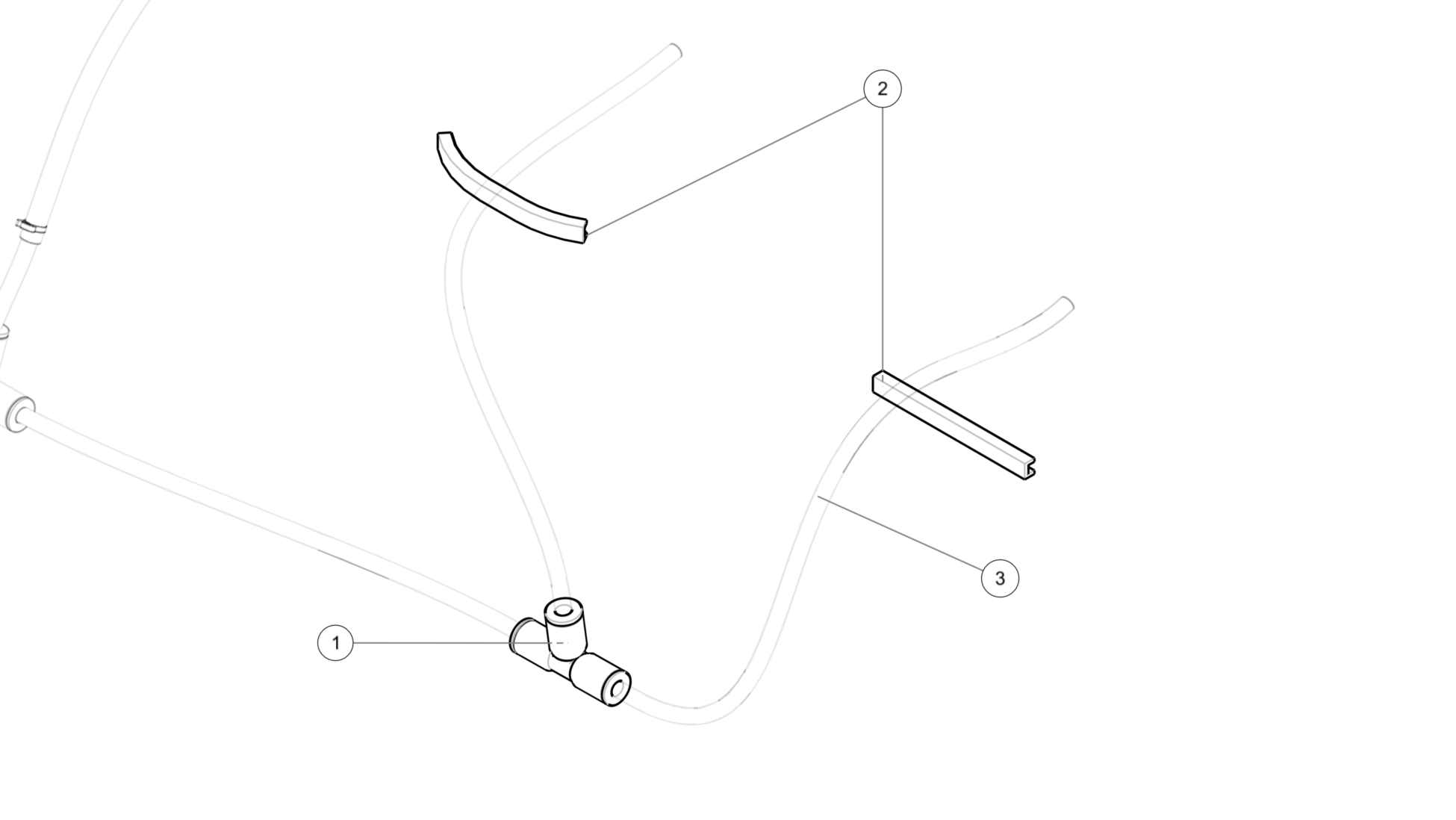

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011589 | CONNECTOR, PUSH-ON, T-UNION, .188 | 1 | Each | |
2 | MS21266-3N | GROMMET, PLASTIC, EDGING, .131X.220 | 2 | Each | |
3 | ME000610 | LABEL, STATIC | 1 | Each | Represents location of ME000610 |

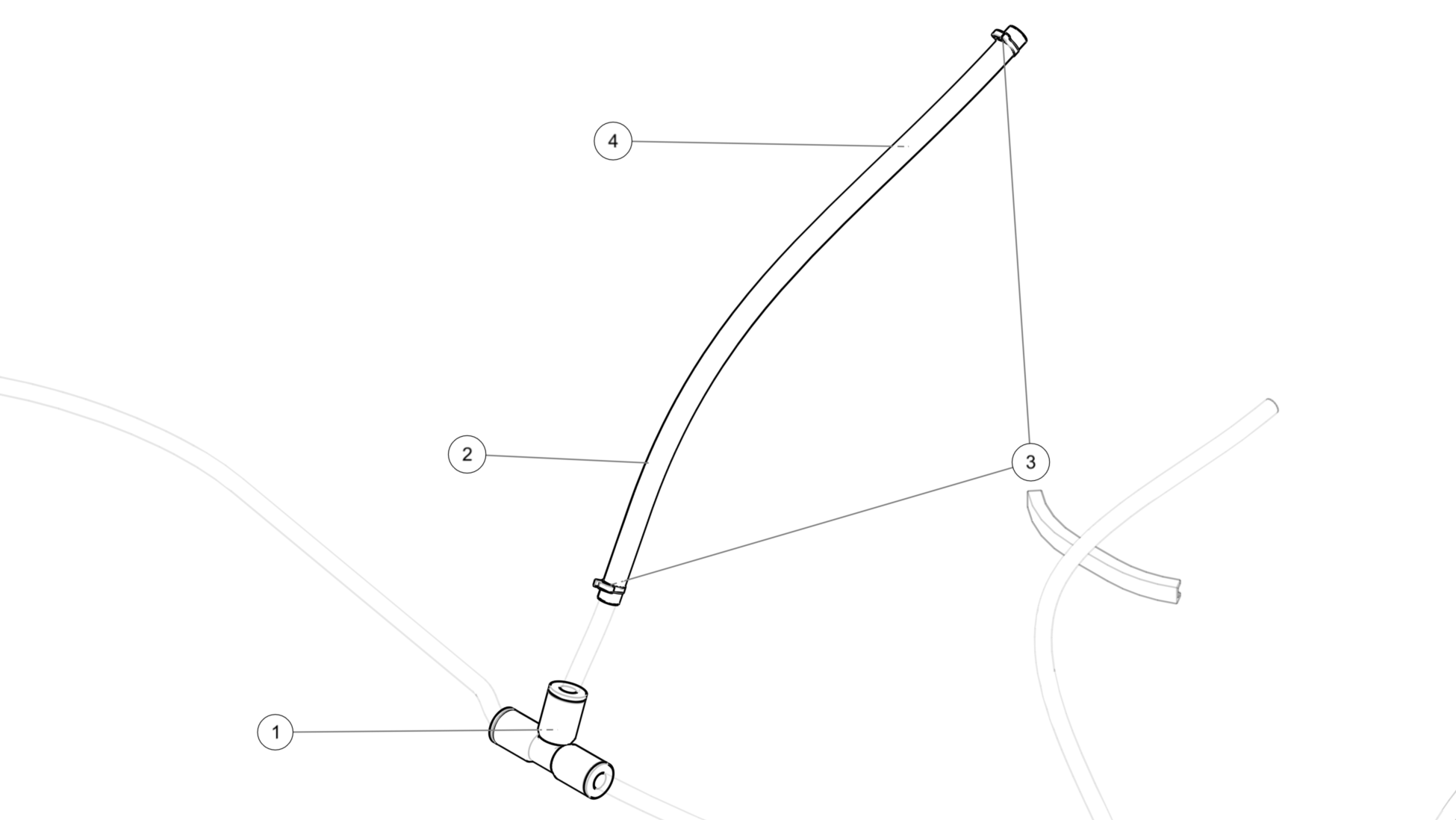

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011589 | CONNECTOR, PUSH-ON, T-UNION, .188 | 1 | Each | |
2 | 8349T18 | TUBING, PVC, TYGON, .25ODX.188ID, ULTRA-CLEAR | 12 | Inches | |
3 | 9579K61 | CLAMP, SNAP-GRIP, NYLON, HOSE .219-.25ID | 2 | Each | |
4 | ME000610 | LABEL, STATIC | 1 | Each | Represents location of ME000610 |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011589 | CONNECTOR, PUSH-ON, T-UNION, .188 | 1 | Each | |
2 | ME000610 | LABEL, STATIC | 1 | Each | Represents location of ME000610 |
