Instruments, Pitot Installation
100897-00
Pitot installation.

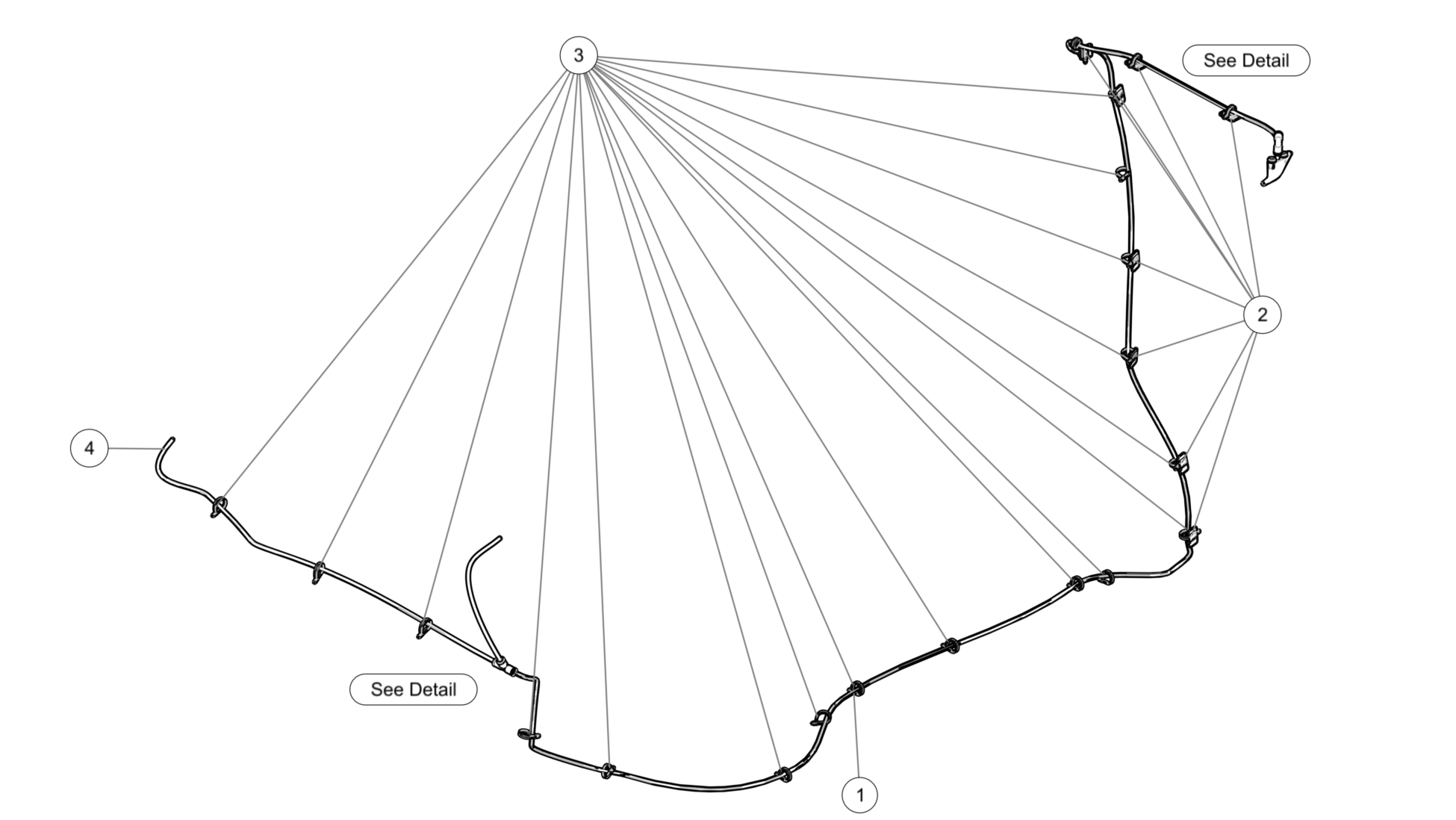

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 33N | TUBING, NYLON 11, NYLO-SEAL, .137 X .188, NATURAL | 174 | Inches | |
2 | CB9120V5 | MOUNT, CABLE TIE ANCHOR | 8 | Each | |
3 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP .75 DIA | 17 | Each | |
4 | ME000609 | LABEL, PITOT | 1 | Each | Represents location of ME000609 |

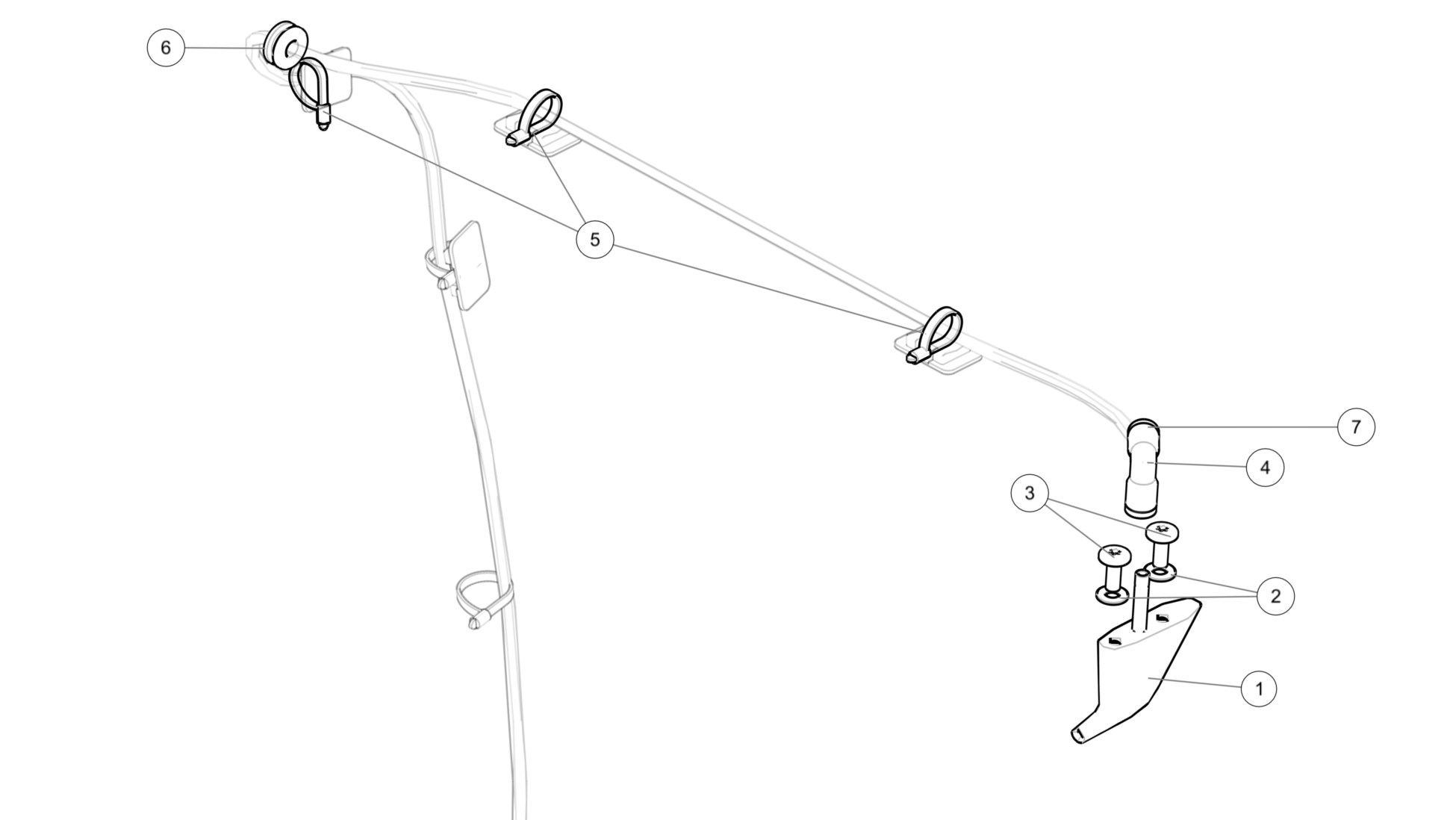

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000729 | PITOT TUBE SUBASSY | 1 | Each | |
2 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 2 | Each | |
3 | 10F50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 10-32X.500 | 2 | Each | |
4 | ICA011590 | CONNECTOR, PUSH-ON, ELBOW, .188 | 1 | Each | |
5 | TY24MX | CABLE-TIE, NYLON 6-6, 30LB, 5.50, TY-RAP .5 DIA | 3 | Each | |
6 | MS35489-35 | GROMMET, SYNTH RBR, .250X.438X.625X.125 | 1 | Each | |
7 | ME000609 | LABEL, PITOT | 1 | Each | Represents location of ME000609 |

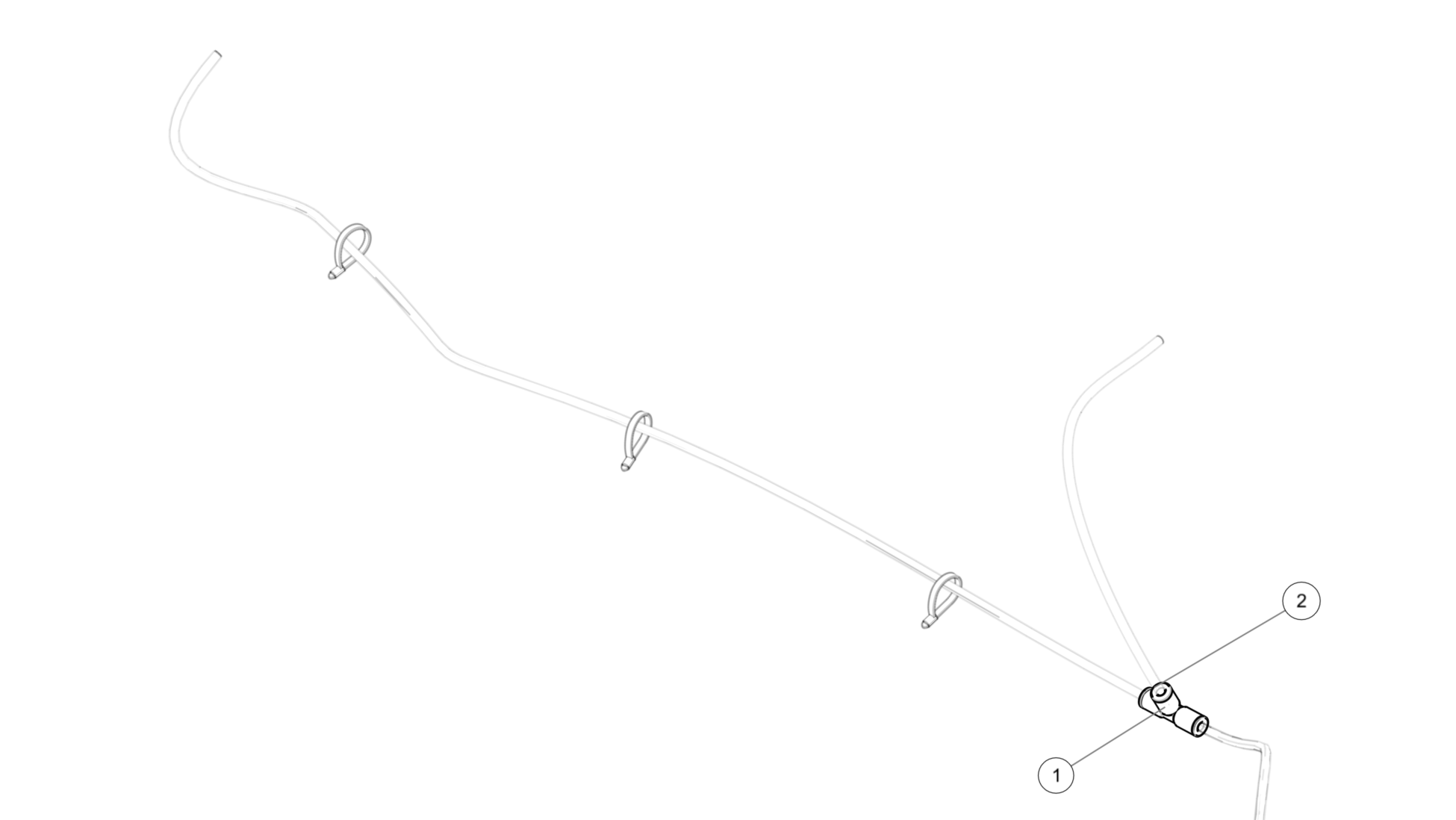

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011589 | CONNECTOR, PUSH-ON, T-UNION, .188 | 1 | Each | |
2 | ME000609 | LABEL, PITOT | 1 | Each | Represents location of ME000609 |
