Electrical, Center Stack
100910-00

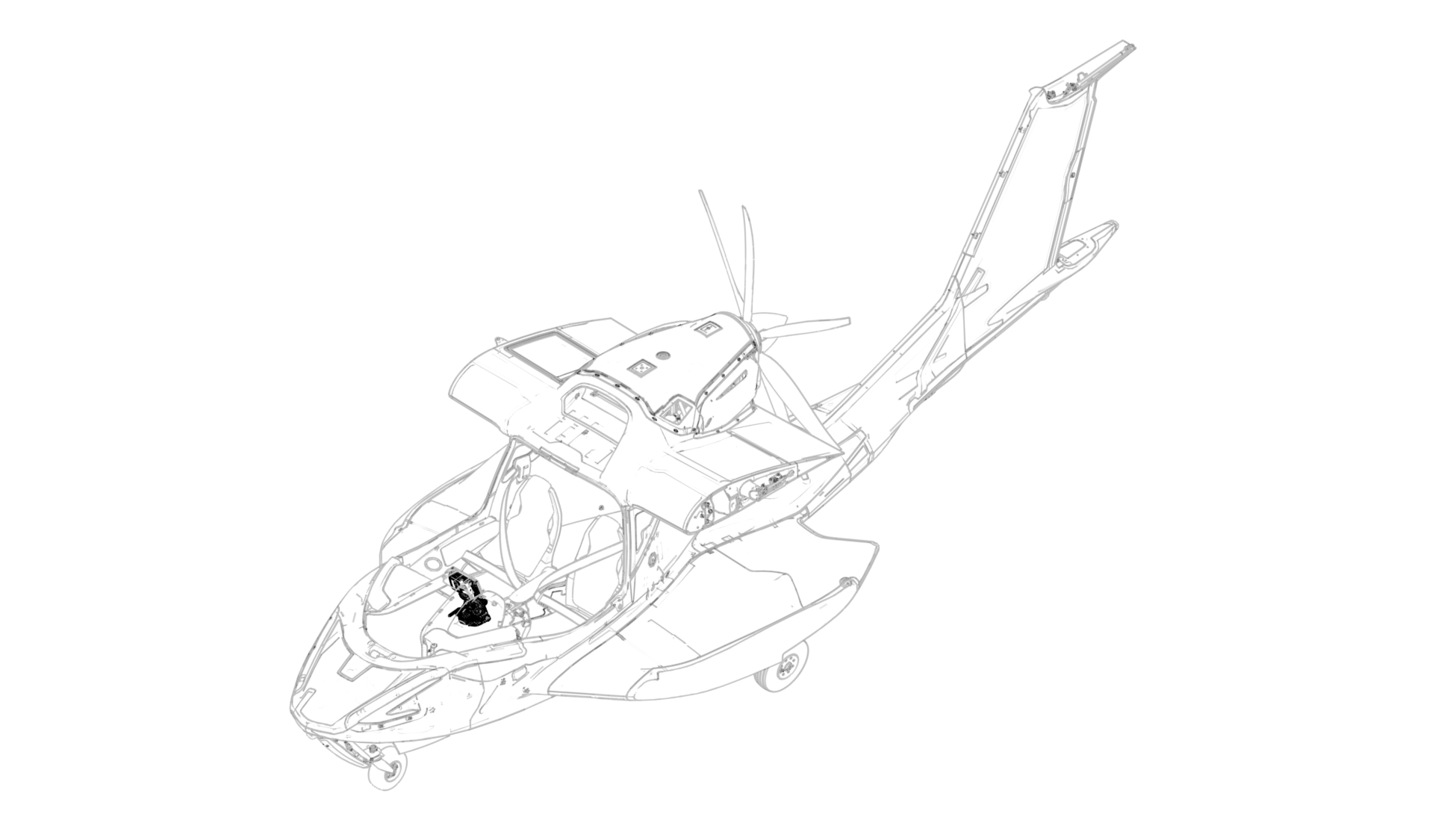

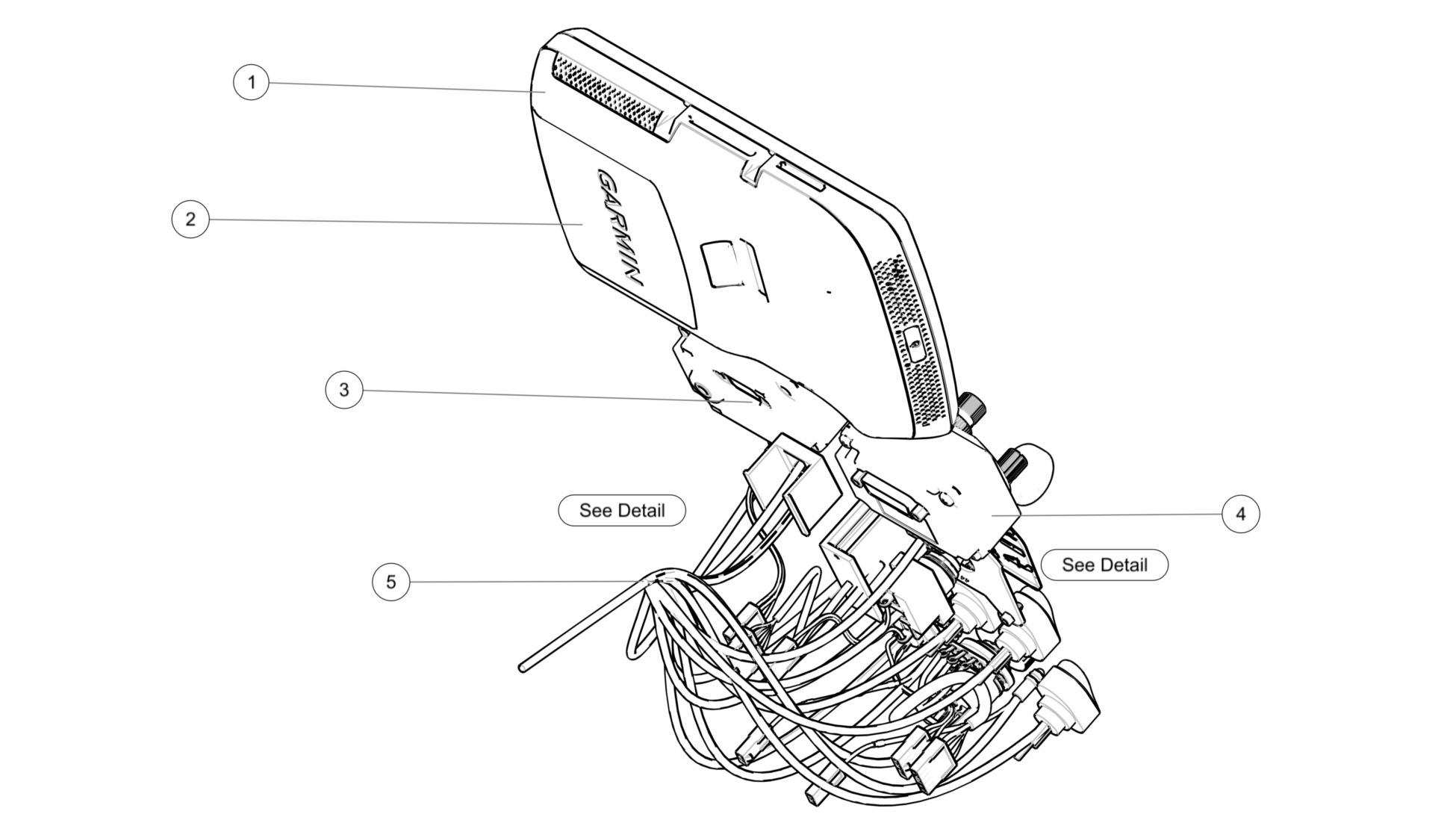

Center Stack electrical installation. 796 configuration shown.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011470 | GPS UNIT ASSY, GARMIN, AERA 796 | 1 | Each | |
2 | ICA012341 | BATTERY, LI-ION, GARMIN | 1 | Each | |
3 | 00649-00 | TRANSPONDER RADIO CONTROL UNIT, TC20 | 1 | Each | |
4 | 00857-00-01 | VHF RADIO CONTROL UNIT, TC90 | 1 | Each | |
5 | ICA008159 | WIRE HARNESS, CENTER STACK | 1 | Each |

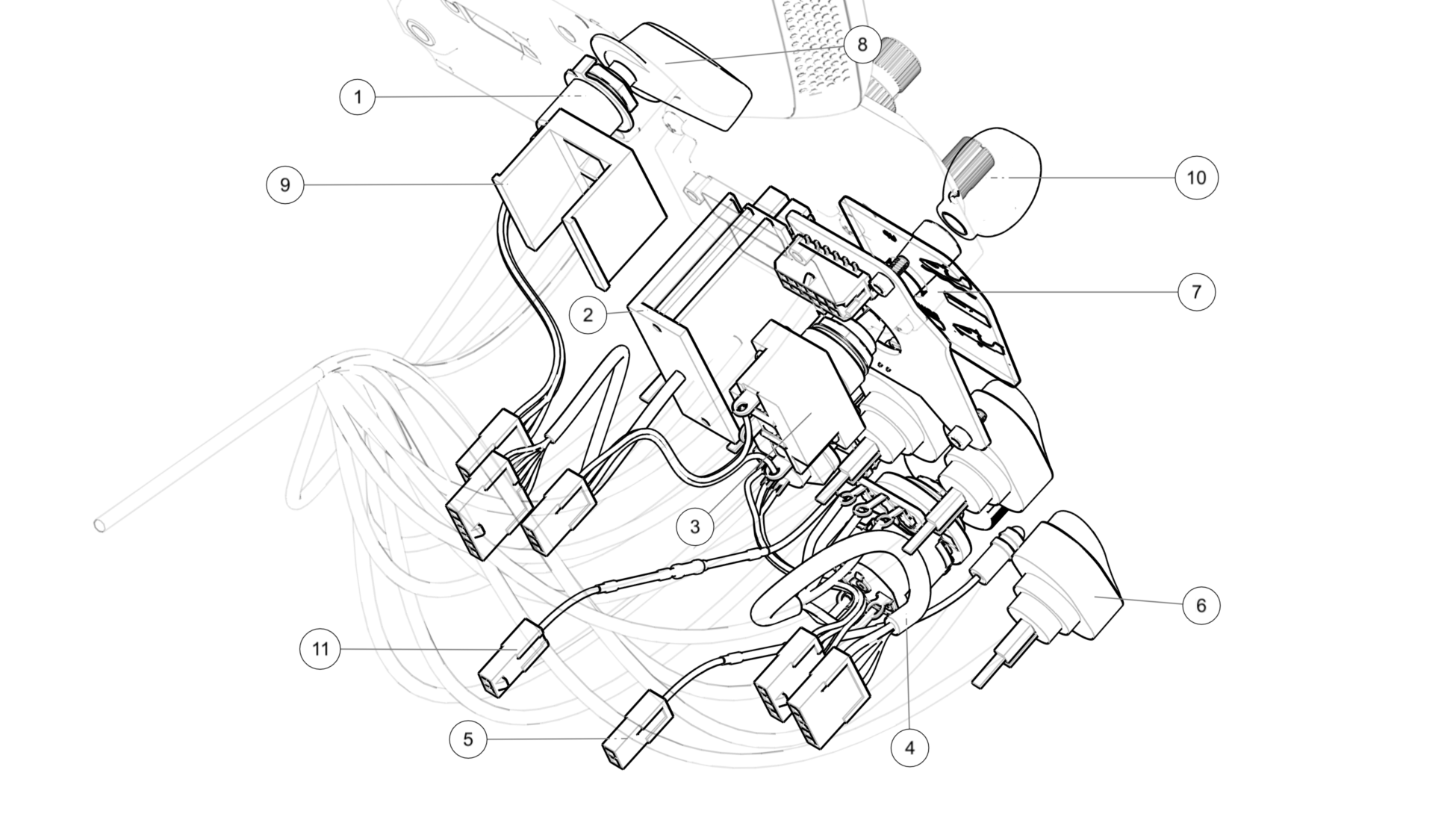

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA005940 | SWITCH, FLAP | 1 | Each | |
2 | ICA003958 | INDICATOR, TRIM POSITION | 1 | Each | |
3 | ICA005939 | SWITCH, SPDT, LANDING GEAR | 1 | Each | |
4 | ICA015379 | POTENTIOMETER, HEATER KNOB, 320 DEG | 1 | Each | |
5 | ICA009655 | LED, ORNG, REAR PNL MNT, 3MM, LH | 1 | Each | |
6 | R13-133A-01 | SWITCH, SPST, 30A | 1 | Each | |
7 | ICA009187 | GRAPHIC OVERLAY, LANDING GEAR POSITION | 1 | Each | |
8 | ICA007742 | KNOB, SWITCH, FLAP SELECTOR | 1 | Each | |
9 | SJTC02000 | TERMINAL BLOCK, MOUNTING TRACK, 2 UNIT, COMPOSITE | 1 | Each | |
10 | ICA007743 | KNOB, SWITCH, LANDING GEAR | 1 | Each | |
11 | ICA009654 | LED, ORNG, REAR PNL MNT, 3MM, RH | 1 | Each |

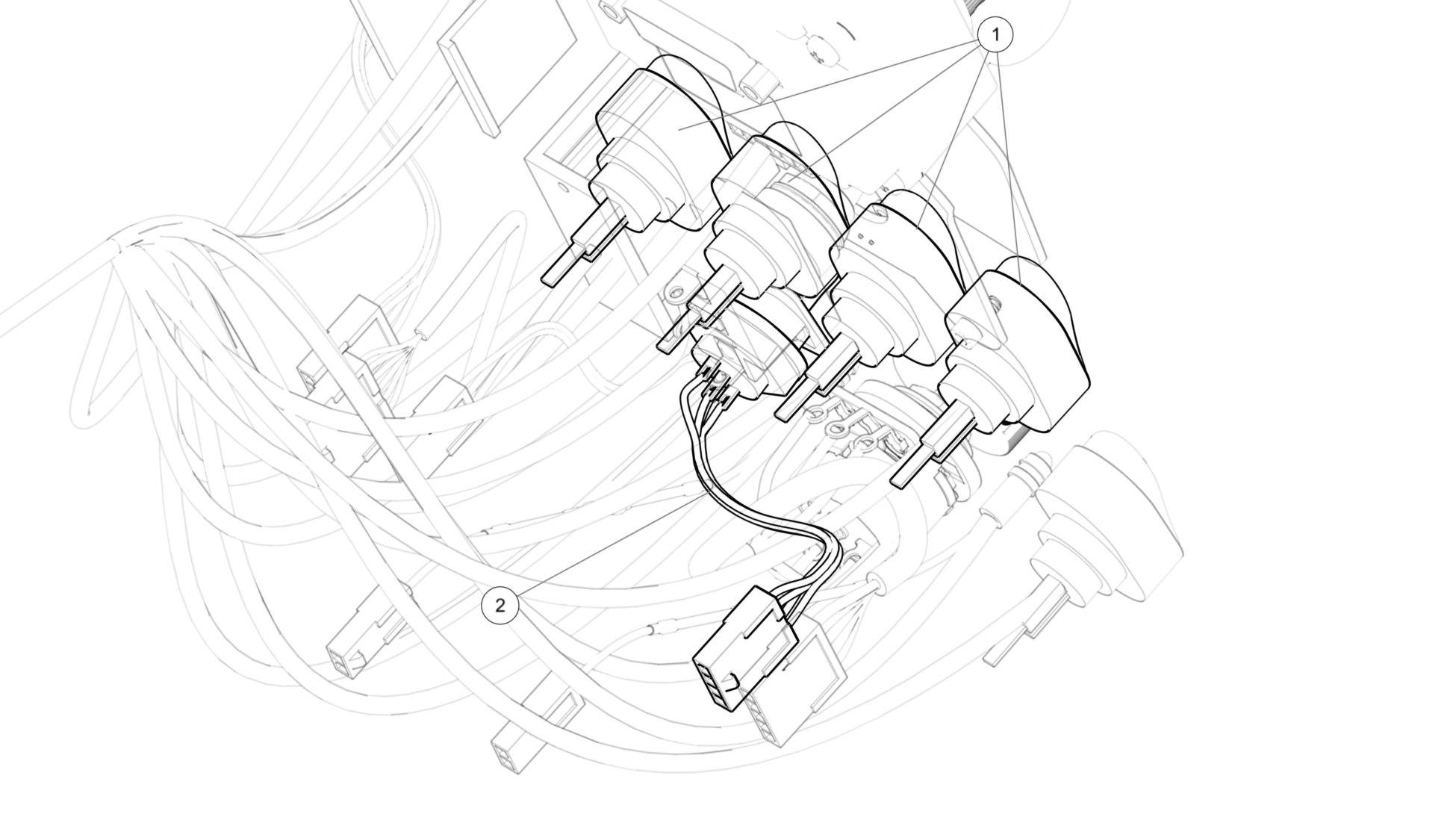

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | R13-133A-01 | SWITCH, SPST, 30A | 4 | Each | |
2 | ICA007533 | SWITCH, 2P SPDT | 1 | Each |

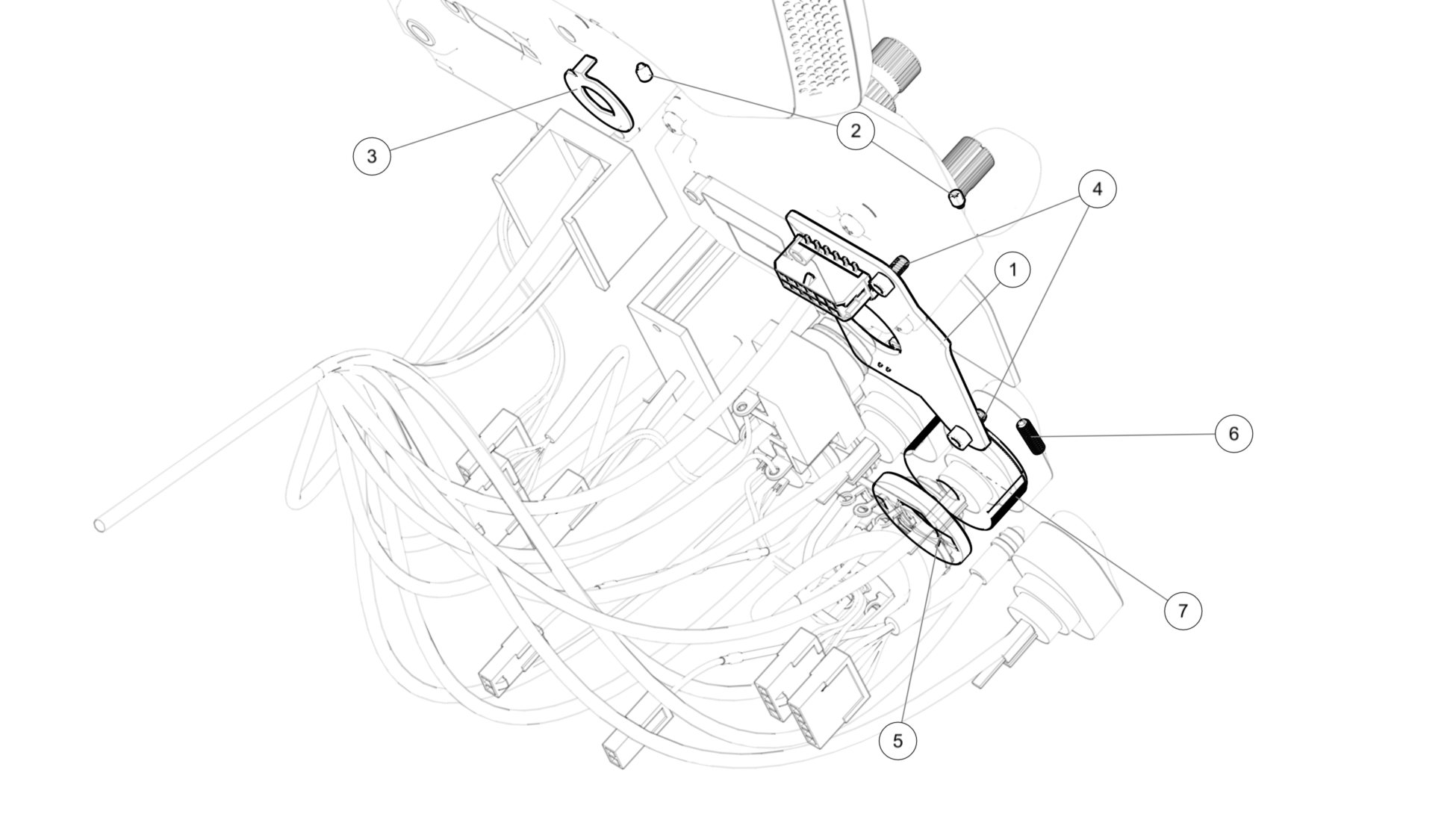

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA011040 | INDICATOR, LANDING GEAR POSITION | 1 | Each | |
2 | 90291A103 | SET SCREW, 4-40X.125, SOFT-TIP | 2 | Each | |
3 | 50J5140-4 | WASHER, NON-TURN, K STYLE | 1 | Each | |
4 | MS16995-9 | SCREW, CAP HD, SCH-HEX, CRES, 4-40X.250 | 2 | Each | |
5 | ICA015381 | SPACER, POTENTIOMETER, HEATER KNOB | 1 | Each | |
6 | ICA015453 | SET SCREW, HEX, CUP-POINT, BLACK OXIDE STEEL, #4-40 X .375 | 1 | Each | |
7 | ICA015380 | KNOB, SWITCH, 320 DEG, HEATER | 1 | Each |
