Equipment and Furnishings, Interior Finishing
100923-00

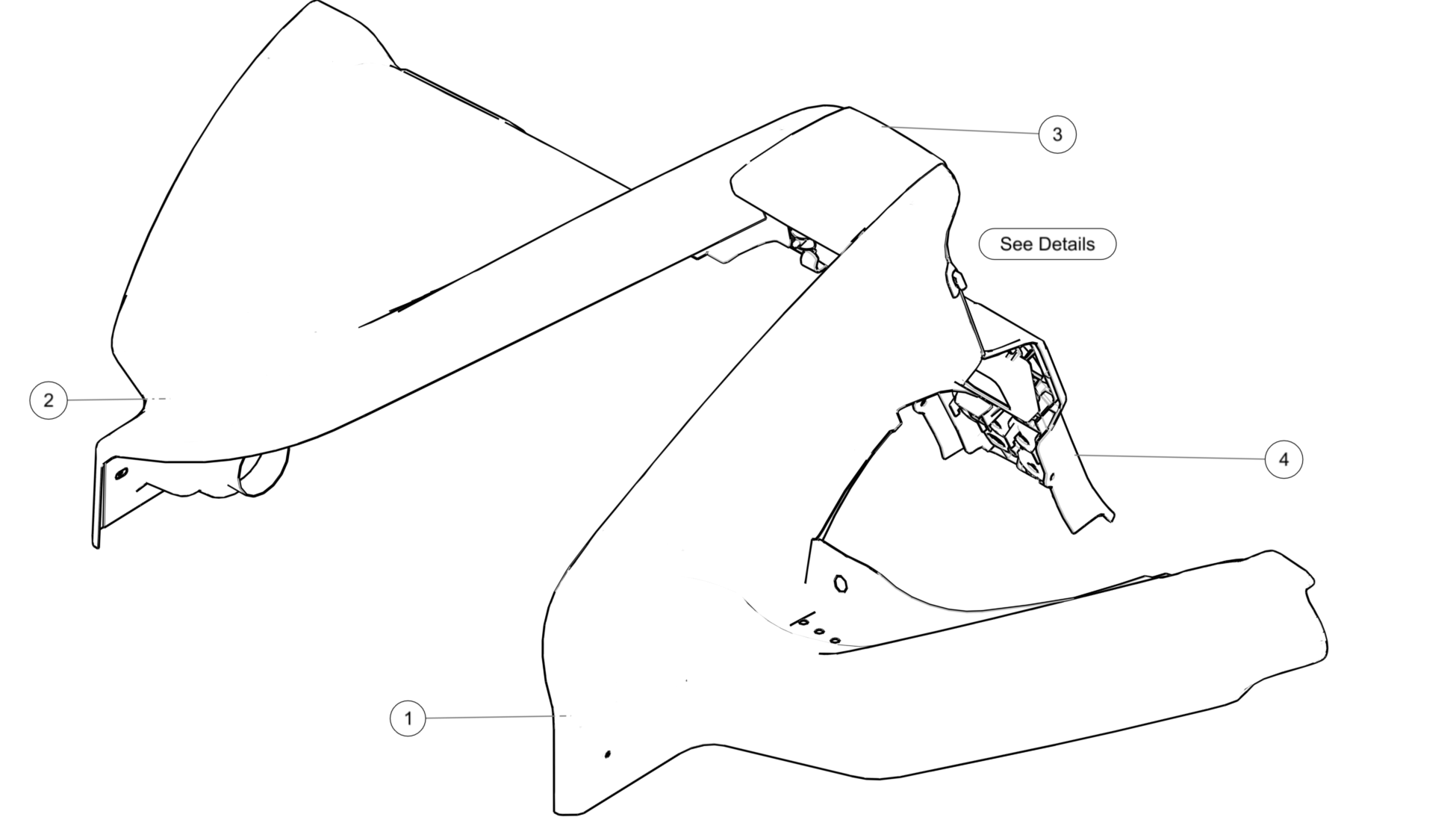

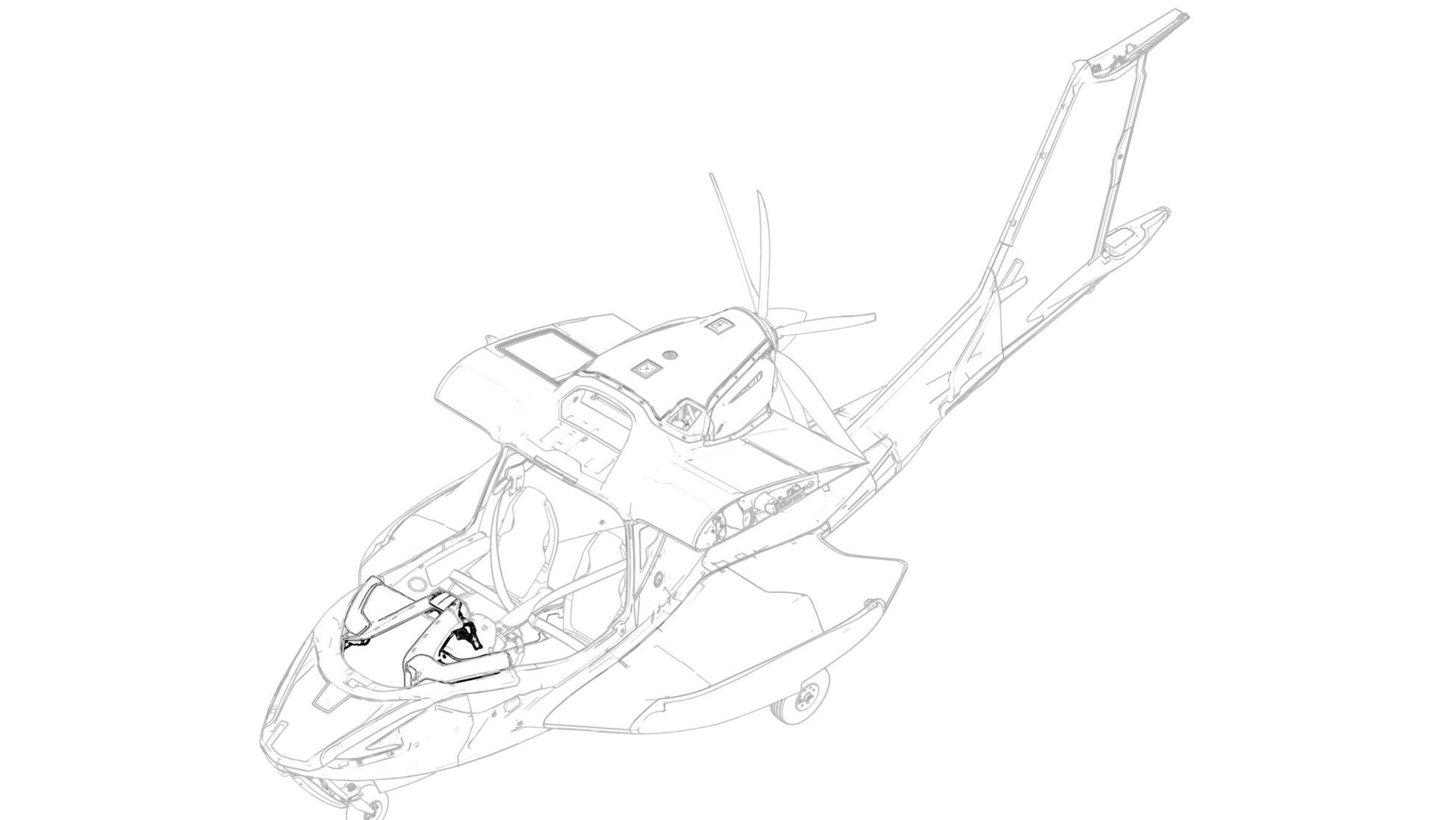

Interior Furnishings in Equipment and Furnishings. 796 configuration shown.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000867 | PRIMED & PAINTED IP TOP PANEL, LH | 1 | Each | |
2 | ME000869 | PRIMED & PAINTED IP TOP PANEL, RH | 1 | Each | |
3 | ME000557 | PAINTED, HANDHOLD, CENTER IP | 1 | Each | |
4 | ME000622-NS796 | BEZEL PAD PRINTED ASSY, CENTER STACK | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA007919 | BRACKET, RADIO | 1 | Each | |
2 | ICA008105 | MOUNTING MODULE, GARMIN GPS | 1 | Each | |
3 | ICA007320 | BUTTON, GPS MOUNT | 1 | Each |

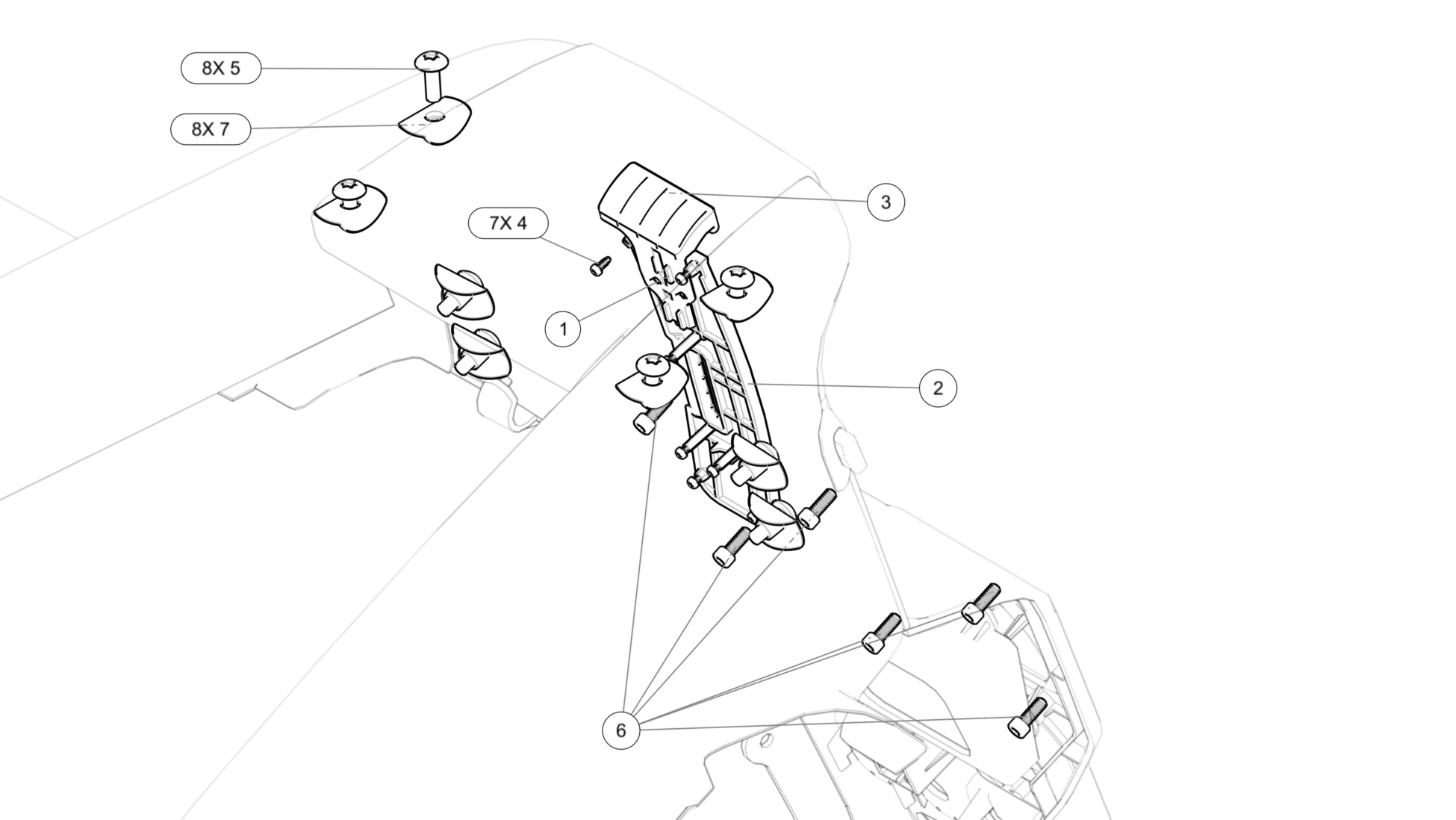

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ICA012344 | SPRING, MOUNTING MODULE, GARMIN GPS | 1 | Each | |
2 | ICA008106 | COVER, MOUNTING MODULE, GARMIN GPS | 1 | Each | |
3 | ICA012343 | CLIP, GARMIN | 1 | Each | |
4 | ICA012474 | SCREW, TORX, PAN HEAD, M2X5MM | 7 | Each | |
5 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 8 | Each | |
6 | 6C37KCS3O | SCREW, MACH SHCS, 6LOBE, CRES BLACK. 6-32X.375 | 6 | Each | |
7 | CN609CR08P | NUT PLATE, TWO LUG, ADH BND, 8-32 | 8 | Each |
