Elevator, Control Surface
100841-00

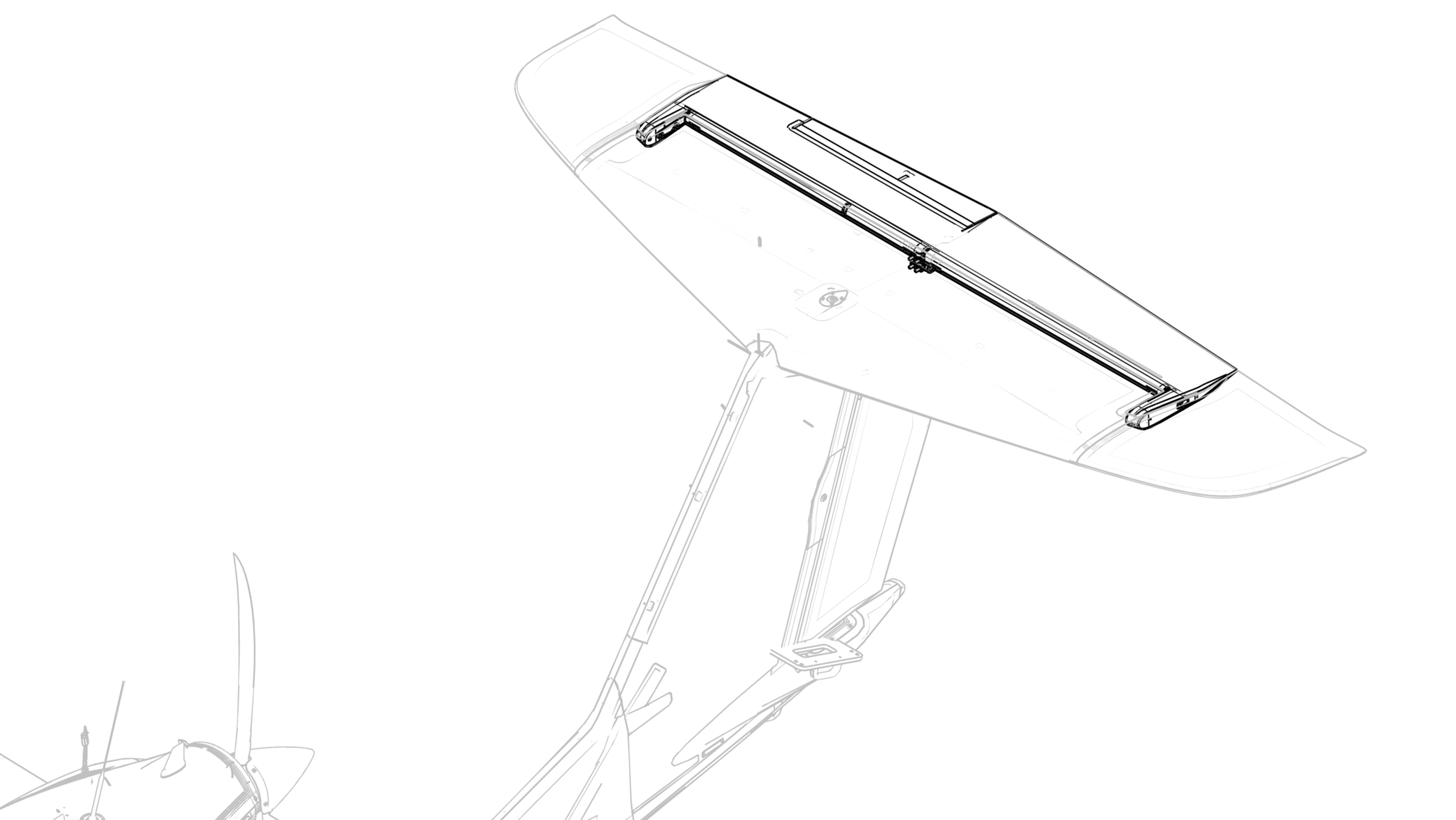

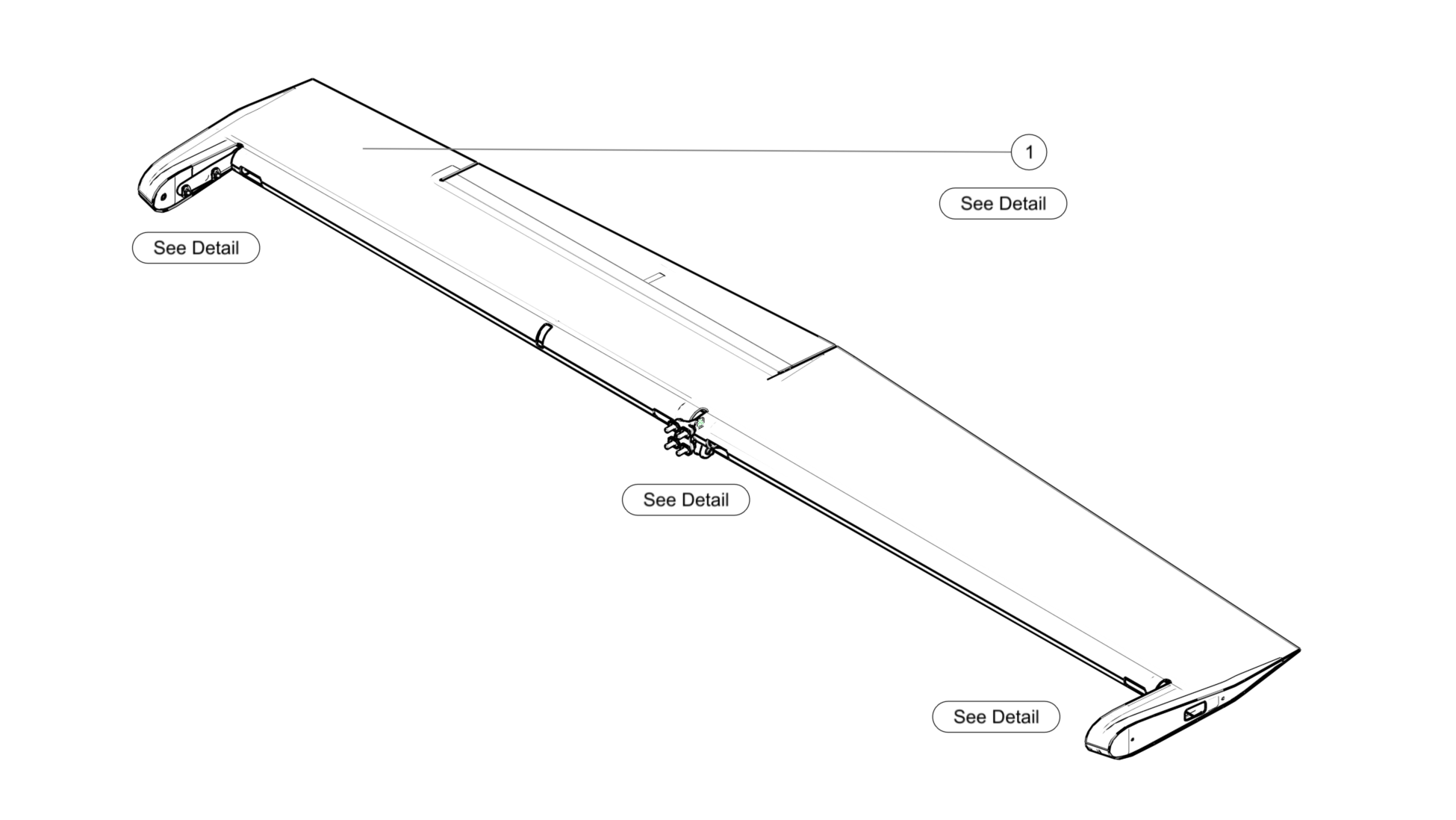

Control surface installation into the elevator.
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|

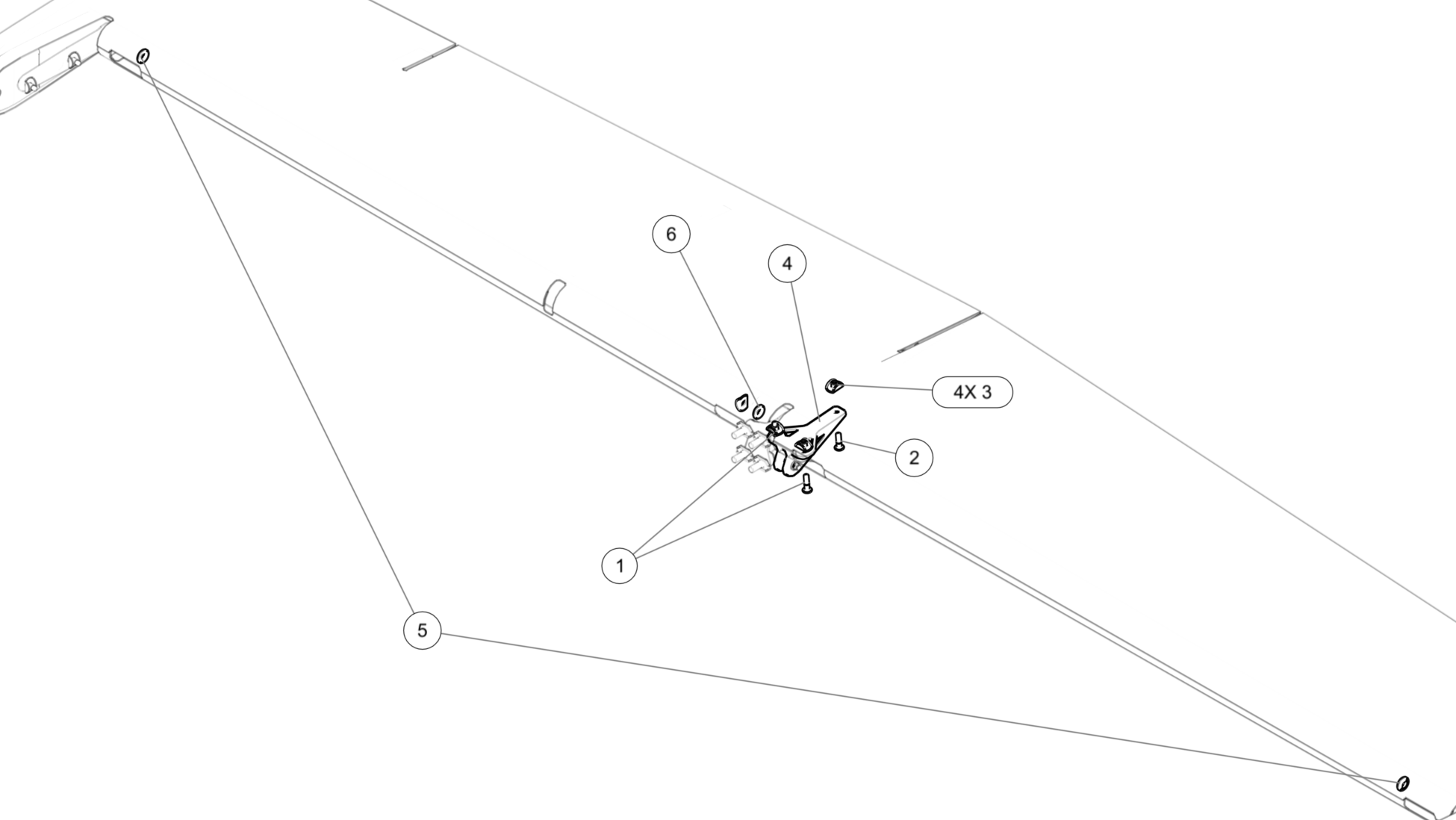

1 | ME000945 | ELEVATOR BONDED ASSY | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | MS24694-C55 | SCREW, MACH, FLAT CSK HD, 10-32 X .844 X .375 | 2 | Each | Included in ME000945 |
2 | MS24694C54 | SCREW, MACH FLH, 6LOBE, CRES, 10-32 X .750 X .313 | 1 | Each | Included in ME000945 |
3 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 4 | Each | Included in ME000945 |
4 | ICA001860 | CONTROL HORN, ELEVATOR | 1 | Each | Included in ME000945 |
5 | ICA009413 | BUSHING, FLANGED .191X.375X.040 | 2 | Each | Included in ME000945 |
6 | ICA009408 | BUSHING, FLANGED, .191X.375X.070 | 1 | Each | Included in ME000945 |

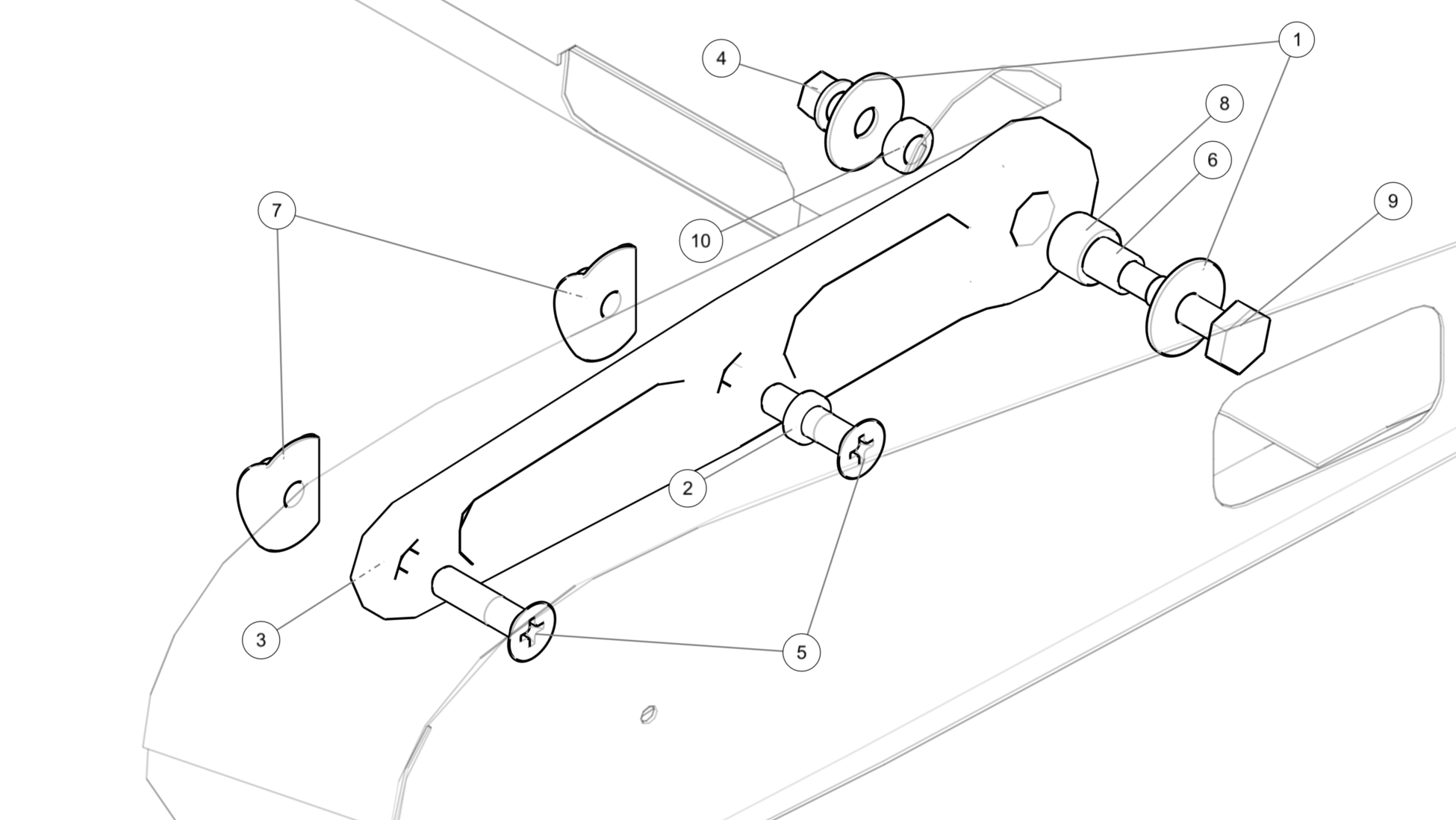

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 92217A439 | WASHER, CRES, .1875X.625X.03 | 2 | Each | |
2 | NAS75C3-003 | BUSHING, PLAIN, CRES, .190X.314X.094 | 1 | Each | |
3 | ICA007240 | HINGE, ELEVATOR, OUTBD | 1 | Each | |
4 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 1 | Each | |
5 | MS24694C54 | SCREW, MACH FLH, 6LOBE, CRES, 10-32 X .750 X .313 | 2 | Each | |
6 | ICA008532 | BUSHING, .191X.250X.435 | 1 | Each | |
7 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 2 | Each | |
8 | M81934/1-04C008 | BEARING, SLEEVE, PLAIN, SLFLBR, CRES, .250X.250 | 1 | Each | |
9 | AN3C10A | BOLT, MACH, CRES, 10-32X.625 | 1 | Each | |
10 | NAS75C3-004 | BUSHING, PLAIN, CRES, .190X.3136X.125 | 1 | Each |

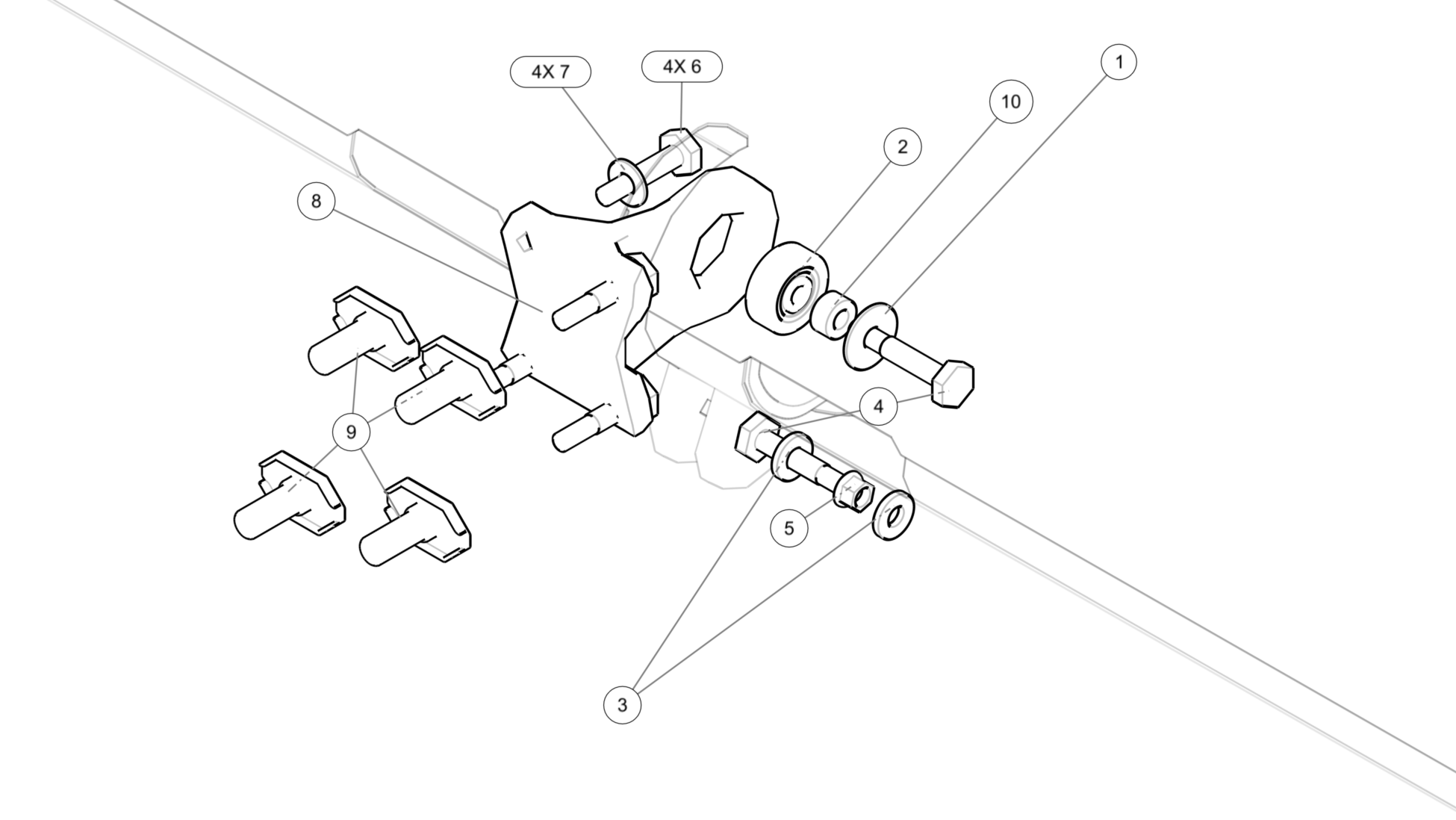

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 92217A439 | WASHER, CRES, .1875X.625X.03 | 1 | Each | |
2 | MS27640-3 | BEARING, BALL, AFR AFB, HD, .190X.777X.297 | 1 | Each | |
3 | NAS1149C0363R | WASHER, FLAT, CRES, .188X.063, PSVT | 2 | Each | |
4 | AN3C11A | BOLT, MACH, CRES, 10-32X.750 | 2 | Each | |
5 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 1 | Each | |
6 | AN3C7A | BOLT, MACH, CRES, 10-32X.500 | 4 | Each | |
7 | NAS1149C0332R | WASHER, FLAT, CRES, .203X.032, PSVT | 4 | Each | |
8 | ICA012919 | HINGE, ELEVATOR, CNTR | 1 | Each | |
9 | CN610CR3P | NUT PLATE, FLTG, SEALED, CRES, .190-32X.687 | 4 | Each | |
10 | ICA009409 | BUSHING, PLAIN, .191X.375X.188 | 1 | Each |
Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 92217A439 | WASHER, CRES, .1875X.625X.03 | 2 | Each | |
2 | NAS75C3-003 | BUSHING, PLAIN, CRES, .190X.314X.094 | 1 | Each | |
3 | ICA007240 | HINGE, ELEVATOR, OUTBD | 1 | Each | |
4 | MS21043-3 | NUT, SLFLKG, RDC HEX, CRES, 10-32 | 1 | Each | |
5 | MS24694C54 | SCREW, MACH FLH, 6LOBE, CRES, 10-32 X .750 X .313 | 2 | Each | |
6 | ICA008532 | BUSHING, .191X.250X.435 | 1 | Each | |
7 | CN609CR3P | NUT PLATE, TWO LUG, ADH BND, .190-32 | 2 | Each | |
8 | M81934/1-04C008 | BEARING, SLEEVE, PLAIN, SLFLBR, CRES, .250X.250 | 1 | Each | |
9 | AN3C10A | BOLT, MACH, CRES, 10-32X.625 | 1 | Each | |
10 | NAS75C3-004 | BUSHING, PLAIN, CRES, .190X.3136X.125 | 1 | Each |
