Equipment and Furnishings, Cushion
100921-00

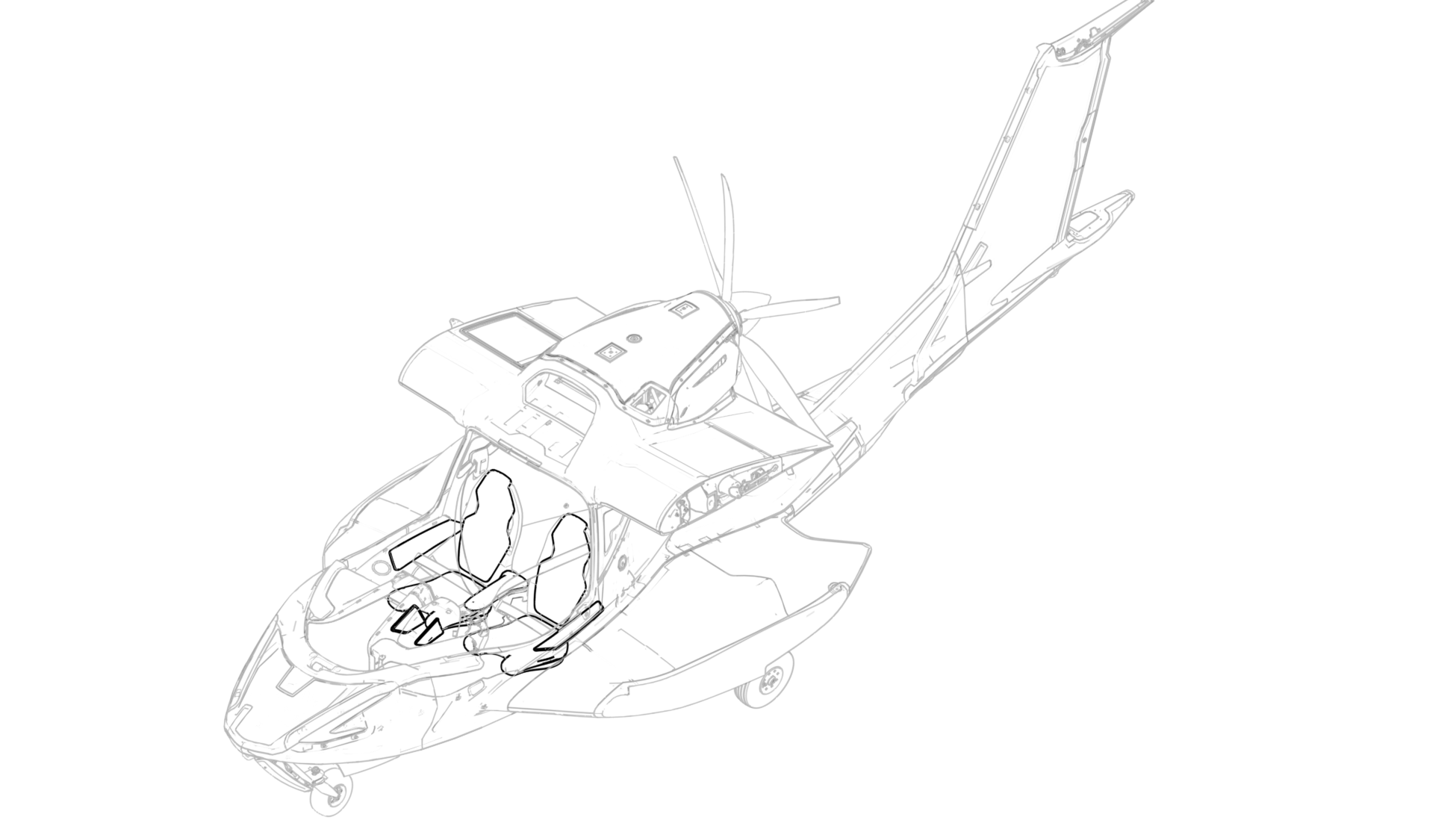

Cushion installation for Equipment and Furnishings.

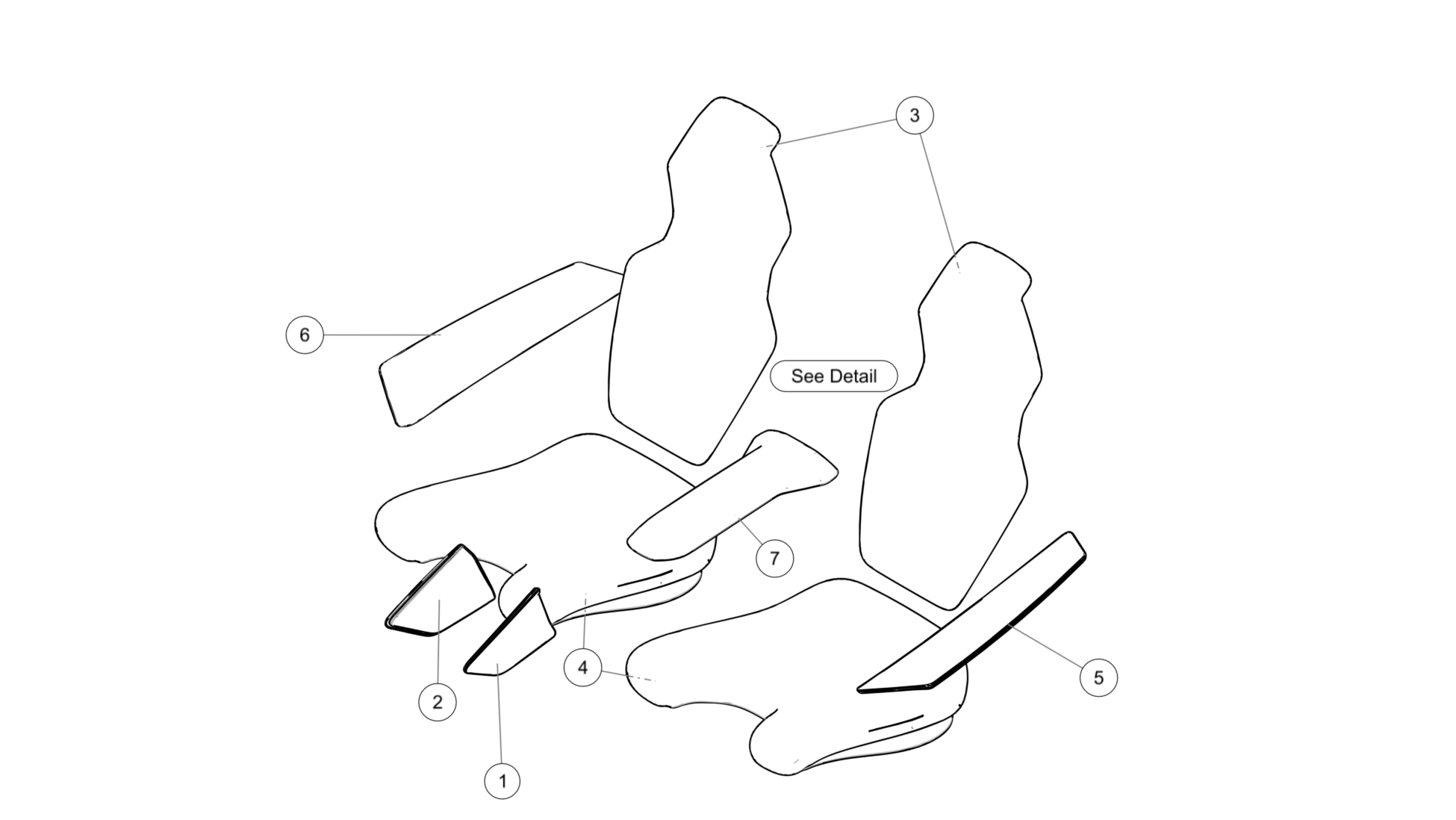

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | ME000943 | CUSHION, LH KNEEPAD, SUBASSY | 9 | Each | Includes 9 inches of 190984 VELCRO, PSA, LOOP, 1.0 and 191051 VELCRO, PSA, HOOK, 1.0 |
2 | ME000944 | CUSHION, RH KNEEPAD, SUBASSY | 1 | Each | Includes 27 inches of 190984 VELCRO, PSA, LOOP, 1.0 and 191051 VELCRO, PSA, HOOK, 1.0 |
3 | ME000941 | CUSHION, SEATBACK, SUBASSY | 2 | Each | Includes 42 inches of 190984 VELCRO, PSA, LOOP, 1.0 and 191051 VELCRO, PSA, HOOK, 1.0 |
4 | ME000942 | CUSHION, SEAT PAN, SUBASSY | 2 | Each | Includes 35 inches of 190984 VELCRO, PSA, LOOP, 1.0 and 191051 VELCRO, PSA, HOOK, 1.0 |
5 | ME000993 | CUSHION, LH ARMREST, SUBASSY | 1 | Each | Includes 9 inches of 190984 VELCRO, PSA, LOOP, 1.0 and 191051 VELCRO, PSA, HOOK, 1.0 |
6 | ME000994 | CUSHION, RH ARMREST, SUBASSY | 1 | Each | Includes 27 inches of 190984 VELCRO, PSA, LOOP, 1.0 and 191051 VELCRO, PSA, HOOK, 1.0 |
7 | ME000639 | ARMREST, CENTER, SUBASSY | 1 | Each | Includes E6-10-416-50 HINGE ASSY, 16.0IN-LB, BLACK (not pictured) |

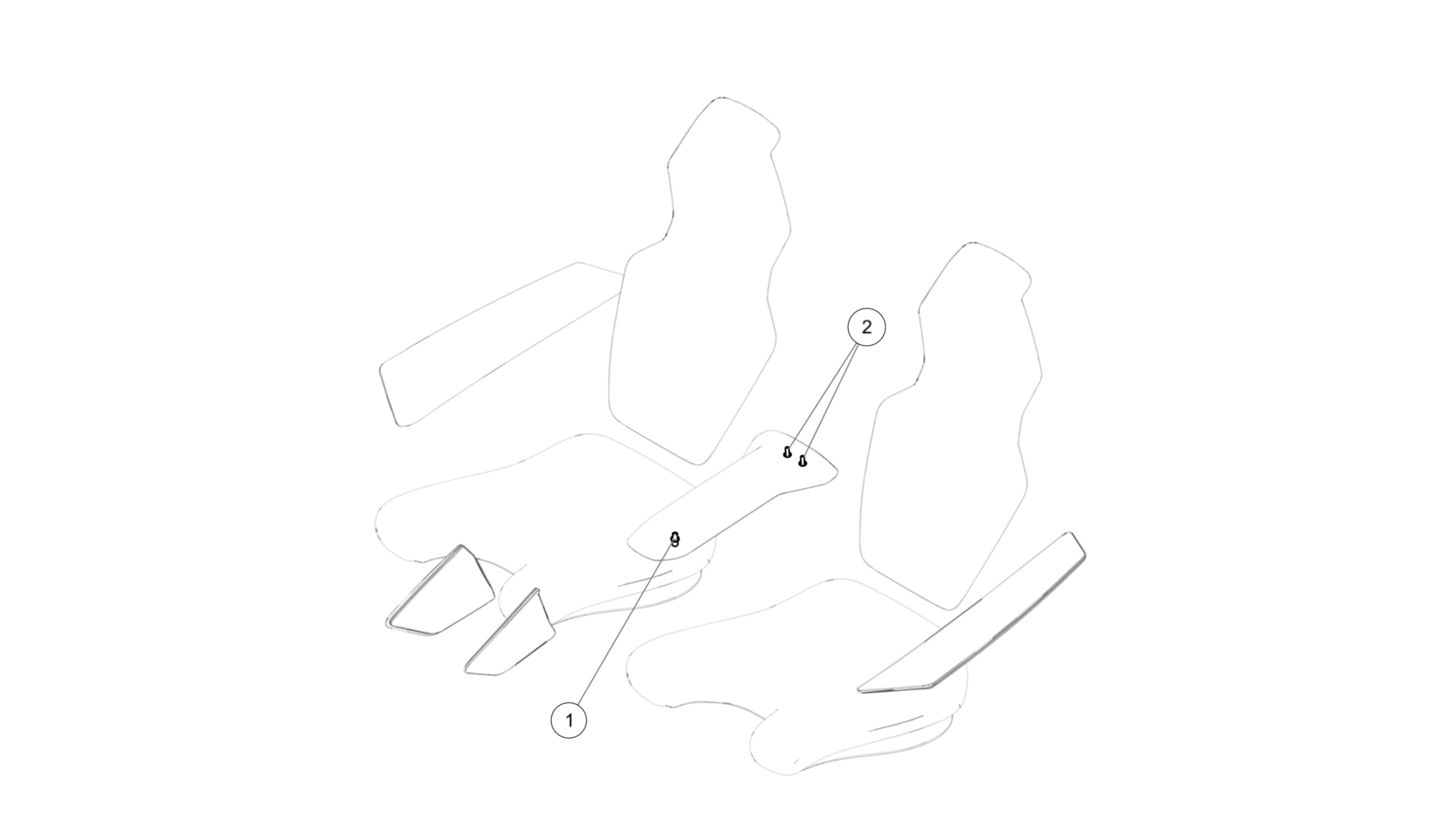

Item | Part Number | Description | Qty | UOM | Remarks |
|---|---|---|---|---|---|
1 | 4030-080-3901-135 | SNAPLOC-STUD, 8MM | 1 | Each | Included in ME000639 |
2 | 8C50MTT3 | SCREW, MACH TRH, 6LOBE, CRES, 8-32X.500 | 2 | Each | Included in ME000639 |
